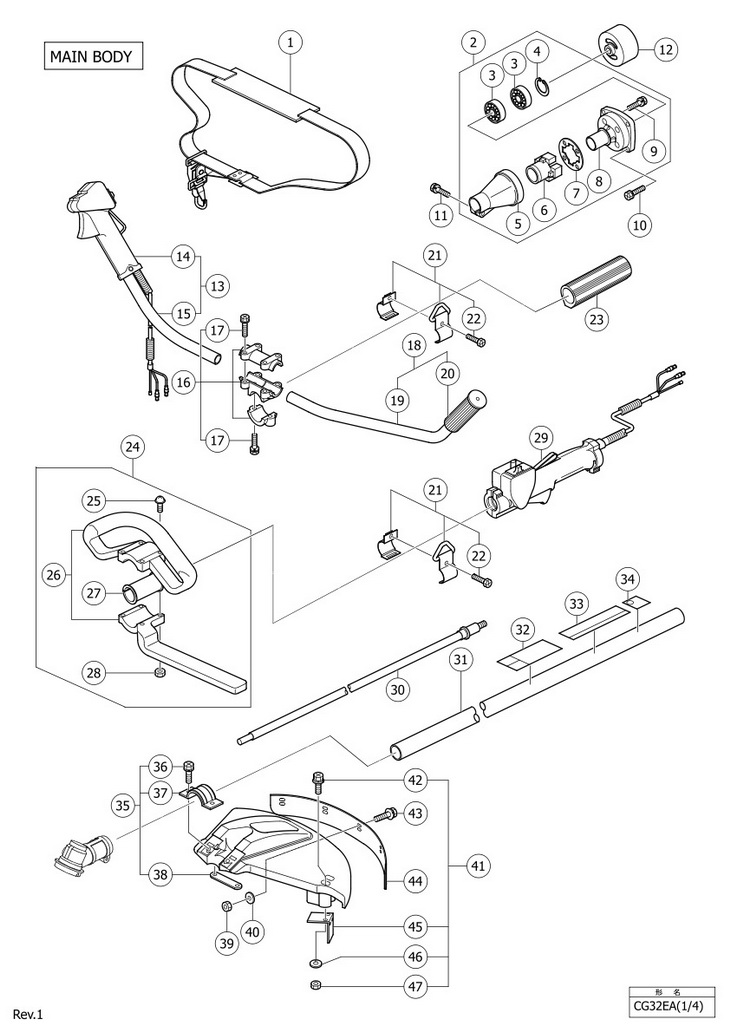

Top » Piese de schimb » PIESE HITACHI » CG32EA CG32EA [CG32EA] Click pentru a mari Imagini suplimentare Click pentru a mari Click pentru a mari Click pentru a mari Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1 1 1 683002 (683002) 12638 RON 2 1 1 683125 (683125) 47646 RON 3 1 2 BALL BEARING 6000 ZZ (683127) 5591 RON 4 1 1 SNAP RING H26 (683128) 2236 RON 5 1 1 DRIVESHAFT TUBE ADAPTER (683132) 13980 RON 6 1 1 BUFFER (683129) 6933 RON 7 1 1 WASHER (683130) 3242 RON 8 1 1 BEARING CASE (683126) 13421 RON 9 1 4 SCREW (W/SP.WASHER) M5 X 15 (683131) 2236 RON 10 1 4 BOLT M5 X 20 WSW (683001) 2236 RON 11 1 1 BOLT M5 X 25 SW (683014) 1229 RON 12 1 1 CLUTCH DRUM (682981) 10960 RON 13 1 1 683140 (683140) 61179 RON 14 1 1 THROTTLE TRIGGER (683142) 54469 RON 15 1 1 HANDLE B D16 R (683141) 6933 RON 16 1 1 683136 (683136) 11743 RON 17 1 6 BOLT M5 X 25 SW (683014) 1229 RON 18 1 1 683137 (683137) 12638 RON 19 1 1 HANDLE A D16 L (683138) 10960 RON 20 1 1 HANDLE GRIP (683139) 4025 RON 21 1 1 682985 (682985) 4025 RON 22 1 1 BOLT M5 X 15 (682986) 2236 RON 23 1 1 SHAFT GRIP (683135) 6151 RON 24 1 1 682987 (682987) 22144 RON 25 1 4 SCREW M5 X 28 SW (682990) 2236 RON 26 1 1 LOOPE HANDLE (682988) 16440 RON 27 1 1 PACKING (682989) 3242 RON 28 1 4 NUT M5 (10 PCS) (949555) 1453 RON 29 1 1 THROTTLE TRIGGER (683147) 35790 RON 30 1 1 683133 (683133) 16776 RON *31 1 1 683134 (683134) 4251 RON *31 1 1 683146 (683146) 4251 RON 32 1 1 - Indisponibil 33 1 1 - Indisponibil 34 1 1 - Indisponibil 35 1 1 683143 (683143) 14763 RON 36 1 2 BOLT M6X30 SW (682994) 1229 RON 37 1 1 BRACKET (683144) 3242 RON 38 1 1 THREADED BRACKET (683145) 4025 RON 39 1 5 NUT M5 (10 PCS) (949555) 1453 RON 40 1 5 PLANE WASHER M5 (683000) 2236 RON 41 1 1 682995 (682995) 5815 RON 42 1 2 BOLT M5 X 25 W (682997) 2236 RON 43 1 5 BOLT M5 X 15 WSW (682999) 2236 RON 44 1 1 COVER EXTENTION (682998) 573 RON 45 1 1 STRING CUTTER (682996) 4025 RON 46 1 2 SPRING WASHER M5 (10 PCS) (949454) 1117 RON 47 1 2 NUT M5 (10 PCS) (949555) 1453 RON 71 1 1 BOLT M5 X 12 (683019) 2236 RON 72 1 1 683148 (683148) 9354 RON 73 1 1 BOLT M8 X 22 WSW L.H. (683018) Indisponibil Indisponibil 74 1 1 STABILIZER (683017) 4025 RON 75 1 1 BOSS ADAPTER (683016) 4025 RON 76 1 1 BOSS ADAPTER (683015) 6822 RON 77 1 1 SNAP RING (683010) 2236 RON 78 1 1 BALL BEARING (683009) 6374 RON 79 1 1 BLADE SHAFT (683153) 16441 RON 80 1 1 BALL BEARING (683151) 5368 RON 81 1 1 BOLT M8X10 (683150) 2236 RON 82 1 1 BOLT M5 X 25 SW (683014) 1229 RON 83 1 1 GEAR CASE (683149) 18789 RON 84 1 1 BALL BEARING (683154) 16441 RON 85 1 1 BALL BEARING (683011) 5591 RON 86 1 1 SNAP RING (683012) 2236 RON 87 1 1 SNAP RING (683013) 2236 RON 88 1 1 GEAR SET (683152) 20691 RON 111 1 1 - Indisponibil 112 1 1 - Indisponibil 113 1 2 CAP SCREW (683164) 3242 RON 114 1 1 MUFFLER COMPLETE (683161) 10513 RON 115 1 1 GASKET COMPLETE (683162) 6374 RON 116 1 1 CAP SCREW (683033) 2236 RON 117 1 1 KNOB (683166) 3242 RON 118 1 1 TOP COVER (683165) 13421 RON 119 1 1 CAUTION LABEL (B) NEW (683351) 3242 RON 120 1 1 GROMMET (683181) 2236 RON 121 1 1 SPARK PLUG BPMR6Y (683068) 5368 RON 122 1 1 AIR DUCT (683160) 3242 RON 123 1 1 INSULATOR (683159) 6374 RON 124 1 2 CAP SCREW (683029) 2236 RON 125 1 4 CAP SCREW (683087) 2236 RON 126 1 1 CYLINDER (683157) 88359 RON 127 1 1 GASKET (683158) 2236 RON 128 1 2 PISTON RING (683172) 5368 RON 129 1 1 PISTON (683171) 17112 RON 130 1 2 CLIP, PISTON PIN (683175) 2236 RON 131 1 1 PISTON PIN (683173) 5368 RON 132 1 1 683054 (683054) 91714 RON 133 1 1 683056 (683056) 52679 RON 134 1 1 ROTOR-FAN (683055) 39145 RON 135 1 1 683058 (683058) 11967 RON 136 1 1 CONNECTOR (683061) 3242 RON 137 1 1 PLUG CAP (683060) 4025 RON 138 1 1 CORD (683059) 2236 RON 139 1 1 TUBE (683063) 2236 RON 140 1 1 CAP (683062) 2236 RON 141 1 1 COIL (683057) 40823 RON 142 1 2 CAP SCREW (683067) 2236 RON 143 1 2 SPACER (683066) 2236 RON 144 1 2 BOLT (683050) 3242 RON 145 1 2 WAVE WASHER (683052) 2236 RON 146 1 1 683177 (683177) 20691 RON 147 1 1 SPRING CLUTCH (683179) 4025 RON 148 1 2 CLUTCH SHOE (683178) 9282 RON 149 1 1 NUT (683065) 2236 RON 150 1 2 WASHER (683051) 2236 RON 151 1 1 OIL SEAL (683169) 3242 RON 152 1 1 CRANK CASE (683167) 4251 RON 153 1 1 SNAP RING (683170) 2236 RON 154 1 2 BALL BEARING (683168) 5368 RON 155 1 1 WOODRUFF KEY (683064) 2236 RON 156 1 1 NEEDLE BEARING (683174) 6374 RON 157 1 3 CAP SCREW (683040) 2236 RON 158 1 1 SCREEN (683194) 2236 RON 159 1 1 CRANK SHAFT (683176) 78180 RON 160 1 1 OIL SEAL (683039) 3242 RON 161 1 2 LEAD (683069) 3242 RON 162 1 1 FAN COVER (683180) 14874 RON 163 1 4 CAP SCREW (683087) 2236 RON 164 1 1 CLAMP SCREW (683088) 2236 RON 165 1 1 683182 (683182) 34112 RON 166 1 1 683190 (683190) 13085 RON 167 1 1 STARTER PULLEY (683193) 10289 RON 168 1 1 RETURN SPRING (683192) 2236 RON 169 1 1 RATCHET (683191) 4025 RON 170 1 1 683183 (683183) 22144 RON 171 1 1 SCREW (683189) 2236 RON 172 1 1 REEL (683188) 6933 RON 173 1 1 SPIRAL SPRING (683187) 8388 RON 174 1 1 683184 (683184) 9282 RON 175 1 1 ROPE (683186) 4025 RON 176 1 1 STARTER GRIP (683185) 4025 RON 177 1 4 CAP SCREW (683163) 2236 RON 178 1 1 - Indisponibil 201 1 1 GASKET (683104) 2236 RON 202 1 1 683195 (683195) 115538 RON 203 1 1 SCREW (683199) 6374 RON 204 1 1 NUT (683083) 2236 RON 205 1 2 SCREW (683197) 5368 RON 206 1 1 BRACKET (683198) 7828 RON 207 1 1 SWIVEL (683102) 5368 RON 208 1 1 WASHER (683201) 2236 RON 209 1 1 RING (683101) 2236 RON 210 1 1 FRAME (683200) 6151 RON 211 1 1 O-RING (683090) 4025 RON 212 1 1 MAIN JET (683196) 6151 RON 213 1 1 GASKET (683092) 5368 RON 214 1 1 DIAPHRAGM (683093) 6151 RON 215 1 1 PUMP BODY (683094) 35790 RON 216 1 1 GASKET (683095) 5368 RON 217 1 1 DIAPHRAGM (683096) 14763 RON 218 1 1 PURGE BODY (683097) 11743 RON 219 1 1 PRIMER PUMP (683098) 5591 RON 220 1 1 PUMP COVER (683099) 6374 RON 221 1 4 SCREW (683100) 2236 RON 222 1 1 683202 (683202) 28967 RON 223 1 2 SLEEVE (683207) 3242 RON 224 1 1 HOUSING (683203) 6151 RON 225 1 1 CHOKE VALVE (683208) 573 RON 226 1 1 WASHER (683206) 3242 RON 227 1 1 PLATE (683209) 4025 RON 228 1 1 ELEMENT (683205) 7269 RON 229 1 1 AIR CLEANER COVER (683204) 5927 RON 230 1 2 CAP SCREW (683110) 3242 RON 231 1 1 CLIP (683122) 2236 RON 232 1 1 683210 (683210) 47646 RON 233 1 1 FUEL PIPE (683212) 1147 RON 234 1 1 683213 (683213) 6598 RON 235 1 1 FUEL PIPE (683214) 2236 RON 236 1 1 GROMMET (683118) 4025 RON 237 1 1 RETURN PIPE (683120) 2236 RON 238 1 1 683121 (683121) 5368 RON 239 1 1 CLIP (683122) 2236 RON 240 1 1 BREATHER (683115) 7828 RON 241 1 1 683211 (683211) 20691 RON 242 1 1 683113 (683113) 6374 RON 243 1 1 PACKING (683114) 2236 RON 244 1 2 PAD (683215) 2236 RON 245 1 1 PAD (683216) 2236 RON 501 1 1 BLADE COVER (683155) 4025 RON 502 1 1 CUTTER BLADE 255MM-D25.4 NT4 (683156) 5814 RON 503 1 1 NYLON HEAD SEMI-AUTOMATIC 4" M8X1.25 LH (683020) 8499 RON 504 1 1 BOX SPANNER (683021) 5368 RON 505 1 1 DOUBLE-ENDED WRENCH (683022) 3242 RON 506 1 1 LEVER HANDLE (683023) 2236 RON 601 1 1 682975 - Indisponibil
