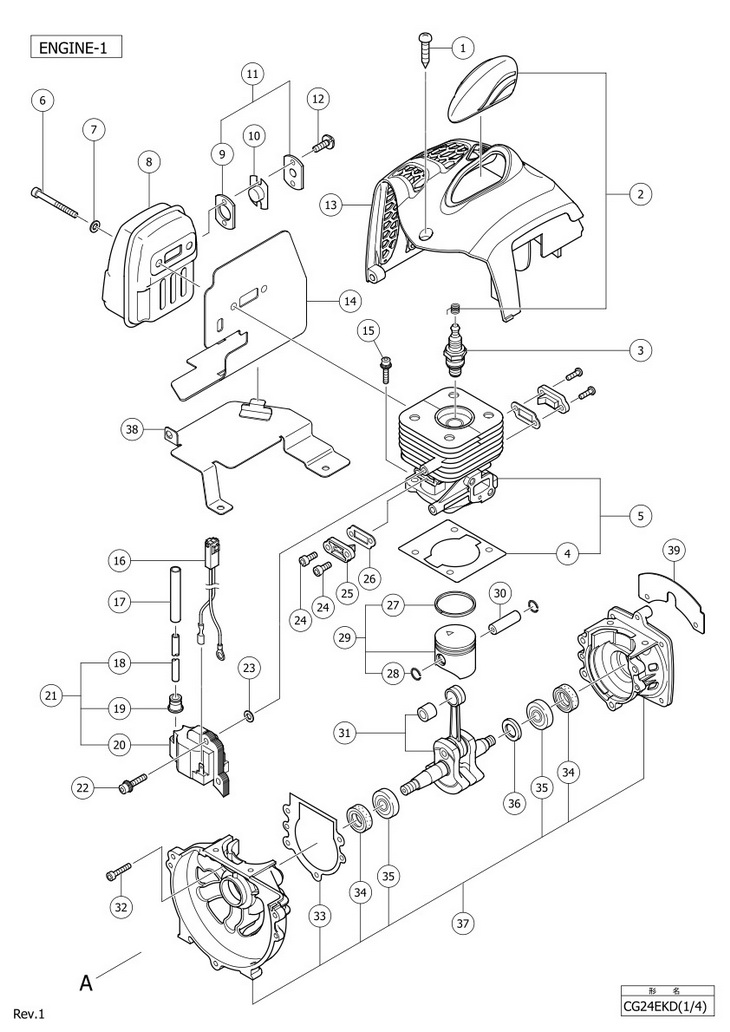

Top » Piese de schimb » PIESE HITACHI » CG24EKD CG24EKD [CG24EKD] Click pentru a mari Imagini suplimentare Click pentru a mari Click pentru a mari Click pentru a mari Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1 1 1 TAPPING SCREW D4.5X12 (OLD 990-73045-124) (6684637) 1229 RON 2 1 1 6684583 (6684583) 3578 RON 3 1 1 SPARK PLUG BMR7A (OLD 018-01700-21) (6684584) 4696 RON 4 1 1 CYLINDER GASKET (OLD 017-52200-20) (6684587) 1229 RON 5 1 1 CYLINDER SET (OLD 001-52200-90) (6684585) 15993 RON 6 1 2 HEX. HOLE BOLT M6X55 (OLD 990-51060-553) (6684638) 1229 RON 7 1 2 WASHER 6 (OLD 992-01060-011) (6684639) 1229 RON *8 1 1 MUFFLER COMP. (OLD 706-52200-80) (OLD 6684842) (6684640) 8164 RON *8 1 1 6684842 - Indisponibil 9 1 1 MUFFLER SPECIAL GASKET (OLD751-52200-20) (OLD6684649) (6684650) 1229 RON 10 1 1 SPARK ARRESTOR (OLD 732-52200-20) (6684652) 2236 RON *11 1 1 6684649 - Indisponibil *11 1 1 6684843 - Indisponibil 12 1 2 SCREW M4X8/WS (OLD 994-36040-081) (6684651) 1229 RON 13 1 1 MUFFLER PROTECTOR (OLD 738-52200-20) (6684635) 3914 RON 14 1 1 HEAT SHIELD (OLD 133-52210-20) (6684641) 3242 RON 15 1 4 HEX. HOLE BOLT M5X18/S (OLD 994-61050-184) (6684586) 1229 RON 16 1 1 6684603 (6684603) 3242 RON 17 1 1 INSULATOR TUBE 50L (OLD 250-06500-20) (6684597) 1229 RON 18 1 1 HIGH TENSION CORD (OLD 178-20559-20) (6684596) 2236 RON 19 1 1 RUBBER CAP (OLD 560-20517-20) (6684602) 1229 RON 20 1 1 IGNITION COIL COMP (OLD 167-20546-80) (NEW 6687663) (6684598) 8611 RON 21 1 1 6684601 - Indisponibil 22 1 2 HEX. HOLE BOLT M4X18/WS (OLD 994-64040-184) (6684599) 1229 RON 23 1 2 WASHER (OLD 182-0186A-20) (6684600) 1229 RON 24 1 4 HEX. HOLE BOLT M4X12/S (OLD 994-61040-124) (6684595) 1229 RON 25 1 2 INTAKE COVER (OLD 052-52200-20) (6684594) 1229 RON 26 1 2 COVER PACKING (OLD 050-52200-20) (6684593) 1229 RON 27 1 2 PISTON RING (OLD 041-01601-20) (6684588) 3242 RON 28 1 2 PISTON PIN CIRCLIP (OLD 039-00601-20) (6684590) 1229 RON 29 1 1 PISTON SET (OLD 030-52200-90) (6684589) 9282 RON 30 1 1 PISTON PIN (OLD 037-07045-20/6686010) (6684591) Indisponibil Indisponibil 31 1 1 CRANK SHAFT COMP. (OLD 046-52900-80) (6684592) 12526 RON 32 1 4 HEX. HOLE BOLT M5X18/S (OLD 994-61050-184) (6684586) 1229 RON 33 1 1 CRANK CASE GASKET (OLD 090-52200-20) (6684609) 1229 RON 34 1 2 OIL SEAL TB 12227 (OLD 999-66122-200/6695624) (6684607) Indisponibil Indisponibil 35 1 2 6684608 - Indisponibil 36 1 1 GEAR SHAFT SHIM 0.20 (OLD 330-00200-23) (6684604) 1229 RON 36 1 1 GEAR SHAFT SHIM 0.30 (OLD 330-00200-24) (6684605) 1229 RON 37 1 1 6684606 (6684606) 13197 RON 38 1 1 HEAT SHIELD B COMP. (OLD 134-52210-80) (6684844) 3242 RON 39 1 1 PARTITION PLATE (OLD 802-52210-20) (6684845) 1229 RON 51 1 2 HEX. HOLE BOLT M5X20/S (OLD 994-61050-204) (6684668) 1229 RON 52 1 1 HEX. HOLE BOLT M5X12/S (OLD 994-61050-124) (6684667) 1229 RON 53 1 1 ANTI-VIBE RUBBER A (OLD 599-52200-20) (6684666) 2236 RON 54A 1 1 PIPE HOLDER (A) NEW (6698643) 2795 RON 55A 1 1 PIPE HOLDER (B) NEW (6698644) 2795 RON 56 1 1 ANTI-VIBE RUBBER B (OLD 600-52200-20) (6684665) 2236 RON 57 1 1 SYMBOL MARK HITACHI (OLD 929-52211-20) (6684846) 2236 RON 58 1 1 TAPPING SCREW D4.5X16 (OLD 990-72045-164) (6684636) 1229 RON 59 1 3 HEX. HOLE BOLT M5X18/WS (OLD 994-64050-184) NEW (6684647) 1229 RON 60 1 1 FAN CASE COMP. (ORANGE) (OLD 112-52205-80) (6684669) Indisponibil Indisponibil 61A 1 1 CLUTCH SHAFT (OLD 6696481) (6698793) 6486 RON 62 1 2 STEP BOLT (OLD 357-0075T-20) (6684646) 1229 RON 63 1 2 BENT WASHER 8 (OLD 992-05080-030/6695204) (6684648) 1229 RON 64 1 2 CLUTCH PLATE A 0.5 (OLD 348-0630A-20/6689529) (6684645) 1229 RON 65 1 1 CLUTCH SPRING (OLD 342-0630B-20) (6684644) 1229 RON 66 1 2 CLUTCH SHOE COMP. (OLD 290-01620-80) (6684643) 3578 RON 67 1 2 CLUTCH WASHER B (OLD 359-02103-20) (6684642) 1229 RON 68 1 1 HEX.NUT M8 (OLD 991-01080-011) (6684612) 1229 RON 69 1 1 WASHER M8 (OLD 992-01080-011) (6684611) 1229 RON 70 1 1 6684610 - Indisponibil 71 1 1 STOP RING C-12 OUTER (OLD 993-50012-002) (6684664) 1229 RON 72 1 1 - Indisponibil 81 1 2 STOP RING E-5 (OLD 993-55050-000) (6684683) 1229 RON 82 1 2 STARTER PAWL SPRING (OLD 790-06097-20) (6684684) 2236 RON 83 1 2 STARTER PAWL (OLD 788-0651H-20) (6684685) 2236 RON 84 1 1 6684681 (6684681) 4137 RON 85 1 1 SET SCREW (OLD 839-03045-20) (6684679) 1229 RON 86 1 1 CAM PLATE (OLD 759-0651H-20) (6684678) 2348 RON 87 1 1 DUMPER SPRING (OLD 758-0651H-20) (6684677) 3242 RON 88 1 1 STARTER ROPE REEL (OLD 774-0720F-20) (6684676) 3578 RON 89 1 1 RECOIL SPRING (OLD 780-06097-20) (6684675) 3578 RON 90 1 1 STARTER ROPE 3.5X860 (OLD 783-0720F-20) (6684674) 2236 RON 91 1 1 RECOIL STARTER BODY COMP. (OLD 772-07350-80) (6684673) 6486 RON 92 1 4 HEX. HOLE BOLT 4X15/PS (OLD 994-63040-154) (6684682) 1229 RON 93 1 1 STARTER HANDLE (OLD 785-03045-20) (6684680) 1229 RON 94 1 1 6601570 cod vechi 6684672 (6601570) 8163 RON 111 1 1 CAUTION MARK 9900RPM (OLD 919-38515-20) (6684850) 2236 RON 112 1 1 HEX.BOLT 6X50 (OLD 990-21060-504) (6684824) 1229 RON 113 1 1 HANDLE KNOB (OLD 512-3338P-20) (6684823) 2236 RON 114 1 1 SPECIAL WASHER B (OLD 871-32600-20) (6684822) 1229 RON 115 1 1 HEX. SOCKET HD. BOLT M5X12 (OLD 990-51050-123) (6684829) 1229 RON 116 1 1 SPRING WASHER 5 (OLD 992-10050-062) (6684834) 1229 RON 117 1 1 HEX. SOCKET HD. BOLT(W/BUTTON)M6 (OLD 990-53060-353) (6684825) 1229 RON 118 1 1 S.WASHER 6 (OLD 992-10060-062) (6684826) 1229 RON 119 1 1 SMALL WASHER 6 BLACK (OLD 992-00060-061) (6684827) 1229 RON 120 1 1 6684818 - Indisponibil 121 1 1 SPACER (OLD 360-33315-20) (6684819) 2236 RON 122 1 1 PULLEY WASHER (OLD 801-10205-20) (6684820) 1229 RON 123 1 1 STOP RING C-10.OUTER (OLD 993-50010-002) (6684821) 1229 RON 124 1 1 HANDLE (OLD 500-37300-20) (6684836) 5368 RON 125 1 2 HEX.NUT 6 (OLD 6684792/991-01060-041) (6684835) 1229 RON 126 1 1 BUSHING (OLD 347-38466-20) (6684833) 1229 RON 127 1 1 DRIVE SHAFT B 783L (OLD 036-38190-20) (6684832) 5591 RON 128 1 1 MAIN PIPE COMP. (OLD 341-38466-80) (6684830) 9394 RON 129 1 3 6684831 (6684831) 1229 RON 130 1 1 CAP NUT 6 (OLD 991-42060-012) (6684828) 1229 RON 131 1 1 6684817 (6684817) 1041 RON 132 1 1 DRIVE SHAFT A (OLD 035-38466-80) (6684814) 10513 RON 133 1 1 BARRIER (BLACK) (OLD 520-37277-20) (6684837) 3578 RON 134 1 2 BOLT 6X43/P (BLACK) (OLD 994-23060-432) (6684838) 1229 RON 136 1 1 MAIN PIPE COMP. (OLD 341-77157-80) (6684815) 16888 RON 137 1 1 HANGER (OLD 335-77350-80) (6684705) 3242 RON 138 1 1 HANGER COLLAR (OLD 334-77350-20) (6684704) 2236 RON 139 1 1 HANGER FIXING BRACKET (OLD 337-77350-80) (6684706) 2236 RON 140 1 1 HEX. HOLE BOLT M5X25/S (OLD 994-16050-252) (6684709) 1229 RON 141 1 1 6684790 (6684790) 15993 RON 142 1 2 SCREW M5X20 (OLD 994-31050-203) (6684803) 1229 RON 143 1 4 SCREW M4X20 (BLACK) (OLD 993-46040-202) NEW (6684725) 1229 RON 144 1 1 THROTTLE WIRE COMP. (OLD 885-77154-80) (6684797) 12526 RON 145 1 1 STOP BUTTON COMP. (OLD 156-77154-80) (6684799) 5591 RON 146 1 1 THROTTLE WIRE 4T (OLD 887-77154-80) (6684798) 3914 RON 147 1 1 PROTECTION TUBE 7X185L (OLD 164-07018-50) (6684800) 1229 RON 148 1 1 SAFETY LEVER (OLD 253-38400-20) (6684721) 2460 RON 149 1 1 THROTTLE LEVER (OLD 880-38400-20) (6684804) 3242 RON 150 1 1 BLIND PLUG (OLD 322-38400-20) (6684724) 1229 RON 151 1 1 RETURN SPRING (OLD 832-38400-20) (6684722) 1229 RON 152 1 2 CONTAL NUT 5 (OLD 991-01050-043) (6684727) 1229 RON 153 1 1 6684839 - Indisponibil 154 1 1 LEVEL MARK (OLD 923-3738F-20) (6684852) 1229 RON 155 1 1 LEVEL MARK (OLD 923-33700-20) (6684851) 1229 RON 181 1 1 6684731 (6684731) 28072 RON 182 1 1 6684745 - Indisponibil 183 1 1 PROTECTION COVER (OLD 308-77350-20) (6684743) 2460 RON 184 1 1 CUTTER HOLDER CAP (OLD 311-77350-20) (6684744) 3242 RON 185 1 1 CUTTER HOLDER (OLD 310-77350-20) (6684742) 6933 RON 186 1 1 STOP RING C-28.INNER (OLD 993-51028-002) (6684741) 1229 RON 187 1 1 6684740 - Indisponibil 188 1 1 GEAR SHAFT (OLD 304-77350-20) (6684739) 6598 RON 189 1 1 GEAR PINION SET (OLD 301-77350-00) (6684752) 9059 RON 190 1 1 BALL BEARING #608.22MM/OD (OLD 999-61608-000) (6684738) 3242 RON 191 1 1 BOLT (W/PLUS) M6X8 (OLD 990-23060-080) (6684737) 1229 RON 192 1 1 HEX. HOLE BOLT M5X30/WS (OLD 994-64050-304) (6684973) 1229 RON 193 1 1 HEX. HOLE BOLT M5X12/S (OLD 994-61050-124) (6684667) 1229 RON 194 1 1 GEAR CASE 24 (OLD 300-77350-20) (6684736) 11519 RON 195 1 1 BALL BEARING 609 (OLD 999-61609-000) (6684734) 3242 RON 196 1 1 BALL BEARING 609Z ST (OLD 999-61609-002) (6684735) 3242 RON 197 1 1 STOP RING 9 (OLD 993-54009-002) NEW (6684733) 1229 RON 198 1 1 STOP RING C-24.INNER (OLD 993-51024-002) (6684732) 1229 RON 199 1 2 HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) (6684714) 1229 RON 200 1 1 COVER BRACKET (OLD 442-77154-20) (6684746) 2236 RON 201 1 1 BLADE GUARD 24 CE (OLD 441-38505-20) (6684747) 8276 RON 202 1 1 SAFETY COVER HOLDER (OLD 445-37380-20) (6684748) 2236 RON 203 1 1 KNIFE (OLD 797-38331-20) (6684754) 3242 RON 204 1 1 TAPPING SCREW 5X20 (OLD 993-17052-002) (6684753) 1229 RON 205 1 1 COVER GUARD (OLD 447-38455-20) (6684749) 5032 RON 206 1 1 TAPPING SCREW 4X14 (OLD 993-48040-142) (6684751) 1229 RON 207 1 1 KNIFE (OLD 797-37714-20) (6684750) 2236 RON 221 1 1 INSULATOR GASKET (OLD 403-52210-20) (6684613) 1229 RON 222 1 1 INSULATOR SET (OLD 404-52200-90) (6684840) 382 RON 223 1 1 CARBURETOR GASKET (OLD 402-0656A-20) (6684616) 1229 RON 224 1 1 THROTTLE WIRE FIXING PLATE (OLD 878-06620-20) (6684629) 2236 RON 225 1 2 CARBURETOR GASKET (OLD 402-0602K-21/6689836) (6684615) 1229 RON *226 1 1 CARBURETOR SET WYL-259 (OLD 6684841) (6684624) 28072 RON *226 1 1 6684841 - Indisponibil 227 1 1 SWIVEL CAP (OLD 560-07120-20) (6684628) 105 RON 228 1 2 HEX. HOLE BOLT 5X25/WS (OLD 994-64050-255) (6684617) 1229 RON 229 1 1 SWIVEL (OLD 539-25120-20) (6684697) 2460 RON 230 1 2 THROTTLE SET SCREW (OLD 548-25140-20) (6684698) 2236 RON 231 1 1 STOP RING (OLD 489-25100-20) (6684696) 1229 RON 232 1 1 O-RING (OLD 550-25100-20) (6684695) 2236 RON *233 1 1 MAIN JET 33 (OLD 6684854/599-2000W-33) (6684694) 3578 RON *233 1 1 6684854 - Indisponibil 234 1 1 PUMP BODY COMP. (OLD 575-25608-80) (6684686) 9730 RON 235 1 1 METERING DIAPHRAGM (OLD 474-25601-20) (6684690) 6039 RON 236 1 1 PRIMING BODY (OLD 447-25108-20) (6684689) 2460 RON 237 1 1 DIAPHRAGM COVER (OLD 476-25151-20) (6684688) 3242 RON 238 1 1 PUMP DIAPHRAGM (OLD 576-25100-20/6696325) (6684693) 3242 RON 239 1 1 PUMP GASKET (OLD 577-25292-20/6696321) (6684692) 7940 RON 240 1 1 INLET SCREEN (OLD 578-25007-20/6691460) (6684700) 2236 RON 241 1 1 DIAPHRAGM GASKET (OLD 475-25153-20) (6684691) 3242 RON 242 1 1 PRIMING PUMP COMP. (OLD 442-25151-80) (6684687) 5591 RON 243 1 4 SET SCREW (OLD 548-25151-20/6696324) (6684699) 1229 RON 244 1 1 CLEANER BODY COMP. (OLD 423-00070-81) (6684656) 3242 RON 245 1 1 CHOKE VALVE (OLD 528-07143-81) (6684657) 2236 RON 246 1 1 WAVE WASHER 8 (OLD 992-04080-031) (6684658) 1229 RON 247 1 1 COLLAR 8 (OLD 657-3252A-20) (6684659) 1229 RON 248 1 1 AIR CLEANER ELEMENT (OLD 421-00070-20) (6684654) 1229 RON 249 1 1 CLEANER COVER (OLD 452-52200-20) (6684653) 2460 RON 250 1 2 WASHER 5 (OLD 992-01050-011) (6684661) 1229 RON 251 1 2 S.WASHER 5 (OLD 992-10050-012/6695214) (6684662) 1229 RON 252 1 2 6684660 - Indisponibil 253 1 1 COVER FIXING BOLT (OLD 450-0006A-82) (6684655) 2460 RON 254 1 1 VALVE ASSEMBLY-THROTTLE (OLD 488-25612-80) (6684853) Indisponibil Indisponibil 271 1 1 TANK (WHITE) (OLD 591-52200-20) (6684621) 6486 RON 272 1 3 COLLAR C (OLD 659-04300-20) (6684623) 1229 RON 273 1 1 6684618 (6684618) 2236 RON 274 1 1 CLIP.6.3 DIA. (OLD 680-00731-20) (6684619) 1229 RON 275 1 1 PUMP FILTER BODY COMP. (OLD 675-04042-80) (6684620) 3242 RON 276 1 1 FUEL PIPE 3X5X65 (OLD 700-03005-06/700-03005-065) (6684626) 1229 RON 277 1 1 RETURN GROMMET (OLD 534-32710-20) (6684627) 105 RON 278 1 1 6684625 - Indisponibil 279 1 1 6684622 (6684622) 5032 RON 280 1 1 WASHER 4 (OLD 992-00040-061) (6684632) 1229 RON 281 1 1 S.WASHER 4 (OLD 992-10040-062) (6684633) 1229 RON 282 1 1 HEX. HOLE BOLT M4X45 (NEW 990-51040-453) (6684631) 1229 RON 283 1 1 STAND (OLD 940-52200-20) (6684630) 2460 RON 284 1 1 HEX. HOLE BOLT 5X25/WS (OLD 994-64050-255) (6684617) 1229 RON 285 1 2 HEX. HOLE BOLT 5X20/PS (OLD 994-63050-204) (6684634) 1229 RON 286 1 1 - Indisponibil 301 1 1 - Indisponibil 302 1 1 SPOOL (OLD 787-33830-20) (6684760) 5368 RON 303 1 2 EYELET (OLD 788-33830-20) (6684762) 2236 RON 304 1 1 CUTTING BODY CAP (OLD 789-33830-20) (6684761) 9730 RON 305 1 1 MOUNTING NUT L-M10X1.25 (OLD 356-3383B-20) (6684756) 3466 RON 306 1 1 CUTTING BODY (OLD 786-33830-20) (6684757) 6151 RON 307 1 1 SPECIAL NUT (OLD 315-33830-20) (6684758) 3578 RON 308 1 1 REEL SPRING (OLD 793-33830-20) (6684759) 2236 RON 309 1 1 6684755 - Indisponibil 310 1 1 WINDING PROTECTOR (OLD 307-37307-20) (6684763) 2236 RON 501 1 1 BOX WRENCH (HEX. SOCKET 17/19) (OLD 826-20000-80) (6684764) 2460 RON 502 1 1 6684765 - Indisponibil 506 1 1 HEX. BAR WRENCH 4MM (OLD 813-20000-20) (6684813) 105 RON
