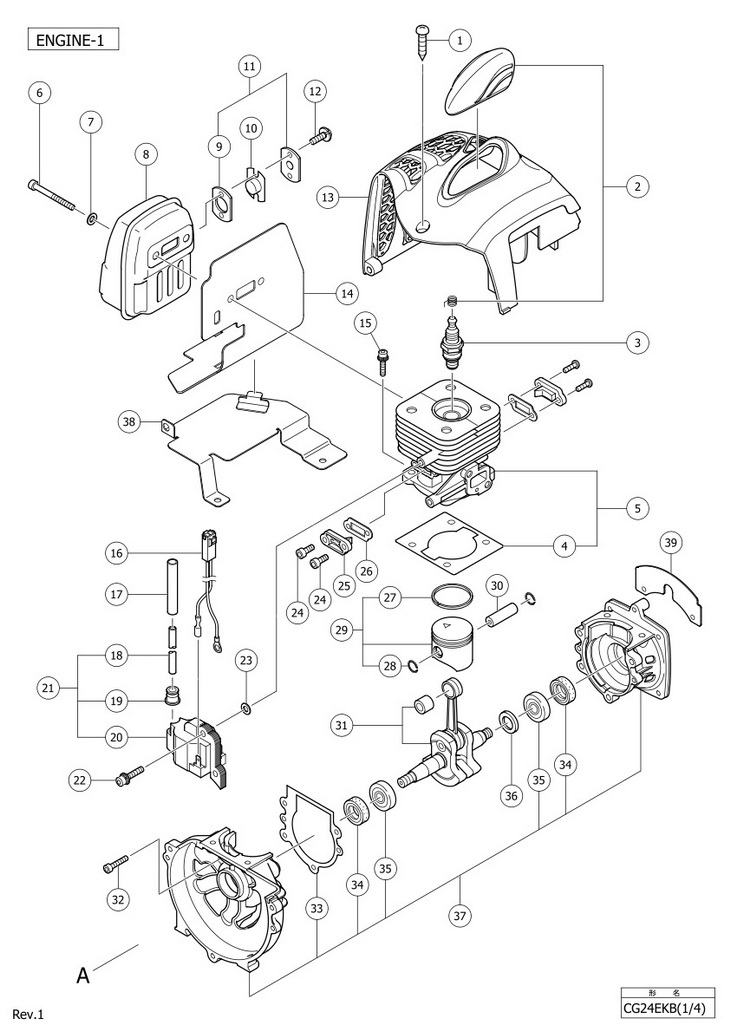

Top » Piese de schimb » PIESE HITACHI » CG24EKB CG24EKB [CG24EKB] Click pentru a mari Imagini suplimentare Click pentru a mari Click pentru a mari Click pentru a mari Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1 1 1 TAPPING SCREW D4.5X12 (OLD 990-73045-124) (6684637) 1229 RON 2 1 1 6684583 (6684583) 3578 RON 3 1 1 SPARK PLUG BMR7A (OLD 018-01700-21) (6684584) 4696 RON 4 1 1 CYLINDER GASKET (OLD 017-52200-20) (6684587) 1229 RON 5 1 1 CYLINDER SET (OLD 001-52200-90) (6684585) 15993 RON 6 1 2 HEX. HOLE BOLT M6X55 (OLD 990-51060-553) (6684638) 1229 RON 7 1 2 WASHER 6 (OLD 992-01060-011) (6684639) 1229 RON *8 1 1 MUFFLER COMP. (OLD 706-52200-80) (OLD 6684842) (6684640) 8164 RON *8 1 1 6684842 - Indisponibil 9 1 1 MUFFLER SPECIAL GASKET (OLD751-52200-20) (OLD6684649) (6684650) 1229 RON 10 1 1 SPARK ARRESTOR (OLD 732-52200-20) (6684652) 2236 RON *11 1 1 6684649 - Indisponibil *11 1 1 6684843 - Indisponibil 12 1 2 SCREW M4X8/WS (OLD 994-36040-081) (6684651) 1229 RON 13 1 1 MUFFLER PROTECTOR (OLD 738-52200-20) (6684635) 3914 RON 14 1 1 HEAT SHIELD (OLD 133-52210-20) (6684641) 3242 RON 15 1 4 HEX. HOLE BOLT M5X18/S (OLD 994-61050-184) (6684586) 1229 RON 16 1 1 6684603 (6684603) 3242 RON 17 1 1 INSULATOR TUBE 50L (OLD 250-06500-20) (6684597) 1229 RON 18 1 1 HIGH TENSION CORD (OLD 178-20559-20) (6684596) 2236 RON 19 1 1 RUBBER CAP (OLD 560-20517-20) (6684602) 1229 RON 20 1 1 IGNITION COIL COMP (OLD 167-20546-80) (NEW 6687663) (6684598) 8611 RON 21 1 1 6684601 - Indisponibil 22 1 2 HEX. HOLE BOLT M4X18/WS (OLD 994-64040-184) (6684599) 1229 RON 23 1 2 WASHER (OLD 182-0186A-20) (6684600) 1229 RON 24 1 4 HEX. HOLE BOLT M4X12/S (OLD 994-61040-124) (6684595) 1229 RON 25 1 2 INTAKE COVER (OLD 052-52200-20) (6684594) 1229 RON 26 1 2 COVER PACKING (OLD 050-52200-20) (6684593) 1229 RON 27 1 2 PISTON RING (OLD 041-01601-20) (6684588) 3242 RON 28 1 2 PISTON PIN CIRCLIP (OLD 039-00601-20) (6684590) 1229 RON 29 1 1 PISTON SET (OLD 030-52200-90) (6684589) 9282 RON 30 1 1 PISTON PIN (OLD 037-07045-20/6686010) (6684591) Indisponibil Indisponibil 31 1 1 CRANK SHAFT COMP. (OLD 046-52900-80) (6684592) 12526 RON 32 1 4 HEX. HOLE BOLT M5X18/S (OLD 994-61050-184) (6684586) 1229 RON 33 1 1 CRANK CASE GASKET (OLD 090-52200-20) (6684609) 1229 RON 34 1 2 OIL SEAL TB 12227 (OLD 999-66122-200/6695624) (6684607) Indisponibil Indisponibil 35 1 2 6684608 - Indisponibil 36 1 1 GEAR SHAFT SHIM 0.20 (OLD 330-00200-23) (6684604) 1229 RON 36 1 1 GEAR SHAFT SHIM 0.30 (OLD 330-00200-24) (6684605) 1229 RON 37 1 1 6684606 (6684606) 13197 RON 38 1 1 HEAT SHIELD B COMP. (OLD 134-52210-80) (6684844) 3242 RON 39 1 1 PARTITION PLATE (OLD 802-52210-20) (6684845) 1229 RON 51 1 2 HEX. HOLE BOLT M5X20/S (OLD 994-61050-204) (6684668) 1229 RON 52 1 1 HEX. HOLE BOLT M5X12/S (OLD 994-61050-124) (6684667) 1229 RON 53 1 1 ANTI-VIBE RUBBER A (OLD 599-52200-20) (6684666) 2236 RON 54A 1 1 PIPE HOLDER (A) NEW (6698643) 2795 RON 55A 1 1 PIPE HOLDER (B) NEW (6698644) 2795 RON 56 1 1 ANTI-VIBE RUBBER B (OLD 600-52200-20) (6684665) 2236 RON 57 1 1 SYMBOL MARK HITACHI (OLD 929-52211-20) (6684846) 2236 RON 58 1 1 TAPPING SCREW D4.5X16 (OLD 990-72045-164) (6684636) 1229 RON 59 1 3 HEX. HOLE BOLT M5X18/WS (OLD 994-64050-184) NEW (6684647) 1229 RON 60 1 1 FAN CASE COMP. (ORANGE) (OLD 112-52205-80) (6684669) Indisponibil Indisponibil 61 1 1 CLUTCH DRUM COMP. (OLD 289-52200-80) (6684663) 6486 RON 62 1 2 STEP BOLT (OLD 357-0075T-20) (6684646) 1229 RON 63 1 2 BENT WASHER 8 (OLD 992-05080-030/6695204) (6684648) 1229 RON 64 1 2 CLUTCH PLATE A 0.5 (OLD 348-0630A-20/6689529) (6684645) 1229 RON 65 1 1 CLUTCH SPRING (OLD 342-0630B-20) (6684644) 1229 RON 66 1 2 CLUTCH SHOE COMP. (OLD 290-01620-80) (6684643) 3578 RON 67 1 2 CLUTCH WASHER B (OLD 359-02103-20) (6684642) 1229 RON 68 1 1 HEX.NUT M8 (OLD 991-01080-011) (6684612) 1229 RON 69 1 1 WASHER M8 (OLD 992-01080-011) (6684611) 1229 RON 70 1 1 6684610 - Indisponibil 72 1 1 - Indisponibil 81 1 2 STOP RING E-5 (OLD 993-55050-000) (6684683) 1229 RON 82 1 2 STARTER PAWL SPRING (OLD 790-06097-20) (6684684) 2236 RON 83 1 2 STARTER PAWL (OLD 788-0651H-20) (6684685) 2236 RON 84 1 1 6684681 (6684681) 4137 RON 85 1 1 SET SCREW (OLD 839-03045-20) (6684679) 1229 RON 86 1 1 CAM PLATE (OLD 759-0651H-20) (6684678) 2348 RON 87 1 1 DUMPER SPRING (OLD 758-0651H-20) (6684677) 3242 RON 88 1 1 STARTER ROPE REEL (OLD 774-0720F-20) (6684676) 3578 RON 89 1 1 RECOIL SPRING (OLD 780-06097-20) (6684675) 3578 RON 90 1 1 STARTER ROPE 3.5X860 (OLD 783-0720F-20) (6684674) 2236 RON 91 1 1 RECOIL STARTER BODY COMP. (OLD 772-07350-80) (6684673) 6486 RON 92 1 4 HEX. HOLE BOLT 4X15/PS (OLD 994-63040-154) (6684682) 1229 RON 93 1 1 STARTER HANDLE (OLD 785-03045-20) (6684680) 1229 RON 94 1 1 6601570 cod vechi 6684672 (6601570) 8163 RON 111 1 1 MAIN PIPE SET (OLD 353-77152-90) (6684769) 22592 RON 112 1 1 FLEXIBLE SHAFT (OLD 344-37651-21/6689490) (6684773) 6822 RON 113 1 1 FLEXIBLE LINER (OLD 350-37651-21/6689564) (6684772) 5591 RON 114 1 1 MAIN PIPE (OLD 341-77152-20) (6684771) 8164 RON 115 1 2 6684792 - Indisponibil 116 1 1 LOOP HANDLE (OLD 500-37704-20) (6684791) 3914 RON 117 1 2 SPACER (OLD 444-38484-20) (6684794) 3242 RON 118 1 2 SCREW M5X20 (OLD 994-31050-203) (6684803) 1229 RON 119 1 4 SCREW M4X20 (BLACK) (OLD 993-46040-202) NEW (6684725) 1229 RON 120 1 1 THROTTLE WIRE COMP. (OLD 885-77154-80) (6684797) 12526 RON 121 1 1 STOP BUTTON COMP. (OLD 156-77154-80) (6684799) 5591 RON 122 1 1 THROTTLE WIRE 4T (OLD 887-77154-80) (6684798) 3914 RON 123 1 1 PROTECTION TUBE 7X185L (OLD 164-07018-50) (6684800) 1229 RON 124 1 1 SAFETY LEVER (OLD 253-38400-20) (6684721) 2460 RON 125 1 1 THROTTLE LEVER (OLD 880-38400-20) (6684804) 3242 RON 126 1 1 BLIND PLUG (OLD 322-38400-20) (6684724) 1229 RON 127 1 1 RETURN SPRING (OLD 832-38400-20) (6684722) 1229 RON 128 1 2 CONTAL NUT 5 (OLD 991-01050-043) (6684727) 1229 RON 129 1 1 6684790 (6684790) 15993 RON 130 1 1 SPACER (OLD 320-37651-20) (6684789) 1229 RON 131 1 2 HOLDER PIPE (OLD 346-77152-20) (6684788) 2236 RON 132 1 2 HEX. SOCKET HD. BOLT M5X30 S (OLD 994-61050-304) (6684786) 1229 RON 133 1 1 COVER BRACKET22 (OLD 442-38446-20) (6684784) 3242 RON 134 1 1 CAUTION MARK 9900RPM (OLD 919-38515-20) (6684850) 2236 RON 135 1 1 6684770 (6684770) 1232 RON 136 1 1 CUTTER SHAFT (OLD 304-37651-21) (6684774) 4361 RON 137 1 2 6684775 - Indisponibil 138 1 1 COLLAR (OLD 348-37651-20) (6684776) 2236 RON 139 1 1 STOP RING R-22.INNER (OLD 993-53022-002) (6684781) 1229 RON 140 1 1 HEX. SOCKET HD. BOLT (W/WASHERS) (OLD 994-25050-301) (6684779) 1229 RON 141 1 1 CUTTER CASE (OLD 300-37710-21) (6684778) 3914 RON 142 1 1 MACHINE SCREW M5X10 (OLD 990-11050-101) (6684777) 1229 RON 143 1 1 SPECIAL NUT (OLD 315-37710-20) (6684780) 2236 RON 144 1 1 CUTTER HOLDER (OLD 310-37710-20) (6684782) 2236 RON 145 1 1 KNIFE (OLD 797-38331-20) (6684754) 3242 RON 146 1 1 TAPPING SCREW 5X20 (OLD 993-17052-002) (6684753) 1229 RON 147 1 1 SAFETY GUARD HOLDER (OLD 445-38360-20) (6684785) 2236 RON 148 1 1 SAFETY GUARD (OLD 441-38446-20) (6684783) 5591 RON 149 1 1 HANDLE BRACKET (A) (OLD 506-37704-20) (6684793) 2236 RON 150 1 2 WASHER 6 (OLD 992-01060-011) (6684639) 1229 RON 151 1 2 PLUS BOLT 6X40 (OLD 990-23060-401) (6684795) 1229 RON *151 1 1 PLUS BOLT 6X40 (OLD 990-23060-401) (6684795) 1229 RON 153 1 1 LEVEL MARK (OLD 923-3738F-20) (6684852) 1229 RON 154 1 1 LEVEL MARK (OLD 923-33700-20) (6684851) 1229 RON 155 1 1 HEX. NUT 5 (OLD 991-01050-011) (6684965) 1229 RON 156 1 1 LIFTING METAL. 23 DIA. (OLD 335-37771-20) (6684966) 2236 RON 157 1 1 SCREW 5X16/PS (OLD 994-15050-161) (6684967) 1229 RON 158 1 1 WING BOLT 6X40 (OLD 990-60060-401) (6684968) 2236 RON 159 1 1 FLANGE (OLD 311-33005-20) (6684969) 2460 RON 160 1 1 WASHER M8 (OLD 992-01080-011) (6684611) 1229 RON 161 1 1 S.WASHER 8 (OLD 992-10080-012) (6684971) 1229 RON 162 1 1 HEX.NUT M8 (OLD 991-01080-011) (6684612) 1229 RON 163 1 1 6684839 - Indisponibil 221 1 1 INSULATOR GASKET (OLD 403-52210-20) (6684613) 1229 RON 222 1 1 INSULATOR SET (OLD 404-52200-90) (6684840) 382 RON 223 1 1 CARBURETOR GASKET (OLD 402-0656A-20) (6684616) 1229 RON 224 1 1 THROTTLE WIRE FIXING PLATE (OLD 878-06620-20) (6684629) 2236 RON 225 1 1 CARBURETOR GASKET (OLD 402-0602K-21/6689836) (6684615) 1229 RON *226 1 1 CARBURETOR SET WYL-259 (OLD 6684841) (6684624) 28072 RON *226 1 1 6684841 - Indisponibil 227 1 1 SWIVEL CAP (OLD 560-07120-20) (6684628) 105 RON 228 1 2 HEX. HOLE BOLT 5X25/WS (OLD 994-64050-255) (6684617) 1229 RON 229 1 1 SWIVEL (OLD 539-25120-20) (6684697) 2460 RON 230 1 2 THROTTLE SET SCREW (OLD 548-25140-20) (6684698) 2236 RON 231 1 1 STOP RING (OLD 489-25100-20) (6684696) 1229 RON 232 1 1 O-RING (OLD 550-25100-20) (6684695) 2236 RON *233 1 1 MAIN JET 33 (OLD 6684854/599-2000W-33) (6684694) 3578 RON *233 1 1 6684854 - Indisponibil 234 1 1 PUMP BODY COMP. (OLD 575-25608-80) (6684686) 9730 RON 235 1 1 METERING DIAPHRAGM (OLD 474-25601-20) (6684690) 6039 RON 236 1 1 PRIMING BODY (OLD 447-25108-20) (6684689) 2460 RON 237 1 1 DIAPHRAGM COVER (OLD 476-25151-20) (6684688) 3242 RON 238 1 1 PUMP DIAPHRAGM (OLD 576-25100-20/6696325) (6684693) 3242 RON 239 1 1 PUMP GASKET (OLD 577-25292-20/6696321) (6684692) 7940 RON 240 1 1 INLET SCREEN (OLD 578-25007-20/6691460) (6684700) 2236 RON 241 1 1 DIAPHRAGM GASKET (OLD 475-25153-20) (6684691) 3242 RON 242 1 1 PRIMING PUMP COMP. (OLD 442-25151-80) (6684687) 5591 RON 243 1 4 SET SCREW (OLD 548-25151-20/6696324) (6684699) 1229 RON 244 1 1 CLEANER BODY COMP. (OLD 423-00070-81) (6684656) 3242 RON 245 1 1 CHOKE VALVE (OLD 528-07143-81) (6684657) 2236 RON 246 1 1 WAVE WASHER 8 (OLD 992-04080-031) (6684658) 1229 RON 247 1 1 COLLAR 8 (OLD 657-3252A-20) (6684659) 1229 RON 248 1 1 AIR CLEANER ELEMENT (OLD 421-00070-20) (6684654) 1229 RON 249 1 1 CLEANER COVER (OLD 452-52200-20) (6684653) 2460 RON 250 1 2 WASHER 5 (OLD 992-01050-011) (6684661) 1229 RON 251 1 2 S.WASHER 5 (OLD 992-10050-012/6695214) (6684662) 1229 RON 252 1 2 6684660 - Indisponibil 253 1 1 COVER FIXING BOLT (OLD 450-0006A-82) (6684655) 2460 RON 254 1 1 VALVE ASSEMBLY-THROTTLE (OLD 488-25612-80) (6684853) Indisponibil Indisponibil 271 1 1 TANK (WHITE) (OLD 591-52200-20) (6684621) 6486 RON 272 1 3 COLLAR C (OLD 659-04300-20) (6684623) 1229 RON 273 1 1 6684618 (6684618) 2236 RON 274 1 1 CLIP.6.3 DIA. (OLD 680-00731-20) (6684619) 1229 RON 275 1 1 PUMP FILTER BODY COMP. (OLD 675-04042-80) (6684620) 3242 RON 276 1 1 FUEL PIPE 3X5X65 (OLD 700-03005-06/700-03005-065) (6684626) 1229 RON 277 1 1 RETURN GROMMET (OLD 534-32710-20) (6684627) 105 RON 278 1 1 6684625 - Indisponibil 279 1 1 6684622 (6684622) 5032 RON 280 1 1 WASHER 4 (OLD 992-00040-061) (6684632) 1229 RON 281 1 1 S.WASHER 4 (OLD 992-10040-062) (6684633) 1229 RON 282 1 1 HEX. HOLE BOLT M4X45 (NEW 990-51040-453) (6684631) 1229 RON 283 1 1 STAND (OLD 940-52200-20) (6684630) 2460 RON 284 1 1 HEX. HOLE BOLT 5X25/WS (OLD 994-64050-255) (6684617) 1229 RON 285 1 2 HEX. HOLE BOLT 5X20/PS (OLD 994-63050-204) (6684634) 1229 RON 286 1 1 - Indisponibil 301 1 1 CUTTING BODY (OLD 786-37770-20) (6684807) 6374 RON 302 1 1 REEL SPRING (OLD 793-37770-20) (6684809) 2460 RON 303 1 2 EYELET (OLD 788-37770-20) (6684810) 1229 RON 304 1 1 SPOOL (OLD 787-37770-20) (6684811) 3914 RON 305 1 1 - Indisponibil 306 1 1 SPECIAL WASHER (OLD 760-37770-20) (6684806) 2236 RON 307 1 1 MOUNTING NUT M8X1.25F (OLD 356-37770-20) (6684808) 3578 RON 308 1 1 NYLON CORD CAP (OLD 789-37770-20) (6684812) 3914 RON 309 1 1 6684805 - Indisponibil 501 1 1 COMBI BOX SPANNER 13X19 PLUS (OLD 829-20000-80) (6684979) 2236 RON 502 1 1 6684765 - Indisponibil 503 1 1 WRENCH 8X10 (OLD 801-20000-20) NEW (6684766) 1229 RON 506 1 1 HEX. BAR WRENCH 4MM (OLD 813-20000-20) (6684813) 105 RON 507 1 1 NYLON CORD BODY. SILVER (OLD 786-37714-20) (6684855) 6821 RON
