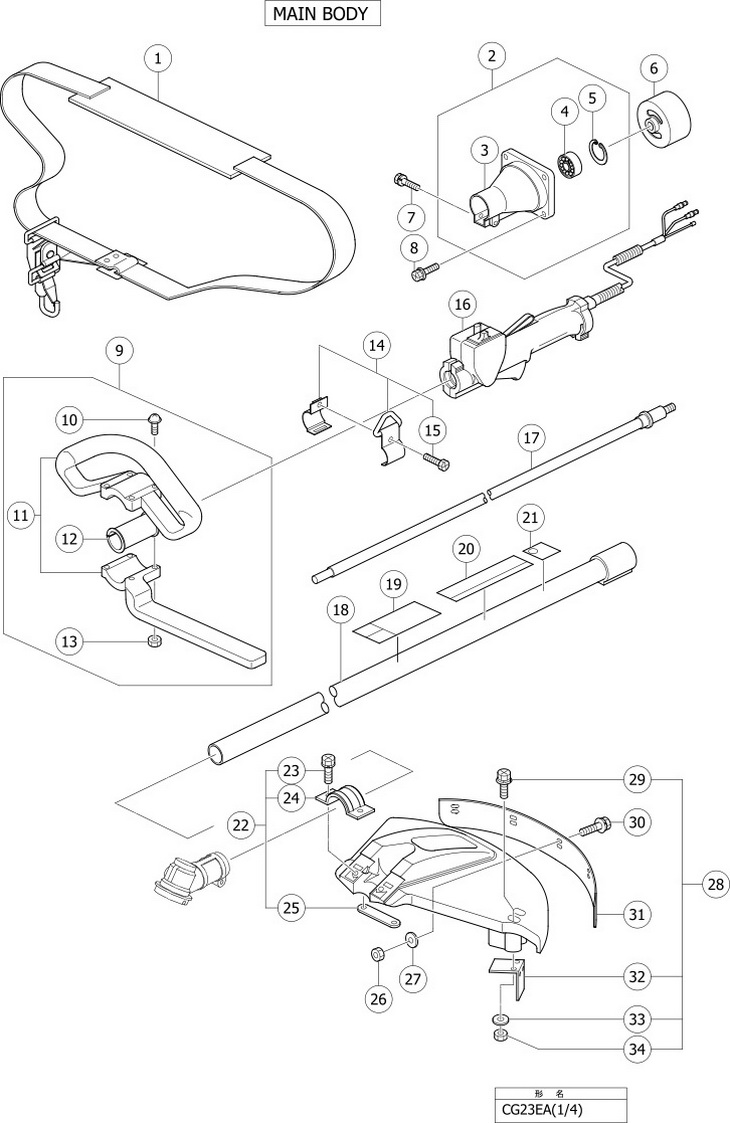

Top » Piese de schimb » PIESE HITACHI » CG23EA CG23EA [CG23EA] Click pentru a mari Imagini suplimentare Click pentru a mari Click pentru a mari Click pentru a mari Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1 1 1 683002 (683002) 12638 RON 2 1 1 682976 (682976) 22144 RON 3 1 1 CLUTCH CASE (682977) 18789 RON 4 1 1 BALL BEARING 6200 ZZ (682978) 5368 RON 5 1 1 SNAP RING H30 (682979) 2236 RON 6 1 1 CLUTCH DRUM (682981) 10960 RON 7 1 1 BOLT M5 X 30 WSW (682980) 2236 RON 8 1 4 BOLT M5 X 20 WSW (683001) 2236 RON 9 1 1 682987 (682987) 22144 RON 10 1 4 SCREW M5 X 28 SW (682990) 2236 RON 11 1 1 LOOPE HANDLE (682988) 16440 RON 12 1 1 PACKING (682989) 3242 RON 13 1 4 NUT M5 (10 PCS) (949555) 1453 RON 14 1 1 682985 (682985) 4025 RON 15 1 1 BOLT M5 X 15 (682986) 2236 RON 16 1 1 THROTTLE TRIGGER (682984) 27289 RON 17 1 1 682982 (682982) 18789 RON 18 1 1 682983 (682983) 56146 RON 19 1 1 - Indisponibil 20 1 1 - Indisponibil 21 1 1 - Indisponibil 22 1 1 682991 (682991) 14763 RON 23 1 2 BOLT M6X30 SW (682994) 1229 RON 24 1 1 BRACKET (682992) 3242 RON 25 1 1 THREADED BRACKET (682993) 4025 RON 26 1 5 NUT M5 (10 PCS) (949555) 1453 RON 27 1 5 PLANE WASHER M5 (683000) 2236 RON 28 1 1 682995 (682995) 5815 RON 29 1 2 BOLT M5 X 25 W (682997) 2236 RON 30 1 5 BOLT M5 X 15 WSW (682999) 2236 RON 31 1 1 COVER EXTENTION (682998) 573 RON 32 1 1 STRING CUTTER (682996) 4025 RON 33 1 2 SPRING WASHER M5 (10 PCS) (949454) 1117 RON 34 1 2 NUT M5 (10 PCS) (949555) 1453 RON 61 1 1 BOLT M5 X 12 (683019) 2236 RON 62 1 1 683003 (683003) 78180 RON 63 1 1 BOLT M8 X 22 WSW L.H. (683018) Indisponibil Indisponibil 64 1 1 STABILIZER (683017) 4025 RON 65 1 1 BOSS ADAPTER (683016) 4025 RON 66 1 1 BOSS ADAPTER (683015) 6822 RON 67 1 1 SNAP RING (683010) 2236 RON 68 1 1 BALL BEARING (683009) 6374 RON 69 1 1 BLADE SHAFT (683008) 12190 RON 70 1 1 BALL BEARING (683006) 5368 RON 71 1 1 BOLT M6X8 (683005) 2236 RON 72 1 1 BOLT M5 X 25 SW (683014) 1229 RON 73 1 1 GEAR CASE (683004) 14763 RON 74 1 1 BALL BEARING (683011) 5591 RON 75 1 1 SNAP RING (683012) 2236 RON 76 1 1 SNAP RING (683013) 2236 RON 77 1 1 GEAR SET (683007) 20691 RON 101 1 2 CAP SCREW (683031) 3242 RON 102 1 1 MUFFLER COMPLETE (683030) 1232 RON 103 1 1 CAP SCREW (683033) 2236 RON 104 1 1 GASKET COMPLETE (683032) 6374 RON 105 1 1 KNOB (683035) 3242 RON 106 1 1 TOP COVER (683034) 11184 RON 107 1 1 SCREW (683085) 2236 RON 108 1 1 CAUTION LABEL (B) NEW (683351) 3242 RON 109 1 1 SPARK PLUG BPMR6Y (683068) 5368 RON 110 1 1 CYLINDER (683024) 54469 RON 111 1 1 GASKET (683028) 2236 RON 112 1 1 INSULATOR (683027) 11184 RON 113 1 2 CAP SCREW (683029) 2236 RON 114 1 2 SCREW (683026) 2236 RON 115 1 1 GASKET (683025) 2236 RON 116 1 1 PISTON RING (683042) 5368 RON 117 1 1 PISTON (683041) 15658 RON 118 1 2 CLIP PISTON PIN (683045) 2236 RON 119 1 1 PISTON PIN (683043) 4025 RON 120 1 1 683054 (683054) 91714 RON 121 1 1 683056 (683056) 52679 RON 122 1 1 ROTOR-FAN (683055) 39145 RON 123 1 1 683058 (683058) 11967 RON 124 1 1 CONNECTOR (683061) 3242 RON 125 1 1 PLUG CAP (683060) 4025 RON 126 1 1 CORD (683059) 2236 RON 127 1 1 TUBE (683063) 2236 RON 128 1 1 CAP (683062) 2236 RON 129 1 1 COIL (683057) 40823 RON 130 1 2 CAP SCREW (683067) 2236 RON 131 1 2 SPACER (683066) 2236 RON 132 1 2 BOLT (683050) 3242 RON 133 1 2 WAVE WASHER (683052) 2236 RON 134 1 1 CLUTCH SHOE (683047) 22592 RON 135 1 1 SPRING CLUTCH (683049) 4025 RON 136 1 2 SPRING CLUTCH (683048) 10289 RON 137 1 1 NUT (683065) 2236 RON 138 1 2 WASHER (683051) 2236 RON 139 1 1 OIL SEAL (683038) 3242 RON 140 1 1 CRANK CASE (683036) 32323 RON 141 1 1 SNAP RING (683010) 2236 RON 142 1 2 BALL BEARING (683037) 6151 RON 143 1 1 WOODRUFF KEY (683064) 2236 RON 144 1 1 NEEDLE BEARING (683044) 6374 RON 145 1 3 CAP SCREW (683040) 2236 RON 146 1 1 SCREEN (683086) 3242 RON 147 1 1 CRANK SHAFT COMPLETE ROD (683046) 47646 RON 148 1 1 OIL SEAL (683039) 3242 RON 149 1 2 LEAD (683069) 3242 RON 150 1 1 - Indisponibil 151 1 1 FAN COVER (683053) 17783 RON 152 1 4 CAP SCREW (683087) 2236 RON 153 1 1 - Indisponibil 154 1 1 GROMMET (683070) 2236 RON 155 1 1 CLAMP SCREW (683088) 2236 RON 156 1 1 SCREW (683084) 2236 RON 157 1 1 NUT (683083) 2236 RON 158 1 1 683071 (683071) 18789 RON 159 1 1 STARTER PULLEY (683081) 2236 RON 160 1 1 SCREW (683080) 3242 RON 161 1 1 SWING ARM (683079) 2236 RON 162 1 1 COLAR (683078) 2236 RON 163 1 1 PULLEY (683077) 4025 RON 164 1 1 SPIRAL SPRING (683076) 5591 RON 165 1 1 STARTER ROPE (683075) 4025 RON 166 1 1 STARTER GRIP (683074) 2236 RON 167 1 1 683073 (683073) 6151 RON 168 1 1 683072 (683072) 17783 RON 169 1 3 BOLT (W/WASHERS) (683082) 2236 RON 170 1 1 - Indisponibil 191 1 1 GASKET (683104) 2236 RON 192 1 1 683089 (683089) 98537 RON 193 1 1 SWIVEL (683102) 5368 RON 194 1 2 SCREW (683103) 3242 RON 195 1 1 RING (683101) 2236 RON 196 1 1 O-RING (683090) 4025 RON 197 1 1 MAIN JET (683091) 7828 RON 198 1 1 GASKET (683092) 5368 RON 199 1 1 DIAPHRAGM (683093) 6151 RON 200 1 1 PUMP BODY (683094) 35790 RON 201 1 1 GASKET (683095) 5368 RON 202 1 1 DIAPHRAGM (683096) 14763 RON 203 1 1 PURGE BODY (683097) 11743 RON 204 1 1 PRIMER PUMP (683098) 5591 RON 205 1 1 PUMP COVER (683099) 6374 RON 206 1 4 SCREW (683100) 2236 RON 207 1 1 O-RING (683105) 2236 RON 208 1 1 683106 (683106) 20691 RON 209 1 1 CASE (683107) 11184 RON 210 1 1 FILTER (683108) 4025 RON 211 1 1 CLEANER COVER (683109) 6933 RON 212 1 2 CAP SCREW (683110) 3242 RON 213 1 1 CLIP (683122) 2236 RON 214 1 1 683111 (683111) 32323 RON 215 1 1 683121 (683121) 5368 RON 216 1 1 CLIP (683122) 2236 RON 217 1 1 FUEL PIPE (683119) 2236 RON 218 1 1 GROMMET (683118) 4025 RON 219 1 1 RETURN PIPE (683120) 2236 RON 220 1 1 683117 (683117) 6598 RON 221 1 1 683116 (683116) 10513 RON 222 1 1 BREATHER (683115) 7828 RON 223 1 1 FUEL TANK (683112) 12973 RON 224 1 1 683113 (683113) 6374 RON 225 1 1 PACKING (683114) 2236 RON 226 1 2 PAD (683123) 2236 RON 227 1 1 PAD (683124) 2236 RON 501 1 1 NYLON HEAD SEMI-AUTOMATIC 4" M8X1.25 LH (683020) 8499 RON 502 1 1 BOX SPANNER (683021) 5368 RON 503 1 1 DOUBLE-ENDED WRENCH (683022) 3242 RON 504 1 1 LEVER HANDLE (683023) 2236 RON 601 1 1 682975 - Indisponibil 602 1 1 CUTTER BLADE 230MM-D25.4 -NT4 (683350) 6933 RON 603 1 1 BLADE COVER (683155) 4025 RON
