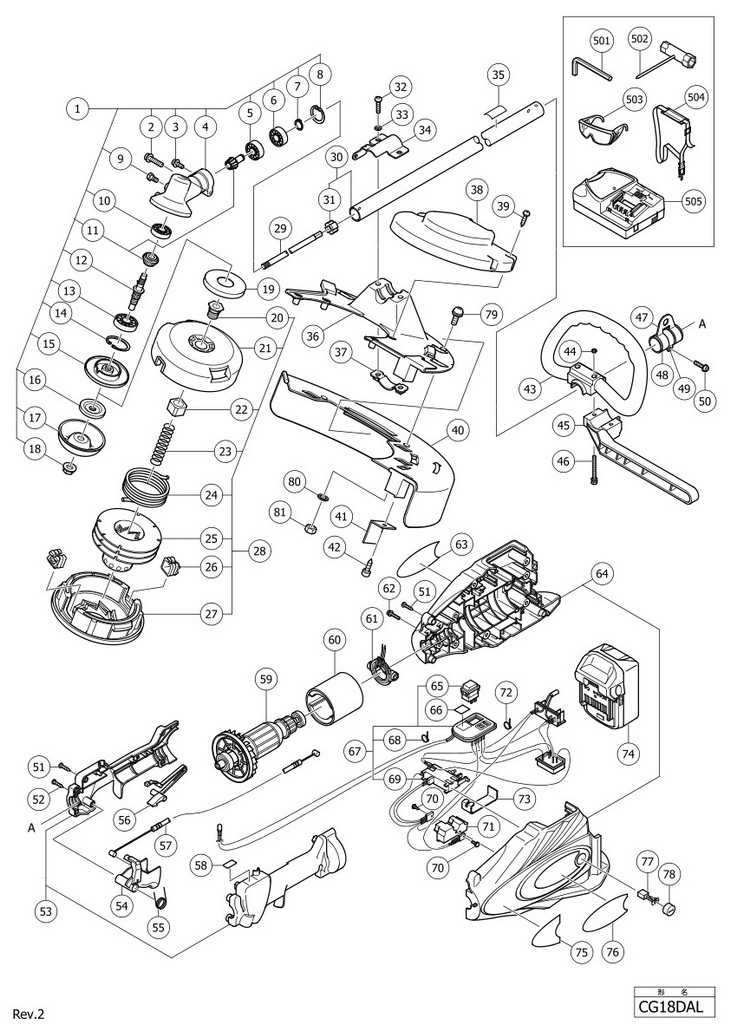

Top » Piese de schimb » PIESE HITACHI » CG18DAL CG18DAL [CG18DAL] Click pentru a mari Imagini suplimentare Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1 1 1 6695692 (6695692) 108491 RON 2 1 1 HEX. HOLE BOLT M5X30/WS (OLD 994-64050-304) (6684973) 1229 RON 3 1 1 HEX. HOLE BOLT M5X12/S (OLD 994-61050-124) (6684667) 1229 RON 4 1 1 GEAR CASE 24 (OLD 300-77350-20) (6684736) 11519 RON 5 1 1 BALL BEARING 609 (OLD 999-61609-000) (6684734) 3242 RON 6 1 1 BALL BEARING 609Z ST (OLD 999-61609-002) (6684735) 3242 RON 7 1 1 STOP RING 9 (OLD 993-54009-002) NEW (6684733) 1229 RON 8 1 1 STOP RING C-24.INNER (OLD 993-51024-002) (6684732) 1229 RON 9 1 1 BOLT (W/PLUS) M6X8 (OLD 990-23060-080) (6684737) 1229 RON 10 1 1 BALL BEARING #608.22MM/OD (OLD 999-61608-000) (6684738) 3242 RON 11 1 1 GEAR PINION SET (OLD 301-77350-00) (6684752) 9059 RON 12 1 1 GEAR SHAFT (OLD 304-77350-20) (6684739) 6598 RON 13 1 1 6684740 - Indisponibil 14 1 1 STOP RING C-28.INNER (OLD 993-51028-002) (6684741) 1229 RON 15 1 1 CUTTER HOLDER (OLD 310-77350-20) (6684742) 6933 RON 16 1 1 CUTTER HOLDER CAP (OLD 311-77350-20) (6684744) 3242 RON 17 1 1 PROTECTION COVER (OLD 308-77350-20) (6684743) 2460 RON 18 1 1 NYLON NUT (LEFT HAND) M10 NEW (331496) 1229 RON 19 1 1 WINDING PROTECTOR (OLD 307-37307-20) (6684763) 2236 RON 20 1 1 MOUNTING NUT L-M10X1.25 (OLD 356-3383B-20) (6684756) 3466 RON 21 1 1 CUTTING BODY (OLD 786-33830-20) (6684757) 6151 RON 22 1 1 SPECIAL NUT (OLD 315-33830-20) (6684758) 3578 RON 23 1 1 REEL SPRING (OLD 793-33830-20) (6684759) 2236 RON 24 1 1 - Indisponibil 25 1 1 SPOOL (OLD 787-33830-20) (6684760) 5368 RON 26 1 2 EYELET (OLD 788-33830-20) (6684762) 2236 RON 27 1 1 CUTTING BODY CAP (OLD 789-33830-20) (6684761) 9730 RON 28 1 1 6684755 - Indisponibil 29 1 1 6684701 - Indisponibil 30 1 1 DRIVE SHAFT PIPE COMP. 1500L (OLD 341-77150-80) (6684702) 16888 RON 31 1 5 6684703 (6684703) 2236 RON 32 1 2 HEX. SOCKET HD. BOLT M6X25 (W/BUTTON) NEW (330799) 1453 RON 33 1 2 SPRING WASHER M6 (10 PCS) (949455) 1453 RON 34 1 1 COVER BRACKET NEW OCT (333321) 2795 RON 35 1 1 - Indisponibil 36 1 1 COVER (A) NEW (333138) 6933 RON 37 1 1 SAFETY COVER HOLDER (OLD 445-37380-20) (6684748) 2236 RON 38 1 1 COVER (C) NEW (333140) 488 RON 39 1 4 TAPPING SCREW D4X16 (W/FLANGE) BLACK (305812) 894 RON 40 1 1 COVER (B) NEW (333139) 7940 RON 41 1 1 KNIFE (OLD 797-38331-20) (6684754) 3242 RON 42 1 1 TAPPING SCREW 5X20 (OLD 993-17052-002) (6684753) 1229 RON 43 1 1 HANDLE (OLD 500-37300-20) (6684836) 5368 RON 44 1 2 HEX.NUT 6 (OLD 6684792/991-01060-041) (6684835) 1229 RON 45 1 1 BARRIER (BLACK) (OLD 520-37277-20) (6684837) 3578 RON 46 1 2 BOLT 6X43/P (BLACK) (OLD 994-23060-432) (6684838) 1229 RON 47 1 1 HANGER (OLD 335-77350-80) (6684705) 3242 RON 48 1 1 HANGER COLLAR (OLD 334-77350-20) (6684704) 2236 RON 49 1 1 HANGER FIXING BRACKET (OLD 337-77350-80) (6684706) 2236 RON 50 1 1 HEX. HOLE BOLT M5X25/S (OLD 994-16050-252) (6684709) 1229 RON 51 1 19 TAPPING SCREW D4X20 (W/FLANGE) BLACK (302086) 1453 RON 52 1 1 TAPPING SCREW D4X20 (OLD 317171) (956384) 1453 RON 53 1 1 HANDLE (A+B) SET NEW OCT (330800) 1998 RON 54 1 1 LEVER NEW OCT (330778) 2795 RON 55 1 1 SPRING NEW OCT (330780) 2795 RON 56 1 1 LOCK LEVER NEW OCT (330779) 1453 RON 57 1 1 WIRE NEW OCT (330772) 5591 RON 58 1 1 - Indisponibil 59 1 1 360867 (360867) 23375 RON 60 1 1 MAGNET NEW (330776) 12973 RON 61 1 1 BRUSH BLOCK (324478) Indisponibil Indisponibil 62 1 1 @HEX.SOCKET HD.BOLT M5X16 (W/WASHERS) (996728) 1453 RON 63 1 1 - Indisponibil 64 1 1 HOUSING SET (A+B) NEW (330769) 32882 RON 65 1 1 330775 (330775) 6822 RON 66 1 1 - Indisponibil 67 1 1 331494 (331494) 48764 RON 68 1 1 WIRE BAND (313505) 1453 RON 69 1 1 DC-SPEED CONTROL SWITCH (330770) 15322 RON 70 1 2 MACHINE SCREW M3X12 (W/WASHERS) (993963) 1453 RON 71 1 1 HEAT SINK NEW (331495) 3019 RON 72 1 1 WIRE BAND (313505) 1453 RON 73 1 1 PLATE NEW OCT (330771) 4025 RON 74 1 1 BSL1830 BATTERY 18V 3.0Ah Li-Ion (330068) 92833 RON 75 1 1 - Indisponibil 76 1 1 - Indisponibil 77 1 2 CARBON BRUSH (1 PAIR) (OLD 999058) (999068) 4025 RON 78 1 2 BRUSH CAP (319847) Indisponibil Indisponibil 79 1 2 MACHINE SCREW M5X16 BLACK (W/WASHERS) (307294) 1453 RON 80 1 2 WASHER M5 (10 PCS) (949424) 1453 RON 81 1 2 NUT M5 (BLACK) (302012) 1453 RON 501 1 1 HEX. BAR WRENCH 4MM (OLD 813-20000-20) (6684813) 105 RON 502 1 1 BOX WRENCH (HEX. SOCKET 17/19) (OLD 826-20000-80) (6684764) 2460 RON 503 1 1 875769 - Indisponibil 504 1 1 SHOULDER BELT NEW (330787) 6039 RON 505 1 1 - Indisponibil
