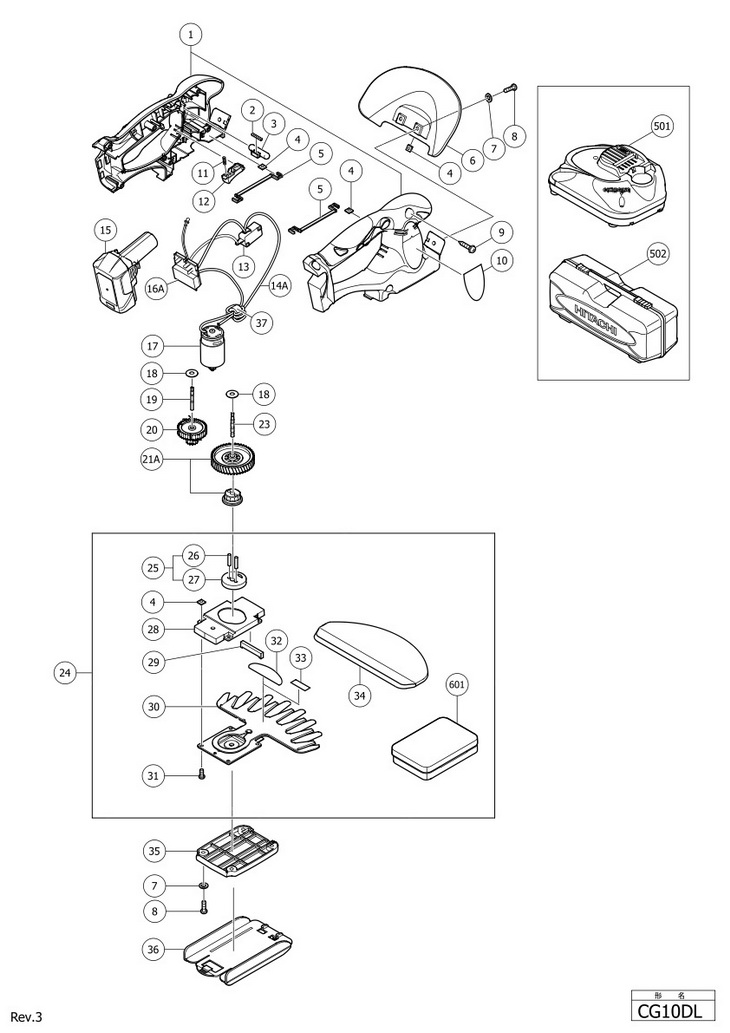

Top » Piese de schimb » PIESE HITACHI » CG10DL CG10DL [CG10DL] Click pentru a mari Imagini suplimentare Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1 1 1 HOUSING (330882) 13085 RON 2 1 1 SPRING (A) (324306) 2236 RON 3 1 1 LOCK OFF BUTTON (324298) 2236 RON 4 1 10 NUT M4 (330056) 2236 RON 5 1 2 NUT HOLDER (329837) 6374 RON 6 1 1 PROTECTOR (330879) 5480 RON 7 1 6 WASHER M4 (10 PCS) (949423) 894 RON 8 1 6 MACHINE SCREW M4X12 (10 PCS) (949217) 1453 RON 9 1 6 TAPPING SCREW D4X20 (W/FLANGE) BLACK (OLD 305095) (301653) 894 RON 10 1 1 - Indisponibil 11 1 1 SPRING (B) (324307) 2236 RON 12 1 1 TRIGGER (324299) 2236 RON 13 1 1 SWITCH (320786) 5368 RON 14 1 1 INTERNAL WIRE (330058) 5368 RON 14A 1 1 334608 - Indisponibil *15 1 1 BCL1015 BATTERY 10,8V 1.5Ah Li-Ion (OLD 329371) (331067) 4251 RON *15 1 1 331065 - Indisponibil 16 1 1 CONTROLLER (C) (329839) 20691 RON 16A 1 1 334609 - Indisponibil 17 1 1 MOTOR DC 10.8 VOLT (330880) 10848 RON 18 1 2 WASHER D15 (329835) 2236 RON 19 1 1 SHAFT (B) (329832) 2236 RON 20 1 1 FIRST GEAR (330055) 3242 RON 21A 1 1 FINAL GEAR SET (OLD 329833) (331755) 4473 RON 23 1 1 SHAFT (A) (329830) 2236 RON *24 1 1 330887 (330887) 39257 RON 25 1 1 330886 (330886) 5144 RON 26 1 1 - Indisponibil 27 1 1 - Indisponibil 28 1 1 CRANK CASE (331507) 2236 RON 29 1 1 DUST FELT (331508) 2236 RON 30 1 1 - Indisponibil 31 1 4 MACHINE SCREW M4X8 (BLACK) (323211) 1453 RON 32 1 1 - Indisponibil 33 1 1 - Indisponibil 34 1 1 BLADE COVER (170) (328030) 4025 RON 35 1 1 BOTTOM COVER (330883) 3242 RON 36 1 1 ADJUSTER (328023) 4025 RON 37 1 1 334379 - Indisponibil 501 1 1 - Indisponibil 502 1 1 PLASTIC CARRYING CASE (330885) 21138 RON 601 1 1 BLADE BOX (330057) 4025 RON
