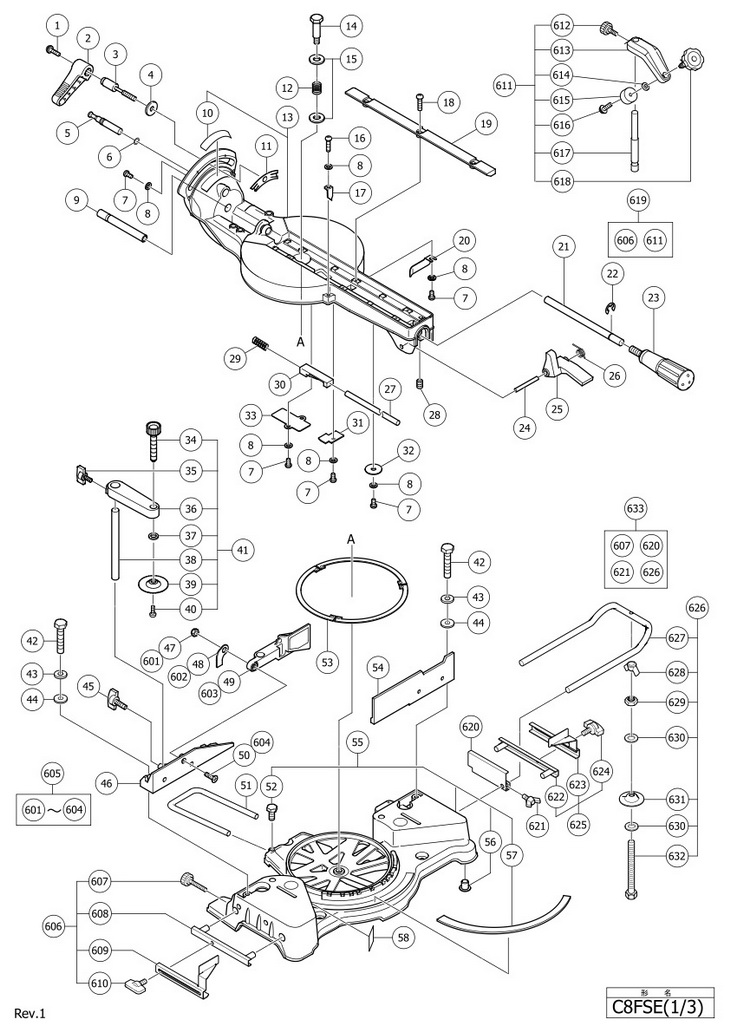

Top » Piese de schimb » PIESE HITACHI » C8FSE C8FSE [C8FSE] Click pentru a mari Imagini suplimentare Click pentru a mari Click pentru a mari Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1 1 1 MACHINE SCREW M4X12 (W/WASHERS) BLACK (935196) 1453 RON 2 1 1 CLAMP LEVER (OLD 996219) (312488) 5368 RON 3 1 1 BOLT (LEFT HAND) D10 (329409) 4025 RON 4 1 1 SPECIAL WASHER (965077) 1453 RON 5 1 1 SET PIN (325028) 4025 RON 6 1 1 O-RING (1AP-12) (996407) 1453 RON 7 1 5 MACHINE SCREW M4X8 (10 PCS) (949215) 1453 RON 8 1 6 BOLT WASHER M4 (10 PCS) (OLD 949429Z) (949429) 1453 RON 9 1 1 HINGE SHAFT (A) (OLD 996235) (320141) 6822 RON 10 1 1 SCALE (B) (329417) 2795 RON 11 1 1 LINER (A) (329408) 1453 RON 12 1 1 SPRING (312481) 2683 RON 13 1 1 TURN TABLE (329422) 48764 RON 14 1 1 SHAFT (B) (329418) 3019 RON 15 1 2 BOLT WASHER M12 (10 PCS) (OLD 949437Z) (949437) 2683 RON 16 1 1 MACHINE SCREW M4X12 (10 PCS) (949217) 1453 RON 17 1 1 INDICATOR (321329) Indisponibil Indisponibil 18 1 6 MACHINE SCREW M6X16 (10 PCS) (949256) 1788 RON 19 1 2 TABLE INSERT (329421) Indisponibil Indisponibil 20 1 1 SPACER (A) (321342) 2236 RON 21 1 1 SHAFT (A) (329416) 1453 RON 22 1 1 RETAINING RING (E-TYPE) (673489) 1117 RON 23 1 1 SIDE HANDLE (OLD 976805) (322283) 4025 RON 24 1 1 LEVER SHAFT (321339) 2236 RON 25 1 1 LEVER BRUSH 230V SA (321338) Indisponibil Indisponibil 26 1 1 SPRING (D) (321340) 2236 RON 27 1 1 SHAFT (C) (329415) 2795 RON 28 1 1 SEAL LOCK HEX. SOCKET SCREW M6X6 (987860) 1453 RON 29 1 1 SPRING (E) (321417) 2795 RON 30 1 1 STOPPER (322280) 4025 RON 31 1 1 COVER (B) (324395) 1453 RON 32 1 1 THRUST WASHER (875249) 1788 RON 33 1 1 PIN COVER (321336) 2236 RON 34 1 1 KNOB BOLT M10X66 (302522) 5927 RON 35 1 1 WING BOLT M6X15 (301806) 1453 RON 36 1 1 - Indisponibil 37 1 1 BOLT WASHER M6 (10 PCS) (OLD 949432Z) (949432) 1453 RON 38 1 1 VISE SHAFT (329859) 2795 RON 39 1 1 VISE PLATE (302532) 2460 RON 40 1 1 MACHINE SCREW M4X10 (10 PCS) (OLD 949216Z) (949216) 894 RON 41 1 1 329860 (329860) 4473 RON 42 1 4 BOLT M8X35 (10 PCS) (949678) Indisponibil Indisponibil 43 1 4 SPRING WASHER M8 (10 PCS) (949457) 1453 RON 44 1 4 BOLT WASHER M8 (10 PCS) (949433) 1453 RON 45 1 1 WING BOLT (A) (307937) 1453 RON 46 1 1 FENCE (B) (329420) 8388 RON 47 1 1 NYLON NUT M6 (963837) 1453 RON 48 1 1 PLATE (329465) 1453 RON 49 1 1 SUB FENCE (330138) 6039 RON 50 1 1 FLAT HD.SCREW M6X25 (10 PCS) (949342) 2236 RON 51 1 1 HOLDER (998844) 573 RON 52 1 1 BOLT M6X10 (10 PCS) (949610) 1788 RON 53 1 3 LINER (324400) 1453 RON 54 1 1 FENCE (A) (329419) 9394 RON 55 1 1 329414 (329414) 63640 RON 56 1 4 BASE RUBBER (323606) 1453 RON 57 1 1 SCALE (A) (315210) 4025 RON 58 1 1 - Indisponibil 81 1 1 SLEEVE (322889) 1453 RON 82 1 1 SPRING (329410) Indisponibil Indisponibil 83 1 4 HEX.SOCKET SET SCREW M8X10 (961554) 1788 RON 84 1 1 329427 (329427) 65653 RON 85 1 1 MACHINE SCREW M5X12 (10 PCS) (949237) 1453 RON 86 1 1 SPACER (998980) 894 RON 87A 1 1 LINK (329411) 5815 RON 88 1 1 HINGE SHAFT (A) (OLD 996235) (320141) 6822 RON 89 1 1 O-RING (P-6) (984528) 1453 RON 90 1 1 302518 (302518) 382 RON 91 1 1 HINGE COVER (324058) 4025 RON 92 1 5 BOLT WASHER M4 (10 PCS) (OLD 949429Z) (949429) 1453 RON 93 1 3 MACHINE SCREW M4X8 (10 PCS) (949215) 1453 RON *94 1 1 500234Z - Indisponibil *94 1 1 500247Z - Indisponibil *94 1 1 CORD 3M 2 X 1,0 H05VV-F W/PLUG 16A CEE FORM 2P+E FOR GBR (500461Z) 13085 RON *94 1 1 CORD 2,5M 2 X 1.0 H05VV-F W/PLUG 13A/250V GBR (500435Z) 12638 RON *94 1 1 CORD 2,5M 2 X 1.0 H05VV-F (OLD 500395Z) (500447Z) 5480 RON *94 1 1 500434Z - Indisponibil *94 1 1 930055 - Indisponibil *94 1 1 500439Z - Indisponibil *94 1 1 500456Z - Indisponibil *94 1 1 500455Z - Indisponibil *94 1 1 323974 - Indisponibil *94 1 1 @ CORD 2,5M 2 X 1.0 H05VV-F W/PLUG 13A/250V (OLD 500223Z) (500423Z) 12862 RON 95 1 1 MACHINE SCREW M4X12 (W/WASHERS) BLACK (935196) 1453 RON *96 1 1 NYLON CLIP FOR SWISS,GBR,ESP (948614) 1453 RON *96 1 1 NYLON CLIP (948193) 1453 RON 97 1 1 SUPPORT (329492) 6262 RON 98 1 1 MACHINE SCREW M4X8 (10 PCS) (949215) 1453 RON 99 1 1 BALL BUSHING (329424) 18789 RON 100 1 1 BUSHING (326141) 6151 RON 101 1 1 KNOB BOLT M6X25 (324418) 2795 RON 102 1 1 LOCK SPRING (OLD 996224) (947859) 894 RON 103 1 1 SEAL LOCK HEX. SOCKET SCREW M6X10 (307956) 1453 RON 104 1 1 MACHINE SCREW M4X12 (10 PCS) (949217) 1453 RON 105 1 1 INDICATOR (321329) Indisponibil Indisponibil 106 1 2 HEX.SOCKET SET SCREW M6X8 (301575) 1453 RON 107 1 1 TAPPING SCREW D5X25 (W/FLANGE) BLACK (305558) 894 RON 108 1 2 NYLOCK BOLT M8X25 (303409) 1453 RON 109 1 1 HOLDER (A) (329428) 40264 RON 110 1 1 324372 (324372) 6039 RON 151 1 2 TAPPING SCREW D4X16 (W/FLANGE) (984750) 1117 RON 152 1 1 CORD ARMOR D10.1 (OLD 994565) (938051) 894 RON 153 1 1 CORD CLIP (OLD 994566) (937631) 894 RON 154 1 1 329437 (329437) 21138 RON 155 1 1 - Indisponibil 156 1 3 MACHINE SCREW M6X40 (W/WASHERS) BLACK (322123) 2236 RON 157 1 2 HEX.SOCKET SET SCREW M5X8 (938477) 1453 RON 158 1 2 BRUSH HOLDER (957571) 2124 RON *159 1 2 CARBON BRUSH (1 PAIR) (999001) 5368 RON *159 1 2 CARBON BRUSH (1 PAIR) (999021) 382 RON 160 1 2 BRUSH CAP (931266) 894 RON 161 1 7 TAPPING SCREW D4X20 (W/FLANGE) BLACK (OLD 305095) (301653) 894 RON 162 1 1 HANDLE COVER (329438) 9842 RON 163 1 1 FERRITE CORE FOR GBR 110 VOLT (324518) 8052 RON 164 1 2 CONNECTOR 50092 (10 PCS) (OLD 939558) (959141) 382 RON *165 1 1 INTERNAL WIRE (G) (329461) 2795 RON *165 1 1 329430 - Indisponibil 166 1 1 SWITCH (3P FASTON TYPE W/O LOCK) (324424) 5368 RON 167 1 1 PILLAR TERMINAL (A) (958308Z) 5368 RON *168 1 1 NOISE SUPPRESSOR 220-240 VOLT (329861) 573 RON *168 1 1 NOISE SUPPRESSOR 110 VOLT (329862) 381 RON 169 1 1 CAP (329439) 1453 RON 170 1 1 SPRING (323433) 2236 RON 171 1 1 LOCK LEVER (323432) 3019 RON 172 1 1 FAN GUIDE (329436) 2795 RON 173 1 2 HEX.HD. TAPPING SCREW D4X60 (960108) 1453 RON 174 1 2 BRUSH TERMINAL (931867) 1229 RON *175 1 1 340729C (340729C) 18118 RON *175 1 1 340729D - Indisponibil *175 1 1 340729E (340729E) 1998 RON *175 1 1 340729F - Indisponibil 176 1 1 BALL BEARING 6000VVCMPS2S (6000VV) 4025 RON 177 1 1 DUST SEAL (315877) 1453 RON 178 1 1 BALL BEARING 608VVMC2EPS2L (608VVM) 4025 RON 179 1 1 BEARING BUSHING (322089) 4025 RON 180 1 1 RUBBER BUSHING (322090) 2236 RON *181 1 1 360839U cod echivalent 360839E (360839U) 23375 RON *181 1 1 360839E ECHIVALENT 360839U (360839E) Indisponibil Indisponibil *181 1 1 360839F - Indisponibil 182 1 1 KNOB BOLT M6X37 (961468) 1788 RON 183 1 1 LOCK SPRING (988821) 3578 RON 184 1 1 NYLOCK BOLT M8X25 (303409) 1453 RON 185 1 1 MACHINE SCREW (W/WASHERS) M5X8 (996274) 1453 RON 186 1 1 SPINDLE COVER (329413) 5368 RON 187 1 1 - Indisponibil 188 1 1 MACHINE SCREW M4X12 (W/WASHERS) BLACK (935196) 1453 RON 189 1 1 SEAL LOCK HEX. SOCKET HD. BOLT M5X10 (877839) 1453 RON 190 1 1 GEAR CASE (329431) 46639 RON 191 1 1 HITACHI PLATE (328922) 2460 RON 192 1 1 BOLT M6X16 (W/WASHERS) BLACK (308259) 1453 RON 193 1 1 MACHINE SCREW M6X25 (10 PCS) (949260) 2236 RON 194 1 1 BALL BEARING 606ZZMC3PS2S (606ZZM) 5815 RON 195 1 1 SPRING WASHER M6 (10 PCS) (949455) 1453 RON 196 1 1 WASHER M6 (10 PCS) (949425) Indisponibil Indisponibil 197 1 1 LOCK LEVER SPRING (329463) 1453 RON 198 1 1 LOCK LEVER (329462) 4025 RON 199 1 2 SPECIAL SCREW M6 BRUSH 230V SA (322950) 1453 RON 200 1 1 DUST GUIDE (321364) 2236 RON 201 1 1 GUIDE HOLDER (312492) 382 RON 202 1 1 BOLT(LEFT HAND)W/WASHER M7X17.5 (OLD 996258) (998335) 1453 RON 203 1 1 - Indisponibil 203 1 1 - Indisponibil 203 1 1 - Indisponibil *204 1 1 COLLAR (B) (976819) 4025 RON *204 1 1 COLLAR (A) (974663Z) 382 RON 205 1 2 FLAT HD.SCREW M4X10 (10 PCS) (949322) 1453 RON 206 1 1 COVER (307731) 2795 RON 207 1 1 LOWER GUARD (329412) 16553 RON 208 1 1 RETURN SPRING (317203) 3242 RON 209 1 1 329432 (329432) 15322 RON 210 1 1 BALL BEARING 6003VVCM (NYLON RETAINER) (327694) 4249 RON 211 1 1 BEARING HOLDER (329435) 5144 RON 212 1 1 BALL BEARING 608VVMC2EPS2L (608VVM) 4025 RON 213 1 2 WASHER (D) (308789) Indisponibil Indisponibil 214 1 2 MACHINE SCREW M5X20 (10 PCS) (949241) 1788 RON 215 1 2 SPRING WASHER M5 (10 PCS) (949454) 1117 RON 218 1 1 WASHER (G) (318452) 1453 RON 501 1 1 BOX WRENCH 10MM (OLD 968658) (940543) 4361 RON 502 1 1 DUST BAG (322955) Indisponibil Indisponibil 601 1 1 NYLON NUT M6 (963837) 1453 RON 602 1 1 PLATE (329465) 1453 RON 603 1 1 SUB FENCE (330138) 6039 RON 604 1 1 FLAT HD.SCREW M6X25 (10 PCS) (949342) 2236 RON 605 1 1 329464 (329464) 11072 RON 606 1 1 321374 (321374) 23487 RON 607 1 1 KNOB BOLT M6X32 (960017) 2236 RON 608 1 1 CROWN MOLDING STOPPER HOLDER (321390) 11743 RON 609 1 1 - Indisponibil 610 1 1 WING BOLT M6X15 (301806) 1453 RON 611 1 1 322957 (322957) 74825 RON 612 1 1 KNOB BOLT M6X11 (998836) 2683 RON 613 1 1 - Indisponibil 614 1 1 WASHER (H) (306985) 1453 RON 615 1 1 BASE RUBBER (964851) 1453 RON 616 1 1 MACHINE SCREW M4X10 (W/WASHERS) BLACK (304043) 1453 RON 617 1 1 VISE SHAFT (318967) 2795 RON 618 1 1 @KNOB BOLT M10X54 (321551) 9842 RON 619 1 1 329782 (329782) 105360 RON 620 1 1 STOPPER (974561) 5815 RON 621 1 1 WING BOLT M6X20 (10 PCS) (OLD 949404Z) (949404) 6374 RON 622 1 1 CROWN MOLDING STOPPER HOLDER (321390) 11743 RON 623 1 1 - Indisponibil 624 1 1 WING BOLT M6X15 (301806) 1453 RON 625 1 1 321373 (321373) 23487 RON 626 1 1 - Indisponibil 627 1 2 HOLDER (321549) 13197 RON 628 1 2 WING NUT M6 (10 PCS) (949313) 4361 RON 629 1 2 NUT M6 (10 PCS) (949556) 1453 RON 630 1 4 WASHER (H) (967329) 1453 RON 631 1 2 VISE PLATE (996261) 1788 RON 632 1 2 HIGH TENSION BOLT M6X65 (996283) 2683 RON 633 1 1 321553 (321553) 49323 RON 634 1 1 998840 - Indisponibil 635 1 1 998858 - Indisponibil 636 1 1 998859 - Indisponibil
