C7BD2
[C7BD2]
C7BD2
Click pentru a mari
Imagini suplimentare
C7BD2
Click pentru a mari

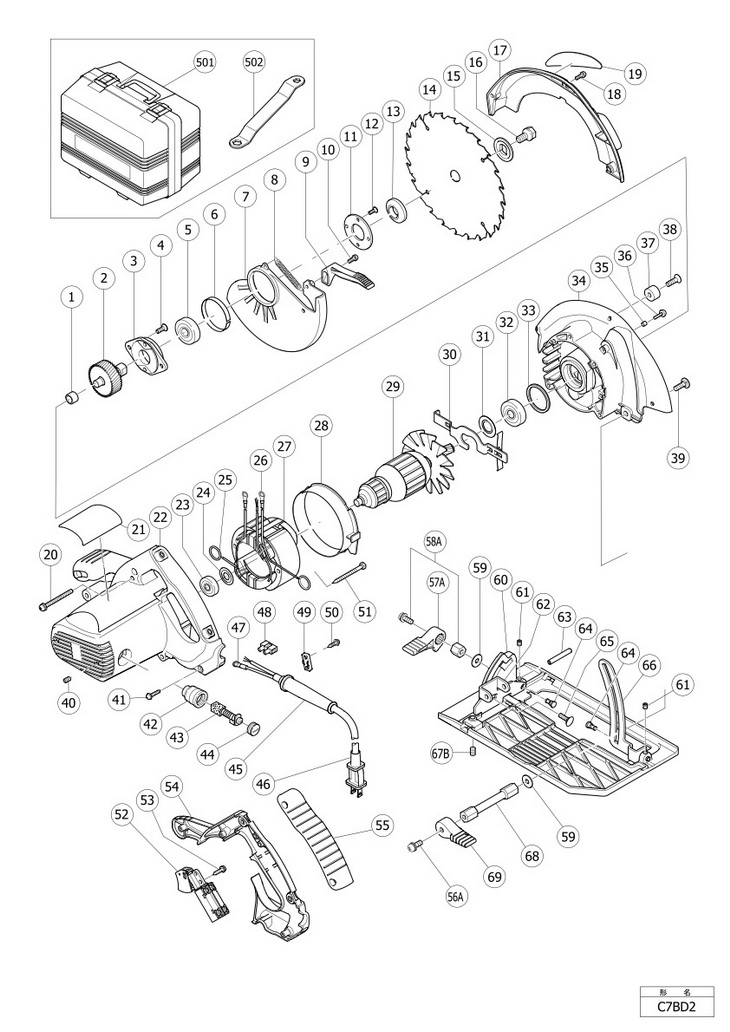

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 NEEDLE BEARING HK1010 (982027) 5368 RON
2 1 1 SPINDLE AND GEAR SET (320960) 9730 RON
3 1 1 BEARING HOLDER (302433) 2460 RON
4 1 2 SEAL LOCK FLAT HD. SCREW M5X14 (992013) Indisponibil Indisponibil
5 1 1 BALL BEARING 6003VVCMPS2S (6003VV) 5256 RON
6 1 1 BUSHING (OLD 961807Z) (961807) 2460 RON
7 1 1 LOWER GUARD (320956) 6262 RON
8 1 1 RETURN SPRING (320968) 1453 RON
9 1 1 LEVER (320957) 1229 RON
10 1 1 MACHINE SCREW M4X12 (W/WASHERS) BLACK (935196) 1453 RON
11 1 1 BEARING HOLDER (302435) 1788 RON
12 1 2 SEAL LOCK FLAT HD. SCREW M4X10 (990430) 894 RON
13 1 1 WASHER (A) (320970) 3019 RON
14 1 1 320843 - Indisponibil
15 1 1 320953 - Indisponibil
16 1 1 BOLT M8X15.5 (W/FLANGE) (320971) 1453 RON
17 1 1 BLADE COVER (324594) 6374 RON
18 1 3 MACHINE SCREW (W/SP.WASHER) M4X12 (951039) 1453 RON
19 1 1 - Indisponibil
20 1 3 MACHINE SCREW M5X55 (W/WASHERS) (308357) 1453 RON
21 1 1 - Indisponibil
22 1 1 320951 (320951) 11296 RON
23 1 1 BALL BEARING 6000VVCMPS2S (6000VV) 4025 RON
24 1 1 WASHER (A) (302428) 894 RON
25 1 2 BRUSH TERMINAL (OLD 976831) (937623) 894 RON
26 1 2 TERMINAL M4.0 (10 PCS) (930804) 297 RON
27 1 1 340527C - Indisponibil
28 1 1 FAN GUIDE (320958) 1453 RON
29 1 1 360577U (360577U) 6802 RON
30 1 1 LOCK LEVER (320959) 2795 RON
31 1 1 DUST WASHER (B) (980700) 894 RON
32 1 1 BALL BEARING 6202VVCMPS2S (6202VV) 4585 RON
33 1 1 RUBBER RING (303792) 1453 RON
34 1 1 GEAR COVER (320954) 25612 RON
35 1 1 SPACER M4 (311837) 894 RON
36 1 1 TP-SCREW M4X14 (311836) 894 RON
37 1 1 CUSHION (961729) 1453 RON
38 1 1 FLAT HD.SCREW M6X20 (10 PCS) (949794) 2236 RON
39 1 1 BOLT (SQUARE) M6X20 (942808) 1453 RON
40 1 2 HEX.SOCKET SET SCREW M5X8 (938477) 1453 RON
41 1 5 TAPPING SCREW D4X20 (W/FLANGE) BLACK (OLD 305095) (301653) 894 RON
42 1 2 BRUSH HOLDER (OLD 938241Z) (938241) 5368 RON
43 1 2 CARBON BRUSH (1 PAIR) (999038) 382 RON
44 1 2 BRUSH CAP (945161) 1453 RON
45 1 1 CORD ARMOR D10.7 (940778) 2124 RON
46 1 1 500453Z - Indisponibil
47 1 1 TERMINAL M4.0 (10 PCS) (930804) 297 RON
48 1 1 PILLAR TERMINAL (OLD 938307Z/512-31870-20)) (938307) 2571 RON
49 1 1 CORD CLIP (OLD 994566) (937631) 894 RON
50 1 2 TAPPING SCREW D4X16 (W/FLANGE) (984750) 1117 RON
51 1 2 HEX.HD. TAPPING SCREW D5X50 (953121) 894 RON
52 1 1 SWITCH (1P SCREW TYPE) (320950) Indisponibil Indisponibil
53 1 1 TAPPING SCREW D4X12 (W/FLANGE) (305720) 1453 RON
54 1 1 HANDLE COVER (320952) 2795 RON
55A 1 1 GRIP COVER NEW MAR (333782) 3019 RON
56A 1 1 SEAL LOCK SCREW M6X14 (W/SP WASHERS) (322260) 2236 RON
57A 1 1 LEVER (A) W/STOPPER (322600) 3019 RON
58A 1 1 LOCK NUT SET (W/SCREW) (322261) 2795 RON
59 1 2 WASHER (320975) 1453 RON
60 1 1 320961 - Indisponibil
61 1 2 SEAL LOCK HEX. SOCKET SET SCREW M5X6 (319541) 2236 RON
62 1 1 BEVEL PLATE (320962) 2795 RON
63 1 1 ROLL PIN D6X40 (10 PCS) (949686) 5591 RON
64 1 2 STEP PIN D6X13 (320163) 2236 RON
65 1 1 BOLT (SQUARE) M6X20 (942808) 1453 RON
66 1 1 LINK (320963) 3019 RON
67B 1 1 SLOTTED HD.SET SCREW M6X8 (SEAL LOCK) (308109) 1453 RON
68 1 1 LONG NUT (320966) 2795 RON
69 1 1 LEVER (A) W/O STOPPER (322601) 3019 RON
501 1 1 PLASTIC CARRYING CASE C7SB2 & C7BD2 (321188) 2550 RON
502 1 1 320976 - Indisponibil
601 1 1 GUIDE (302691) 11967 RON
