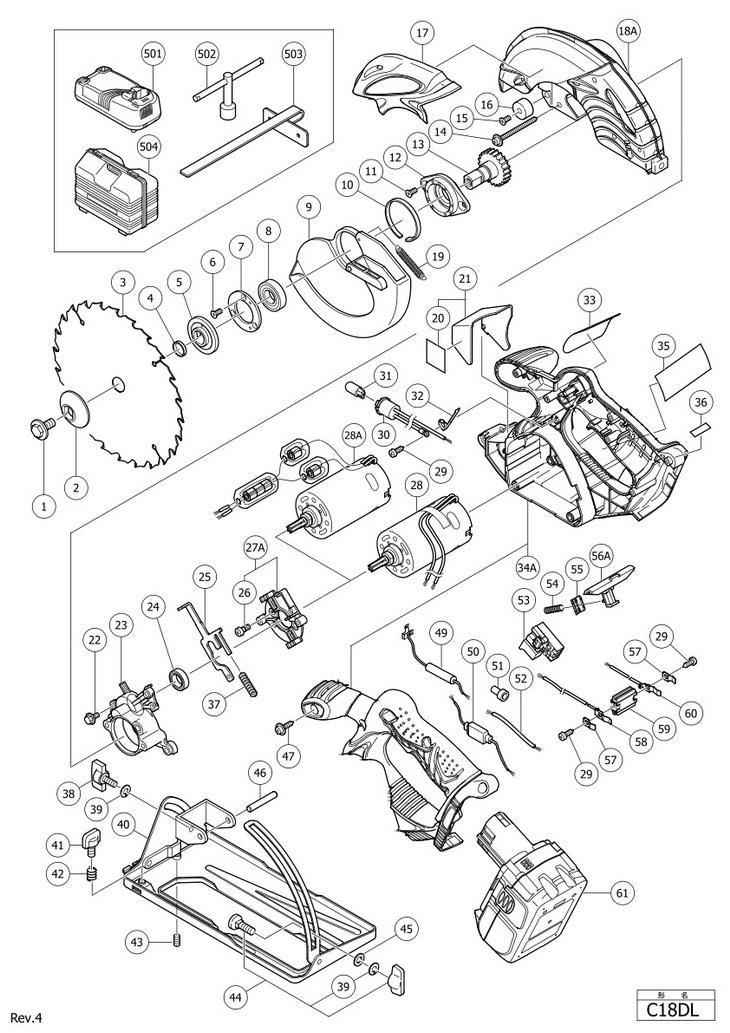

Top » Piese de schimb » PIESE HITACHI » C18DL C18DL [C18DL] Click pentru a mari Imagini suplimentare Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1 1 1 BOLT(LEFT HAND)W/WASHER M7X17.5 (OLD 996258) (998335) 1453 RON 2 1 1 WASHER (B2) (324563) 4025 RON *3 1 1 324295 - Indisponibil *3 1 1 317451 - Indisponibil *3 1 1 317452 - Indisponibil 4 1 1 RING D15.9/I.D.14.5 (990100) 2236 RON *5 1 1 WASHER (A3) (324569) 4025 RON *5 1 1 WASHER (A1) NEW (317466) 6598 RON *5 1 1 WASHER (A2) (317465) 6598 RON 6 1 3 SEAL LOCK FLAT HD. SCREW M3X12 (308773) 1453 RON 7 1 1 BEARING COVER (308362) 2348 RON 8 1 1 BALL BEARING 6002VVCMPS2L (6002VV) 4920 RON 9 1 1 PROTECTIVE COVER (324567) 573 RON 10 1 1 BUSHING (318192) 2236 RON 11 1 2 SEAL LOCK FLAT HD. SCREW M5X12 (305568) 1453 RON 12 1 1 BEARING HOLDER (308361) 3242 RON 13 1 1 GEAR (324564) 21138 RON 14 1 3 TAPPING SCREW D5X50 W/FLANGE (317449) 2236 RON 15 1 1 FLAT HD.SCREW M5X20 (10 PCS) (949793) 1788 RON 16 1 1 CUSHION (310842) 1453 RON 17 1 1 HITACHI PLATE (326773) 3019 RON 18A 1 1 SAW COVER (OLD 324566) (331434) 1998 RON 19 1 1 RETURN SPRING (317203) 3242 RON 20 1 1 - Indisponibil 21 1 1 324577 (324577) 1453 RON 22 1 2 NYLOCK BOLT M4X12 W/FLANGE (317196) 2236 RON 23 1 1 INNER COVER (B) (324565) 5815 RON 24 1 1 BALL BEARING 609VVMC2PS2S (609VVM) 4025 RON 25 1 1 LOCK LEVER (324568) 2795 RON 26 1 2 SPECIAL BOLT M5 (317914) 2236 RON 27A 1 1 331435 (331435) 6374 RON 28 1 1 MOTOR (324572) 22144 RON 28A 1 1 334848 - Indisponibil 29 1 3 TAPPING SCREW D4X10 (958715) 894 RON 30 1 1 SOCKET (319820) 5032 RON 31 1 1 LAMP 12V 5W (315229) 6151 RON 32 1 1 TERMINAL (D) (319823) 1453 RON 33 1 1 - Indisponibil 34A 1 1 HOUSING HANDLE COVER SET (OLD 324576) (334223) 18789 RON 35 1 1 - Indisponibil 36 1 1 - Indisponibil 37 1 1 SPRING (OLD 961803Z) (961803) 1788 RON 38 1 1 WING BOLT (A) (308364) 894 RON 39 1 2 SUPER LOCK WASHER M6 (948167) Indisponibil Indisponibil 40 1 1 324561 (324561) 14092 RON 41 1 1 KNOB BOLT (324562) 1453 RON 42 1 1 LOCK SPRING (OLD 996224) (947859) 894 RON 43 1 1 SLOTTED HD.SET SCREW M6X6 (SEAL LOCK) (302469) 1453 RON 44 1 1 BOLT M6X22 (W/SUPERLOCK WASHER) SQUARE (314620) 5368 RON 45 1 1 WASHER M6 (10 PCS) (949425) Indisponibil Indisponibil 46 1 1 ROLL PIN D6X50 (10 PCS) (OLD 949750Z) (949750) 6151 RON 47 1 6 TAPPING SCREW D4X16 (W/FLANGE) BLACK (305812) 894 RON 49 1 1 RESISTOR (324570) 4025 RON 50 1 1 RESISTOR (A) (324573) 4025 RON 51 1 2 CONNECTOR 50092 (10 PCS) (OLD 939558) (959141) 382 RON 52 1 1 INTERNAL WIRE (321002) 1453 RON 53 1 1 SWITCH W/O LOCK 1P SCREW TYPE (319825) 12862 RON 54 1 1 SPRING (F) (301631) 1117 RON 55 1 1 TERMINAL (A) (317207) 1453 RON 56A 1 1 KNOB (331433) 1453 RON 57 1 2 HOLDER SPRING (996118) 2683 RON 58 1 1 TERMINAL (324574) 2795 RON 59 1 1 TERMINAL PIECE (320997) 1453 RON 60 1 1 TERMINAL (321000) 3019 RON *61 1 1 326241 - Indisponibil *61 1 1 EBM1830 BATTERY 18V 3.0Ah Li-Ion (326240) 92833 RON 501 1 1 - Indisponibil 502 1 1 BOX WRENCH 10MM (OLD 968658) (940543) 4361 RON 503 1 1 GUIDE (302756) 3466 RON 504 1 1 PLASTIC CARRYING CASE C18DL & C18DMR (324579) 30757 RON *601 1 1 DUST COLLECTOR SET (A) (324580) 4025 RON *601 1 1 324581 - Indisponibil Puteti cumpara C18DL in urmatoarele variante: Hitachi C18DL
