Top » Piese de schimb » PIESE HITACHI » C12LDH

C12LDH
[C12LDH]
C12LDH
Click pentru a mari
Imagini suplimentare
C12LDH
Click pentru a mari
C12LDH
Click pentru a mari
C12LDH
Click pentru a mari

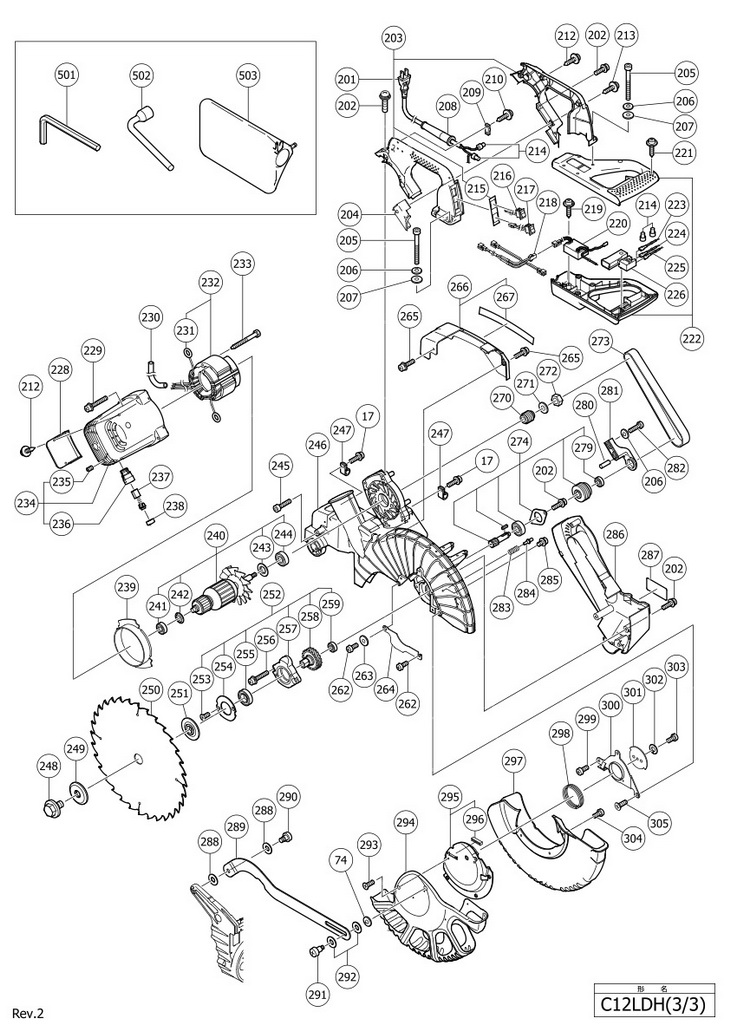

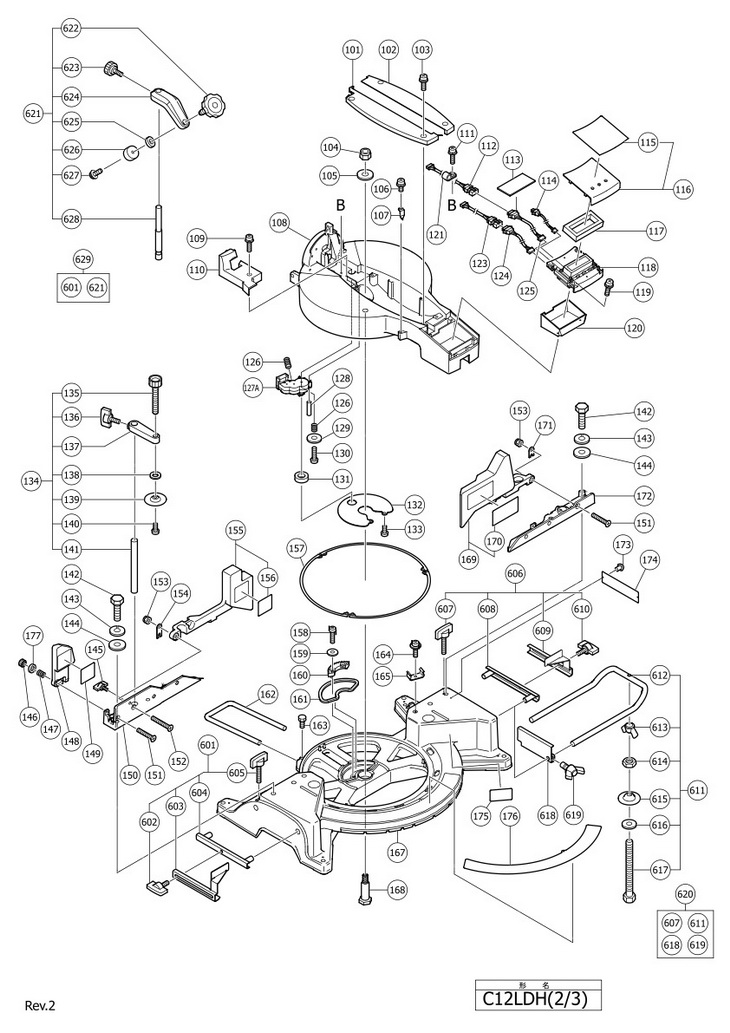

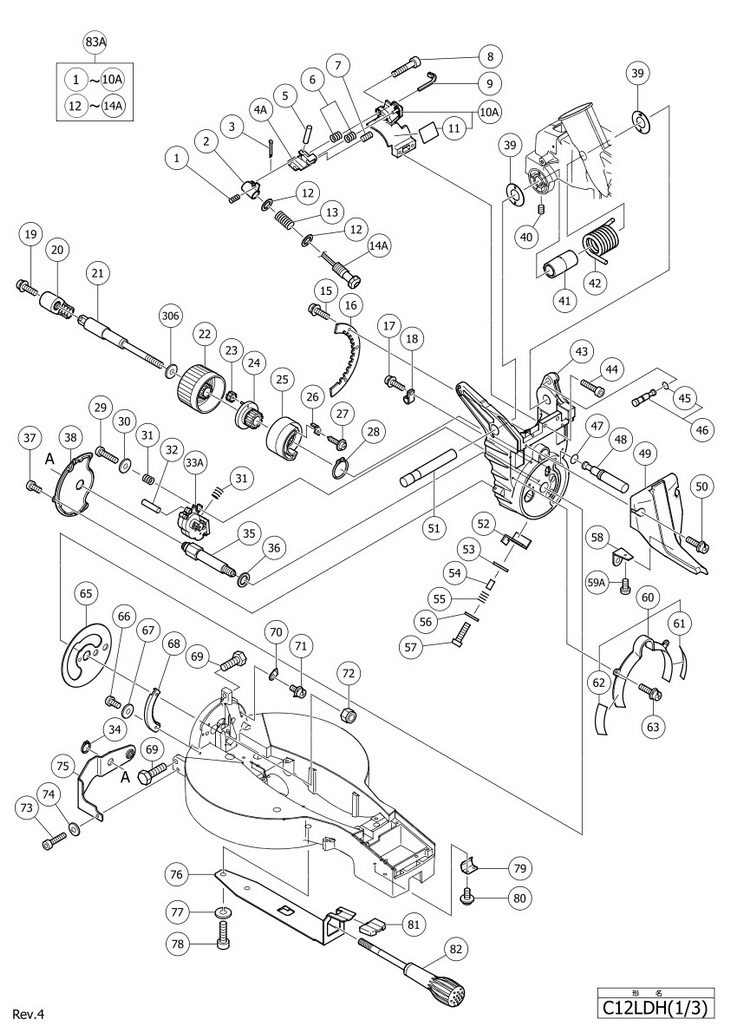

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SPRING (B) (323141) 1453 RON
2 1 1 LASER HOLDER (A) (323137) 1453 RON
3 1 1 SPLIT PIN D2X12 (10 PCS) (949531) 1453 RON
4A 1 1 LASER HOLDER (B) (OLD 323138) (328943) 2795 RON
5 1 1 ROLL PIN D3X14 (10 PCS) (949900) 2348 RON
6 1 2 SPRING (C) HANDLE. LOGGER (323142) 1453 RON
7 1 1 HEX.SOCKET SET SCREW M5X6 (962782) 894 RON
8 1 1 SPECIAL BOLT M5 (323144) 3242 RON
9 1 1 CABLE TIE (975144) 894 RON
10A 1 1 331876 (331876) 3690 RON
11 1 1 - Indisponibil
12 1 2 WASHER (323143) 1453 RON
13 1 1 SPRING (A) (323140) 1453 RON
14A 1 1 331879 (331879) 45968 RON
15 1 3 MACHINE SCREW M5X16 (OLD 949238) (990541) 1453 RON
16 1 1 324971 - Indisponibil
17 1 3 MACHINE SCREW M4X12 (W/WASHERS) BLACK (935196) 1453 RON
18 1 1 NYLON CLIP (973313) 1453 RON
19 1 1 MACHINE SCREW M6X20 (W/WASHERS) (323208) 1453 RON
20 1 1 CLAMP LEVER (322935) Indisponibil Indisponibil
21 1 1 325032 - Indisponibil
22 1 1 325033 - Indisponibil
23 1 3 325035 - Indisponibil
24 1 1 325036 - Indisponibil
25 1 1 325034 - Indisponibil
26 1 2 325037 - Indisponibil
27 1 2 TAPPING SCREW D4X16 (W/FLANGE) (BLACK) (307811) 894 RON
28 1 1 RETAINING RING FOR D28 SHAFT (962553) 1453 RON
29 1 1 MACHINE SCREW M5X20 (10 PCS) (949241) 1788 RON
30 1 1 BOLT WASHER M6 (10 PCS) (OLD 949432Z) (949432) 1453 RON
31 1 2 SPRING (C) HANDLE. LOGGER (323142) 1453 RON
32 1 1 NEEDLE D5X19.8 (305592) 1117 RON
33A 1 1 ENCODER (323619) 27289 RON
34 1 1 RETAINING RING FOR D12 (10 PCS) (939542) 1788 RON
35 1 1 325030 - Indisponibil
36 1 1 WASHER M16 (322934) 1453 RON
37 1 4 MACHINE SCREW M4X10 (10 PCS) (OLD 949216Z) (949216) 894 RON
38 1 1 324972 - Indisponibil
39 1 2 LINER (D) (323684) 1453 RON
40 1 1 SEAL LOCK HEX. SOCKET SCREW M6X10 (307956) 1453 RON
41 1 1 SLEEVE (323594) 1453 RON
42 1 1 SPRING (A) (323595) 4025 RON
43 1 1 325027 - Indisponibil
44 1 2 HEX.SOKET HD.BOLT M6X20 (10 PCS) (949660) 3242 RON
45 1 1 O-RING (P-6) (984528) 1453 RON
46 1 1 302518 (302518) 382 RON
47 1 1 O-RING (1AP-12) (996407) 1453 RON
48 1 1 SET PIN (325028) 4025 RON
49 1 1 324973 - Indisponibil
50 1 2 MACHINE SCREW M5X16 (OLD 949238) (990541) 1453 RON
51 1 1 SHAFT (C) (323593) 3019 RON
52 1 1 325029 - Indisponibil
53 1 1 BOLT WASHER M6 (10 PCS) (OLD 949432Z) (949432) 1453 RON
54 1 1 SPACER D4X10 (303006) 1453 RON
55 1 1 SPRING (C) HANDLE. LOGGER (323142) 1453 RON
56 1 1 WASHER M4 (10 PCS) (949423) 894 RON
57 1 1 SCREW (10 PCS) (949221) 1453 RON
58 1 1 DUST GUIDE HOLDER (322963) 1453 RON
59A 1 1 MACHINE SCREW M4X8 (10 PCS) (949215) 1453 RON
60 1 1 324968 - Indisponibil
61 1 1 324969 - Indisponibil
62 1 1 324970 - Indisponibil
63 1 2 MACHINE SCREW (W/WASHER) M4X16 (993539) 894 RON
65 1 1 324978 - Indisponibil
66 1 2 MACHINE SCREW M4X10 (10 PCS) (OLD 949216Z) (949216) 894 RON
67 1 2 WASHER M4 (10 PCS) (949423) 894 RON
68 1 1 324977 - Indisponibil
69 1 3 325019 - Indisponibil
70 1 2 324974 - Indisponibil
71 1 2 MACHINE SCREW M4X10 (W/WASHERS) BLACK (304043) 1453 RON
72 1 1 NYLON NUT M12 (680418) 3242 RON
73 1 1 HEX.SOCKET HD.BOLT M5X16 (10 PCS) (949821) 2683 RON
74 1 2 SPRING WASHER M5 (10 PCS) (949454) 1117 RON
75 1 1 325031 - Indisponibil
76 1 1 SPRING PLATE (323627) 5032 RON
77 1 2 SPRING WASHER M8 (10 PCS) (949457) 1453 RON
78 1 2 HEX.SOCKET HD.BOLT M8X16 (10 PCS) (OLD 944949) (949655) 382 RON
79 1 1 SPACER (A) (323609) 1453 RON
80 1 2 MACHINE SCREW M4X10 (W/SP.WASHER) (307635) 1453 RON
81 1 1 324987 - Indisponibil
82 1 1 SIDE HANDLE (323680) 3019 RON
83A 1 1 329314 (329314) 22257 RON
101 1 1 325046 - Indisponibil
102 1 1 TABLE INSERT (B) (323649) 2795 RON
103 1 4 MACHINE SCREW M5X16 (OLD 949238) (990541) 1453 RON
104 1 1 975348 - Indisponibil
105 1 1 WASHER (F) (318929) 1453 RON
106 1 1 MACHINE SCREW M4X10 (W/WASHERS) BLACK (304043) 1453 RON
107 1 1 @INDICATOR (A) (318927) 1453 RON
108 1 1 324976 - Indisponibil
109 1 1 MACHINE SCREW (W/WASHER) M4X16 (993539) 894 RON
110 1 1 325021 - Indisponibil
111 1 1 MACHINE SCREW (W/WASHER) M4X16 (993539) 894 RON
112 1 1 324986 - Indisponibil
113 1 1 324984 - Indisponibil
114 1 1 324983 - Indisponibil
115 1 1 PANEL SHEET (A) (323616) 2236 RON
116 1 1 323615 (323615) 4025 RON
117 1 1 PACKING (D) (323608) 1453 RON
118 1 1 324979 - Indisponibil
119 1 4 MACHINE SCREW (W/WASHER) M4X16 (993539) 894 RON
120 1 1 324985 - Indisponibil
121 1 1 NYLON CLIP (980523) 1453 RON
123 1 1 325026 - Indisponibil
124 1 1 324981 - Indisponibil
125 1 1 324982 - Indisponibil
126 1 2 SPRING (C) HANDLE. LOGGER (323142) 1453 RON
127A 1 1 ENCODER (323619) 27289 RON
128 1 1 NEEDLE D5X19.8 (305592) 1117 RON
129 1 1 BOLT WASHER M6 (10 PCS) (OLD 949432Z) (949432) 1453 RON
130 1 1 MACHINE SCREW M5X20 (10 PCS) (949241) 1788 RON
131 1 1 PACKING (B) (323622) 1453 RON
132 1 1 DUST COVER (323623) 1453 RON
133 1 1 MACHINE SCREW M4X8 (10 PCS) (949215) 1453 RON
134 1 1 323677 (323677) 4025 RON
135 1 1 KNOB BOLT (323678) 2795 RON
136 1 1 WING BOLT M6X15 (301806) 1453 RON
137 1 1 - Indisponibil
138 1 1 BOLT WASHER M6 (10 PCS) (OLD 949432Z) (949432) 1453 RON
139 1 1 VISE PLATE (302532) 2460 RON
140 1 1 MACHINE SCREW M4X10 (10 PCS) (OLD 949216Z) (949216) 894 RON
141 1 1 VISE SHAFT (322954) 2795 RON
142 1 4 BOLT M8X35 (10 PCS) (949678) Indisponibil Indisponibil
143 1 4 SPRING WASHER M8 (10 PCS) (949457) 1453 RON
144 1 4 BOLT WASHER M8 (10 PCS) (949433) 1453 RON
145 1 1 WING BOLT M6X15 (301806) 1453 RON
146 1 1 324995 - Indisponibil
147 1 1 SPRING (C) HANDLE. LOGGER (323142) 1453 RON
148 1 1 324993 - Indisponibil
149 1 1 - Indisponibil
150 1 1 325049 - Indisponibil
151 1 2 FLAT HD.SCREW M6X25 (10 PCS) (949342) 2236 RON
152 1 1 @ FLAT HD.SCREW M6X35 (10 PCS) (949795) 2683 RON
153 1 2 NYLON NUT M6 (963837) 1453 RON
154 1 1 324994 - Indisponibil
155 1 1 325271 - Indisponibil
156 1 1 - Indisponibil
157 1 3 LINER (A) (323625) 3019 RON
158 1 2 MACHINE SCREW M5X16 BLACK (302317) 1453 RON
159 1 2 BOLT WASHER M5 (10 PCS) (OLD 949431Z) (949431) 1453 RON
160 1 1 324975 - Indisponibil
161 1 1 PACKING (A) (323603) 2795 RON
162 1 1 HOLDER (322910) 2795 RON
163 1 1 BOLT M6X10 (10 PCS) (949610) 1788 RON
164 1 1 MACHINE SCREW (W/SP. WASHER) M5X16 (987512) 1453 RON
165 1 1 HOOK (323605) 1453 RON
167 1 1 325264 - Indisponibil
168 1 1 SHAFT (B) (323626) 2795 RON
169 1 1 325270 - Indisponibil
170 1 1 - Indisponibil
171 1 1 324990 - Indisponibil
172 1 1 324988 - Indisponibil
173 1 2 RIVET D2.5X4.8 (10 PCS) (OLD 949510Z) (949510) 1453 RON
174 1 1 - Indisponibil
175 1 1 - Indisponibil
176 1 1 SCALE (A) (323656) 4697 RON
177 1 1 BOLT WASHER M6 (10 PCS) (OLD 949432Z) (949432) 1453 RON
201 1 1 325048 - Indisponibil
202 1 7 MACHINE SCREW M5X16 (OLD 949238) (990541) 1453 RON
203 1 1 325013 - Indisponibil
204 1 1 325022 - Indisponibil
205 1 4 949828 - Indisponibil
206 1 6 SPRING WASHER M5 (10 PCS) (949454) 1117 RON
207 1 4 BOLT WASHER M5 (10 PCS) (OLD 949431Z) (949431) 1453 RON
208 1 1 CORD ARMOR D10.7 (940778) 2124 RON
209 1 1 CORD CLIP (OLD 994566) (937631) 894 RON
210 1 2 TAPPING SCREW D4X16 (W/FLANGE) (984750) 1117 RON
212 1 5 TAPPING SCREW D4X16 (W/FLANGE) (BLACK) (307811) 894 RON
213 1 1 TAPPING SCREW D4X16 (W/FLANGE) (BLACK) (307811) 894 RON
214 1 4 CONNECTOR 50092 (10 PCS) (OLD 939558) (959141) 382 RON
215 1 1 325014 - Indisponibil
216 1 1 SWITCH (A) (1P TYPE) (323634) 4473 RON
217 1 1 SWITCH (B) (1P TYPE) (323635) 4473 RON
218 1 1 324999 - Indisponibil
219 1 1 TAPPING SCREW D4X16 (W/FLANGE) (984750) 1117 RON
220 1 1 322911 - Indisponibil
221 1 3 TAPPING SCREW D4X20 (W/FLANGE) BLACK (OLD 305095) (301653) 894 RON
222 1 1 325043 - Indisponibil
223 1 1 325261 - Indisponibil
224 1 1 325262 - Indisponibil
225 1 1 325263 - Indisponibil
226 1 1 324998 - Indisponibil
228 1 1 325002 - Indisponibil
229 1 4 MACHINE SCREW M6X40 (W/WASHERS) BLACK (322123) 2236 RON
230 1 1 325000 - Indisponibil
231 1 2 BRUSH TERMINAL (OLD 976831) (937623) 894 RON
232 1 1 340648D - Indisponibil
233 1 2 HD.TAPPINGSCREW D5X55 (OLD 956669) (953174) 894 RON
234 1 1 325045 - Indisponibil
235 1 2 HEX.SOCKET SET SCREW M5X8 (938477) 1453 RON
236 1 1 BRUSH HOLDER (OLD 938241Z) (938241) 5368 RON
237 1 2 CARBON BRUSH (1 PAIR) (999038) 382 RON
238 1 2 BRUSH CAP (945161) 1453 RON
239 1 1 FAN GUIDE (322915) 2795 RON
240 1 1 360743U - Indisponibil
241 1 1 BALL BEARING 6000VVCMPS2S (6000VV) 4025 RON
242 1 1 WASHER (A) (302428) 894 RON
243 1 1 DUST WASHER (B) (325003) 1453 RON
244 1 1 BALL BEARING 6201VVCMPS2S (6201VV) 4249 RON
245 1 1 HEX SOCKET HD. BOLT M6X16 (10 PCS) (949755) 297 RON
246 1 1 325004 - Indisponibil
247 1 2 NYLON CLIP (980523) 1453 RON
248 1 1 BOLT (A) M10 (988101) 2683 RON
249 1 1 WASHER (B) (323652) 4025 RON
250 1 1 - Indisponibil
251 1 1 325023 - Indisponibil
252 1 1 325005 - Indisponibil
253 1 2 FLAT HD.SCREW M4X10 (BLACK) (318363) 2236 RON
254 1 1 325008 - Indisponibil
255 1 1 BALL BEARING 6904DDPS2L (6904DD) 9394 RON
256 1 2 MACHINE SCREW M6X20 (W/WASHERS) (323208) 1453 RON
257 1 1 325007 - Indisponibil
258 1 1 325006 - Indisponibil
259 1 1 BALL BEARING 608VVMC2EPS2L (608VVM) 4025 RON
262 1 2 MACHINE SCREW M5X10 (10 PCS) (949236) 1453 RON
263 1 1 BOLT WASHER M5 (10 PCS) (OLD 949431Z) (949431) 1453 RON
264 1 1 SPINDLE COVER (323675) 1453 RON
265 1 2 MACHINE SCREW (W/WASHER) M4X16 (993539) 894 RON
266 1 1 325047 - Indisponibil
267 1 1 CAUTION LABEL (B) (323654) 1453 RON
270 1 1 PULLEY (A) (324443) 4025 RON
271 1 1 SUPER LOCK WASHER (961157) 1453 RON
272 1 1 NUT M10 (949560) 2348 RON
273 1 1 BELT (200H10) 16X508 (324427) 1700 RON
274 1 1 325009 - Indisponibil
279 1 1 BALL BEARING 608VVMC2EPS2L (608VVM) 4025 RON
280 1 2 NEEDLE ROLLER (983545) 1453 RON
281 1 1 BEARING HOLDER (B) (325259) 3019 RON
282 1 2 MACHINE SCREW M5X20 (10 PCS) (949241) 1788 RON
283 1 1 325018 - Indisponibil
284 1 1 STOPPER PIN (B) (325017) 2795 RON
285 1 1 MACHINE SCREW M4X10 (W/WASHERS) BLACK (304043) 1453 RON
286 1 1 325016 - Indisponibil
287 1 1 - Indisponibil
288 1 2 WASHER M7 (322948) 1453 RON
289 1 1 325041 - Indisponibil
290 1 1 SPECIAL SCREW M6 BRUSH 230V SA (322950) 1453 RON
291 1 1 SPECIAL SCREW (C) M5 (322947) 1453 RON
292 1 2 WASHER M10 (322938) 1453 RON
293 1 1 FLAT HD.SCREW M4X10 (BLACK) (318363) 2236 RON
294 1 1 325039 - Indisponibil
295 1 1 323672 (323672) 5368 RON
296 1 1 CUSHION (323673) 1453 RON
297 1 1 PROTECTIVE COVER (A) (323667) 20355 RON
298 1 1 RETURN SPRING (323671) 1453 RON
299 1 2 MACHINE SCREW M5X10 (10 PCS) (949236) 1453 RON
300 1 1 325040 - Indisponibil
301 1 1 COVER WASHER (323670) 1453 RON
302 1 1 SPRING WASHER M5 (10 PCS) (949454) 1117 RON
303 1 1 MACHINE SCREW M5X10 (10 PCS) (949236) 1453 RON
304 1 3 MACHINE SCREW M4X8 (10 PCS) (949215) 1453 RON
305 1 1 325038 - Indisponibil
306 1 1 BOLT WASHER M10 (10 PCS) (949434) 1788 RON
501 1 1 HEX.BAR WRENCH 4MM (944458) 1229 RON
502 1 1 BOX WRENCH 17MM (OLD 988102) (985051) 6822 RON
503 1 1 DUST BAG (322955) Indisponibil Indisponibil
601 1 1 323546 (323546) 34112 RON
602 1 1 WING BOLT M6X15 (301806) 1453 RON
603 1 1 - Indisponibil
604 1 1 CROWN MOLDING STOPPER HOLDER (321390) 11743 RON
605 1 1 WING BOLT M6X85 (323682) 14315 RON
606 1 1 323547 (323547) 37468 RON
607 1 2 WING BOLT M6X85 (323682) 14315 RON
608 1 1 CROWN MOLDING STOPPER HOLDER (321390) 11743 RON
609 1 1 - Indisponibil
610 1 1 WING BOLT M6X15 (301806) 1453 RON
611 1 1 323657 (323657) 25612 RON
612 1 1 HOLDER (321549) 13197 RON
613 1 1 WING NUT M6 (10 PCS) (949313) 4361 RON
614 1 1 NUT M6 (10 PCS) (949556) 1453 RON
615 1 1 VISE PLATE (322047) 2236 RON
616 1 1 WASHER M6 (10 PCS) (949425) Indisponibil Indisponibil
617 1 1 HIGH TENSION BOLT M6X105 (323681) 12638 RON
618 1 1 STOPPER (974561) 5815 RON
619 1 1 WING BOLT M6X20 (10 PCS) (OLD 949404Z) (949404) 6374 RON
620 1 1 323523 (323523) 5952 RON
621 1 1 322957 (322957) 74825 RON
622 1 1 @KNOB BOLT M10X54 (321551) 9842 RON
623 1 1 KNOB BOLT M6X11 (998836) 2683 RON
624 1 1 - Indisponibil
625 1 1 WASHER (H) (306985) 1453 RON
626 1 1 BASE RUBBER (964851) 1453 RON
627 1 1 MACHINE SCREW M4X10 (W/WASHERS) BLACK (304043) 1453 RON
628 1 1 VISE SHAFT (318967) 2795 RON
629 1 1 323545 (323545) 115538 RON
630 1 1 323522 - Indisponibil
631 1 1 305546 - Indisponibil
632 1 1 309418 - Indisponibil
633 1 1 301721 - Indisponibil
634 1 1 310875 - Indisponibil

Conditii Generale
