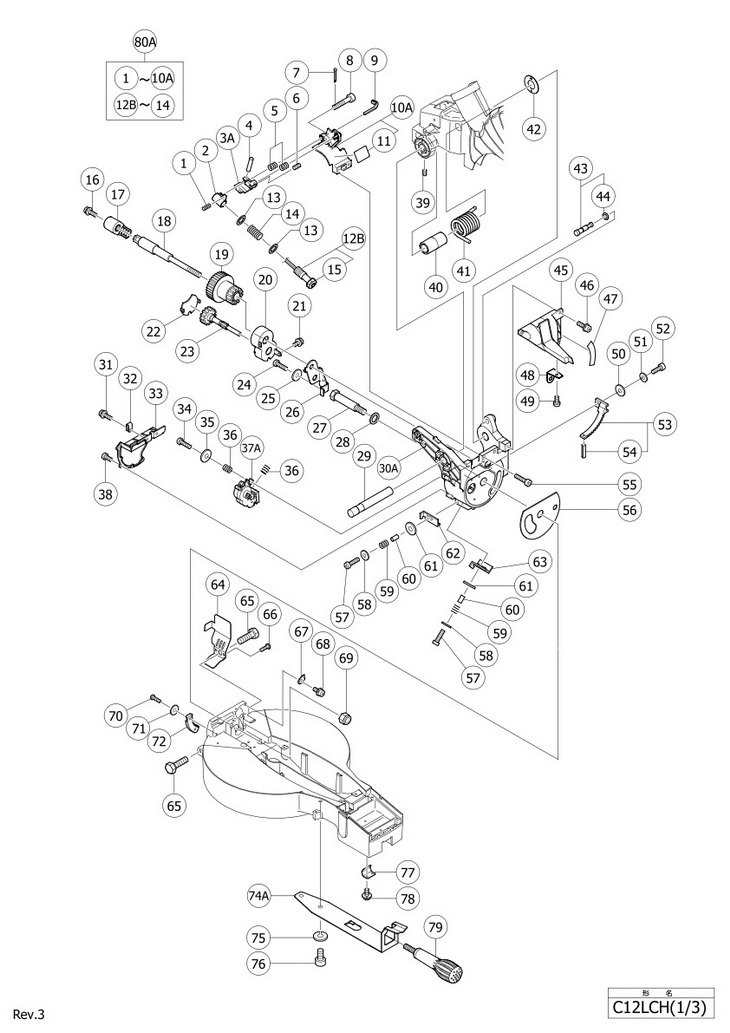

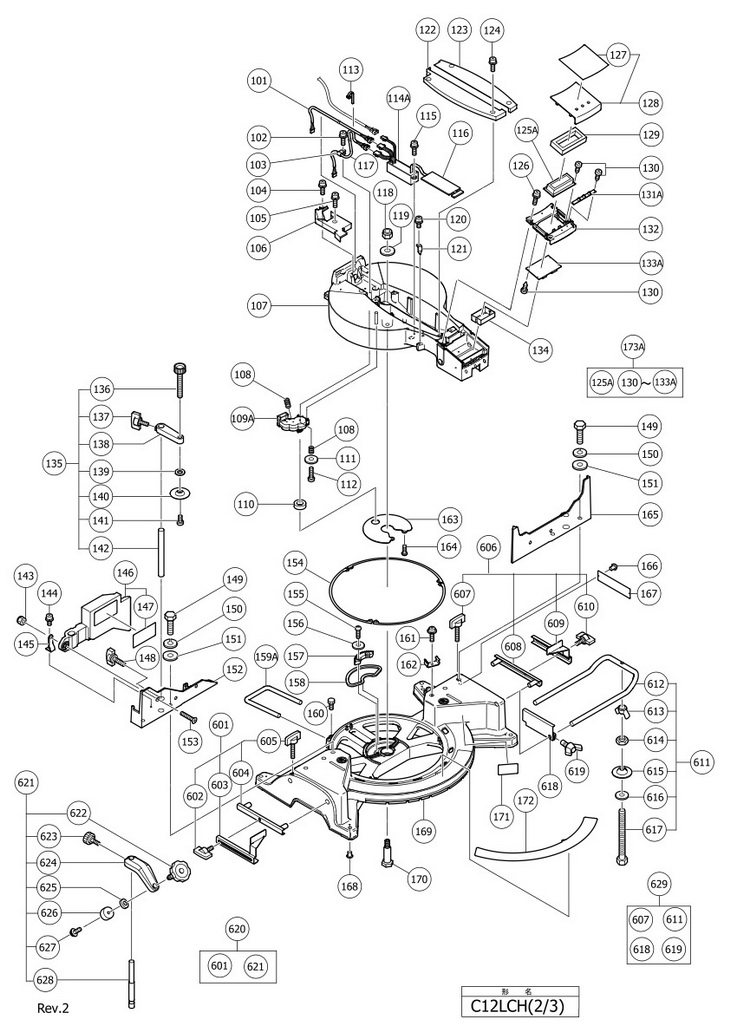

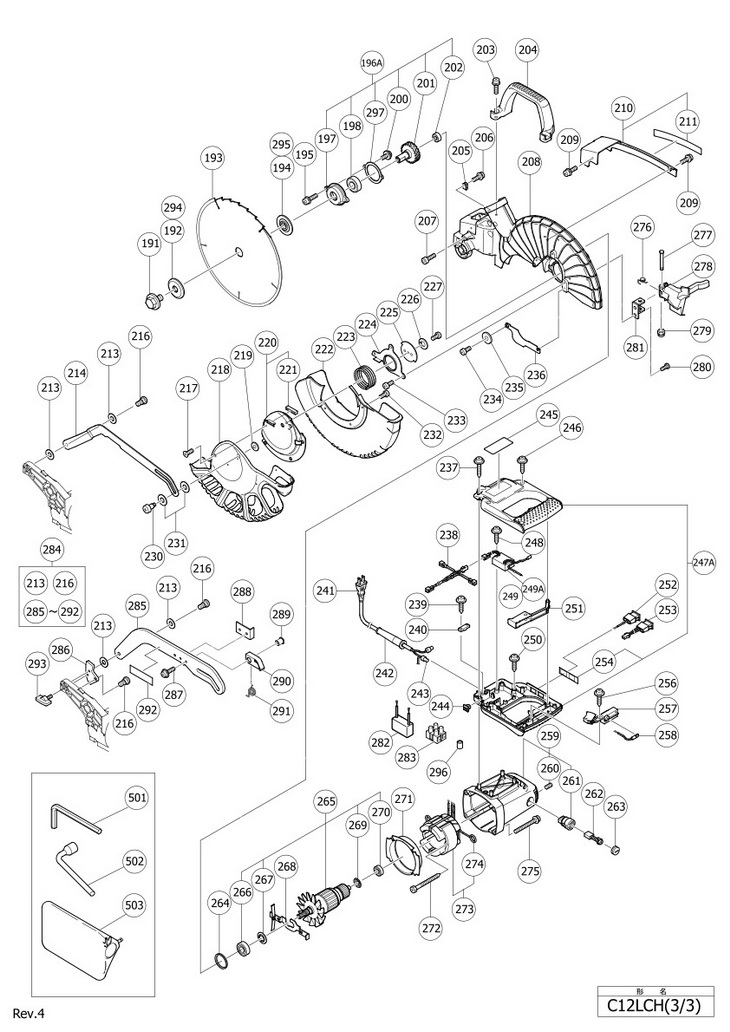

Top » Piese de schimb » PIESE HITACHI » C12LCH C12LCH [C12LCH] Click pentru a mari Imagini suplimentare Click pentru a mari Click pentru a mari Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1 1 1 SPRING (B) (323141) 1453 RON 2 1 1 LASER HOLDER (A) (323137) 1453 RON 3A 1 1 LASER HOLDER (B) (OLD 323138) (328943) 2795 RON 4 1 1 ROLL PIN D3X14 (10 PCS) (949900) 2348 RON 5 1 2 SPRING (C) HANDLE. LOGGER (323142) 1453 RON 6 1 1 HEX.SOCKET SET SCREW M5X6 (962782) 894 RON 7 1 1 SPLIT PIN D2X12 (10 PCS) (949531) 1453 RON 8 1 1 SPECIAL BOLT M5 (323144) 3242 RON 9 1 1 CABLE TIE (975144) 894 RON 10A 1 1 331876 (331876) 3690 RON 11 1 1 - Indisponibil 12B 1 1 331879 (331879) 45968 RON 13 1 2 WASHER (323143) 1453 RON 14 1 1 SPRING (A) (323140) 1453 RON 15 1 1 LASER COVER LEVER (323136) 2236 RON 16 1 1 MACHINE SCREW M6X20 (W/WASHERS) (323208) 1453 RON 17 1 1 CLAMP LEVER (322935) Indisponibil Indisponibil 18 1 1 BOLT (LEFT HAND) M10 (323665) 4025 RON 19 1 1 KNOB GEAR (A) (323666) 2795 RON 20 1 1 GEAR BOX (C) (323597) 1453 RON 21 1 1 MACHINE SCREW M4X10 (W/WASHERS) BLACK (304043) 1453 RON 22 1 1 GEAR BOX (C) COVER (323598) 1453 RON 23 1 1 PINION (323599) 5591 RON 24 1 1 HEX.SOCKET HD.BOLT M5X16 (10 PCS) (949821) 2683 RON 25 1 1 SPRING WASHER M5 (10 PCS) (949454) 1117 RON 26 1 1 HINGE PLATE (323596) 3019 RON 27 1 1 SHAFT (D) (322933) 4025 RON 28 1 1 WASHER M16 (322934) 1453 RON 29 1 1 SHAFT (C) (323593) 3019 RON 30A 1 1 HINGE (323663) 16441 RON 31 1 1 MACHINE SCREW (W/WASHER) M4X16 (993539) 894 RON 32 1 1 NYLON CLIP (980523) 1453 RON 33 1 1 HINGE COVER (323600) 1453 RON 34 1 1 MACHINE SCREW M5X20 (10 PCS) (949241) 1788 RON 35 1 1 BOLT WASHER M6 (10 PCS) (OLD 949432Z) (949432) 1453 RON 36 1 2 SPRING (C) HANDLE. LOGGER (323142) 1453 RON 37A 1 1 ENCODER (323619) 27289 RON 38 1 4 MACHINE SCREW M4X10 (10 PCS) (OLD 949216Z) (949216) 894 RON 39 1 1 SEAL LOCK HEX. SOCKET SCREW M6X10 (307956) 1453 RON 40 1 1 SLEEVE (323594) 1453 RON 41 1 1 SPRING (A) (323595) 4025 RON 42 1 1 LINER (D) (323684) 1453 RON 43 1 1 302518 (302518) 382 RON 44 1 1 O-RING (P-6) (984528) 1453 RON 45 1 1 323601 (323601) 4025 RON 46 1 2 MACHINE SCREW M5X16 (OLD 949238) (990541) 1453 RON 47 1 1 SCALE (B) (323602) 1453 RON 48 1 1 DUST GUIDE HOLDER (322963) 1453 RON 49 1 1 SCREW M4X6 (10 PCS) (949214) 1453 RON 50 1 1 BOLT WASHER M5 (10 PCS) (OLD 949431Z) (949431) 1453 RON 51 1 1 SPRING WASHER M5 (10 PCS) (949454) 1117 RON 52 1 1 HEX.SOCKET HD.BOLT M5X16 (10 PCS) (949821) 2683 RON 53 1 1 323664 (323664) 12079 RON 54 1 1 ROLL PIN D3X14 (10 PCS) (949900) 2348 RON 55 1 2 HEX.SOKET HD.BOLT M6X20 (10 PCS) (949660) 3242 RON 56 1 1 LINER (B) (323683) 1453 RON 57 1 2 SCREW (10 PCS) (949221) 1453 RON 58 1 2 WASHER M4 (10 PCS) (949423) 894 RON 59 1 2 SPRING (C) HANDLE. LOGGER (323142) 1453 RON 60 1 2 SPACER D4X10 (303006) 1453 RON 61 1 2 BOLT WASHER M6 (10 PCS) (OLD 949432Z) (949432) 1453 RON 62 1 1 BEVEL PLATE (B) (323662) 1453 RON 63 1 1 BEVEL PLATE (A) (323661) 1453 RON 64 1 1 COVER (A) (323659) 2795 RON 65 1 2 NYLOCK BOLT M8X25 (303409) 1453 RON 66 1 2 MACHINE SCREW M4X12 (W/WASHERS) BLACK (935196) 1453 RON 67 1 1 INDICATOR (B) (322893) 1453 RON 68 1 1 MACHINE SCREW M4X10 (W/WASHERS) BLACK (304043) 1453 RON 69 1 1 NYLON NUT M12 (680418) 3242 RON 70 1 2 MACHINE SCREW M4X12 (10 PCS) (949217) 1453 RON 71 1 2 WASHER M4 (10 PCS) (949423) 894 RON 72 1 1 GEAR (B) (323607) 6822 RON 74A 1 1 SPRING PLATE (323627) 5032 RON 75 1 2 SPRING WASHER M8 (10 PCS) (949457) 1453 RON 76 1 2 HEX.SOCKET HD.BOLT M8X16 (10 PCS) (OLD 944949) (949655) 382 RON 77 1 1 SPACER (A) (323609) 1453 RON 78 1 2 MACHINE SCREW M4X10 (W/SP.WASHER) (307635) 1453 RON 79 1 1 SIDE HANDLE (323680) 3019 RON 80A 1 1 329314 (329314) 22257 RON 101 1 1 CORD (A) LENGTH 380MM (323658) 5815 RON 102 1 1 MACHINE SCREW (W/WASHER) M4X16 (993539) 894 RON 103 1 1 NYLON CLIP (973313) 1453 RON 104 1 1 MACHINE SCREW M4X10 (W/WASHERS) BLACK (304043) 1453 RON 105 1 1 MACHINE SCREW (W/WASHER) M4X16 (993539) 894 RON 106 1 1 CORD COVER (323650) 1453 RON 107 1 1 TURN TABLE (323624) 46639 RON 108 1 2 SPRING (C) HANDLE. LOGGER (323142) 1453 RON 109A 1 1 ENCODER (323619) 27289 RON 110 1 1 PACKING (B) (323622) 1453 RON 111 1 1 BOLT WASHER M6 (10 PCS) (OLD 949432Z) (949432) 1453 RON 112 1 1 MACHINE SCREW M5X20 (10 PCS) (949241) 1788 RON 113 1 1 CABLE TIE (975144) 894 RON 114A 1 1 CONTROLLER (323621) 30645 RON 115 1 1 MACHINE SCREW (W/WASHER) M4X16 (993539) 894 RON 116 1 1 PACKING (C) (323617) 1453 RON 117 1 1 CORD (A) LENGTH 160MM (323620) 4025 RON 118 1 1 975348 - Indisponibil 119 1 1 WASHER (F) (318929) 1453 RON 120 1 1 MACHINE SCREW M4X10 (W/WASHERS) BLACK (304043) 1453 RON 121 1 1 @INDICATOR (A) (318927) 1453 RON 122 1 1 TABLE INSERT (A) (323648) 2795 RON 123 1 1 TABLE INSERT (B) (323649) 2795 RON 124 1 4 MACHINE SCREW M5X16 (OLD 949238) (990541) 1453 RON 125A 1 1 MONITOR (A) (323612) 37468 RON 126 1 4 MACHINE SCREW (W/WASHER) M4X16 (993539) 894 RON 127 1 1 PANEL SHEET (A) (323616) 2236 RON 128 1 1 323615 (323615) 4025 RON 129 1 1 PACKING (D) (323608) 1453 RON 130 1 10 TAPPING SCREW D2X6 (321672) 2236 RON 131A 1 1 PRINTED CIRCUIT BOARD (B1) C12LC & C12LCH (323613) 1232 RON 132 1 1 MONITOR CASE (A) (323611) 765 RON 133A 1 1 PRINTED CIRCUIT BOARD (B2) C12LC & C12LCH (323614) 13644 RON 134 1 1 INSULATING CASE (323618) 2236 RON 135 1 1 323677 (323677) 4025 RON 136 1 1 KNOB BOLT (323678) 2795 RON 137 1 1 WING BOLT M6X15 (301806) 1453 RON 138 1 1 - Indisponibil 139 1 1 BOLT WASHER M6 (10 PCS) (OLD 949432Z) (949432) 1453 RON 140 1 1 VISE PLATE (302532) 2460 RON 141 1 1 MACHINE SCREW M4X10 (10 PCS) (OLD 949216Z) (949216) 894 RON 142 1 1 VISE SHAFT (322954) 2795 RON 143 1 1 NYLON NUT M6 (963837) 1453 RON 144 1 1 MACHINE SCREW M4X10 (W/WASHERS) BLACK (304043) 1453 RON 145 1 1 PLATE (C) (323631) 1453 RON 146 1 1 323630 (323630) 9730 RON 147 1 1 - Indisponibil 148 1 1 WING BOLT M6X15 (301806) 1453 RON 149 1 4 BOLT M8X35 (10 PCS) (949678) Indisponibil Indisponibil 150 1 4 SPRING WASHER M8 (10 PCS) (949457) 1453 RON 151 1 4 BOLT WASHER M8 (10 PCS) (949433) 1453 RON 152 1 1 FENCE (B) (323629) 10736 RON 153 1 1 FLAT HD.SCREW M6X30 (323685) 2236 RON 154 1 3 LINER (A) (323625) 3019 RON 155 1 2 MACHINE SCREW M5X16 BLACK (302317) 1453 RON 156 1 2 BOLT WASHER M5 (10 PCS) (OLD 949431Z) (949431) 1453 RON 157 1 1 GEAR (A) (323604) 6374 RON 158 1 1 PACKING (A) (323603) 2795 RON 159A 1 1 HOLDER (322910) 2795 RON 160 1 1 BOLT M6X10 (10 PCS) (949610) 1788 RON 161 1 1 MACHINE SCREW (W/SP. WASHER) M5X16 (987512) 1453 RON 162 1 1 HOOK (323605) 1453 RON 163 1 1 DUST COVER (323623) 1453 RON 164 1 1 MACHINE SCREW M4X8 (10 PCS) (949215) 1453 RON 165 1 1 FENCE (A) (323628) 10513 RON 166 1 2 RIVET D2.5X4.8 (10 PCS) (OLD 949510Z) (949510) 1453 RON 167 1 1 - Indisponibil 168 1 4 BASE RUBBER (323606) 1453 RON *169 1 1 324622 (324622) 72029 RON *169 1 1 323655 - Indisponibil 170 1 1 SHAFT (B) (323626) 2795 RON 171 1 1 - Indisponibil 171 1 1 - Indisponibil 172 1 1 SCALE (A) (323656) 4697 RON 173A 1 1 323610 (323610) 69680 RON 191 1 1 BOLT (A) M10 (988101) 2683 RON 192 1 1 WASHER (B) (323652) 4025 RON 193 1 1 323522 - Indisponibil *193 1 1 324268 - Indisponibil *193 1 1 324269 - Indisponibil 194 1 1 323651 - Indisponibil 195 1 2 MACHINE SCREW M6X20 (W/WASHERS) (323208) 1453 RON 196A 1 1 323639 (323639) 12973 RON 197 1 1 BEARING HOLDER (323641) 3690 RON 198 1 1 BALL BEARING 6203VVCMPS2S (6203VV) 5368 RON 200 1 2 MACHINE SCREW M4X10 (W/WASHERS) BLACK (304043) 1453 RON 201 1 1 SPINDLE AND GEAR SET (323640) 6822 RON 202 1 1 BALL BEARING 608VVMC2EPS2L (608VVM) 4025 RON 203 1 2 MACHINE SCREW M6X20 (W/WASHERS) (323208) 1453 RON 204 1 1 HANDLE (322924) 4585 RON 205 1 1 NYLON CLIP (980523) 1453 RON 206 1 1 MACHINE SCREW M4X12 (W/WASHERS) BLACK (935196) 1453 RON 207 1 1 HEX SOCKET HD. BOLT M6X16 (10 PCS) (949755) 297 RON 208 1 1 GEAR CASE (323638) 36125 RON 209 1 2 MACHINE SCREW (W/WASHER) M4X16 (993539) 894 RON 210 1 1 323653 (323653) 4025 RON 211 1 1 CAUTION LABEL (B) (323654) 1453 RON 213 1 2 WASHER M7 (322948) 1453 RON 214 1 1 323674 - Indisponibil 216 1 1 SPECIAL SCREW M6 BRUSH 230V SA (322950) 1453 RON *216 1 2 SPECIAL SCREW M6 BRUSH 230V SA (322950) 1453 RON 217 1 1 FLAT HD.SCREW M4X10 (BLACK) (318363) 2236 RON 218 1 1 PROTECTIVE COVER (B) (323668) 9394 RON 219 1 1 SPRING WASHER M5 (10 PCS) (949454) 1117 RON 220 1 1 323672 (323672) 5368 RON 221 1 1 CUSHION (323673) 1453 RON 222 1 1 PROTECTIVE COVER (A) (323667) 20355 RON 223 1 1 RETURN SPRING (323671) 1453 RON 224 1 1 COVER PLATE (A) (323669) 3019 RON 225 1 1 COVER WASHER (323670) 1453 RON 226 1 1 SPRING WASHER M5 (10 PCS) (949454) 1117 RON 227 1 1 MACHINE SCREW M5X10 (10 PCS) (949236) 1453 RON 230 1 1 SPECIAL SCREW (C) M5 (322947) 1453 RON 231 1 2 WASHER M10 (322938) 1453 RON 232 1 3 MACHINE SCREW M4X8 (10 PCS) (949215) 1453 RON 233 1 3 MACHINE SCREW M5X10 BLACK (323040) 1453 RON 234 1 2 MACHINE SCREW M5X10 BLACK (323040) 1453 RON 235 1 1 BOLT WASHER M5 (10 PCS) (OLD 949431Z) (949431) 1453 RON 236 1 1 SPINDLE COVER (323675) 1453 RON 237 1 2 TAPPING SCREW D4X25 (W/FLANGE) (307028) 1453 RON 238 1 1 CORD (B) (323632) 6374 RON 239 1 2 TAPPING SCREW D4X16 (W/FLANGE) (984750) 1117 RON 240 1 1 CORD CLIP (OLD 994566) (937631) 894 RON *241 1 1 500234Z - Indisponibil *241 1 1 CORD 2,5M 2 X 1.0 H05VV-F W/PLUG 13A/250V GBR (500435Z) 12638 RON *241 1 1 CORD 3M 2 X 1,0 H05VV-F W/PLUG 16A CEE FORM 2P+E FOR GBR (500461Z) 13085 RON *241 1 1 500247Z - Indisponibil *241 1 1 500453Z - Indisponibil *241 1 1 500439Z - Indisponibil *241 1 1 500456Z - Indisponibil 242 1 1 CORD ARMOR D10.7 (940778) 2124 RON 243 1 2 CONNECTOR 50092 (10 PCS) (OLD 939558) (959141) 382 RON 244 1 1 CORD BUSH (319349) 2236 RON 245 1 1 - Indisponibil 246 1 4 TAPPING SCREW D4X20 (W/FLANGE) BLACK (OLD 305095) (301653) 894 RON 247A 1 1 324952 (324952) 12973 RON 248 1 1 TAPPING SCREW D4X16 (W/FLANGE) (984750) 1117 RON *249 1 1 322911 - Indisponibil 249A 1 1 SWITCHING POWER SUPPLY (323978) 27289 RON *249A 1 1 324322 (324322) 22144 RON 250 1 2 TAPPING SCREW D4X20 (W/FLANGE) BLACK (OLD 305095) (301653) 894 RON 251 1 1 SWITCH LEVER (323645) 1453 RON 252 1 1 SWITCH (A) (1P TYPE) (323634) 4473 RON 253 1 1 SWITCH (B) (1P TYPE) (323635) 4473 RON 254 1 1 SWITCH LABEL (A) (323644) 1453 RON 256 1 1 TAPPING SCREW D4X16 (W/FLANGE) (984750) 1117 RON 257 1 1 SWITCH (1P SCREW TYPE) (320950) Indisponibil Indisponibil *258 1 1 INTERNAL WIRE (D) (323983) 3019 RON *258 1 1 323633 - Indisponibil 259 1 1 322914 (322914) 14092 RON 260 1 2 HEX.SOCKET SET SCREW M5X8 (938477) 1453 RON 261 1 2 BRUSH HOLDER (OLD 938241Z) (938241) 5368 RON 262 1 2 CARBON BRUSH (1 PAIR) (999038) 382 RON *262 1 2 CARBON BRUSH (1 PAIR) (999065) 5368 RON 263 1 2 BRUSH CAP (945161) 1453 RON 264 1 1 RUBBER RING (303792) 1453 RON 265 1 1 360684U (360684U) 40264 RON *265 1 1 ARMATURE 220-230 VOLT (360710E) 3400 RON *265 1 1 360710F - Indisponibil *265 1 1 360684E - Indisponibil 266 1 1 BALL BEARING 6202VVCMPS2S (6202VV) 4585 RON 267 1 1 DUST WASHER (B) (980700) 894 RON 268 1 1 LOCK LEVER (323637) 1453 RON 269 1 1 WASHER (A) (302428) 894 RON 270 1 1 BALL BEARING 6000VVCMPS2S (6000VV) 4025 RON 271 1 1 FAN GUIDE (322915) 2795 RON 272 1 2 HD.TAPPINGSCREW D5X55 (OLD 956669) (953174) 894 RON *273 1 1 340603D (340603D) 26618 RON *273 1 1 340603C - Indisponibil *273 1 1 340603E (340603E) 23487 RON *273 1 1 340625E (340625E) 26618 RON *273 1 1 340633E - Indisponibil *273 1 1 340625F - Indisponibil *273 1 1 340603F - Indisponibil 274 1 2 BRUSH TERMINAL (OLD 976831) (937623) 894 RON 275 1 4 MACHINE SCREW M6X40 (W/WASHERS) BLACK (322123) 2236 RON 276 1 1 LEVER SPRING (A) (324625) 1453 RON 277 1 1 LEVER SHAFT (323990) 2795 RON 278 1 1 LOCK LEVER (D) (324626) 3019 RON 279 1 1 NYLON NUT M5 (877371) 1453 RON 280 1 2 MACHINE SCREW M5X10 (10 PCS) (949236) 1453 RON 281 1 1 LEVER HOLDER (A) (324627) 2795 RON 282 1 1 NOISE SUPPRESSOR GASKET (930039) 2683 RON 283 1 1 PILLAR TERMINAL (A) (958308Z) 5368 RON 284 1 1 324630 (324630) 7940 RON 285 1 1 LINK (B) (324631) 4025 RON 286 1 1 LINK (C) (324632) 3019 RON 287 1 3 MACHINE SCREW M4X12 (W/WASHERS) BLACK (935196) 1453 RON 288 1 1 STOP PLATE (323985) 2795 RON 289 1 1 RETURN SHAFT (323988) 2795 RON 290 1 1 RETURN PLATE (323989) 3019 RON 291 1 1 RETURN SPRING (A) (323984) 1453 RON 292 1 1 - Indisponibil 293 1 1 WING BOLT M6X17 (302459) 894 RON 294 1 1 WASHER (D) (324633) 4697 RON 295 1 1 WASHER (C) (324634) 4025 RON 296 1 1 FERRITE CORE FOR GBR 110 VOLT (324518) 8052 RON 297 1 1 BEARING COVER (326825) 1453 RON 501 1 1 HEX.BAR WRENCH 4MM (944458) 1229 RON 502 1 1 BOX WRENCH 17MM (OLD 988102) (985051) 6822 RON 503 1 1 DUST BAG (322955) Indisponibil Indisponibil 601 1 1 323546 (323546) 34112 RON 602 1 1 WING BOLT M6X15 (301806) 1453 RON 603 1 1 - Indisponibil 604 1 1 CROWN MOLDING STOPPER HOLDER (321390) 11743 RON 605 1 1 WING BOLT M6X85 (323682) 14315 RON 606 1 1 323547 (323547) 37468 RON 607 1 2 WING BOLT M6X85 (323682) 14315 RON 608 1 1 CROWN MOLDING STOPPER HOLDER (321390) 11743 RON 609 1 1 - Indisponibil 610 1 1 WING BOLT M6X15 (301806) 1453 RON 611 1 1 323657 (323657) 25612 RON 612 1 1 HOLDER (321549) 13197 RON 613 1 1 WING NUT M6 (10 PCS) (949313) 4361 RON 614 1 1 NUT M6 (10 PCS) (949556) 1453 RON 615 1 1 VISE PLATE (322047) 2236 RON 616 1 1 WASHER M6 (10 PCS) (949425) Indisponibil Indisponibil 617 1 1 HIGH TENSION BOLT M6X105 (323681) 12638 RON 618 1 1 STOPPER (974561) 5815 RON 619 1 1 WING BOLT M6X20 (10 PCS) (OLD 949404Z) (949404) 6374 RON 620 1 1 323545 (323545) 115538 RON 621 1 1 322957 (322957) 74825 RON 622 1 1 @KNOB BOLT M10X54 (321551) 9842 RON 623 1 1 KNOB BOLT M6X11 (998836) 2683 RON 624 1 1 - Indisponibil 625 1 1 WASHER (H) (306985) 1453 RON 626 1 1 BASE RUBBER (964851) 1453 RON 627 1 1 MACHINE SCREW M4X10 (W/WASHERS) BLACK (304043) 1453 RON 628 1 1 VISE SHAFT (318967) 2795 RON 629 1 1 323523 (323523) 5952 RON 630 1 1 305546 - Indisponibil Puteti cumpara C12LCH in urmatoarele variante: Fierastrau de masa Hitachi C12LCH
