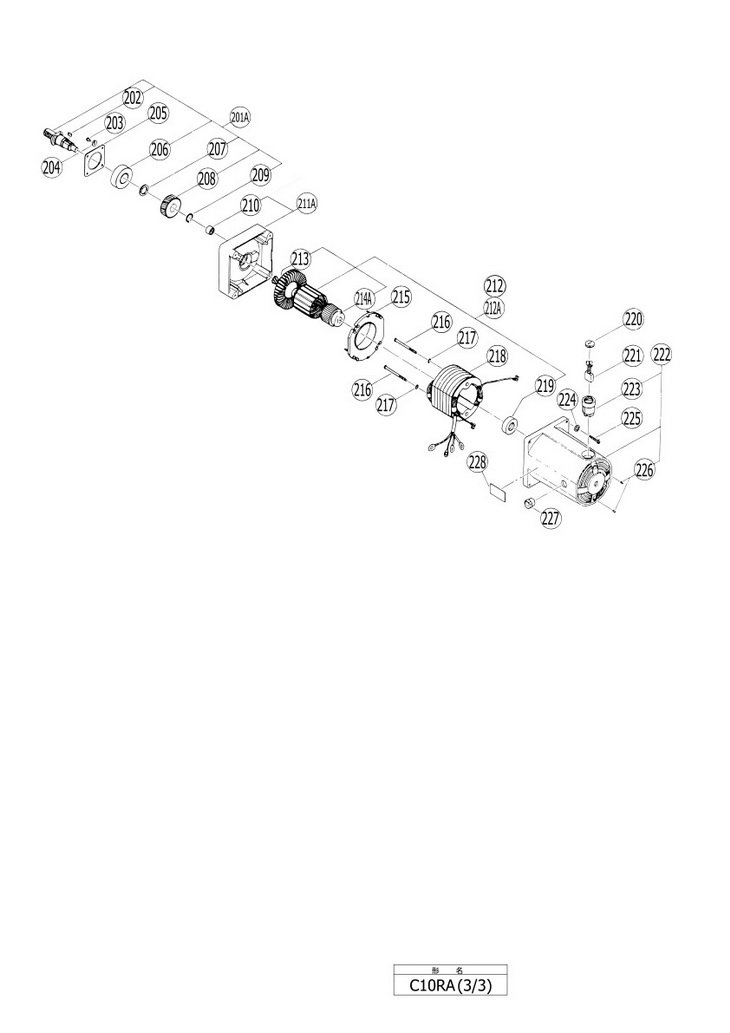

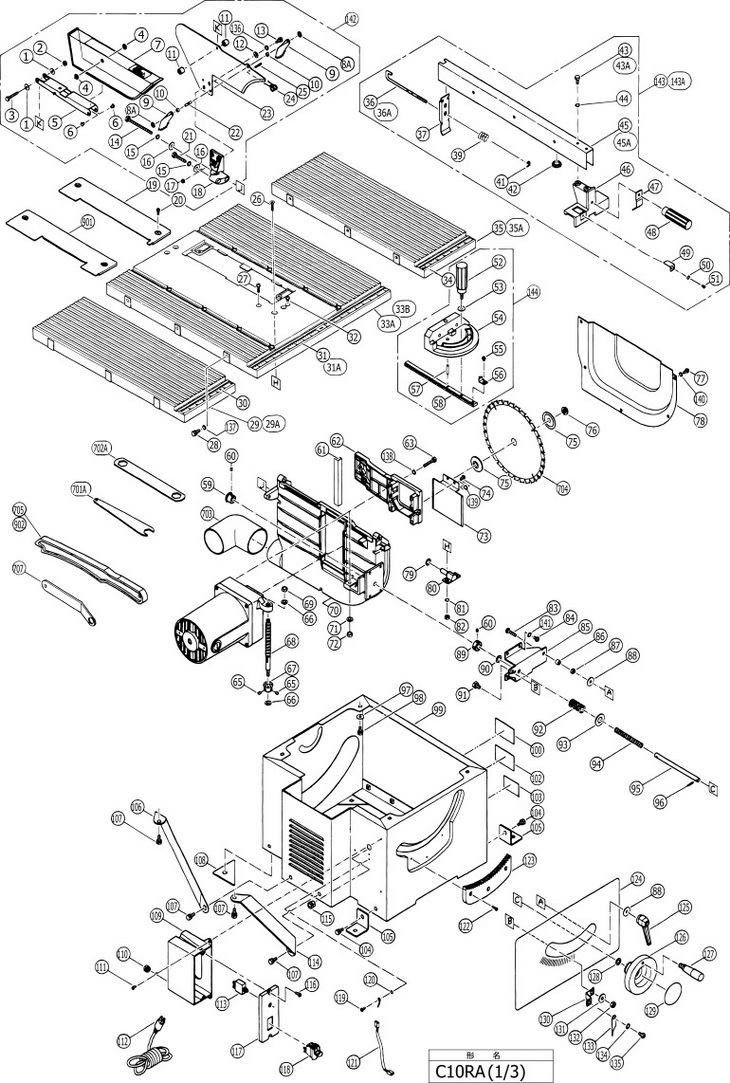

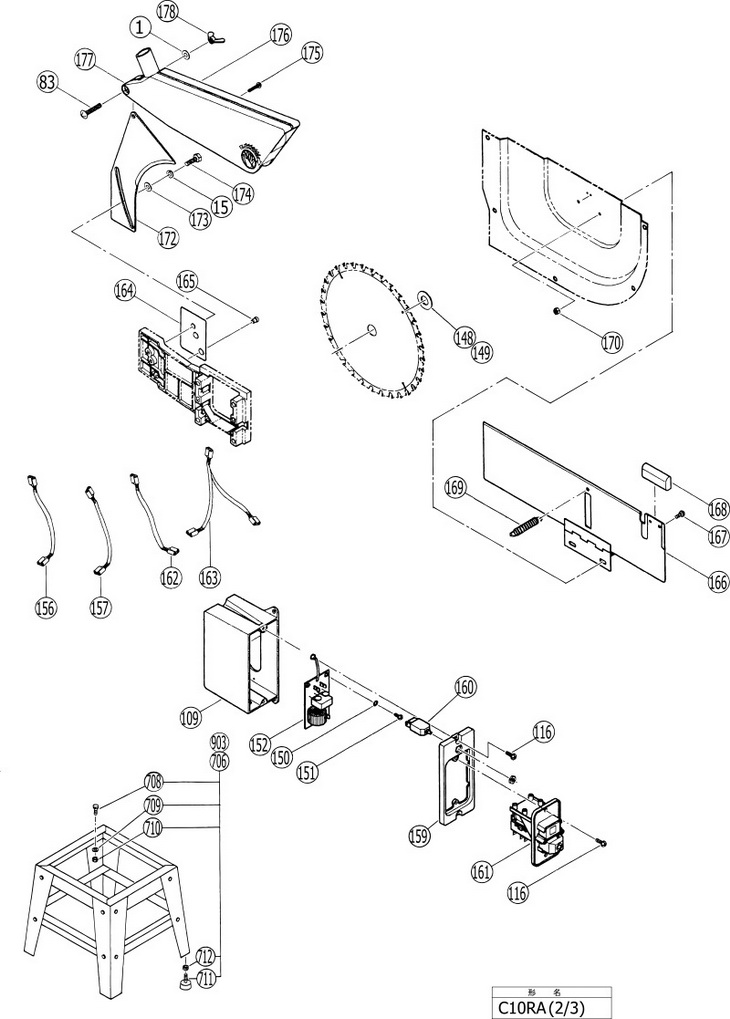

Top » Piese de schimb » PIESE HITACHI » C10RA C10RA [C10RA] Click pentru a mari Imagini suplimentare Click pentru a mari Click pentru a mari Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1 1 2 FLAT WASHER M6 (314473) 2236 RON *1 1 1 FLAT WASHER M6 (314473) 2236 RON 2 1 1 NUT CHUCK M6 (314474) 2236 RON 3 1 1 BOLT MD6X40 (10PCS) (OLD 949644Z) (949644) 2348 RON 4 1 2 @SELF-LOCKING RING (314476) 2236 RON 5 1 1 ARM NEW (314477) 5368 RON 6 1 2 RIVET NEW (314478) 2236 RON 7 1 1 BLADE GUARD (314479) 14763 RON 8A 1 2 @SELF-LOCKING RING (314476) 2236 RON 9 1 2 314444 - Indisponibil 10 1 2 314445 - Indisponibil 11 1 2 BUSHING NEW JAN (314480) 3242 RON 12 1 2 WASHER (973361) 1453 RON 13 1 2 BOLT M6X16 (10 PCS) (949613) 1788 RON 14 1 1 BOLT M6X60 (314482) 2236 RON 15 1 2 SPRING WASHER M6 (10 PCS) (949455) 1453 RON *15 1 1 SPRING WASHER M6 (10 PCS) (949455) 1453 RON 16 1 2 BOLT WASHER M6 (10 PCS) (OLD 949432Z) (949432) 1453 RON 17 1 2 NUT M6 (10 PCS) (949556) 1453 RON 18 1 1 GUARD BRACKET NEW (314483) 6151 RON 19 1 1 TABLE INSERT FOR SAW BLADE (314484) 765 RON 19 1 1 INSERT FOR SAW BLADE C10RA (317168) 4025 RON 20 1 2 MACHINE SCREW M5X8 (10 PCS) (949235) 1453 RON 20 1 2 SCREW M5X16 (10PCS) (949334) 1453 RON 21 1 1 BOLT M6X35 (10 PCS) (949803) 2683 RON 22 1 1 314446 - Indisponibil 23 1 1 RIVING KNIFE (314485) 13421 RON 24 1 1 314447 - Indisponibil 25 1 1 ROLL PIN D4X33 (10 PCS) (949870) 297 RON 26 1 4 FLAT HD.SCREW M6X25 (10 PCS) (949342) 2236 RON 27 1 1 SEAL LOCK SCREW M6X20 (314486) 2236 RON 28 1 6 @ BOLT M6X20 (10 PCS) (949676) 2236 RON 29 1 1 314488 - Indisponibil 29A 1 1 EXTENSION WING (L) (OLD 314488) (319013) 20579 RON 30 1 1 314448 - Indisponibil 30 1 1 317139 - Indisponibil 31 1 1 314449 - Indisponibil 31 1 1 317140 - Indisponibil 31A 1 1 SCALE C10RA (OLD 317140) (319056) 1453 RON 32 1 1 @ SEAL LOCK SCREW M6X10 (314490) 2236 RON 33A 1 1 314491 - Indisponibil 33B 1 1 TABLE (OLD 314491) (319011) 61739 RON 34 1 1 314450 - Indisponibil 34 1 1 317141 - Indisponibil 35 1 1 314492 - Indisponibil 35A 1 1 EXTENSION WING (R) (OLD 314492) C10RA (319012) 18789 RON 36 1 1 314493 - Indisponibil 36A 1 1 LOCKING ROD C10RA (OLD 314493) (319015) 3914 RON 37 1 1 @REAR CLAMP C10RA (314494) 1677 RON 39 1 1 @ COMPRESSION SPRING 38L (314496) 1341 RON 41 1 1 RETAINING RING FOR D6SH (955479) 1453 RON 42 1 2 CUP C10RA (314498) 2460 RON 43 1 2 BOLT M6X12 (10 PCS) (OLD 949611Z) (949611) 1788 RON 43A 1 2 BOLT M6X16 (10 PCS) (949613) 1788 RON 44 1 2 @ TOOTHED LOCK WASHER M6 (314499) 334 RON 45 1 1 314500 - Indisponibil 45A 1 1 PARALLEL BRACKET (OLD 314500) (319016) 5591 RON 46 1 1 WIDTH BODY C10RA (314501) 6151 RON 47 1 1 FRONT CLAMP (314502) 1677 RON 48 1 1 CLAMP HANDLE(A) (314503) 3242 RON 49 1 1 POINTER (314504) 6374 RON 50 1 1 BOLT WASHER M5 (10 PCS) (OLD 949431Z) (949431) 1453 RON 51 1 1 MACHINE SCREW M5X6 (10 PCS) (949234) 1453 RON 52 1 1 CLAMP HANDLE (B) C10RA (314505) 2571 RON 53 1 1 @ FLAT WASHER M6.4 (314506) 558 RON 54 1 1 MITER GAUGE (314507) 4920 RON 55 1 1 MACHINE SCREW M5X6 (10 PCS) (949234) 1453 RON 56 1 1 ANGLE POINTER (314509) 2236 RON 57 1 1 PIN (314510) 1341 RON 58 1 1 SHEET BAR (314511) 7828 RON 59 1 1 BEVEL GEAR (A) C10RA (314512) 297 RON 60 1 4 HEX.SOCKET SET SCREW M6X6 (967469) 1453 RON 61 1 2 SLIDE PLATE C10RA (314513) 2795 RON 62 1 1 SLIDE BRACKET (314514) 8723 RON 63 1 4 BOLT M6X35 (10 PCS) (949803) 2683 RON 65 1 2 HEX.SOCKET SET SCREW M6X6 (967469) 1453 RON 66 1 2 @ FLAT WASHER M8 X 14.3 (314516) 2236 RON *66 1 1 @ FLAT WASHER M8 X 14.3 (314516) 2236 RON 67 1 1 BEVEL GEAR (B) (314517) 297 RON 68 1 1 SCREW BAR (314518) 3578 RON 69 1 1 NUT CHUCK M8 (OLD 311048) C10RA (NEW 726617) (314519) 1341 RON 70 1 1 BODY NEW (314520) 45968 RON 70 1 1 BODY (317160) 24493 RON 71 1 1 @FLAT WASHER M6.4 X 12.7 (314521) 2236 RON 72 1 1 SPECIAL NUT CHUCK M6 (NEW 726616) (314522) 222 RON 73 1 1 @ GUARD (314523) 4249 RON 74 1 1 MACHINE SCREW M6X12 (10 PCS) (949255) 1788 RON 75 1 2 WASHER (A) C10RA (314454) 3690 RON 76 1 1 314455 - Indisponibil 76 1 1 SET NUT C10RA (317174) 2348 RON 77 1 5 MACHINE SCREW M6X12 (10 PCS) (949255) 1788 RON 78 1 1 BLADE GUARD C10FCA (314526) 7828 RON 79 1 2 FLAT WASHER M8 X 15 (314527) 1341 RON 80 1 2 PIVOT SUPPORT (314528) 5480 RON 81 1 4 SPRING WASHER M6 (10 PCS) (949455) 1453 RON 82 1 4 NUT M6 (10 PCS) (949556) 1453 RON 83 1 1 SPECIAL BOLT M6X35 (314529) 334 RON *83 1 2 SPECIAL BOLT M6X35 (314529) 334 RON 84 1 4 MACHINE SCREW M6X12 (10 PCS) (949255) 1788 RON 85 1 1 BRACKET (314530) 7269 RON 86 1 1 314531 - Indisponibil 87 1 1 NUT M6 (10 PCS) (949556) 1453 RON 88 1 2 FLAT WASHER M6 X 25 C10FCA (314532) 1677 RON 89 1 1 ANCHOR BLOCK (314533) 3578 RON 90 1 1 314534 - Indisponibil 91 1 1 BOLT M8X16 (10 PCS) (OLD 949622Z) (949622) 2236 RON 92 1 1 314535 - Indisponibil 93 1 1 FLAT WASHER M16 (314536) 105 RON 94 1 1 314537 - Indisponibil 95 1 1 REGULATING BOLT C10RA (314538) 2571 RON 96 1 1 ROLL PIN D3X18 (10 PCS) (949518) 2348 RON 97 1 4 WASHER (973361) 1453 RON 98 1 4 BOLT (W/WASHERS) M6X12 BLACK (996577) 1453 RON 99 1 1 BODY SHELL NEW (314539) 6802 RON 99 1 1 BODY SHELL (317157) 37244 RON 100 1 1 - Indisponibil 102 1 1 - Indisponibil 103 1 1 - Indisponibil 104 1 4 @ BOLT (W/WASHERS) M8X20 BLACK (308946) 1453 RON 105 1 4 @ SET PLATE (314540) 1453 RON 106 1 2 @ EXTENSION SUPPORTER (L) (314541) 5368 RON 107 1 8 @ BOLT (W/WASHERS) M8X20 BLACK (308946) 1453 RON 108 1 4 @ SPONGE (314542) 1341 RON 109 1 1 314543 - Indisponibil 109 1 1 SWITCH BOX C10RA (317152) 4025 RON *109 1 1 317285 - Indisponibil 110 1 1 STRAIN RELIEF (RU-1435) (314544) 2124 RON 111 1 3 @ TAPPING SCREW D4X10 (314545) 1341 RON 112 1 1 314456 - Indisponibil 112 1 1 @POWER CABLE (317151) 11519 RON *112 1 1 317148 - Indisponibil *112 1 1 POWER CABLE 110 VOLT FOR GBR (317493) 8387 RON *112 1 1 POWER CABLE 230 VOLT FOR GBR (317494) 14092 RON 113 1 1 314457 - Indisponibil 113 1 1 317146 - Indisponibil 114 1 2 @ EXTENSION SUPPORTER (R) (314547) 4025 RON 115 1 1 STRAIN RELIEF (RU-1418) NEW (314548) 2236 RON 115 1 1 STRAIN RELIEF (RU-1832) (OLD 317286) (317156) 446 RON 116 1 2 TAPPING SCREW D5X16 C10RA (314549) 334 RON *116 1 4 TAPPING SCREW D5X16 C10RA (314549) 334 RON 117 1 1 SWITCH MTG PLATE C10RA NEW (314458) 2236 RON 118 1 1 314459 - Indisponibil 118 1 1 317147 - Indisponibil 119 1 2 @ TAPPING SCREW D4X10 (SPECIAL) (314552) 1341 RON 120 1 2 TOOTHED LOCK WASHER M4 (314553) 334 RON 121 1 1 314460 - Indisponibil 122 1 3 @ TAPPING SCREW D4X12 (314554) 558 RON 123 1 1 SEGMENT GEAR (314555) 382 RON 124 1 1 - Indisponibil 125 1 1 TENSION HANDLE C10RA (314556) 4249 RON 126 1 1 WHEEL C10RA (314557) 4025 RON 127 1 1 HANDLE (314558) 3242 RON 128 1 1 314534 - Indisponibil 129 1 1 LABEL (314560) 2236 RON 130 1 1 @ POINTER BRACKET (314561) 1677 RON 131 1 1 BOLT WASHER M8 (10 PCS) (949433) 1453 RON 132 1 1 NUT M8 (10 PCS) (949558) 1453 RON 133 1 1 NEEDLE POINTER (314562) 1677 RON 134 1 1 TOOTHED LOCK WASHER M5 (314580) 334 RON 135 1 1 MACHINE SCREW M5X8 (10 PCS) (949235) 1453 RON 136 1 2 SPRING WASHER M6 (10 PCS) (949455) 1453 RON 137 1 6 SPRING WASHER M6 (10 PCS) (949455) 1453 RON 138 1 4 SPRING WASHER M6 (10 PCS) (949455) 1453 RON 139 1 1 SPRING WASHER M6 (10 PCS) (949455) 1453 RON 140 1 5 SPRING WASHER M6 (10 PCS) (949455) 1453 RON 141 1 4 SPRING WASHER M6 (10 PCS) (949455) 1453 RON 142 1 1 315040 (315040) 3124 RON 143 1 1 315041 - Indisponibil 143A 1 1 319014 (319014) 13756 RON 144 1 1 315042 (315042) 7716 RON 148 1 1 317142 - Indisponibil 149 1 1 COLLAR (B) (317143) 2348 RON 150 1 3 TOOTHED LOCK WASHER M4 (314553) 334 RON 151 1 3 TAPPING SCREW D4X8 (317144) 334 RON 152 1 1 ELECTRO MAGNETIC DISTURBANCE C10RA (317145) 24046 RON *152 1 1 ELECTRO MAGNETIC DISTURBANCE 110 VOLT C10FCA (317495) 19795 RON 156 1 1 @ INTERNAL WIRE (A) (317149) 1677 RON 157 1 1 INTERNAL WIRE (B) (317150) 2571 RON 159 1 1 SWITCH COVER C10RA (317153) 2460 RON 160 1 1 CIRCUIT BREAKER SWITCH C10RA (317154) 12638 RON *160 1 1 CIRCUIT BREAKER SWITCH 110 VOLT C10RA (322023) 3354 RON 161 1 1 SWITCH C10RA (317155) 29191 RON *161 1 1 SWITCH 110 VOLT C10RA (322024) 12525 RON 162 1 1 @ INTERNAL WIRE (317158) 1453 RON 163 1 1 @ INTERNAL WIRE (317159) 1677 RON 164 1 2 SPACER C10RA (317161) 105 RON 165 1 2 LOCATION PIN (317162) 894 RON 166 1 1 @ BLADE GUARD (317163) 3130 RON 167 1 2 @ PAN HD. SCREW (317164) 334 RON 168 1 1 @ CLEAR PANEL (317178) 894 RON 169 1 1 EXTENSION SPRING (317166) 782 RON 170 1 2 @ HEX.NUT (317167) 334 RON 172 1 1 SPLITTER C10RA (317169) 4697 RON 173 1 1 FLAT WASHER (317170) 223 RON 174 1 1 BOLT M6X16 (10 PCS) (949613) 1788 RON 175 1 5 317171 - Indisponibil 176 1 1 BLADE GUARD C10RA (317172) 6039 RON 177 1 1 BLADE GUARD C10RA (317173) 6039 RON 178 1 1 WING NUT M6 (10 PCS) (949313) 4361 RON 201A 1 1 324508 (324508) 21026 RON 202 1 1 PARALLEL KEY (OLD 311075) (314567) 1229 RON 203 1 4 MACHINE SCREW M4X12 (10 PCS) (949217) 1453 RON 204 1 4 SPRING WASHER M4 (10 PCS) (949453) 894 RON 205 1 1 BEARING RETAINER (314572) 2236 RON 206 1 1 BALL BEARING 6204VVCMPS2S (6204VV) 6262 RON 207 1 1 COLLAR FOR D17 (314568) 2236 RON 208 1 1 314569 - Indisponibil 209 1 1 RETAINING RING FOR D17 SHAFT (967261) 1453 RON 210 1 1 NEEDLE BEARING (314570) 6374 RON 211A 1 1 324507 (324507) 39145 RON 212 1 1 314576 (314576) 51896 RON *212A 1 1 314452 (314452) 57153 RON *212A 1 1 317136 (317136) 83773 RON 213 1 1 BALL BEARING 6201VVCMPS2S (6201VV) 4249 RON 214A 1 1 BALL BEARING 6200DDCMPS2L (6200DD) 4697 RON 215 1 1 314578 - Indisponibil 216 1 2 TAPPING SCREW D5X60 (314579) 1677 RON 217 1 2 TOOTHED LOCK WASHER M5 (314580) 334 RON *218 1 1 STATOR 110 VOLT C10RA (319057) 15322 RON *218 1 1 314453 - Indisponibil *218 1 1 STATOR 230 VOLT C10RA (317137) 2741 RON *218 1 1 317138 - Indisponibil 219 1 1 314577 - Indisponibil 220 1 2 314583 - Indisponibil 221 1 2 CARBON BRUSH (1 PAIR) (999044) 382 RON 222 1 1 314585 (314585) 20020 RON 223 1 2 314586 - Indisponibil 224 1 4 SPRING WASHER M5 (10 PCS) (949454) 1117 RON 225 1 4 MACHINE SCREW M5X30 (10 PCS) (949245) 2236 RON 226 1 2 @ HEX SOCKET SET SCREW M5X8 (967377) 1453 RON 227 1 1 STRAIN RELIEF (RU-1435) (314544) 2124 RON *227 1 1 317286 - Indisponibil 228 1 1 - Indisponibil 701A 1 1 WRENCH 22MM C10RA (314590) 3466 RON 702A 1 1 WRENCH 23/26 MM C10RA (314591) 3131 RON 703 1 1 ELBOW (314592) 2571 RON 704 1 1 314616 - Indisponibil 704 1 1 317176 - Indisponibil 704 1 1 317177 - Indisponibil 705 1 1 PUSH STICK C10RA (314324) 5480 RON 706 1 1 STAND (314819) 32211 RON 707 1 1 HEX.WRENCH (317175) 2348 RON 708 1 20 SPECIAL BOLT M8X16 (318820) 3242 RON 709 1 20 WASHER (317603) 334 RON 710 1 20 NUT M8 (10 PCS) (949558) 1453 RON 711 1 4 RUBBER LEG (318821) 765 RON 712 1 4 NUT M10 (949560) 2348 RON 901 1 1 TABLE INSERT FOR CUTTER (314325) 765 RON 902 1 1 PUSH STICK C10RA (314324) 5480 RON 903 1 1 STAND (314819) 32211 RON
