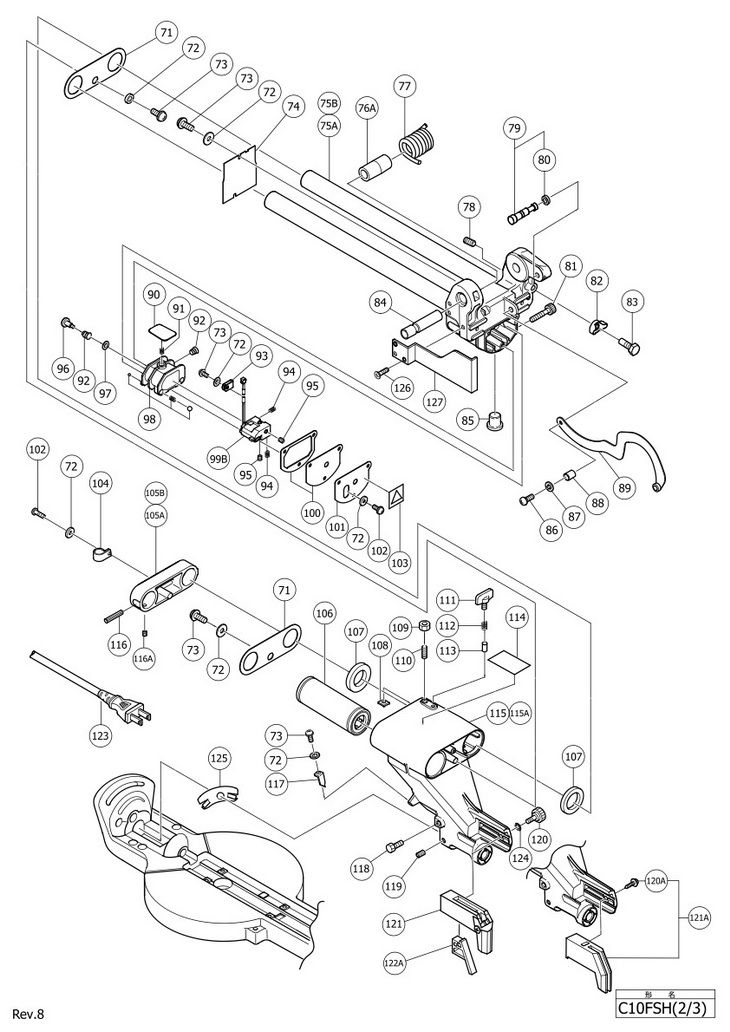

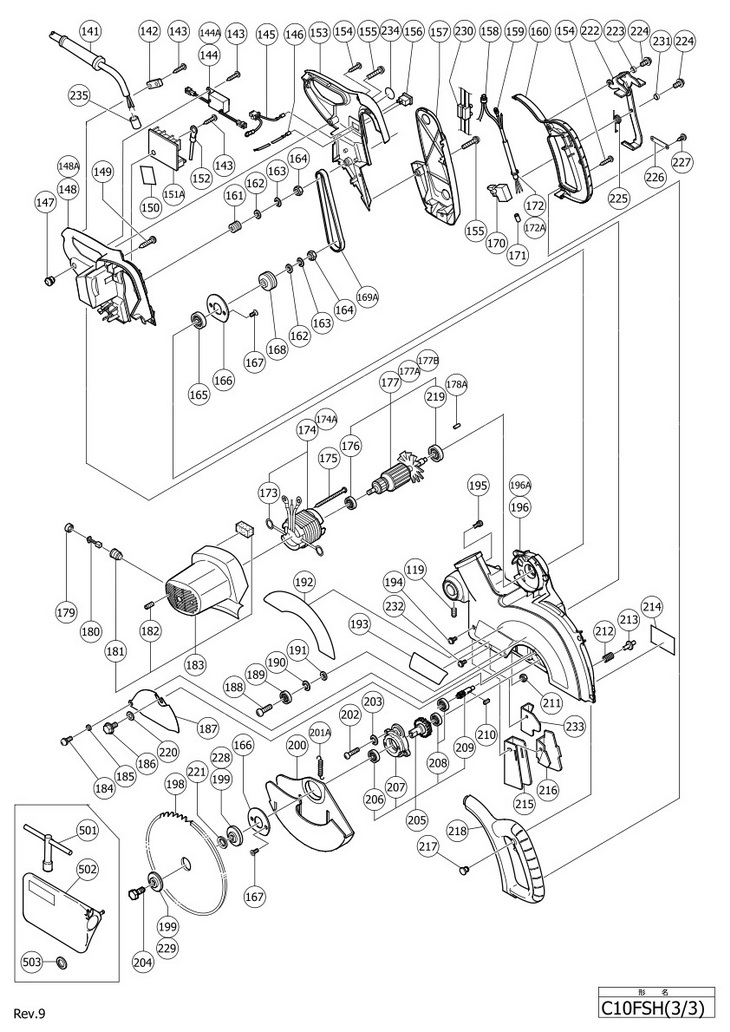

Top » Piese de schimb » PIESE HITACHI » C10FSH C10FSH [C10FSH] Click pentru a mari Imagini suplimentare Click pentru a mari Click pentru a mari Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1 1 1 CLUTCH SCREW (305180) 382 RON 2 1 1 CLUTCH SPRING (305179) 1453 RON 3 1 1 CLAMP LEVER (OLD 996219) (312488) 5368 RON 4 1 1 BOLT (LEFT HAND) M10 (307725) 8388 RON 4A 1 1 BOLT (LEFT HAND) D10 (329409) 4025 RON 5 1 1 SLEEVE (315195) 5368 RON 6 1 1 METAL SPRING (A) (305190) 2683 RON 7 1 1 SPECIAL WASHER (965077) 1453 RON 8 1 1 SET PIN (A) (321330) 5368 RON 9 1 8 BOLT WASHER M4 (10 PCS) (OLD 949429Z) (949429) 1453 RON 10 1 8 MACHINE SCREW M4X8 (10 PCS) (949215) 1453 RON 11 1 1 HINGE SHAFT (A) (OLD 996235) (320141) 6822 RON 12 1 2 NYLOCK BOLT M8X25 (303409) 1453 RON 13 1 1 321370 (321370) 14092 RON 14 1 1 KNOB BOLT M10 (308396) 5591 RON 15A 1 1 WING BOLT M6X12 (307947) 1788 RON 16 1 1 - Indisponibil 17 1 1 VISE PLATE SET (319974) 3242 RON 18 1 1 WASHER (996722) 1453 RON 19 1 1 MACHINE SCREW M5X12 BLACK (996247) 1453 RON 20 1 1 VISE SHAFT (321371) 6374 RON 21 1 1 WING BOLT M6X17 (302459) 894 RON 22 1 4 BOLT (W/WASHER) M8X35 (BLACK) (307221) 1453 RON 22A 1 4 BOLT M8X35 (10 PCS) (949678) Indisponibil Indisponibil 23 1 1 FENCE (321346) 12973 RON 24 1 1 BOLT M6X10 (10 PCS) (949610) 1788 RON 25 1 1 HOLDER (998844) 573 RON 26A 1 1 330768 (330768) 124038 RON *26B 1 1 334463 - Indisponibil 27 1 1 SCALE (321343) 2795 RON 28 1 1 SHAFT (B) (312480) 5032 RON 29 1 2 BOLT WASHER M12 (10 PCS) (OLD 949437Z) (949437) 2683 RON 30 1 1 SPRING (312481) 2683 RON 31 1 1 STOPPER (321335) 5591 RON 31A 1 1 STOPPER (322280) 4025 RON 32 1 1 SPRING (E) (321417) 2795 RON 33 1 1 PIN COVER (321336) 2236 RON 34 1 3 LINER (998811) 2683 RON 34A 1 3 LINER (324400) 1453 RON 35 1 1 NYLON NUT M6 (311144) 1453 RON 36 1 1 PLATE (321331) 1453 RON 37 1 1 WARNING LABEL (321386) 4025 RON 38 1 1 321385 (321385) 14092 RON 39 1 1 FLAT HD.SCREW M6X25 (10 PCS) (949342) 2236 RON 40 1 2 TABLE INSERT (319549) 5368 RON 40A 1 2 TABLE INSERT (329421) Indisponibil Indisponibil 41A 1 6 MACHINE SCREW M6X16 (10 PCS) (949256) 1788 RON 42 1 1 INDICATOR (321329) Indisponibil Indisponibil 43 1 1 SPACER (A) (321342) 2236 RON 44 1 1 SHAFT (A) (321341) 3242 RON 44A 1 1 SHAFT (A) (329416) 1453 RON 45A 1 1 SIDE HANDLE (OLD 976805) (322283) 4025 RON 46 1 1 - Indisponibil 47 1 1 SHAFT (C) BRUSH BOX (321337) 3242 RON 47A 1 1 SHAFT (C) (329415) 2795 RON 48 1 2 THRUST WASHER (875249) 1788 RON 49 1 1 SEAL LOCK HEX. SOCKET SCREW M6X6 (987860) 1453 RON 50 1 1 LEVER SHAFT (321339) 2236 RON 51 1 1 LEVER BRUSH 230V SA (321338) Indisponibil Indisponibil 52 1 1 SPRING (D) (321340) 2236 RON 53 1 1 FENCE (A) (321345) 20691 RON 54B 1 1 330768 (330768) 124038 RON *54C 1 1 334463 - Indisponibil 55 1 4 BASE RUBBER (312672) 1453 RON 56 1 1 SCALE (A) (315210) 4025 RON 57A 1 1 KNOB BOLT M6X32 (960017) 2236 RON 58 1 2 SEAL LOCK HEX. SOCKET SCREW M6X6 (987860) 1453 RON 59 1 2 PIN (321552) 5368 RON 60 1 1 - Indisponibil 61 1 1 322617 (322617) 27289 RON 62 1 1 COVER (B) (324395) 1453 RON 63 1 1 BOLT WASHER M4 (10 PCS) (OLD 949429Z) (949429) 1453 RON 64 1 1 MACHINE SCREW M4X8 (10 PCS) (949215) 1453 RON 65 1 1 SPRING WASHER M8 (10 PCS) (949457) 1453 RON 66 1 1 BOLT WASHER M8 (10 PCS) (949433) 1453 RON 70 1 1 MACHINE SCREW M4X8 (10 PCS) (949215) 1453 RON 71 1 2 PACKING COVER (996227) 2348 RON 72 1 11 BOLT WASHER M4 (10 PCS) (OLD 949429Z) (949429) 1453 RON 73 1 6 MACHINE SCREW M4X8 (10 PCS) (949215) 1453 RON 74 1 1 COVER (321349) 2236 RON *75A 1 1 332815 - Indisponibil *75A 1 1 332814 - Indisponibil *75A 1 1 332813 - Indisponibil *75B 1 1 334459 - Indisponibil 76A 1 1 SLEEVE (334337) 4025 RON 77 1 1 SPRING (321332) 8835 RON 78 1 1 HEX.SOCKET SET SCREW M8X10 (961554) 1788 RON 79 1 1 302518 (302518) 382 RON 80 1 1 O-RING (P-6) (984528) 1453 RON 81 1 1 ADJUSTER (319270) 5368 RON 82 1 1 WING NUT M8 (10-PCS) (OLD 985606) (949312) 4361 RON 83 1 1 BOLT M8X50 (10 PCS) (949633) 3578 RON 84 1 1 HINGE SHAFT (A) (OLD 996235) (320141) 6822 RON 85 1 1 BASE RUBBER (312672) 1453 RON 86 1 1 MACHINE SCREW M5X12 (10 PCS) (949237) 1453 RON 87 1 1 SPRING WASHER M5 (10 PCS) (949454) 1117 RON 88 1 1 SPACER (998980) 894 RON *89 1 1 LINK (322199) 6822 RON *89 1 1 LINK (321368) 6822 RON 90 1 1 PLATE (B) (319268) 2236 RON 91 1 1 SPRING (319267) 2236 RON 92 1 2 CLUTCH SPRING (305179) 1453 RON 93 1 1 NYLON CLIP (980523) 1453 RON 94 1 2 SPRING (319267) 2236 RON 95 1 2 SEAL LOCK HEX. SOCKET SET SCREW M5X6 (319541) 2236 RON 96 1 1 CLUTCH SCREW (305180) 382 RON 97 1 1 ADJUSTING WASHER (B) T0.5 (962614) 1453 RON 98 1 1 HOLDER (B) (319269) 6822 RON 99B 1 1 LASER MARKER (329863) 23934 RON 100 1 1 COVER (A) (319271) 11184 RON 101 1 1 PLATE (A) (319272) 2236 RON 102 1 5 MACHINE SCREW M4X12 (10 PCS) (949217) 1453 RON 103 1 1 - Indisponibil *104 1 1 NYLON CLIP FOR SWISS,GBR,ESP (948614) 1453 RON *104 1 1 NYLON CLIP (948193) 1453 RON 105A 1 1 331419 - Indisponibil 105B 1 1 334458 - Indisponibil 106 1 1 BALL BUSHING (321347) 66324 RON 107 1 2 FELT (996226) 1788 RON 108 1 2 BUSHING (996223) 2348 RON 109 1 2 LOCK NUT M8 (10 PCS) (OLD 949568Z) (949568) 1453 RON 110 1 2 HEX.SOCKET SET SCREW M8X16 (974500) 1453 RON 111 1 1 WING BOLT M6X17 (302459) 894 RON 112 1 1 LOCK SPRING (OLD 996224) (947859) 894 RON 113 1 1 CLAMP PIECE (B) (963174) 1788 RON 114 1 1 CAUTION LABEL (A) (320206) 2236 RON 115 1 1 HOLDER (A) (321375) 30757 RON 115A 1 1 334462 - Indisponibil 116 1 2 ROLL PIN D6X40 (10 PCS) (949686) 5591 RON 116A 1 2 HEX.SOCKET SET SCREW M8X10 (961554) 1788 RON 117 1 2 INDICATOR (321329) Indisponibil Indisponibil 118 1 1 NYLOCK BOLT M8X25 (303409) 1453 RON 119 1 2 SEAL LOCK HEX. SOCKET SCREW M6X10 (307956) 1453 RON 120A 1 1 TAPPING SCREW D5X25 (W/FLANGE) BLACK (305558) 894 RON 121 1 1 GUARD (A) (321333) 7828 RON 121A 1 1 324372 (324372) 6039 RON 122A 1 1 GUARD HOLDER (331845) 2236 RON 123 1 1 500439Z - Indisponibil *123 1 1 500234Z - Indisponibil *123 1 1 CORD (500241Z) 12190 RON *123 1 1 CORD 2,5M 2 X 1.0 H05VV-F W/PLUG 13A/250V GBR (500435Z) 12638 RON *123 1 1 CORD FOR GBR 110 VOLT (500463Z) 13085 RON *123 1 1 CORD 2,5M 2 X 1.0 H05VV-F (OLD 500395Z) (500447Z) 5480 RON 124 1 1 WAVE WASHER (960092) 1453 RON 125 1 1 LINER (A) (322210) 2236 RON 126 1 2 FLAT HD.SCREW M5X12 (10 PCS) (949332) 1453 RON 127 1 1 SUB COVER (322206) 12079 RON 127 1 1 - Indisponibil 141 1 1 CORD ARMOR D10.1 (OLD 994565) (938051) 894 RON 142 1 1 CORD CLIP (OLD 994566) (937631) 894 RON 143 1 4 TAPPING SCREW D4X16 (W/FLANGE) (984750) 1117 RON 144 1 1 SWITCHING POWER SUPPLY 110-127 VOLT (321378) 27289 RON 144A 1 1 SWITCHING POWER SUPPLY 220-240 VOLT (322383) 27289 RON *145 1 1 CONNECTOR (B) (322384) 5368 RON *145 1 1 321376 - Indisponibil *145 1 1 @ CONNECTOR (B) FOR GBR 110 VOLT (322450) 3466 RON 146 1 1 INTERNAL WIRE (321377) 3242 RON 147 1 1 CORD BUSH (319349) 2236 RON 148 1 1 HANDLE (L) (321550) 7828 RON 148A 1 1 333985 - Indisponibil 149 1 3 TAPPING SCREW D5X25 (W/FLANGE) BLACK (305558) 894 RON 150 1 1 SHEET (321355) 5591 RON 151A 1 1 CONTROLLER 100-120 VOLT S. A. LEADWIRE (321354) 41382 RON 151A 1 1 CONTROLLER 220-240 VOLT (322200) 41382 RON 152 1 1 TERMINAL M4.0 (10 PCS) (930804) 297 RON 153 1 1 HANDLE (R) (321380) 5591 RON 154 1 6 TAPPING SCREW D4X20 (W/FLANGE) BLACK (OLD 305095) (301653) 894 RON 155 1 4 MACHINE SCREW M5X25 BLACK (880734) 894 RON 156 1 1 SWITCH (W/COVER) (319503) 9059 RON 157 1 1 PULLEY COVER (321383) 3578 RON 158 1 2 CONNECTOR 50092 (10 PCS) (OLD 939558) (959141) 382 RON 159 1 1 TERMINAL (980063) 1117 RON *160 1 1 SWITCH HANDLE SET (L2+R2) (OLD 322451+322455) (322884) 6374 RON *160 1 1 SWITCH HANDLE (321381) 4025 RON 161 1 1 PULLEY (321356) 5591 RON 162 1 2 WASHER M8 (10 PCS) (949426) 1453 RON 163 1 2 SUPER LOCK WASHER (978559) 1453 RON 164 1 2 NUT M8 (10 PCS) (949558) 1453 RON 165 1 1 BALL BEARING 6201VVCMPS2S (6201VV) 4249 RON 166 1 2 COVER (307731) 2795 RON 167 1 4 FLAT HD.SCREW M4X10 (10 PCS) (949322) 1453 RON 168 1 1 PULLEY (B) (321357) 8835 RON 169A 1 1 BELT (10PH432) (OLD 307736) (332810) 12414 RON *170 1 1 SWITCH (2P PILLAR TYPE) W/O LOCK (998868) 9059 RON *170 1 1 SWITCH (1P PILLAR TYPE) W/LOCK (998839) 9730 RON *171 1 4 TUBE (D) (981373) 1341 RON *171 1 3 TUBE (D) (981373) 1341 RON *172 1 1 322207 (322207) 7157 RON 172A 1 1 321532 (321532) 6598 RON 173 1 2 BRUSH TERMINAL (930703) 2348 RON *174 1 1 340539D (340539D) 49323 RON 174A 1 1 340778D - Indisponibil *174A 1 1 340779C - Indisponibil *174A 1 1 340779F - Indisponibil *174A 1 1 340811E (340811E) 17671 RON 175 1 2 HD.TAPPINGSCREW D5X55 (OLD 956669) (953174) 894 RON 176 1 1 BALL BEARING 608VVC2NS7L (321399) 5815 RON *177A 1 1 360588U (360588U) 61179 RON *177A 1 1 360898U - Indisponibil *177A 1 1 360898E (360898E) 38250 RON *177A 1 1 360924E - Indisponibil *177A 1 1 360898F (360898F) 38250 RON 177B 1 1 360924U - Indisponibil 178A 1 1 BEARING LOCK (OLD 976441) (946362) 1453 RON 179 1 2 BRUSH CAP (945161) 1453 RON 180 1 2 CARBON BRUSH (1 PAIR) (999043) 382 RON *181 1 2 BRUSH HOLDER (OLD 996270) (960685) 5368 RON *181 1 2 BRUSH HOLDER (958900) 5368 RON 182 1 2 HEX.SOCKET SET SCREW M5X8 (938477) 1453 RON *183 1 1 322208 (322208) 12973 RON *183 1 1 321379 (321379) 12973 RON 184 1 1 MACHINE SCREW M5X12 BLACK (996247) 1453 RON 185 1 1 SPACER (998980) 894 RON 186 1 1 BOLT (W/WASHERS) M6X12 BLACK (996577) 1453 RON *187 1 1 SPINDLE COVER (318958) 2795 RON *187 1 1 SPINDLE COVER (322622) 5927 RON 188 1 1 MACHINE SCREW M6X20 (10 PCS) (949258) 2236 RON 189 1 1 BALL BEARING 606ZZMC3PS2S (606ZZM) 5815 RON 190 1 1 SPRING WASHER M6 (10 PCS) (949455) 1453 RON 191 1 1 WASHER M6 (10 PCS) (949425) Indisponibil Indisponibil 192 1 1 - Indisponibil 193 1 1 - Indisponibil 194 1 1 MACHINE SCREW M4X10 (W/WASHERS) BLACK (304043) 1453 RON 195 1 1 SEAL LOCK HEX. SOCKET HD. BOLT M5X10 (877839) 1453 RON 196 1 1 GEAR CASE CAPACITOR X 0 1 F (321384) 53014 RON 196A 1 1 334461 - Indisponibil 197 1 1 - Indisponibil *198 1 1 322443 - Indisponibil 198 1 1 - Indisponibil *198 1 1 310878 - Indisponibil 199 1 2 WASHER (D) (308789) Indisponibil Indisponibil *200 1 1 LOWER GUARD (322452) 9730 RON *200 1 1 SAFETY COVER (321367) 488 RON *201 1 1 RETURN SPRING (A) (322453) 2236 RON 201A 1 1 RETURN SPRING (A) (322453) 2236 RON 202 1 2 MACHINE SCREW M5X20 (10 PCS) (949241) 1788 RON 203 1 2 SPRING WASHER M5 (10 PCS) (949454) 1117 RON 204 1 1 BOLT(LEFT HAND)W/WASHER M7X17.5 (OLD 996258) (998335) 1453 RON 205 1 1 308787 (308787) 36125 RON 206 1 1 BALL BEARING 6003DDCMPS2S (6003DD) Indisponibil Indisponibil 207 1 1 BEARING HOLDER (308788) 16217 RON 208 1 2 BALL BEARING 608VVMC2EPS2L (608VVM) 4025 RON 209 1 1 - Indisponibil 210 1 1 FEATHER KEY 4X4X12 (931008) 1453 RON 211 1 1 NUT M5 (10 PCS) (949555) 1453 RON 212 1 1 LOCK SPRING (988821) 3578 RON 213 1 1 STOPPER PIN (307732) 3578 RON 214 1 1 - Indisponibil *215 1 1 DUST GUIDE (322454) 2236 RON *215 1 1 DUST GUIDE (321364) 2236 RON 216 1 1 GUIDE HOLDER (312492) 382 RON 217 1 1 LOCK OFF BUTTON (951895) Indisponibil Indisponibil *218 1 1 SWITCH HANDLE (L) (321382) 4025 RON 219 1 1 321398 - Indisponibil 220 1 1 BOLT WASHER M6 (10 PCS) (OLD 949432Z) (949432) 1453 RON 221 1 1 COLLAR (B) (976819) 4025 RON 222 1 1 322456 (322456) 5927 RON 223 1 2 SPACER (302757) 1453 RON 224 1 3 MACHINE SCREW M4X12 (W/WASHERS) BLACK (935196) 1453 RON 225 1 1 LEVER SPRING (322457) 1453 RON 226 1 1 PLATE (C) (322458) 2236 RON 227 1 2 TAPPING SCREW 3X10 (W/FLANGE) (306371) 1453 RON 228 1 1 WASHER (A) (322459) 8388 RON 229 1 1 WASHER (B) (318962) Indisponibil Indisponibil 230 1 1 PILLAR TERMINAL (A) (958308Z) 5368 RON 231 1 1 SPACER (305171) 1453 RON 232 1 1 MACHINE SCREW M4X10 (W/WASHERS) BLACK (304043) 1453 RON 233 1 1 SUB COVER (A) (322623) 5368 RON 234 1 1 @CAUTION LABEL (A) (320104) 2236 RON 235 1 1 FERRITE CORE (329755) 2795 RON *235 1 1 FERRITE CORE FOR GBR 110 VOLT (324518) 8052 RON 501 1 1 BOX WRENCH 10MM (OLD 968658) (940543) 4361 RON 502 1 1 DUST BAG (998845) 13085 RON 503 1 1 COLLAR (A) (974663Z) 382 RON 601 1 1 321434 (321434) 6802 RON 602 1 1 321388 (321388) 4251 RON 603 1 1 @KNOB BOLT M10X54 (321551) 9842 RON 604 1 1 KNOB BOLT M6X11 (998836) 2683 RON 605 1 1 - Indisponibil 606 1 1 WASHER (H) (306985) 1453 RON 607 1 1 BASE RUBBER (964851) 1453 RON 608 1 1 MACHINE SCREW M4X10 (W/WASHERS) BLACK (304043) 1453 RON 609 1 1 KNOB BOLT M6X32 (960017) 2236 RON 610 1 2 SEAL LOCK HEX. SOCKET SCREW M6X6 (987860) 1453 RON 611 1 2 PIN (321552) 5368 RON 612 1 1 - Indisponibil 613 1 1 321387 - Indisponibil 614 1 1 KNOB BOLT M6X32 (960017) 2236 RON 615 1 1 WING BOLT M6X15 (301806) 1453 RON 616 1 1 - Indisponibil 617 1 1 CROWN MOLDING STOPPER HOLDER (321390) 11743 RON 618 1 1 321374 (321374) 23487 RON 619 1 1 STOPPER (974561) 5815 RON 620 1 1 WING BOLT M6X20 (10 PCS) (OLD 949404Z) (949404) 6374 RON 621 1 1 CROWN MOLDING STOPPER HOLDER (321390) 11743 RON 622 1 1 - Indisponibil 623 1 1 WING BOLT M6X15 (301806) 1453 RON 624 1 1 321373 (321373) 23487 RON 625 1 2 HOLDER (321549) 13197 RON 626 1 2 WING NUT M6 (10 PCS) (949313) 4361 RON 627 1 2 NUT M6 (10 PCS) (949556) 1453 RON 628 1 4 WASHER (H) (967329) 1453 RON 629 1 2 VISE PLATE (996261) 1788 RON 630 1 2 HIGH TENSION BOLT M6X65 (996283) 2683 RON 631 1 1 321553 (321553) 49323 RON *632 1 1 322444 - Indisponibil *632 1 1 307713 - Indisponibil Puteti cumpara C10FSH in urmatoarele variante: Fierastrau de masa Hitachi C10FSH
