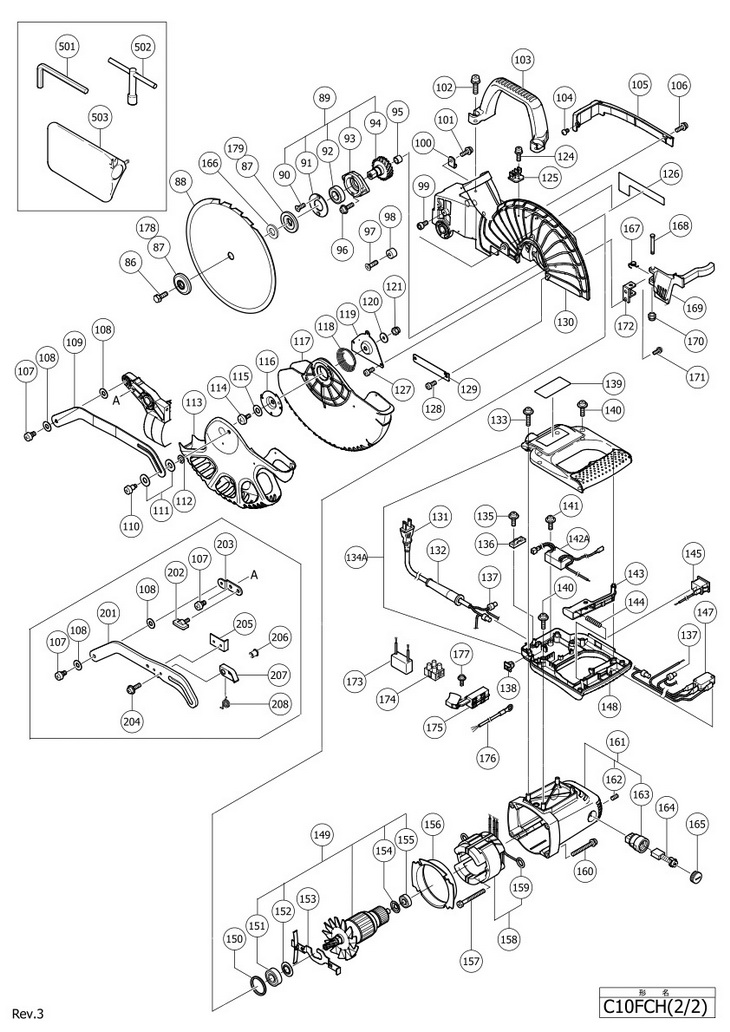

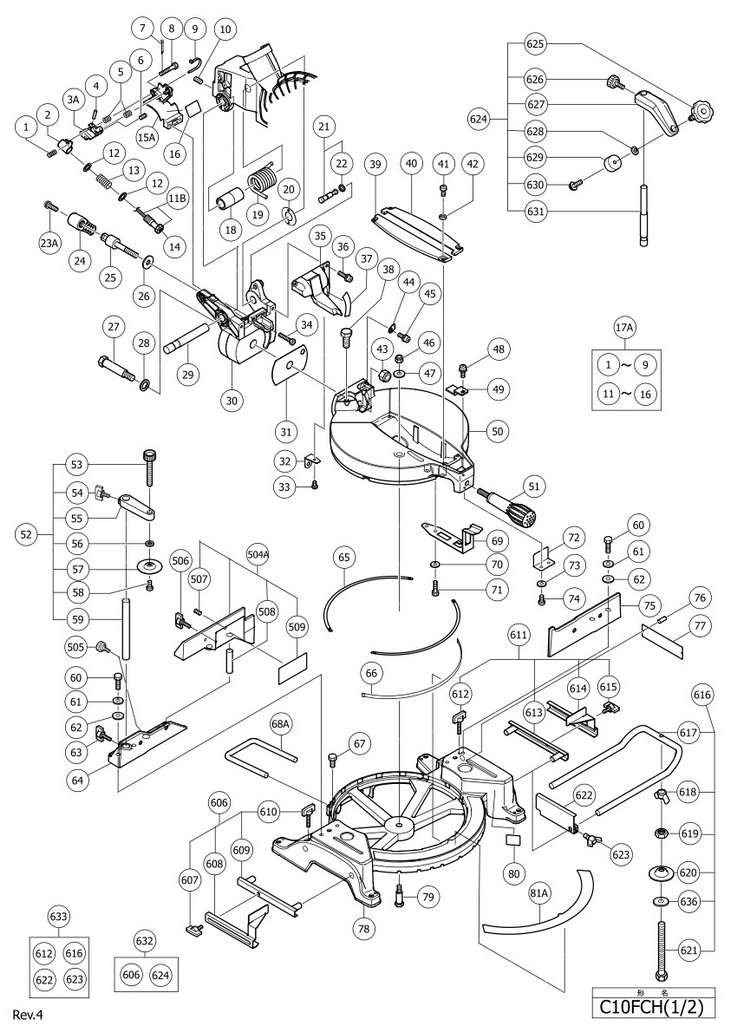

Top » Piese de schimb » PIESE HITACHI » C10FCH C10FCH [C10FCH] Click pentru a mari Imagini suplimentare Click pentru a mari Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1 1 1 SPRING (B) (323141) 1453 RON 2 1 1 LASER HOLDER (A) (323137) 1453 RON 3A 1 1 LASER HOLDER (B) (OLD 323138) (328943) 2795 RON 4 1 1 ROLL PIN D3X14 (10 PCS) (949900) 2348 RON 5 1 2 SPRING (C) HANDLE. LOGGER (323142) 1453 RON 6 1 1 HEX.SOCKET SET SCREW M5X6 (962782) 894 RON 7 1 1 SPLIT PIN D2X12 (10 PCS) (949531) 1453 RON 8 1 1 SPECIAL BOLT M5 (323144) 3242 RON 9 1 3 CABLE TIE (975144) 894 RON 10 1 1 SEAL LOCK HEX. SOCKET SCREW M6X10 (307956) 1453 RON 11B 1 1 331878 (331878) 32323 RON 12 1 2 WASHER (323143) 1453 RON 13 1 1 SPRING (A) (323140) 1453 RON 14 1 1 LASER COVER LEVER (323136) 2236 RON 15A 1 1 331876 (331876) 3690 RON 16 1 1 - Indisponibil 17A 1 1 LASER HOLDER (OLD 322927) (326748) 22257 RON 18 1 1 SLEEVE (322889) 1453 RON 19 1 1 SPRING (322890) 4025 RON 20 1 1 LINER (D) (322965) 1453 RON 21 1 1 302518 (302518) 382 RON 22 1 1 O-RING (P-6) (984528) 1453 RON 23A 1 1 MACHINE SCREW M6X20 (W/WASHERS) (323208) 1453 RON 24 1 1 CLAMP LEVER (322935) Indisponibil Indisponibil 25 1 1 BOLT (LEFT HAND) M10 (322936) Indisponibil Indisponibil 26 1 1 SPECIAL WASHER (318934) Indisponibil Indisponibil 27 1 1 SHAFT (D) (322933) 4025 RON 28 1 1 WASHER M16 (322934) 1453 RON 29 1 1 SHAFT (C) (322888) 4025 RON 30 1 1 HINGE (322932) 956 RON 31 1 1 LINER (B) (322937) 1453 RON 32 1 1 DUST GUIDE HOLDER (322963) 1453 RON 33 1 1 MACHINE SCREW M4X8 (10 PCS) (949215) 1453 RON 34 1 2 HEX.SOCKET HD.BOLT M6X25 (10 PCS) (949652) 3242 RON 35 1 1 322891 (322891) 4025 RON 36 1 2 MACHINE SCREW M5X16 (OLD 949238) (990541) 1453 RON 37 1 1 SCALE (B) (322892) 1453 RON 38 1 2 NYLOCK BOLT M8X25 (303409) 1453 RON 39 1 1 TABLE INSERT (B) (322930) 1453 RON 40 1 1 TABLE INSERT (A) KEY ALLEN 5MM (322929) 1453 RON 41 1 4 MACHINE SCREW M4X12 (10 PCS) (949217) 1453 RON 42 1 4 BOLT WASHER M4 (10 PCS) (OLD 949429Z) (949429) 1453 RON 43 1 1 NYLON NUT M12 (680418) 3242 RON 44 1 1 INDICATOR (B) (322893) 1453 RON 45 1 1 MACHINE SCREW M4X10 (W/WASHERS) BLACK (304043) 1453 RON 46 1 1 975348 - Indisponibil 47 1 1 WASHER (F) (318929) 1453 RON 48 1 1 MACHINE SCREW M4X10 (W/WASHERS) BLACK (304043) 1453 RON 49 1 1 INDICATOR (A) (322904) 1453 RON 50 1 1 TURN TABLE (322897) 23487 RON 51 1 1 SIDE HANDLE (322898) 3019 RON 52 1 1 322952 (322952) 5032 RON 53 1 1 KNOB BOLT M10X66 (302522) 5927 RON 54 1 1 WING BOLT M6X15 (301806) 1453 RON 55 1 1 - Indisponibil 56 1 1 BOLT WASHER M6 (10 PCS) (OLD 949432Z) (949432) 1453 RON 57 1 1 VISE PLATE (302532) 2460 RON 58 1 1 MACHINE SCREW M4X10 (10 PCS) (OLD 949216Z) (949216) 894 RON 59 1 1 VISE SHAFT (322954) 2795 RON 60 1 4 BOLT M8X35 (10 PCS) (949678) Indisponibil Indisponibil 61 1 4 SPRING WASHER M8 (10 PCS) (949457) 1453 RON 62 1 4 BOLT WASHER M8 (10 PCS) (949433) 1453 RON 63 1 1 WING BOLT M6X15 (301806) 1453 RON 64 1 1 FENCE (B) (322906) 8947 RON 65 1 2 LINER (A) (322901) 1453 RON 66 1 1 LINER (C) (322964) 1453 RON 67 1 1 BOLT M6X10 (10 PCS) (949610) 1788 RON 68A 1 1 HOLDER (322910) 2795 RON 69 1 1 SPRING PLATE (322903) 2795 RON 70 1 2 SPRING WASHER M8 (10 PCS) (949457) 1453 RON 71 1 2 HEX.SOCKET HD.BOLT M8X16 (10 PCS) (OLD 944949) (949655) 382 RON 72 1 1 SPACER (322899) 1453 RON 73 1 2 SPRING WASHER M4 (10 PCS) (949453) 894 RON 74 1 2 MACHINE SCREW M4X8 (10 PCS) (949215) 1453 RON 75 1 1 FENCE (A) (322905) 8947 RON 76 1 2 RIVET D2.5X4.8 (10 PCS) (OLD 949510Z) (949510) 1453 RON 77 1 1 - Indisponibil 77 1 1 WARNING LABEL (A) NEW (322896) 1453 RON *78 1 1 323976 (323976) 42389 RON *78 1 1 322894 - Indisponibil 79 1 1 SHAFT (B) (322902) 2795 RON 80 1 1 - Indisponibil 81A 1 1 SCALE (A) (OLD 322895) (326826) 2795 RON 86 1 1 BOLT(LEFT HAND)W/WASHER M7X17.5 (OLD 996258) (998335) 1453 RON 87 1 2 WASHER (D) (308789) Indisponibil Indisponibil 88 1 1 318963 - Indisponibil *88 1 1 319107 - Indisponibil *88 1 1 319106 - Indisponibil *88 1 1 318964 - Indisponibil 89 1 1 323133 (323133) 14092 RON 90 1 2 SEAL LOCK FLAT HD. SCREW M4X10 (990430) 894 RON 91 1 1 BEARING COVER ROLLER (322919) 1453 RON 92 1 1 BALL BEARING 6003VVCMPS2S (6003VV) 5256 RON 93 1 1 BEARING HOLDER (322918) 3690 RON 94 1 1 SPINDLE AND GEAR SET (322917) 7381 RON 95 1 1 NEEDLE BEARING HK1010 (982027) 5368 RON 96 1 2 MACHINE SCREW (W/SP. WASHER) M5X16 (987512) 1453 RON 97 1 1 FLAT HD.SCREW M6X16 (10 PCS) (949340) 1788 RON 98 1 1 CUSHION (961729) 1453 RON 99 1 1 HEX.SOCKET HD.BOLT M5X10 (10 PCS) (949819) 2683 RON 100 1 1 NYLON CLIP (980523) 1453 RON 101 1 1 MACHINE SCREW M4X12 (W/WASHERS) BLACK (935196) 1453 RON 102 1 2 MACHINE SCREW (W/WASHER) M6X20 (951893) 1453 RON 103 1 1 HANDLE (322924) 4585 RON 104 1 1 MACHINE SCREW M4X8 (10 PCS) (949215) 1453 RON 105 1 1 GEAR CASE COVER (322931) 2795 RON 106 1 1 MACHINE SCREW (W/WASHER) M4X16 (993539) 894 RON 107 1 1 SPECIAL SCREW M6 BRUSH 230V SA (322950) 1453 RON *107 1 2 SPECIAL SCREW M6 BRUSH 230V SA (322950) 1453 RON 108 1 2 WASHER M7 (322948) 1453 RON 109 1 1 LINK (322949) 3019 RON 110 1 1 SPECIAL SCREW (C) M5 (322947) 1453 RON 111 1 2 WASHER M10 (322938) 1453 RON 112 1 1 SPRING WASHER M5 (10 PCS) (949454) 1117 RON 113 1 1 PROTECTIVE COVER (B) (322940) 5927 RON 114 1 1 SPECIAL SCREW (B) M5 (322943) 1453 RON 115 1 1 WASHER M8 X 0.5 (BRASS) (322944) 1453 RON 116 1 1 COVER PLATE (B) (322942) 1453 RON 117 1 1 PROTECTIVE COVER (A) (322939) 7828 RON 118 1 1 RETURN SPRING (322946) 1453 RON 119 1 1 COVER PLATE (A) (322941) 1453 RON 120 1 1 WASHER M5 (322945) 1453 RON 121 1 1 NYLON NUT M5 (877371) 1453 RON 124 1 1 MACHINE SCREW M4X12 (W/WASHERS) BLACK (935196) 1453 RON 125 1 1 HOOK (322920) 2795 RON 126 1 1 - Indisponibil 127 1 3 MACHINE SCREW M4X8 (10 PCS) (949215) 1453 RON 128 1 2 MACHINE SCREW M4X8 (10 PCS) (949215) 1453 RON 129 1 1 SPINDLE COVER (322951) 1453 RON 130 1 1 322928 SCREW. HEX SKTM6 X 25 / 8 (322928) 31875 RON *131 1 1 500234Z - Indisponibil *131 1 1 500453Z - Indisponibil *131 1 1 500439Z - Indisponibil *131 1 1 CORD 2,5M 2 X 1.0 H05VV-F W/PLUG 13A/250V GBR (500435Z) 12638 RON *131 1 1 CORD 3M 2 X 1,0 H05VV-F W/PLUG 16A CEE FORM 2P+E FOR GBR (500461Z) 13085 RON *131 1 1 500456Z - Indisponibil 132 1 1 CORD ARMOR D10.7 (940778) 2124 RON 133 1 2 TAPPING SCREW D4X25 (W/FLANGE) (307028) 1453 RON 134A 1 1 324955 - Indisponibil *134A 1 1 324954 (324954) 12973 RON *134A 1 1 324955 - Indisponibil 135 1 2 TAPPING SCREW D4X16 (W/FLANGE) (984750) 1117 RON 136 1 1 CORD CLIP (OLD 994566) (937631) 894 RON 137 1 4 CONNECTOR 50092 (10 PCS) (OLD 939558) (959141) 382 RON 138 1 1 CORD BUSH (319349) 2236 RON 139 1 1 - Indisponibil 140 1 6 TAPPING SCREW D4X20 (W/FLANGE) BLACK (OLD 305095) (301653) 894 RON 141 1 1 TAPPING SCREW D4X16 (W/FLANGE) (984750) 1117 RON *142 1 1 322911 - Indisponibil 142A 1 1 SWITCHING POWER SUPPLY (323978) 27289 RON *143 1 1 SWITCH LEVER (323645) 1453 RON *143 1 1 322923 - Indisponibil 144 1 1 322925 - Indisponibil 145 1 1 SWITCH (A) (W/COVER) (322912) 8052 RON 147 1 1 322913 - Indisponibil 149 1 1 360656U (360656U) 27625 RON *149 1 1 360695E (360695E) 27625 RON *149 1 1 360695F - Indisponibil 150 1 1 RUBBER RING (303792) 1453 RON 151 1 1 BALL BEARING 6202VVCMPS2S (6202VV) 4585 RON 152 1 1 DUST WASHER (B) (980700) 894 RON 153 1 1 LOCK LEVER (322916) 1453 RON 154 1 1 WASHER (A) (302428) 894 RON 155 1 1 BALL BEARING 6000VVCMPS2S (6000VV) 4025 RON 156 1 1 FAN GUIDE (322915) 2795 RON 157 1 2 HEX.HD. TAPPING SCREW D5X50 (953121) 894 RON *158 1 1 340591D (340591D) 31875 RON *158 1 1 340591C - Indisponibil *158 1 1 340591E - Indisponibil *158 1 1 340615E (340615E) Indisponibil Indisponibil *158 1 1 340615F - Indisponibil *158 1 1 340632E - Indisponibil 159 1 2 BRUSH TERMINAL (OLD 976831) (937623) 894 RON 160 1 4 MACHINE SCREW M6X40 (W/WASHERS) BLACK (322123) 2236 RON 161 1 1 322914 (322914) 14092 RON 162 1 2 HEX.SOCKET SET SCREW M5X8 (938477) 1453 RON 163 1 2 BRUSH HOLDER (OLD 938241Z) (938241) 5368 RON 164 1 2 CARBON BRUSH (1 PAIR) (999038) 382 RON *164 1 2 CARBON BRUSH (1 PAIR) (999065) 5368 RON 165 1 2 BRUSH CAP (945161) 1453 RON *166 1 1 COLLAR (B) (976819) 4025 RON *166 1 1 COLLAR (A) (974663Z) 382 RON 167 1 1 LEVER SPRING (323987) 1453 RON 168 1 1 LEVER SHAFT (323990) 2795 RON 169 1 1 LOCK LEVER (C) (323979) 3019 RON 170 1 1 NYLON NUT M5 (877371) 1453 RON 171 1 2 MACHINE SCREW M5X10 (10 PCS) (949236) 1453 RON 172 1 1 LEVER HOLDER (323982) 2795 RON 173 1 1 NOISE SUPPRESSOR GASKET (930039) 2683 RON 174 1 1 PILLAR TERMINAL (A) (958308Z) 5368 RON 175 1 1 SWITCH (1P SCREW TYPE) (320950) Indisponibil Indisponibil 176 1 1 INTERNAL WIRE (D) (323983) 3019 RON 177 1 1 TAPPING SCREW D4X16 (W/FLANGE) (984750) 1117 RON 178 1 1 WASHER (B) (318962) Indisponibil Indisponibil 179 1 1 WASHER (A) (318961) Indisponibil Indisponibil 201 1 1 323980 (323980) 7940 RON 202 1 1 WING BOLT M6X15 (301806) 1453 RON 203 1 1 TURN PLATE (323986) 4025 RON 204 1 3 MACHINE SCREW M4X12 (W/WASHERS) BLACK (935196) 1453 RON 205 1 1 STOP PLATE (323985) 2795 RON 206 1 1 RETURN SHAFT (323988) 2795 RON 207 1 1 RETURN PLATE (323989) 3019 RON 208 1 1 RETURN SPRING (A) (323984) 1453 RON 501 1 1 HEX.BAR WRENCH 4MM (944458) 1229 RON 502 1 1 BOX WRENCH 10MM (OLD 968658) (940543) 4361 RON 503 1 1 DUST BAG (322955) Indisponibil Indisponibil 504A 1 1 322711 (322711) 8947 RON *504A 1 1 323981 (323981) 8947 RON 505 1 1 KNOB BOLT M6X11 (993609) 2236 RON 506 1 1 WING BOLT M6X22 (322959) 1453 RON 507 1 2 HEX.SOCKET SET SCREW M6X6 (991396) 1453 RON 508 1 2 PIN (322958) 1453 RON 509 1 1 - Indisponibil 509 1 1 - Indisponibil 606 1 1 322713 (322713) 30645 RON 607 1 1 WING BOLT M6X15 (301806) 1453 RON 608 1 1 - Indisponibil 609 1 1 CROWN MOLDING STOPPER HOLDER (321390) 11743 RON 610 1 1 WING BOLT M6X52 (316030) 9730 RON 611 1 1 322714 (322714) 30645 RON 612 1 2 WING BOLT M6X52 (316030) 9730 RON 613 1 1 CROWN MOLDING STOPPER HOLDER (321390) 11743 RON 614 1 1 - Indisponibil 615 1 1 WING BOLT M6X15 (301806) 1453 RON 616 1 1 322956 (322956) 13197 RON 617 1 1 HOLDER (321549) 13197 RON 618 1 1 WING NUT M6 (10 PCS) (949313) 4361 RON 619 1 1 NUT M6 (10 PCS) (949556) 1453 RON 620 1 1 VISE PLATE (322047) 2236 RON 621 1 1 HIGH TENSION BOLT M6X80 (323134) 3242 RON 622 1 1 STOPPER (974561) 5815 RON 623 1 1 WING BOLT M6X20 (10 PCS) (OLD 949404Z) (949404) 6374 RON 624 1 1 322957 (322957) 74825 RON 625 1 1 @KNOB BOLT M10X54 (321551) 9842 RON 626 1 1 KNOB BOLT M6X11 (998836) 2683 RON 627 1 1 - Indisponibil 628 1 1 WASHER (H) (306985) 1453 RON 629 1 1 BASE RUBBER (964851) 1453 RON 630 1 1 MACHINE SCREW M4X10 (W/WASHERS) BLACK (304043) 1453 RON 631 1 1 VISE SHAFT (318967) 2795 RON 632 1 1 322712 (322712) 105360 RON 633 1 1 322710 (322710) 23934 RON 634 1 1 976472 - Indisponibil 635 1 1 319658 - Indisponibil 636 1 1 WASHER M6 (10 PCS) (949425) Indisponibil Indisponibil
