B13R
[B13R]
B13R
Click pentru a mari
Imagini suplimentare
B13R
Click pentru a mari

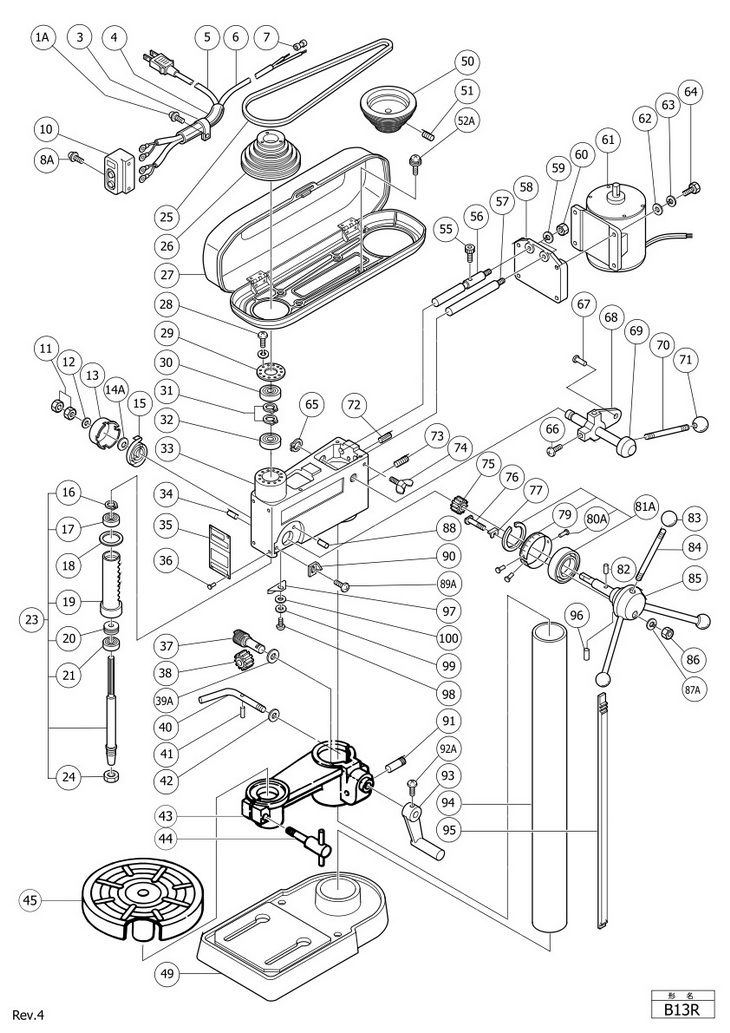

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1A 1 1 MACHINE SCREW M4X10 (W/WASHERS) BLACK (304043) 1453 RON
*3 1 1 NYLON CLIP (968300) 2236 RON
*3 1 1 967579 - Indisponibil
*3 1 1 932361 - Indisponibil
4 1 1 - Indisponibil
4 1 1 - Indisponibil
*5 1 1 951113 - Indisponibil
*5 1 1 500201Z - Indisponibil
*5 1 1 305832 - Indisponibil
*5 1 1 305834 - Indisponibil
*5 1 1 305831 - Indisponibil
*5 1 1 305833 - Indisponibil
*5 1 1 305846 - Indisponibil
*5 1 1 305830 - Indisponibil
*5 1 1 305835 - Indisponibil
*5 1 1 951164 - Indisponibil
*6 1 1 951116 - Indisponibil
*6 1 1 305840 - Indisponibil
*6 1 1 951117 - Indisponibil
*7 1 4 CONNECTOR 50091 (10 PCS) (OLD 939557) (959140) 2236 RON
*7 1 3 CONNECTOR 50091 (10 PCS) (OLD 939557) (959140) 2236 RON
8A 1 2 MACHINE SCREW M6X12 (307232) 1453 RON
*10 1 1 SWITCH FOR SINGLE-PHASE (2P SCREW (951111) 18789 RON
*10 1 1 SWITCH FOR THREE-PHASE (3P SCREW (951112) 20691 RON
11 1 2 LOCK NUT M12 (10 PCS) (OLD 949574Z) (949574) 297 RON
12 1 1 BOLT WASHER M12 (10 PCS) (OLD 949437Z) (949437) 2683 RON
13 1 1 SPRING CASE (932350) 2683 RON
14A 1 1 @ WASHER (D) (932364) 1453 RON
15 1 1 SPRING (932351) 5815 RON
16 1 1 RETAINING RING FOR D15 SHAFT(10 PCS) (939544) 2571 RON
17 1 1 BALL BEARING 6002VVCMPS2L (6002VV) 4920 RON
18 1 1 @ RUBBER WASHER (951102) 2236 RON
19 1 1 - Indisponibil
20 1 1 939286 - Indisponibil
21 1 1 BALL BEARING 6203VVCMPS2S (6203VV) 5368 RON
23 1 1 951121 (951121) 105360 RON
24 1 1 @ NUT (D) (950067) 2348 RON
25 1 1 V-BELT (3V-425) (973230) 17895 RON
26 1 1 PULLEY (B) (951104) 40823 RON
27 1 1 @ BELT COVER (950138) 30645 RON
28 1 3 MACHINE SCREW (W/SP.WASHER) M4X14 (951122) 1453 RON
29 1 1 BEARING COVER (951103) 297 RON
30 1 1 BALL BEARING 6005VVCMAV2S (6005VV) 6598 RON
31 1 2 RETAINING RING FOR D25 SHAFT (965469) 1453 RON
32 1 1 BALL BEARING 6005VVCMAV2S (6005VV) 6598 RON
*33 1 1 HEAD (OLD 951114) (951160) 149428 RON
33 1 1 - Indisponibil
34 1 1 975984 - Indisponibil
35 1 1 - Indisponibil
36 1 4 RIVET D2.5X4.8 (10 PCS) (OLD 949510Z) (949510) 1453 RON
37 1 1 WORM SPRING (932313) 5815 RON
38 1 1 PINION (932112) 382 RON
39A 1 1 975081 - Indisponibil
40 1 1 @ CLAMP SCREW (950124) 6374 RON
41 1 1 ROLL PIN D5X25 (10 PCS) (OLD 752) (949681) 3578 RON
42 1 1 BOLT WASHER M12 (10 PCS) (OLD 949437Z) (949437) 2683 RON
43 1 1 305662 - Indisponibil
44 1 1 932382 - Indisponibil
45 1 1 932301 - Indisponibil
49 1 1 951120 (951120) 200319 RON
50 1 1 PULLEY (A) (951530) 35790 RON
51 1 2 @ HEX.SOCKET SET SCREW M6X10 (968247) 1453 RON
52A 1 4 SCREW M6X16 (300197) 1453 RON
55 1 1 HEX.SOCKET HD.BOLT M6X12 (10 PCS) (OLD 949657Z) (949657) 297 RON
56 1 1 951161 - Indisponibil
57 1 1 @ ROD (951107) 5815 RON
58 1 1 @ MOTOR BASE (951106) 10289 RON
59 1 2 SPRING WASHER M12 (10 PCS) (949463) 2236 RON
60 1 2 LOCK NUT M12 (10 PCS) (OLD 949574Z) (949574) 297 RON
61 1 1 - Indisponibil
62 1 4 WASHER M6 (10 PCS) (949425) Indisponibil Indisponibil
64 1 4 BOLT M6X12 (10 PCS) (OLD 949611Z) (949611) 1788 RON
65 1 1 RETAINING RING FOR D10 (10 PCS) (939540) 2683 RON
66 1 1 MACHINE SCREW M6X20 (10 PCS) (949258) 2236 RON
67 1 1 932147 - Indisponibil
68 1 1 932158 - Indisponibil
69 1 1 951162 - Indisponibil
70 1 1 932461 - Indisponibil
71 1 1 932462 - Indisponibil
72 1 1 949879 - Indisponibil
73 1 4 @ HEX.SOCKET SET SCREW M10X10 (950141) 1453 RON
74 1 2 @ WING BOLT M8X25 (10 PCS) (OLD 949413Z) (949413) 7269 RON
75 1 1 PINION (932112) 382 RON
76 1 1 @ LOCK BOLT (A) (932348) 3578 RON
77 1 1 950087 - Indisponibil
79 1 1 950086 - Indisponibil
80A 1 3 RIVET D2.5X4.8 (10 PCS) (OLD 949510Z) (949510) 1453 RON
81A 1 1 333924 - Indisponibil
82 1 1 PIN D4X8 (10 PCS) (949483) 2348 RON
83 1 3 GRIP (A) (932344) 1788 RON
84 1 3 HANDLE (950135) 488 RON
85 1 1 HANDLE BOSS (951105) 45968 RON
86 1 1 SPECIAL NUT M8 (932593) 1788 RON
87A 1 1 BOLT WASHER M8 (10 PCS) (949433) 1453 RON
88 1 1 @ ROLL PIN D6X16 (10PCS) (OLD 949785Z) (949785) 3242 RON
88 1 1 951534 - Indisponibil
89A 1 1 MACHINE SCREW M5X16 (10 PCS) (949239) 1453 RON
90 1 1 @ INDICATOR (B) (950088) 2236 RON
91 1 1 @ GEAR SHAFT (950125) 2683 RON
92A 1 1 MACHINE SCREW M6X16 (10 PCS) (949256) 1788 RON
93 1 1 HANDLE (B) (305661) 8835 RON
94 1 1 - Indisponibil
94 1 1 - Indisponibil
95 1 1 @ RACK (950121) 22592 RON
96 1 1 ROLL PIN D6X40 (10 PCS) (949686) 5591 RON
97 1 1 PLATE (323094) 3242 RON
98 1 1 MACHINE SCREW M5X12 (10 PCS) (949237) 1453 RON
99 1 1 SPRING WASHER M5 (10 PCS) (949454) 1117 RON
100 1 1 WASHER M5 (10 PCS) (949424) 1453 RON
