Top » Piese de schimb » PIESE HITACHI » PH-65A

PH-65A
[PH-65A]
PH-65A
Click pentru a mari
Imagini suplimentare
PH-65A
Click pentru a mari

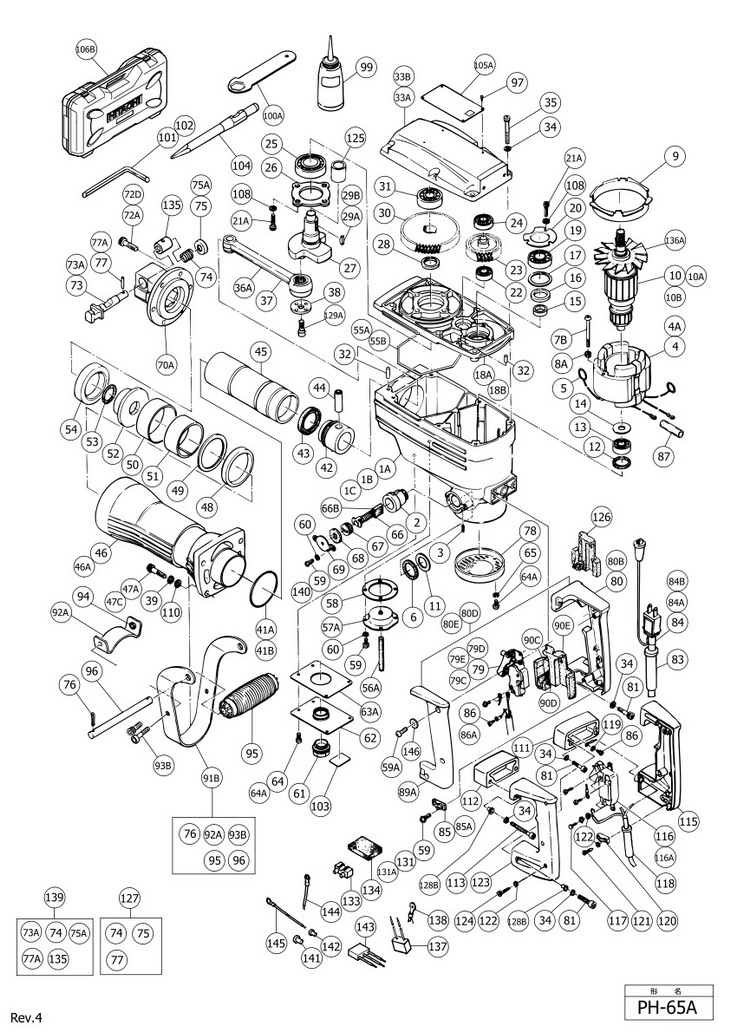

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1A 1 1 957133 (957133) 71469 RON
1B 1 1 313764 - Indisponibil
1B 1 1 332180 - Indisponibil
1C 1 1 332212 - Indisponibil
2 1 2 BRUSH HOLDER (956984) 6374 RON
3 1 2 HEX.SOCKET SET SCREW M5X8 (938477) 1453 RON
*4 1 1 @ STATOR 110-115V (OLD 956942C) (340124C) 15769 RON
*4 1 1 340124D - Indisponibil
*4 1 1 340124E (340124E) Indisponibil Indisponibil
*4 1 1 340124F - Indisponibil
*4 1 1 340124G - Indisponibil
*4 1 1 340124J - Indisponibil
*4A 1 1 340124H - Indisponibil
*4A 1 1 340124K - Indisponibil
*4A 1 1 340124L - Indisponibil
*4A 1 1 340124M - Indisponibil
5 1 2 BRUSH TERMINAL (945932) Indisponibil Indisponibil
6 1 2 RUBBER WASHER (956943) 1453 RON
7B 1 2 SEALLOCK SCREW M5X60 (W/SP.WASHER) (998411) 1453 RON
8A 1 2 SPECIAL WASHER (956764) 894 RON
9 1 1 FAN GUIDE (956944) 2460 RON
*10 1 1 956946U - Indisponibil
*10 1 1 956946D - Indisponibil
*10 1 1 956945 - Indisponibil
*10 1 1 957131 - Indisponibil
*10A 1 1 ARMATURE 220V-230V (956946E) 54469 RON
*10A 1 1 956946F - Indisponibil
10B 1 1 956946G - Indisponibil
11 1 2 STOP PLATE (956683) 1453 RON
12 1 1 URETHANE WASHER (A) (944904) 2348 RON
13 1 1 BALL BEARING 6201VVCMPS2S (6201VV) 4249 RON
14 1 1 BEARING WASHER (944954) 1453 RON
15 1 1 DISTANCE RING (A) (944907) 2348 RON
16 1 1 FELT PACKING (944908) 1453 RON
17 1 1 URETHANE WASHER (A) M40 (944910) 2348 RON
18A 1 1 INNER COVER (998412) 18789 RON
18B 1 1 INNER COVER H65SC METALLIC SILVER GREEN NEW NOV (332181) 20579 RON
19 1 1 BALL BEARING 6203VVCMPS2S (6203VV) 5368 RON
20 1 1 BEARING COVER (A) (944911) 1453 RON
21A 1 7 SEAL LOCK HEX. SOCKET HD. BOLT M5X16 (990079) 1453 RON
22 1 1 BALL BEARING 6001VVCMPS2L (6001VV) 4361 RON
23 1 1 COUNTER GEAR (956948) 18678 RON
24 1 1 BALL BEARING 6201VVCMPS2S (6201VV) 4249 RON
25 1 1 BALL BEARING 6205DDUCMPS2S (6205DD) 5815 RON
26 1 1 BEARING COVER (956949) 2236 RON
*27 1 1 956951 (956951) 34112 RON
*27 1 1 956999Z - Indisponibil
28 1 1 DISTANCE RING (B) (944915) 3578 RON
29A 1 2 FEATHER KEY 4X4X15 (948919) 1453 RON
29B 1 2 WOODRUFF KEY 4X16 (956850) 1453 RON
30 1 1 FINAL GEAR (944916) 28967 RON
31 1 1 BALL BEARING 6302VVCMPS2S (6302VV) 6262 RON
32 1 2 PIN D5X15.8 (944918) 1453 RON
33A 1 1 GEAR COVER (SILVER GREEN) (956952) 1339 RON
33B 1 1 332182 - Indisponibil
34 1 12 SPRING WASHER M6 (10 PCS) (949455) 1453 RON
35 1 6 HEX.SOCKET HD.BOLT M6X45 (10 PCS) (949832) 3578 RON
36A 1 1 998434 (998434) 25388 RON
37 1 1 NEEDLE BEARING NTN 8E-NK18/20 RDO (944921) 12526 RON
38 1 1 CRANK WASHER (956955) 3242 RON
39 1 4 SPRING WASHER M8 (10 PCS) (949457) 1453 RON
41A 1 1 PACKING (956956) 1453 RON
41B 1 1 O-RING (1AS-60) (956996) 297 RON
42 1 1 PISTON (956957) 15210 RON
43 1 1 L-RING (944927) Indisponibil Indisponibil
44 1 1 PISTON PIN (944928) 9059 RON
45 1 1 STRIKER (956958) 54469 RON
46 1 1 CYLINDER CASE (SILVER GREEN) (956959) 118893 RON
46A 1 1 332183 - Indisponibil
47A 1 4 HEX.SOCKET HD.BOLT M8X30 (10 PCS) (949759) 5815 RON
47C 1 4 NYLOCK BOLT M8X35 (OLD 993125) (306163) 1788 RON
48 1 1 URETHANE RING (956960) 6151 RON
49 1 1 MOUTH WASHER (956961) 2348 RON
50 1 1 MOUTH COVER (956962) 2348 RON
51 1 1 MOUTH (956963) 20691 RON
52 1 1 SHANK SLEEVE (956964) 7381 RON
53 1 1 O-RING (944936) 7269 RON
54 1 1 DAMPER (956965) 9730 RON
55A 1 1 SEAL RING (956966) 3242 RON
55B 1 1 SEAL RING (A) (957143) 3242 RON
56A 1 1 OIL FELT (998534) 2236 RON
57A 1 1 957136 (957136) 3131 RON
58 1 1 HOLDER SEAL (956969) 1453 RON
59 1 9 MACHINE SCREW M4X12 (10 PCS) (949217) 1453 RON
59A 1 3 TAPPING SCREW D4X25 (W/FLANGE) (307028) 1453 RON
60 1 7 SPRING WASHER M4 (10 PCS) (949453) 894 RON
61 1 1 OIL GAUGE (OLD 955287) (955011) 7269 RON
62 1 1 COVER PLATE (956970) 2236 RON
63A 1 1 COVER SEAL (956971) 1453 RON
64 1 6 MACHINE SCREW M5X12 (10 PCS) (949237) 1453 RON
64A 1 6 SEAL LOCK HEX. SOCKET HD. BOLT M5X12 (991690) 1453 RON
66 1 2 CARBON BRUSH (1 PAIR) (999044) 382 RON
66B 1 2 CARBON BRUSH A.S. TYPE (OLD 937943Z) (999074) 6710 RON
67 1 2 BRUSH CAP (940540) 1229 RON
68 1 2 CAP RUBBER (944960) 1453 RON
69 1 2 CAP COVER (956972) 1453 RON
70A 1 1 FRONT COVER (957152) 6802 RON
72A 1 6 HEX.SOCKET HD.BOLT M8X25 (10 PCS) (949760) 4585 RON
72D 1 6 NYLOCK HEX. SOCKET HD.BOLT M8X30 (306437) 1788 RON
73 1 1 LEVER (956974) 22144 RON
73A 1 1 STOP LEVER (998423) 23934 RON
74 1 1 LEVER SPRING (956975) 2236 RON
75 1 1 LEVER WASHER (956976) 3242 RON
75A 1 1 DAMPER (B) (998425) 382 RON
76 1 2 SPLIT PIN D4X25 (10PCS) (949895) 2236 RON
77 1 1 NEEDLE ROLLER D4X20 (943364) 1453 RON
77A 1 1 NEEDLE ROLLER (998426) 1453 RON
78 1 1 TAIL COVER (956977) 3466 RON
79 1 1 SWITCH (A) (1P SCREW TYPE) W/O LOCK (992891) 14763 RON
79C 1 1 971139 (971139) 20691 RON
79D 1 1 SWITCH W/LOCK (971390) 1700 RON
79E 1 1 SWITCH (2P PILLAR TYPE) W/O LOCK (981533Z) 13085 RON
80 1 1 957140 - Indisponibil
80B 1 1 HANDLE AND HANDLE COVER SET (971168) Indisponibil Indisponibil
80D 1 1 334510 - Indisponibil
80E 1 1 334511 - Indisponibil
81 1 4 HEX.SOCKET HD.BOLT M6X25 (10 PCS) (949652) 3242 RON
83 1 1 CORD ARMOR D10.7 (940778) 2124 RON
*83 1 1 CORD ARMOR D8.2 (OLD 958049Z) (958049) 894 RON
84 1 1 500202Z - Indisponibil
84 1 1 500428Z - Indisponibil
*84 1 1 500452Z - Indisponibil
*84 1 1 @ CORD (500210Z) 17112 RON
*84 1 1 500217Z - Indisponibil
*84 1 1 500230Z - Indisponibil
*84 1 1 500398Z - Indisponibil
*84 1 1 500398Z - Indisponibil
*84 1 1 500404Z - Indisponibil
*84 1 1 500430Z - Indisponibil
*84 1 1 971136 - Indisponibil
84A 1 1 500472Z - Indisponibil
84B 1 1 500445Z - Indisponibil
85 1 1 @ CORD CLIP (930108) 1788 RON
85A 1 1 CORD CLIP (960266) 894 RON
86 1 1 949292 - Indisponibil
86A 1 1 MACHINE SCREW (W/SP.WASHER) M4X8 (958523) 894 RON
87 1 1 - Indisponibil
89A 1 1 957141 - Indisponibil
90C 1 1 971163 - Indisponibil
90D 1 1 SUPPORT (A) (981986Z) 15434 RON
90E 1 1 SUPPORT (F) (OLD 990082) (312408) 5815 RON
91B 1 1 956852 (956852) 10289 RON
92A 1 1 HANDLE STAY (W/NUT) (OLD 944948) (320374) 488 RON
93B 1 2 NYLOCK HEX. SOCKET HD.BOLT M8X16 (320375) 2236 RON
94 1 2 U-NUT (B) M8 (944950) 1788 RON
95 1 1 GRIP (944951) 5591 RON
96 1 1 HANDLE SHAFT (944952) 2012 RON
97 1 4 RIVET D2.5X4.8 (10 PCS) (OLD 949510Z) (949510) 1453 RON
99 1 1 LUBRICANT OILER (120CC) HAMMERS (931848) Indisponibil Indisponibil
100 1 1 WRENCH 23MM (971109) 3578 RON
101 1 1 HEX.BAR WRENCH 6MM (872422) 1117 RON
102 1 1 HEX.BAR WRENCH 5MM (944459) 1788 RON
103 1 1 - Indisponibil
104 1 1 944961 - Indisponibil
105A 1 1 - Indisponibil
106B 1 1 PLASTIC CARRYING CASE NEW (333146) 39145 RON
108 1 7 SPRING WASHER M5 (10 PCS) (949454) 1117 RON
110 1 4 WASHER M8 (10 PCS) (949426) 1453 RON
111 1 1 @ DISTANCE PIECE (A) (971127Z) 1700 RON
112 1 1 @ DISTANCE PIECE (B) (971128Z) 12638 RON
113 1 2 HEX.SOCKET HD.BOLT M6X50 (10 PCS) (949782) 5591 RON
115 1 1 HANDLE (A) (981866) 10065 RON
*115 1 1 @ HANDLE (A) (955291) 9282 RON
116 1 1 SWITCH (2P SCREW TYPE) W/O LOCK (971824Z) 22592 RON
116A 1 1 SWITCH (2P PILLAR TYPE) W/O LOCK (981533Z) 13085 RON
117 1 2 TAPPING SCREW D4X12 (954017) 894 RON
118 1 1 CORD ARMOR D10.7 (940778) 2124 RON
*118 1 1 CORD ARMOR D10.2 (930026) 297 RON
119 1 1 SPRING WASHER M4 (10 PCS) (949453) 894 RON
120 1 1 CORD CLIP (960266) 894 RON
*120 1 1 CORD CLIP (OLD 994566) (937631) 894 RON
121 1 2 TAPPING SCREW D4X20 (OLD 317171) (956384) 1453 RON
122 1 5 WASHER M4 (10 PCS) (949423) 894 RON
123 1 1 @ HANDLE (B) (955292) 573 RON
*123 1 1 HANDLE (B) (981867) Indisponibil Indisponibil
124 1 3 TAPPING SCREW D4X25 (958705) 1453 RON
125 1 1 INNER RACE (956998Z) 6933 RON
126 1 1 SUPPORT (A) (981986Z) 15434 RON
127 1 1 956853 (956853) 488 RON
128B 1 4 DISTANCE PIECE (C) (OLD 981868) (990940) 1453 RON
129A 1 1 SEAL LOCK HEX. SOCKET HD. BOLT M8X16 (996364) 1453 RON
131 1 2 957147 - Indisponibil
131A 1 2 TAPPING SCREW D4X16 (W/FLANGE) (984750) 1117 RON
133 1 1 PILLAR TERMINAL (OLD 938307Z/512-31870-20)) (938307) 2571 RON
134 1 1 SUPPORT (OLD 931575Z) (963243) 1453 RON
135 1 1 SPRING CASE (998424) 8611 RON
136A 1 1 FAN (996370) 10065 RON
137 1 1 NOISE SUPPRESSOR GASKET (930039) 2683 RON
138 1 1 TERMINAL 50051 (10 PCS) (959144) 297 RON
139 1 1 318656 (318656) 4251 RON
140 1 4 MACHINE SCREW M4X10 (W/SP.WASHER) (307635) 1453 RON
141 1 2 CONNECTOR 50092 (10 PCS) (OLD 939558) (959141) 382 RON
142 1 1 CONNECTOR 50091 (10 PCS) (OLD 939557) (959140) 2236 RON
143 1 1 NOISE SUPPRESSOR (994273) Indisponibil Indisponibil
144 1 1 INTERNAL WIRE (981974) 2236 RON
145 1 1 INTERNAL WIRE (305798) 1453 RON
146 1 3 BOLT WASHER M4 (10 PCS) (OLD 949429Z) (949429) 1453 RON
501A 1 1 PLASTIC CARRYING CASE NEW (333146) 39145 RON
601 1 1 944962 - Indisponibil
602 1 1 944964 - Indisponibil
603A 1 1 957154 - Indisponibil
604 1 1 944966 - Indisponibil
605 1 1 RAMMER 200MM (944965) 86681 RON
606 1 1 @OIL FELT 8,5MM (980982) 2236 RON
607A 1 1 957153 - Indisponibil
608 1 1 OIL FELT NEW (324896) 4025 RON
89 A 1 1 HANDLE COVER METALLIC SILVER GREEN NEW (332174) 9841 RON
