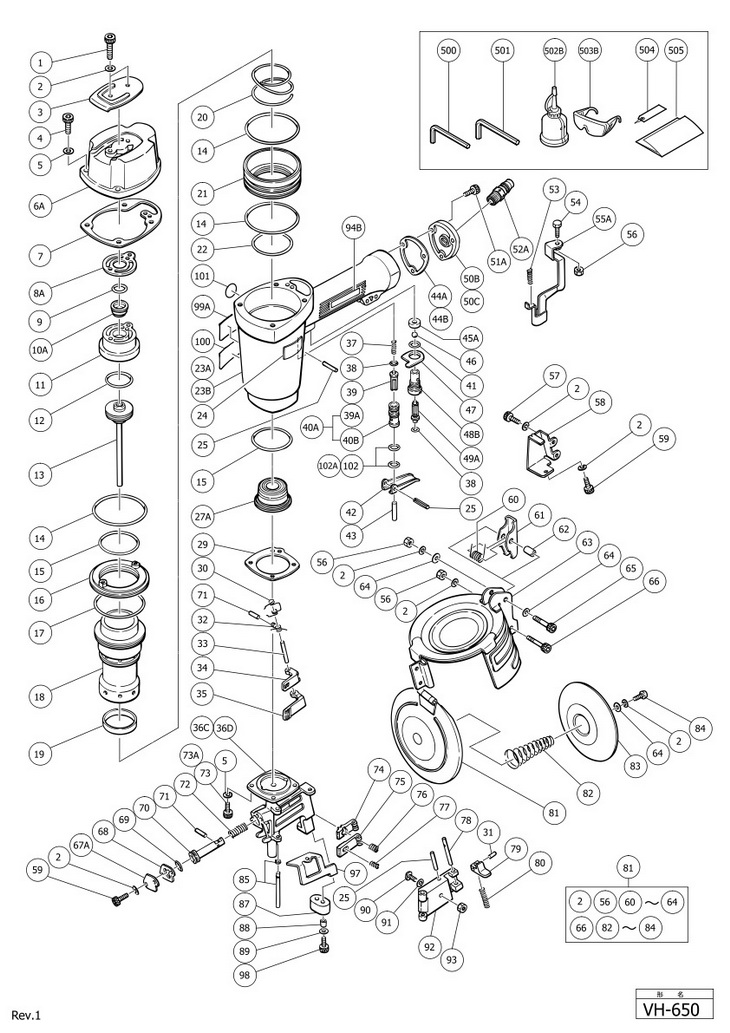

Top » Piese de schimb » PIESE HITACHI » VH-650 VH-650 [VH-650] Click pentru a mari Imagini suplimentare Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1 1 2 HEX.SOCKET HD.BOLT M5X35 (10 PCS) (949822) 3578 RON 2 1 10 SPRING WASHER M5 (10 PCS) (949454) 1117 RON 3 1 1 TOP COVER (876444) 2236 RON 4 1 4 HEX.SOCKET HD.BOLT M6X25 (10 PCS) (949652) 3242 RON 5 1 8 SPRING WASHER M6 (10 PCS) (949455) 1453 RON *6A 1 1 @ EXHAUST COVER (C) (876440) 39145 RON *6A 1 1 EXHAUST COVER (D) (876769) 69680 RON 7 1 1 PACKING (B) (876441) 297 RON *7 1 1 PACKING (F) (876747P) 297 RON 8A 1 1 PACKING (G) (OLD 876443) (876749) 1453 RON 9 1 2 VALVE O-RING (872821) 297 RON 10A 1 1 EXHAUST VALVE (OLD 877370) (878417) 488 RON 11 1 1 HEAD CAP (C) (876442) 22592 RON *11 1 1 HEAD CAP (D) (876748P) 22592 RON 12 1 2 O-RING (P-36) (931835) 2236 RON 13 1 1 PISTON (876734) 86681 RON *13 1 1 PISTON (H) (876750) 169784 RON 14 1 3 CYLINDER O-RING BORE SIZE 68.3MM (874104) 382 RON 15 1 2 CYLINDER O-RING BORE SIZE 50.9MM (875602) 5591 RON 16 1 1 @CYLINDER PLATE (876435) 1147 RON 17 1 1 CYLINDER O-RING BORE SIZE 63.1MM (877312) 2683 RON 18 1 1 CYLINDER (876732) 71358 RON 19 1 1 CYLINDER RING (876434) 297 RON 20 1 1 @ CYLINDER SPRING (875605) 382 RON 21 1 1 CYLINDER GUIDE (876731) 40823 RON 22 1 1 CYLINDER O-RING BORE SIZE 55.9MM (876433) 7381 RON 23A 1 1 876758 (876758) 161284 RON 23B 1 1 876759 (876759) 157928 RON 24 1 1 876756Z - Indisponibil 24 1 1 - Indisponibil 24 1 1 - Indisponibil 25 1 3 ROLL PIN D3X30 (10 PCS) (949866) 3578 RON 27A 1 1 PISTON DAMPER (A) (876766) 17112 RON 29 1 1 PACKING (A) (876737) 1453 RON 30 1 1 MAIN FEEDER SPRING (A) (876717) 5368 RON 31 1 1 ROLL PIN D3X10 (10 PCS) (OLD 949776Z) (949776) 2348 RON 32 1 1 SUB FEEDER SPRING (876691) 382 RON 33 1 1 FEEDER SHAFT (876689) 3578 RON 34 1 1 MAIN FEEDER (876688) 15658 RON 35 1 1 SUB FEEDER (876707) 16553 RON 36C 1 1 876751 (876751) 295390 RON 36D 1 1 876752 (876752) 280067 RON 37 1 1 PLUNGER SPRING (875643) 1453 RON 38 1 2 PLUNGER O-RING (874820) 2236 RON 39 1 1 SAFETY PLUNGER (A) (876739) 7269 RON 39A 1 1 PLUNGER (A) (878122) 2348 RON 40A 1 1 876764 (876764) 17112 RON 40B 1 1 VALVE BUSHING (OLD 876735) (878266) 11184 RON 41 1 1 O-RING (S-12) (875638) 2236 RON 42 1 1 TRIGGER (876203) 2683 RON 43 1 1 SAFETY PLUNGER (B) (875642) 573 RON 44A 1 1 PACKING (D) (876447) 2236 RON 44B 1 1 PACKING (D) (877331) 1453 RON 45A 1 1 VALVE PACKING (OLD 875637) (878734) 1453 RON 46 1 1 URETHANE BALL (B) D7.14 (875645) 382 RON 47 1 1 VALVE PLATE (875644) 1453 RON 48B 1 1 TRIGGER VALVE BUSHING (OLD 876738) (877335) 6151 RON 49A 1 1 TRIGGER PLUNGER (878121) 2236 RON 50B 1 1 CAP (876446) 5815 RON 50B 1 1 @ CAP (877050Z) 6374 RON *50C 1 1 @CAP (OLD 877366) (878878) 6374 RON *50C 1 1 CAP (OLD 877367Z) (878311) 4025 RON 51A 1 3 HEX.SOCKET HD.BOLT M5X18 (10 PCS) (949658) 2683 RON *52 1 1 DUST CAP (872035) 1453 RON 52A 1 1 @ AIR PLUG PT 1/4 (874782) 5815 RON 53 1 1 SAFETY SPRING (876676) 1453 RON 54 1 1 SAFETY BOLT (875650) 1453 RON 55A 1 1 PUSHING LEVER (G) (OLD 876740) (876763) 23934 RON 56 1 3 NUT M5 (10 PCS) (949555) 1453 RON 57 1 2 HEX.SOCKET HD.BOLT M5X12 (10 PCS) (OLD 949765Z) (949765) 2683 RON 58 1 1 SAFETY GUARD (876696) 488 RON 59 1 3 HEX.SOCKET HD.BOLT M5X10 (10 PCS) (949819) 2683 RON 60 1 1 MAGAZINE LOCK SPRING (876703) 382 RON 61 1 1 MAGAZINE STOPPER (876702) 5815 RON 62 1 1 COLLAR (876743) 2348 RON 63 1 1 MAGAZINE PRIMARY (876742) 124038 RON 64 1 3 WASHER (876205) 1453 RON 65 1 1 @HEX.SOCKET HD.BOLT M5X30 (10 PCS) (949664) 3578 RON 66 1 1 HEX.SOCKET HD BOLT M5X25 (10 PCS) (949662) 297 RON 67A 1 1 FEED PISTON COVER (OLD 876694) (876661) 15658 RON 68 1 1 PACKING (E) (876695) 1453 RON 69 1 1 O-RING (P-16) (873095) 894 RON 70 1 1 FEED PISTON (876692) 8835 RON 71 1 2 ROLL PIN D2.5X10 (10 PCS) (949551) 2236 RON 72 1 1 FEED SPRING (876693) 2683 RON 73 1 4 HEX.SOKET HD.BOLT M6X20 (10 PCS) (949660) 3242 RON 73A 1 4 NYLOCK HEX. SOCKET HD.BOLT M6X20 (877947) 1788 RON 74 1 1 MAIN NAIL STOPPER (877143) 12973 RON 75 1 1 SUB NAIL STOPPER (876679) 1700 RON 76 1 1 MAIN STOPPER SPRING (876681) 1453 RON 77 1 1 SUB STOPPER SPRING (876685) 2236 RON 78 1 1 LOCK SHAFT (876682) 382 RON 79 1 1 GUIDE LOCK (877374) 6822 RON 80 1 1 SPRING (877372) 2012 RON 81 1 1 876741 (876741) 135894 RON 82 1 1 HOLDER SPRING (876701) 2683 RON 83 1 1 NAIL HOLDER (876700) 573 RON 84 1 1 HEX.SOCKET SET SCREW M5X10 (876705) 1453 RON 85 1 1 NAIL GUIDE SHAFT (A) (876760) 6822 RON 87 1 1 GUARD DAMPER (876697) 3242 RON 88 1 1 DAMPER COLLAR (876706) 2348 RON 89 1 1 BOLT WASHER M5 (10 PCS) (OLD 949431Z) (949431) 1453 RON 90 1 1 STOPPER BOLT (876680) 3578 RON 91 1 2 THRUST WASHER (876686) 1453 RON 92 1 1 NAIL GUIDE (876677) 40823 RON 93 1 1 @ NYLON NUT M3 (874780) 1453 RON 94B 1 1 878312 - Indisponibil 97 1 1 NAIL GUARD (880040) 488 RON 98 1 1 HEX.SOCKET HD.BOLT M5X14 (10 PCS) (949665) 2124 RON 99A 1 1 WARNING LABEL (884070) 2236 RON 100 1 1 WARNING LABEL (878183) 2348 RON 101 1 1 WARNING LABEL (A) (883513) 2236 RON 102 1 2 O-RING (S-12) (875638) 2236 RON 102A 1 2 O-RING (I.D.10.7) (884112) 2236 RON 501 1 1 HEX.BAR WRENCH 5MM (944459) 1788 RON 502B 1 1 877153 - Indisponibil 503B 1 1 875769 - Indisponibil 504 1 1 CAUTION TAG (882413) 2236 RON 505 1 1 LEAFLET (882414) 1453 RON 601 1 1 876750Z - Indisponibil 602 1 2 HEX.SOCKET HD.BOLT M5X90 (876607) 3578 RON 603 1 1 @ HANGER (876618) 3578 RON 604A 1 1 PACKING (G) (OLD 876443) (876749) 1453 RON 605 1 1 @ EXHAUST PIECE (876606) 28967 RON 606 1 4 @ HEX. SOCKET HD. BOLT M6X70 (876605) 2683 RON 607 1 1 PACKING (B) (876441) 297 RON 608 1 1 @ UPPER COVER (876604) 35790 RON 609 1 1 @ DRIVE CONTROLLER (876720) 47646 RON 610 1 1 @ AIR SOCKET 6MM (874116) 12526 RON 611 1 1 876754Z - Indisponibil 612 1 1 @ PUSHING LEVER (D) (876755Z) 34112 RON 613 1 1 PLUNGER (A) (876723Z) 8388 RON 614 1 1 PLUNGER (B) (876724Z) 765 RON 615 1 1 FEED SPRING (877144) 2236 RON 616 1 1 PLUNGER SPRING (A) (876725Z) 1453 RON 617 1 1 PLUNGER SPRING (B) (876726) 1453 RON 618 1 1 VALVE BUSHING (D) (876727Z) 12638 RON 619 1 1 PLUNGER O-RING (874820) 2236 RON 620 1 1 PISTON (H) (876750) 169784 RON 621 1 1 @SINGLE SHORT PARTS (876762) 5101 RON 622 1 1 GREASE (ATTOLUB NO.2) 500G (317918) 20691 RON
