Top » Piese de schimb » PIESE DEWALT » DCPS320N Type 1

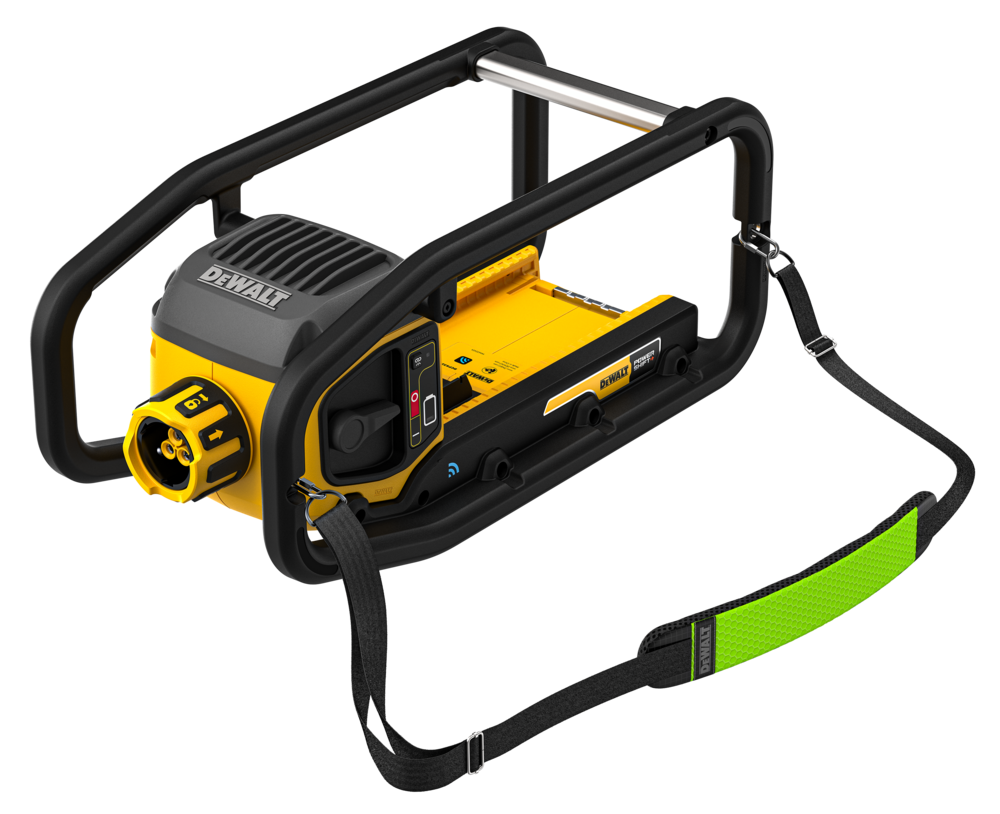

VIBRATOR DE BETON DEWALT DCPS320N Type 1
[DCPS320N Type 1]
VIBRATOR DE BETON DEWALT DCPS320N Type 1
Click pentru a mari
Imagini suplimentare
VIBRATOR DE BETON DEWALT DCPS320N Type 1
Click pentru a mari
VIBRATOR DE BETON DEWALT DCPS320N Type 1
Click pentru a mari
VIBRATOR DE BETON DEWALT DCPS320N Type 1
Click pentru a mari

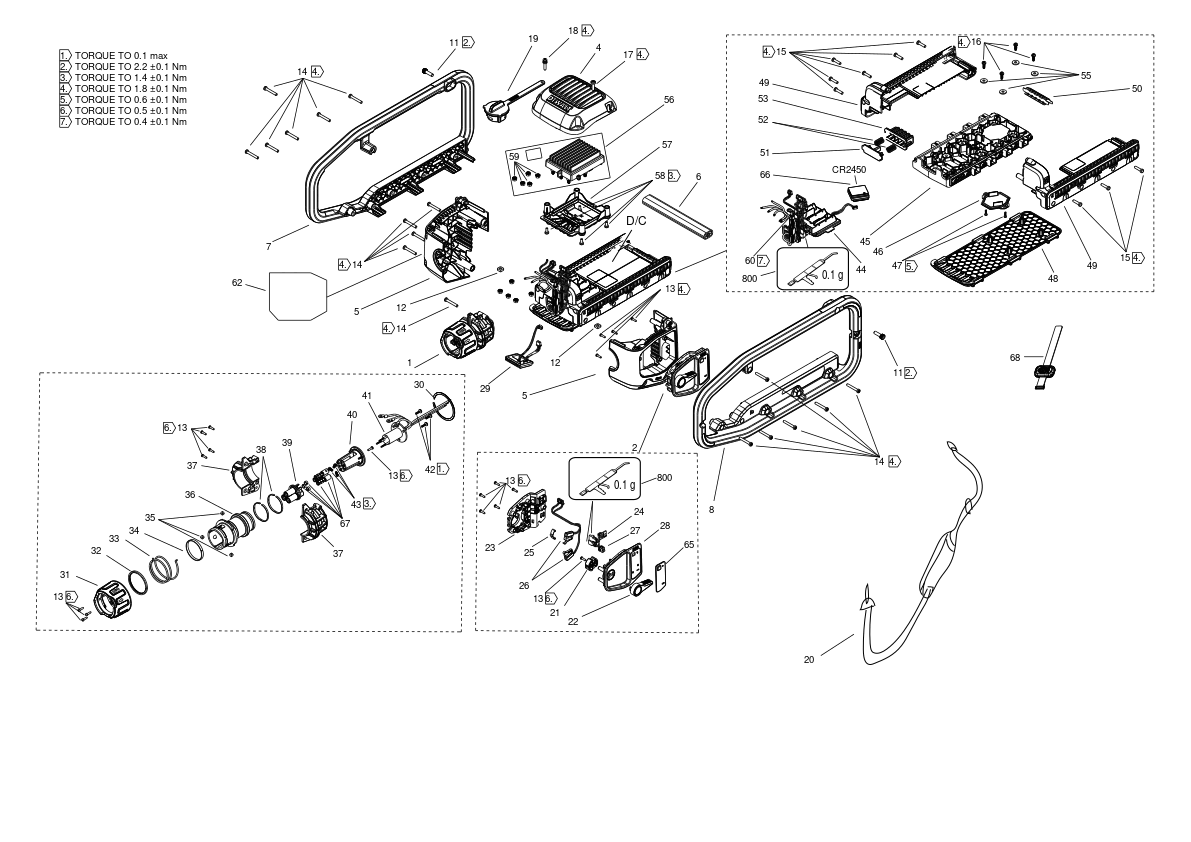

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HOSE SA (NA692089) 139195 RON
2 1 1 SWITCH SA (NA693175) 49114 RON
4 1 1 COVER (NA680670) 3954 RON
5 1 1 HOUSING SA (NA374076) 11337 RON
6 1 1 BAR (NA199245) 4355 RON
7 1 1 FRAME (NA143321) 27287 RON
8 1 1 FRAME (NA143322) 24962 RON
11 1 2 BOLT (NA151341) 588 RON
12 1 2 NUT (NA363706) 588 RON
13 1 19 SCREW (330019-28) 588 RON
14 1 17 SCREW PLASTIC THREAD FORM M4 * 32 T20 (330019-15) 558 RON
15 1 9 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
16 1 4 SCREW PLSTC THD FORM M4.55X13 T20 (330019-11) 558 RON
17 1 1 SCREW (N548557) 588 RON
18 1 1 SCREW (NA573075) 2182 RON
19 1 1 CAP (NA321693) 2556 RON
20 1 1 STRAP (NA291088) 13697 RON
21 1 1 HOLDER (NA177752) 2182 RON
21 1 1 NA818086 - Indisponibil
22 1 1 KNOB (NA175702) 1933 RON
23 1 1 COVERPLATE (NA175885) 4355 RON
24 1 1 BUTTON (NA314509) 10241 RON
25 1 1 DETENT (N520790) 588 RON
26 1 2 WIRE HARNESS (NA309060) 13697 RON
27 1 1 LED (NA350466) 3268 RON
28 1 1 INSERT (NA180531) 5370 RON
29 1 1 MODULE (NA368027) 20216 RON
30 1 1 RING (NA415306) 2556 RON
31 1 1 MOUNT (NA151405) 6688 RON
32 1 1 RING (NA026118) 114 RON
33 1 1 SPRING (NA130132) 944 RON
34 1 1 RING (NA358615) 2796 RON
35 1 3 BALL 7.0 (583890-00) 781 RON
35 1 3 BALL (NB094631) 588 RON
36 1 1 SOCKET (NA358614) 2796 RON
37 1 1 CLAMSHELL SA (NA401223) 3268 RON
38 1 2 SPREADER (NA588973) 2182 RON
39 1 1 CARRIER (NA358611) 1318 RON
40 1 1 CARRIER (NA335140) 1772 RON
41 1 1 WIRE HARNESS (NA554415) 49114 RON
42 1 3 SCREW (N427493) 588 RON
43 1 3 SCREW (NA489693) 588 RON
44 1 1 PCB SA (NA330323) 49114 RON
45 1 1 BOX (NA494882) 4827 RON
46 1 1 COVER (NA477372) 588 RON
47 1 2 SCREW (N034545) 588 RON
48 1 1 COVER (NA304740) 3954 RON
49 1 1 HOUSING SA (NA392453) 28836 RON
50 1 1 PLATE (NA266283) 1933 RON
51 1 1 PLATE (NA242557) 588 RON
52 1 2 SPRING (NA242556) 588 RON
53 1 1 COVER (NA242554) 668 RON
55 1 4 WASHER PLAIN (640591-00) 558 RON
56 1 1 CONTROL MODULE SA (NA703731) 249223 RON
57 1 1 BRACKET (NA351794) 2796 RON
58 1 4 SCREW (N427493) 588 RON
59 1 5 NUT (NA228980) 588 RON
60 1 1 Screw Taptite (330045-43) 558 RON
62 1 1 RATING LABEL (NA411811) 944 RON
65 1 1 LABEL (NA381422) 3954 RON
66 1 1 MODULE (NA703730) 28836 RON
67 1 3 CONTACT SA (NA486962) 12361 RON
68 1 1 BUTTON SA (N696881) 21676 RON
800 1 1 NYOGEL 760G (NA218891) 176482 RON
