Top » Piese de schimb » PIESE DEWALT » DWE315KT Type 1

UNEALTA MULTIFUNCTIONALA DEWALT DWE315KT Type 1
[DWE315KT Type 1]
UNEALTA MULTIFUNCTIONALA DEWALT DWE315KT Type 1
Click pentru a mari
Imagini suplimentare
UNEALTA MULTIFUNCTIONALA DEWALT DWE315KT Type 1
Click pentru a mari
UNEALTA MULTIFUNCTIONALA DEWALT DWE315KT Type 1
Click pentru a mari

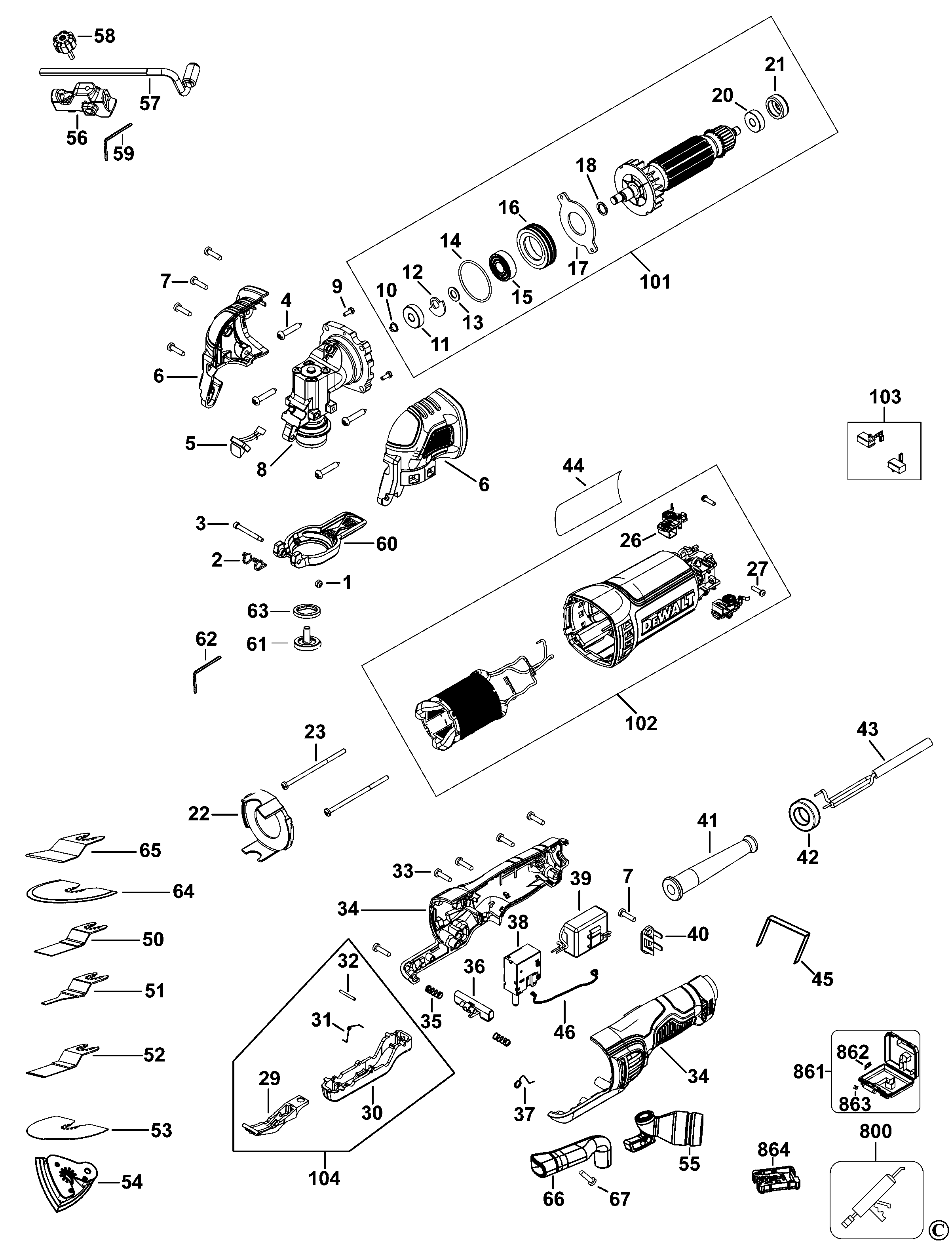

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 NUT (N243985) 558 RON
2 1 1 SPRING (N140357) 558 RON
3 1 1 SCREW (N175484) 558 RON
4 1 4 SCREW PLSTC THD FORM M4X25 T20 (330065-09) 558 RON
5 1 1 LED (N174364) 3466 RON
6 1 1 CLAMSHELL SA (N244602) 4137 RON
7 1 5 Screw M3.5X16 T15 (330019-03) 558 RON
8 1 1 HEAD SA (N341719) 43731 RON
9 1 2 Screw Taptite (330045-43) 558 RON
10 1 1 CLIP (N146423) 558 RON
11 1 1 BEARING (N140406) 2795 RON
12 1 1 BALANCE WEIGHT (N146420) 558 RON
13 1 1 WASHER (N146421) 558 RON
14 1 1 O RING (N150641) 558 RON
15 1 1 BEARING,BALL HUAYANG MFG 6000 (N129813-03) 1933 RON
16 1 1 BOOT (N140388) 2124 RON
17 1 1 PLATE (N146419) 781 RON
18 1 1 RETAINING RING (444793-00) 558 RON
20 1 1 BEARING (605040-02) 1788 RON
21 1 1 SLEEVE (641823-00) 558 RON
22 1 1 BAFFLE FAN (N156660) 781 RON
23 1 2 SCREW (330065-29) 588 RON
26 1 2 BRUSH HOLDER SA (N174542) 1788 RON
27 1 2 SCREW (593478-00) 558 RON
29 1 1 TRIGGER (N158999) 781 RON
30 1 1 TRIGGER (N213752) 893 RON
31 1 1 SPRING (N230817) 558 RON
32 1 1 PIN (N230818) 558 RON
33 1 5 Screw M3.5X16 T15 (330019-03) 558 RON
34 1 1 RING (N399814) 1933 RON
35 1 2 N376930 - Indisponibil
36 1 1 N376931 - Indisponibil
37 1 1 N541876 - Indisponibil
38 1 1 OUTER FLANGE (N544197) 2182 RON
38 1 1 N376932 - Indisponibil
39 1 1 PCB 230V (N175102) 14315 RON
40 1 1 652147-00 - Indisponibil
41 1 1 PROTECTOR CORD (330005-01) 105 RON
42 1 1 RING (N399814) 1933 RON
43 1 1 CORDSET (M/PLUG) GB (N235921) 11519 RON
44 1 1 BLADE (N251926) 6821 RON
45 1 1 SHIELD (N363619) 558 RON
46 1 1 LEADWIRE (N225478) 781 RON
50 1 1 N376930 - Indisponibil
51 1 1 N376931 - Indisponibil
52 1 1 N541876 - Indisponibil
53 1 1 BLADE (N251926) 6821 RON
54 1 1 PLATEN (N271240) 6821 RON
55 1 1 DUST PORT (N277679) 190 RON
56 1 1 BLOCK SA (N275350) 4472 RON
57 1 1 DEPTH STOP (N275341) 2795 RON
58 1 1 KNOB SA (N278801) 781 RON
59 1 1 HEX KEY (N285879) 1117 RON
60 1 1 LEVER LOCK (N159295) 3018 RON
61 1 1 OUTER FLANGE (N544197) 2182 RON
61 1 1 N376932 - Indisponibil
62 1 1 WRENCH SPECIAL (90584745) 893 RON
63 1 1 FLANGE cod vechi 90583885 (N440293) 2124 RON
64 1 1 BLADE - CARBIDE (N342939) 12861 RON
65 1 1 BLADE - RIGID SCRAPER (N251931) 190 RON
66 1 1 DUST PORT (N278060) 893 RON
67 1 1 SCREW (N291362) 558 RON
101 1 1 ARMATURE SA (N342740) 42277 RON
102 1 1 FIELDCASE SA (N342739) 43731 RON
103 1 1 BRUSH PAIR 230V (N343600) 2795 RON
104 1 1 TRIGGER (N213752) 893 RON
800 1 1 GREASE SACHET 20G RENOLIT PARAGON EP 1 (870889-03) 3018 RON
861 1 1 KITBOX DWST1-17807 (N279261) 30769 RON
862 1 1 LATCH (N409477) 114 RON
863 1 2 LATCH (P910190) 3466 RON
864 1 1 INSERT (N278059) 17335 RON
