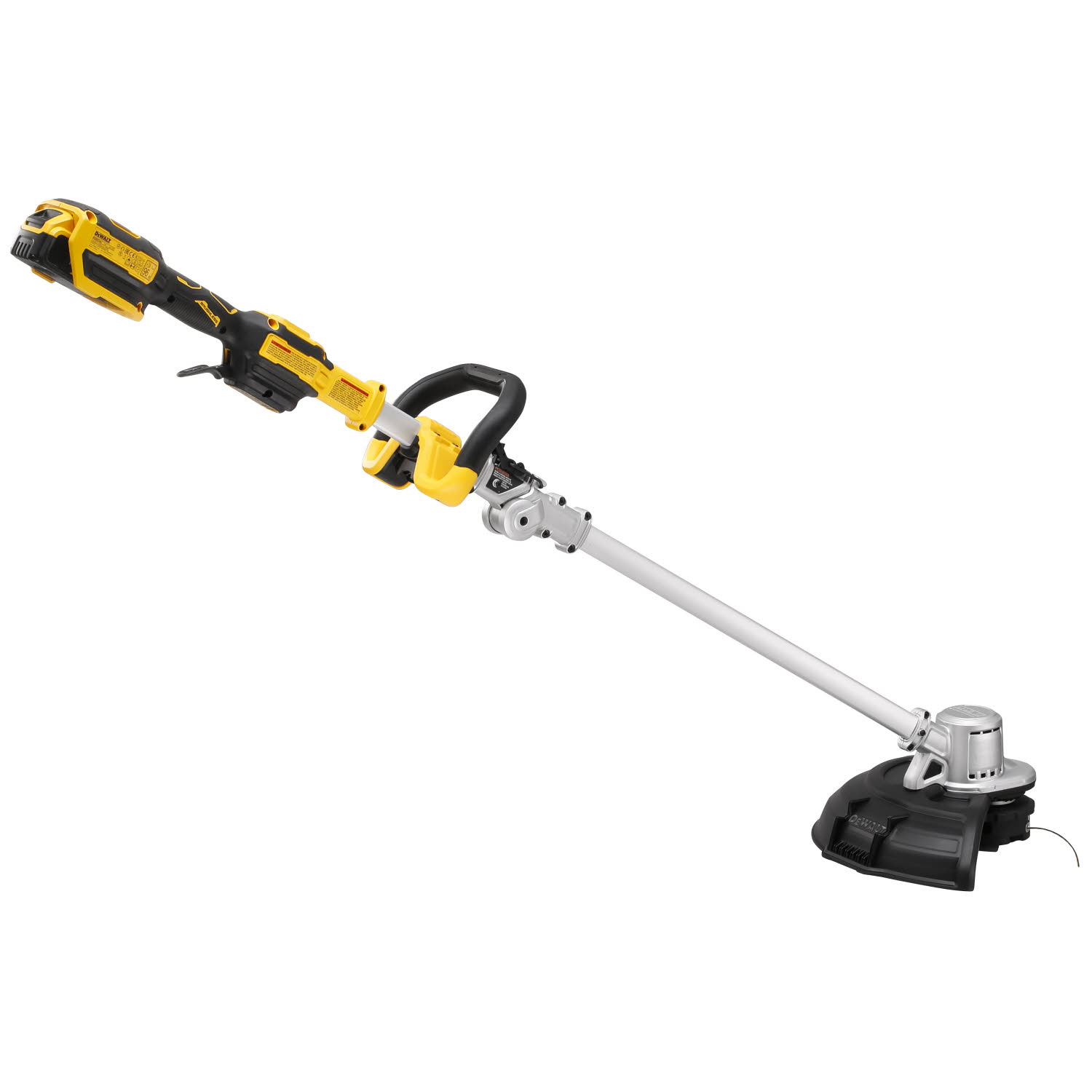

TRIMER CU FIR DEWALT DCMST561N Type 2
[DCMST561N Type 2]

Imagini suplimentare

Click pentru a mari

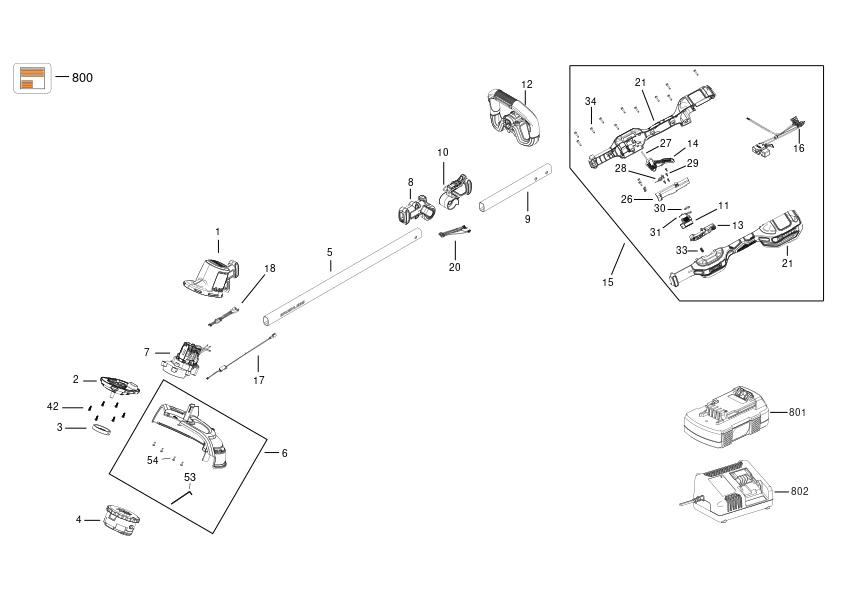

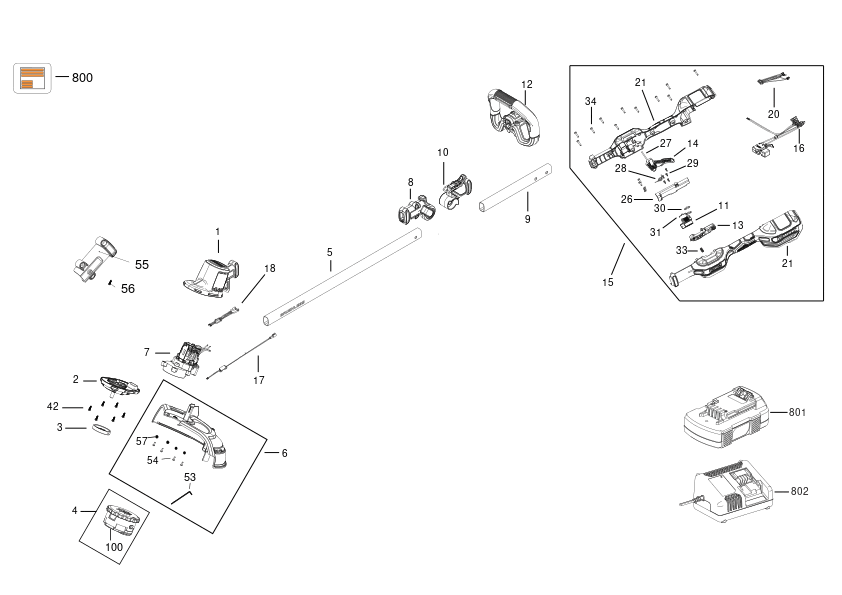

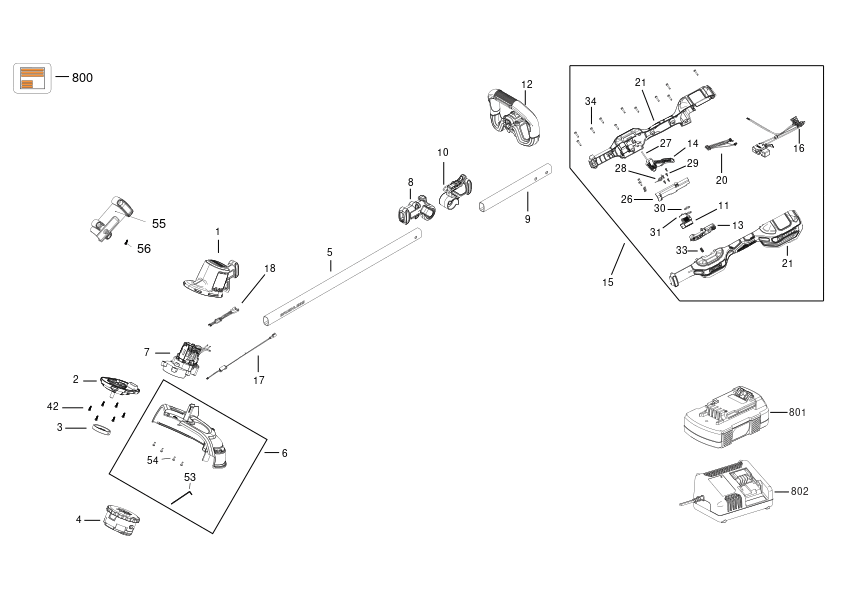

LISTA DE COMPONENTE:

Numar	Versiune	Buc. in schema	Denumire	Pret/buc (Tva inclus)
1	1	1	GEARCASE COVER (N856240)	53⁷⁰ RON
2	1	1	GEARCASE SA (NA004869)	90¹² RON
3	1	1	PLATE LOCK (N718639)	13¹⁸ RON
4	1	1	SPOOL (N865076)	123⁶¹ RON
5	1	1	POLE PIECE (N859832)	74¹ RON
6	1	1	GUARD SA (N890077)	74¹ RON
7	1	1	MOTOR SA (NA408401)	528⁵⁵ RON
8	1	1	COVER SA (N746945)	90¹² RON
9	1	1	POLE PIECE (N857452)	39⁵⁴ RON
10	1	1	LATCH (N746857)	102⁴¹ RON
11	1	1	ACTUATOR (N721005)	5⁸⁸ RON
12	1	1	HANDLE SA (N787701)	102⁴¹ RON
13	1	1	BUTTON (N857643)	16³⁰ RON
14	1	1	TRIGGER (N857645)	9⁴⁴ RON
15	1	1	HOUSING HANDLE (N877343)	154⁶⁹ RON
16	1	1	WIRE HARNESS (N877389)	166⁸⁹ RON
17	1	1	WIRE HARNESS (N784811)	21⁸² RON
18	1	1	WIRE HARNESS (N784892)	48²⁷ RON
20	1	1	WIRE HARNESS (NA035282)	53⁷⁰ RON
21	1	1	HOUSING HANDLE (N877343)	154⁶⁹ RON
26	1	1	GUIDE (N718170)	5⁸⁸ RON
27	1	1	PIN (90608942)	5⁸⁸ RON
28	1	1	SPRING (N746415)	5⁸⁸ RON
29	1	5	SCREW (N086775)	5⁵⁸ RON
30	1	2	CLAMP (N703719)	5⁸⁸ RON
31	1	1	LEAF SPRING (NA073768)	5⁸⁸ RON
33	1	1	SPRING (N703704)	5⁸⁸ RON
34	1	21	SCREW PLASTIC THREAD FORM M3.5 * 19 T1 (330019-04)	5⁵⁸ RON
42	1	6	SCREW METAL THD FRM M4X16 T20 (330045-06)	5⁵⁸ RON
53	1	1	WRENCH SPECIAL (90641326)	9⁴⁴ RON
54	1	4	SCREW (747329)	5⁵⁸ RON
55	1	1	CLAMP (N849706)	13¹⁸ RON
56	1	1	SCREW (582193-00)	5⁵⁸ RON
57	1	4	WASHER (330016-26)	5⁵⁸ RON
100	1	1	CAP (N807718)	16³⁰ RON
800	1	1	RATING LABEL (NA121288)	5⁸⁸ RON
