Top » Piese de schimb » PIESE DEWALT » DCM5713X1 Type 1

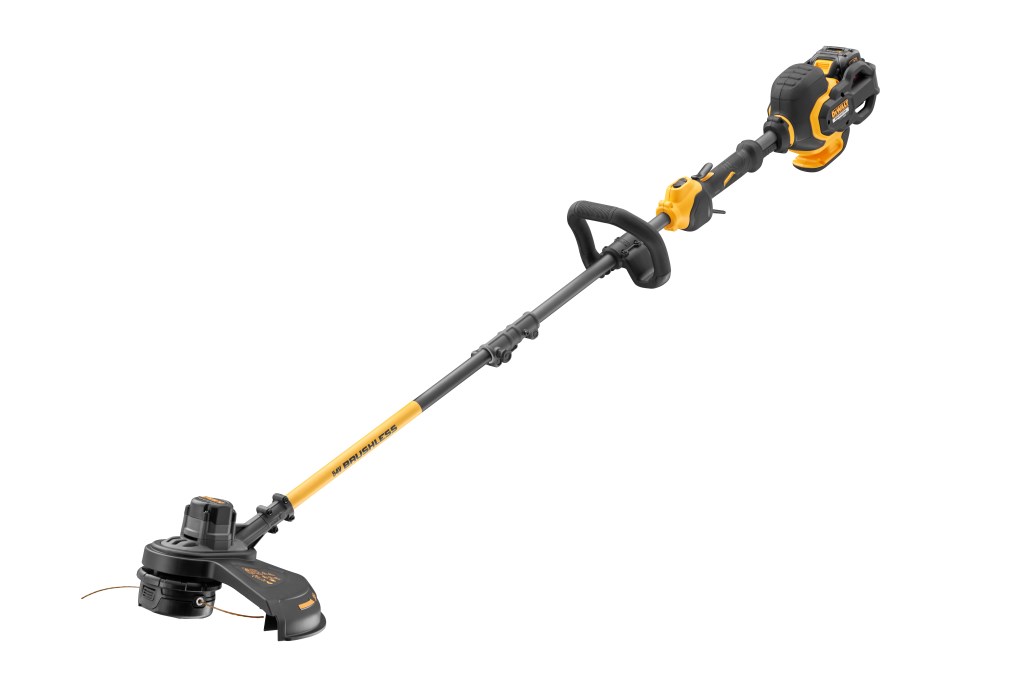

TRIMER CU FIR DEWALT DCM5713X1 Type 1
[DCM5713X1 Type 1]
TRIMER CU FIR DEWALT DCM5713X1 Type 1
Click pentru a mari
Imagini suplimentare
TRIMER CU FIR DEWALT DCM5713X1 Type 1
Click pentru a mari
TRIMER CU FIR DEWALT DCM5713X1 Type 1
Click pentru a mari

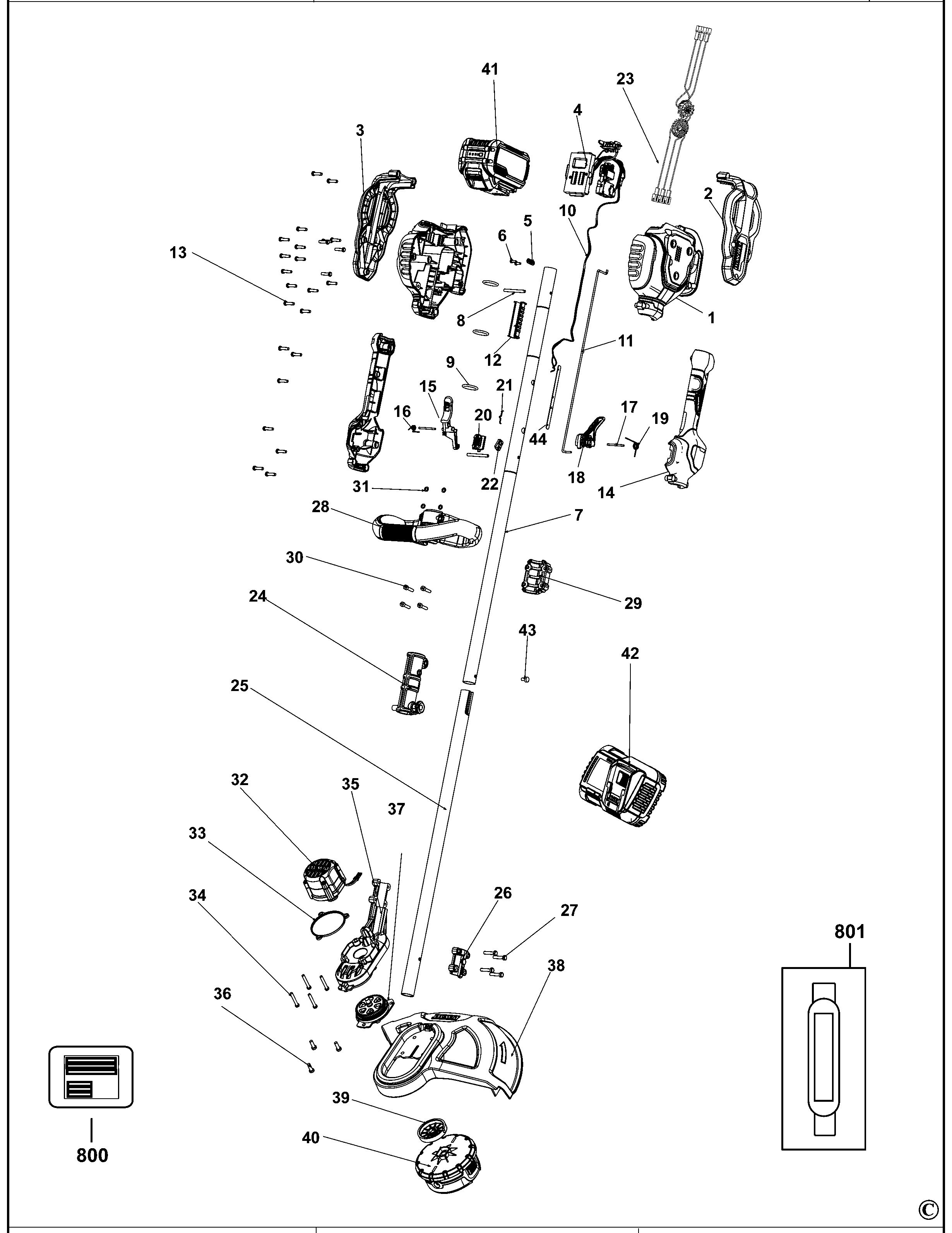

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 90634423 - Indisponibil
1 1 1 HOUSING SA (NA030772) 12361 RON
2 1 1 COVER (90635381) 2556 RON
3 1 1 COVER (90635382) 2556 RON
4 1 1 MODULE (N504700) 67932 RON
5 1 1 CLAMP CORD CORNER (329301-00) 558 RON
6 1 2 Screw M3.5 X9.5 (330019-01) 558 RON
7 1 1 90631080 - Indisponibil
7 1 1 TUBE SA (N612289) 11337 RON
8 1 2 PIN (90608944) 588 RON
9 1 3 RUBBER (90602632) 588 RON
10 1 1 HARNESS (90637693) 114 RON
11 1 1 LINK (90635249) 668 RON
12 1 1 COVER (90603845) 668 RON
13 1 1 SCREW (90614124-02) 588 RON
13 1 23 SCREW PLSTIC THD FORM M4.06X18 (330019-80) 558 RON
14 1 1 90633943 - Indisponibil
14 1 1 HANDLE SA (NA030786) 10241 RON
15 1 1 ACTUATOR (90623756) 114 RON
16 1 1 SPRING (90602633) 588 RON
17 1 1 PIN (90608942) 588 RON
18 1 1 TRIGGER (90599030) 944 RON
19 1 1 SPRING (90602634) 588 RON
20 1 1 ACTUATOR (90602320) 588 RON
21 1 1 SPEED SELECTOR DETENT SPRING (N014681) 558 RON
22 1 1 SWITCH (90600458) 2182 RON
23 1 1 CONNECTING WIRE (N503404) 21676 RON
24 1 1 POLE PIECE SA (90634807) 741 RON
25 1 1 TUBE SA (N568237) 9012 RON
25 1 1 90639271 - Indisponibil
26 1 1 CLAMP (90637472) 944 RON
27 1 4 SCREW (90614124-04) 588 RON
28 1 1 HANDLE SA (90626610-01) 741 RON
29 1 1 CLAMP (90626615) 944 RON
30 1 4 SCREW (90614038) 588 RON
31 1 4 SCREW PLASTIC THREAD FORM M4 * 32 T20 (330019-15) 558 RON
32 1 1 MOTOR SA (N557208) 52855 RON
33 1 1 SPACER (90636101) 668 RON
34 1 4 SCREW PLASTIC THREAD FORM M4 * 32 T20 (330019-15) 558 RON
35 1 1 GEARCASE COVER (N531529) 6688 RON
36 1 3 SCREW (90614124-06) 588 RON
37 1 1 GEAR SA (N566476) 15469 RON
38 1 1 GUARD (90636492) 6688 RON
39 1 1 SPINDLE LOCK (90607066) 1933 RON
40 1 1 SPOOL SA (N508388) 15469 RON
41 1 1 XR FLEXVOLT 9.0Ah Battery (N491552) 176482 RON
41 1 1 N487817 - Indisponibil
42 1 1 CHARGER QW (N473860) 73079 RON
43 1 1 SCREW (90634678) 588 RON
44 1 1 COVER (90609633) 588 RON
800 1 1 N560993 - Indisponibil
801 1 1 STRAP (N502343) 4355 RON
