Top » Piese de schimb » PIESE DEWALT » DCM561P1S Type 1

TRIMER CU FIR DEWALT DCM561P1S Type 1
[DCM561P1S Type 1]
TRIMER CU FIR DEWALT DCM561P1S Type 1
Click pentru a mari
Imagini suplimentare
TRIMER CU FIR DEWALT DCM561P1S Type 1
Click pentru a mari
TRIMER CU FIR DEWALT DCM561P1S Type 1
Click pentru a mari
TRIMER CU FIR DEWALT DCM561P1S Type 1
Click pentru a mari
TRIMER CU FIR DEWALT DCM561P1S Type 1
Click pentru a mari

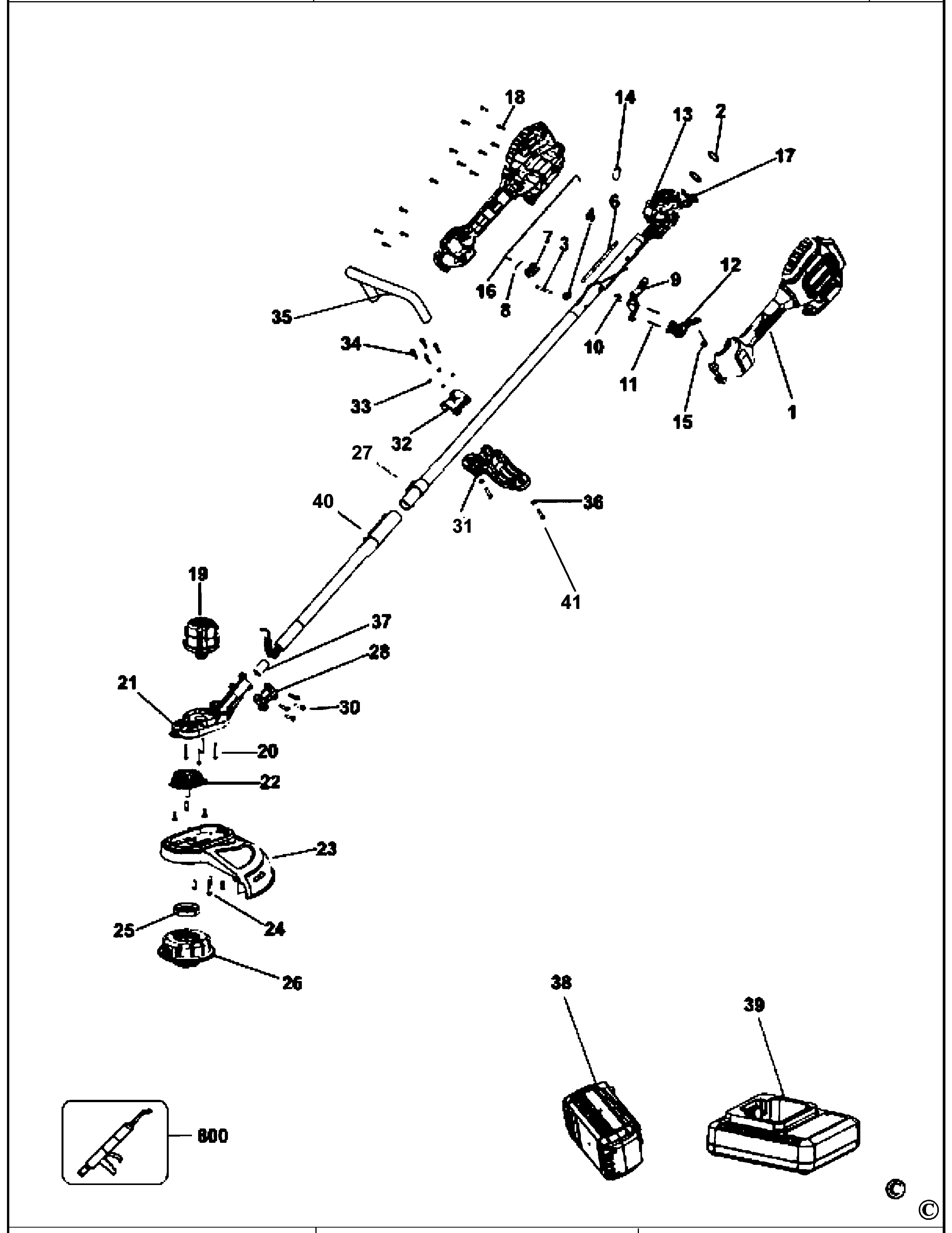

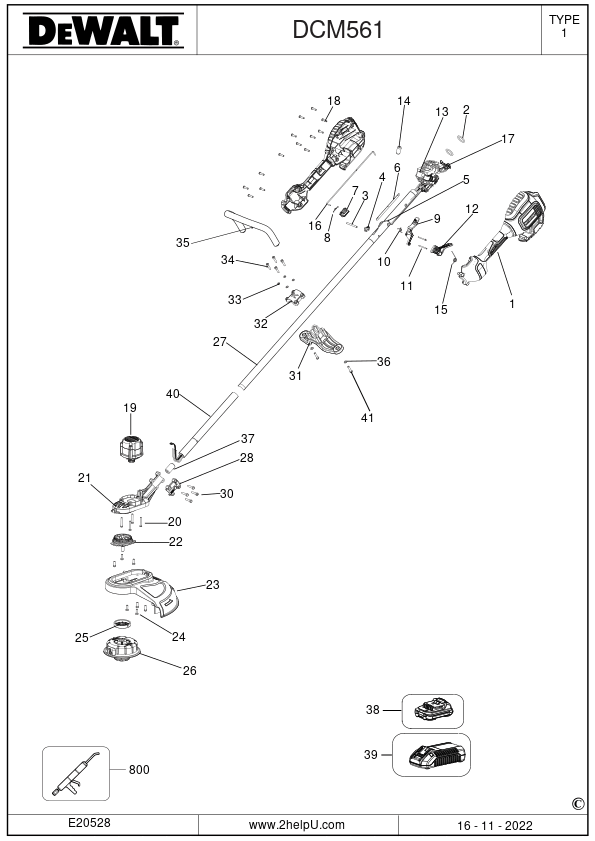

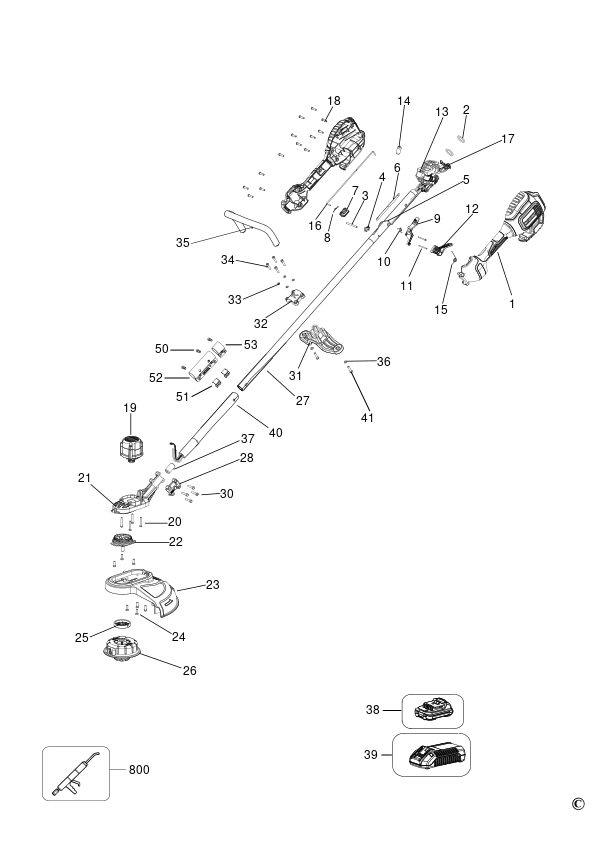

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HANDLE SA (90613418-01) 21676 RON
2 1 2 RUBBER (90602632) 588 RON
3 1 1 PIN (90608944) 588 RON
4 1 1 SWITCH (90600458) 2182 RON
6 1 1 COVER (90609633) 588 RON
7 1 1 ACTUATOR (90602320) 588 RON
8 1 1 SPEED SELECTOR DETENT SPRING (N014681) 558 RON
9 1 1 ACTUATOR (90623756) 114 RON
10 1 1 SPRING (90602633) 588 RON
11 1 2 PIN (90608942) 588 RON
12 1 1 TRIGGER (90599030) 944 RON
13 1 1 INDUCTOR (N532791) 9012 RON
14 1 1 WASHER (90623338) 2796 RON
15 1 1 SPRING (90602634) 588 RON
16 1 1 LINKAGE SA (90614754) 668 RON
17 1 1 MODULE (90635511) 40734 RON
18 1 13 SCREW (90614124-02) 588 RON
18 1 23 SCREW PLSTIC THD FORM M4.06X18 (330019-80) 558 RON
19 1 1 MOTOR AND PINION (N557042) 38463 RON
20 1 4 SCREW PLASTIC THREAD FORM M4 * 32 T20 (330019-15) 558 RON
21 1 1 GEARCASE SA (90613424SV) 4355 RON
22 1 1 GEAR CASE SA (90615764SV) 9012 RON
23 1 1 GUARD 13 (90624364) 3954 RON
24 1 7 SCREW (90614124-06) 588 RON
25 1 1 SPINDLE LOCK (90607066) 1933 RON
26 1 1 SPOOL SA (N508388) 15469 RON
27 1 1 POLE PIECE (90626133) 12361 RON
28 1 1 CLAMP (90615950) 82 RON
30 1 6 SCREW (90614124-04) 588 RON
31 1 1 HANDLE FRAME KIT (90603784) 3268 RON
32 1 1 CLAMP (90608998) 944 RON
33 1 4 WASHER (330016-15) 588 RON
34 1 4 SCREW (90614038) 588 RON
35 1 1 HANDLE (90603783) 4355 RON
36 1 2 WASHER (90615599) 588 RON
37 1 1 WASHER (90623337) 3268 RON
38 1 1 BATTERY 18V -5.0AH -90WH (N394624) 104961 RON
39 1 1 N450536 - Indisponibil
39 1 1 CHARGER-DCB1104-QW - (4A) (NA132878) 44688 RON
39 1 1 CHARGER 10.8V - 18V (NA010209) 51127 RON
40 1 1 POLE PIECE (N554366) 13697 RON
41 1 1 SCREW (90629201) 588 RON
42 1 3 SCREW (90628376) 588 RON
50 1 3 SCREW (90628376) 588 RON
51 1 2 000000-99 - Indisponibil
52 1 1 000000-99 - Indisponibil
52 1 1 90626025 - Indisponibil
53 1 1 000000-99 - Indisponibil
800 1 1 Grease High Viscosity (585381-00) 23598 RON
800 1 1 N475660 - Indisponibil
800 1 1 GREASE SACHET 20G RENOLIT PARAGON EP 1 (870889-03) 3018 RON
800 1 1 N108694 - Indisponibil
800 1 1 NYOGEL 760G (NA218891) 176482 RON
