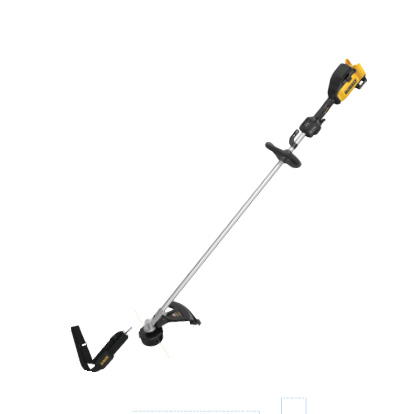

TRIMER CU ACUMULATOR DEWALT DCMST901N Type 1
[DCMST901N Type 1]
TRIMER CU ACUMULATOR DEWALT DCMST901N Type 1
Click pentru a mari
Imagini suplimentare
TRIMER CU ACUMULATOR DEWALT DCMST901N Type 1
Click pentru a mari
TRIMER CU ACUMULATOR DEWALT DCMST901N Type 1
Click pentru a mari
TRIMER CU ACUMULATOR DEWALT DCMST901N Type 1
Click pentru a mari

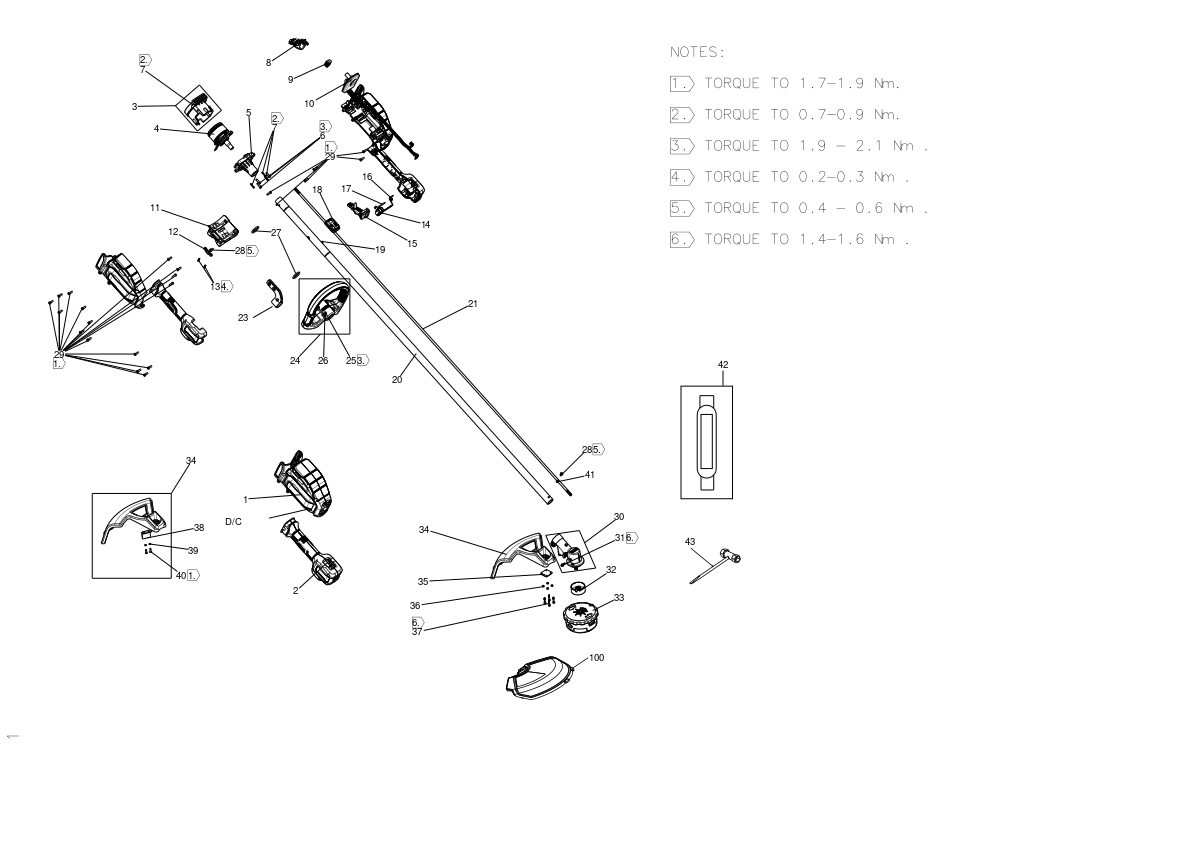

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HOUSING REAR (NB142575) 11337 RON
2 1 1 HANDLE SA (NB142576) 6688 RON
3 1 1 BAFFLE SA (NA645017) 4827 RON
4 1 1 MOTOR SA (NB406029) 57833 RON
5 1 1 MOUNTING BRACKET (NA720473) 9012 RON
6 1 3 SCREW (609932-01) 558 RON
7 1 5 SCREW PLASTIC THD FORM (330019-00) 558 RON
8 1 1 TERMINAL BLOCK (NA642902) 5370 RON
9 1 1 CONNECTOR (650974-00) 668 RON
10 1 1 CONTROL MODULE SA (NB406035) 57833 RON
11 1 1 END CAP (NA710204) 2796 RON
12 1 1 BLANK COVER AUDIT CHIP (N787996) 588 RON
13 1 2 SCREW (N831593) 588 RON
14 1 1 SWITCH (NA1014627) 4827 RON
15 1 1 TRIGGER (NA607677) 2556 RON
16 1 1 SPRING (NA355514) 588 RON
17 1 1 PIN (90608942) 588 RON
18 1 1 MODULE (NA296124) 24962 RON
19 1 1 CAP (N261987) 588 RON
20 1 1 POLE PIECE SA (NA663329) 23244 RON
21 1 1 SHAFT (NA549635) 10241 RON
23 1 1 BRACKET (NA638740) 4827 RON
24 1 1 HANDLE SA (NA723504) 10241 RON
25 1 4 SCREW (90614038) 588 RON
26 1 4 WASHER (330016-15) 588 RON
27 1 2 RUBBER (90602632) 588 RON
28 1 2 BOLT (N595379) 588 RON
29 1 22 screw dw744 (330019-12) 558 RON
30 1 1 TRANSMISSION SA (NA657999) 30769 RON
30 1 1 NB454798 - Indisponibil
31 1 1 PIN (90640963) 1630 RON
32 1 1 PLATE (NA777870) 5370 RON
33 1 1 SPOOL SA (NA316468) 24962 RON
34 1 1 GUARD SA (NA653400) 16689 RON
35 1 1 WASHER (NA338181) 1630 RON
36 1 4 WASHER (NA416736) 588 RON
37 1 4 SCREW (NA425273) 588 RON
38 1 1 BLADE-SPOOL (90603413) 82 RON
39 1 2 WASHER LOCK (098197-02) 588 RON
40 1 2 SCREW (90614124-01) 588 RON
41 1 1 WASHER (N783664) 588 RON
42 1 1 STRAP (N502343) 4355 RON
43 1 1 LOCK (90642276) 588 RON
100 1 1 NA693585 - Indisponibil
