TRIMER CU ACUMULATOR DEWALT DCM561PBS Type 1
[DCM561PBS Type 1]

Imagini suplimentare

Click pentru a mari

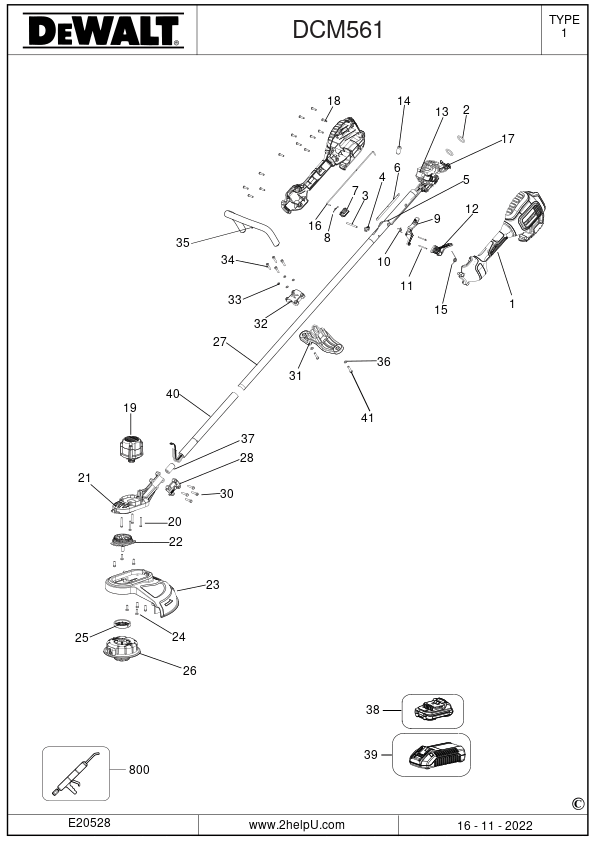

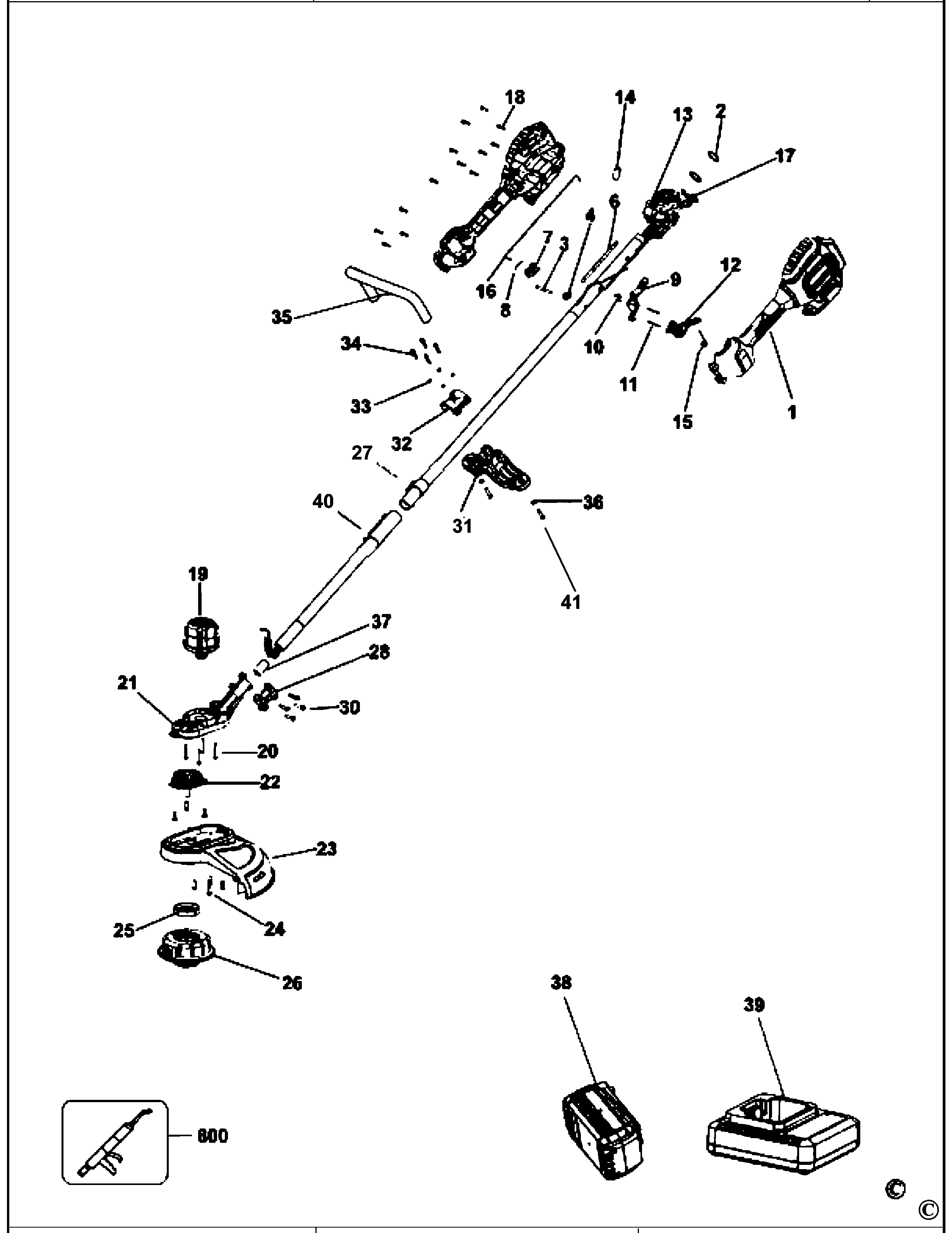

LISTA DE COMPONENTE:

Numar	Versiune	Buc. in schema	Denumire	Pret/buc (Tva inclus)	Cumpara
1	1	1	HANDLE SA (90613418-01)	216⁷⁶ RON
2	1	2	RUBBER (90602632)	5⁸⁸ RON
3	1	1	PIN (90608944)	5⁸⁸ RON
4	1	1	SWITCH (90600458)	21⁸² RON
6	1	1	COVER (90609633)	5⁸⁸ RON
7	1	1	ACTUATOR (90602320)	5⁸⁸ RON
8	1	1	SPEED SELECTOR DETENT SPRING (N014681)	5⁵⁸ RON
9	1	1	ACTUATOR (90623756)	11⁴ RON
10	1	1	SPRING (90602633)	5⁸⁸ RON
11	1	2	PIN (90608942)	5⁸⁸ RON
12	1	1	TRIGGER (90599030)	9⁴⁴ RON
13	1	1	INDUCTOR (N532791)	90¹² RON
14	1	1	WASHER (90623338)	27⁹⁶ RON
15	1	1	SPRING (90602634)	5⁸⁸ RON
16	1	1	LINKAGE SA (90614754)	6⁶⁸ RON
17	1	1	MODULE (90635511)	407³⁴ RON
18	1	13	SCREW (90614124-02)	5⁸⁸ RON
18	1	23	SCREW PLSTIC THD FORM M4.06X18 (330019-80)	5⁵⁸ RON
19	1	1	MOTOR AND PINION (N557042)	384⁶³ RON
20	1	4	SCREW PLASTIC THREAD FORM M4 * 32 T20 (330019-15)	5⁵⁸ RON
21	1	1	GEARCASE SA (90613424SV)	43⁵⁵ RON
22	1	1	GEAR CASE SA (90615764SV)	90¹² RON
23	1	1	GUARD 13 (90624364)	39⁵⁴ RON
24	1	7	SCREW (90614124-06)	5⁸⁸ RON
25	1	1	SPINDLE LOCK (90607066)	19³³ RON
26	1	1	SPOOL SA (N508388)	154⁶⁹ RON
27	1	1	POLE PIECE (90626133)	123⁶¹ RON
28	1	1	CLAMP (90615950)	8² RON
30	1	6	SCREW (90614124-04)	5⁸⁸ RON
31	1	1	HANDLE FRAME KIT (90603784)	32⁶⁸ RON
32	1	1	CLAMP (90608998)	9⁴⁴ RON
33	1	4	WASHER (330016-15)	5⁸⁸ RON
34	1	4	SCREW (90614038)	5⁸⁸ RON
35	1	1	HANDLE (90603783)	43⁵⁵ RON
36	1	2	WASHER (90615599)	5⁸⁸ RON
37	1	1	WASHER (90623337)	32⁶⁸ RON
38	1	1	000000-04	-	Indisponibil
39	1	1	000000-04	-	Indisponibil
40	1	1	POLE PIECE (N554366)	136⁹⁷ RON
41	1	1	SCREW (90629201)	5⁸⁸ RON
