Top » Piese de schimb » PIESE DEWALT » DCE154N Type 1

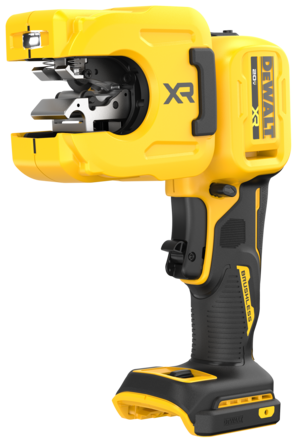

TAIETOR DE METAL DEWALT DCE154N Type 1
[DCE154N Type 1]
TAIETOR DE METAL DEWALT DCE154N Type 1
Click pentru a mari
Imagini suplimentare
TAIETOR DE METAL DEWALT DCE154N Type 1
Click pentru a mari
TAIETOR DE METAL DEWALT DCE154N Type 1
Click pentru a mari

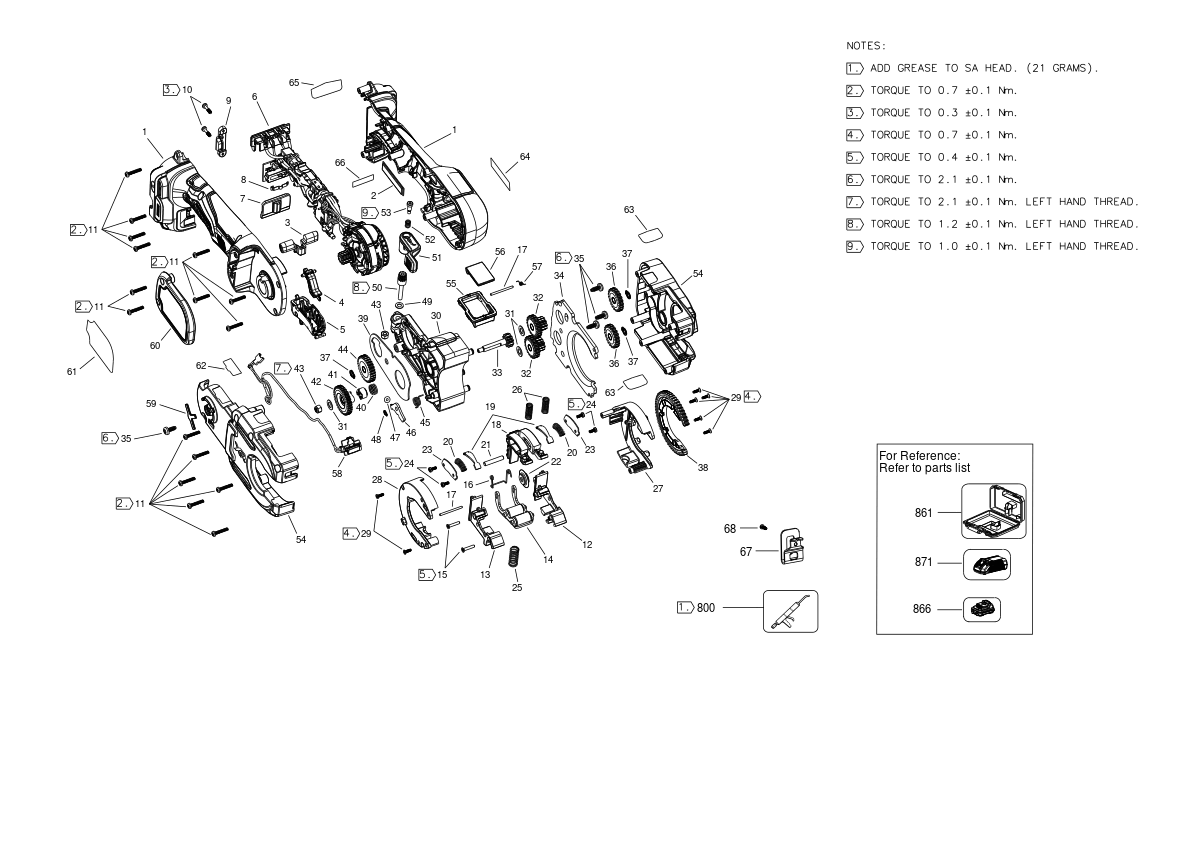

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HOUSING SA (NA308559) 12361 RON
2 1 1 SENSOR (392023-01) 588 RON
3 1 1 BAR (NA304481) 588 RON
4 1 1 LINKAGE SA (NA384198) 588 RON
5 1 1 CAP SA (NA815409) 3954 RON
6 1 1 MOTOR SA MOUNT (NA606936) 52855 RON
7 1 1 SPEED BUTTON (N046201) 781 RON
8 1 1 DETENT (N599474) 588 RON
9 1 1 BLANK COVER AUDIT CHIP (N787996) 588 RON
10 1 2 SCREW (N831593) 588 RON
11 1 16 SCREW PLASTITE (682211-00) 781 RON
12 1 1 CARRIAGE (NA273349) 10241 RON
13 1 1 CARRIAGE (NA273350) 9012 RON
14 1 1 ROLLER SA (NA606932) 741 RON
15 1 2 SCREW-SCREW MACH FLAT HEAD TORX M2.5 (NA614387) 588 RON
16 1 1 SPRING (NA166873) 588 RON
17 1 2 LOCK PIN (NA153747) 588 RON
18 1 1 CARRIAGE (NA046306) 15469 RON
18 1 1 NA265982 - Indisponibil
19 1 2 LEAF SPRING (NA046796) 944 RON
19 1 2 NA765638 - Indisponibil
20 1 2 SPRING (NA046702) 588 RON
21 1 1 PIN (NA159580) 1630 RON
21 1 1 NB434917 - Indisponibil
22 1 1 WHEEL-CUTTING WHEEL (NA153744) 3268 RON
22 1 1 NB434917 - Indisponibil
23 1 2 COVER (NA396332) 588 RON
24 1 4 SCREW (NA407234) 588 RON
25 1 1 SPRING (NA657830) 588 RON
26 1 2 SPRING (NA654178) 588 RON
27 1 1 HOUSING (NA271442) 5370 RON
28 1 1 HOUSING (NA271443) 4827 RON
29 1 7 SCREW (NA167027) 588 RON
30 1 1 GEARCASE SA (NA606934) 15469 RON
31 1 3 WASHER (NA044934) 588 RON
32 1 2 Gear (NA034497) 1772 RON
33 1 1 SHAFT (NA644495) 3268 RON
34 1 1 PLATE (NA153565) 16689 RON
35 1 4 SCREW.TEMP (330045-05) 558 RON
36 1 2 Gear (NA169855) 1318 RON
37 1 3 RING (NA247874) 588 RON
38 1 1 Gear (NA734341) 13697 RON
39 1 1 SHIELD (NA239961) 82 RON
40 1 1 SPRING (NA645716) 588 RON
41 1 1 CLUTCH (NA161886) 588 RON
42 1 1 Gear (NA034494) 1630 RON
43 1 2 LOCK NUT (NA389429) 588 RON
44 1 1 Gear (NA034492) 114 RON
45 1 1 SPRING (NA266023) 588 RON
46 1 1 RATCHET (NA153569) 588 RON
47 1 1 O RING (NA203252) 588 RON
48 1 1 RING (NA241477) 588 RON
49 1 1 WASHER (330016-26) 558 RON
50 1 1 BOLT (NA389431) 1318 RON
51 1 1 CLAMP-CLAMP HANDLE ETCHED (NA645168) 3268 RON
52 1 1 SPRING (NA401978) 588 RON
53 1 1 BOLT (NA389644) 588 RON
54 1 1 GEARCASE COVER (NA410662) 4827 RON
55 1 1 FRAME (NA153746) 944 RON
56 1 1 WINDOW (NA143477) 668 RON
57 1 1 SPRING (NA166851) 588 RON
58 1 1 LED (NA291763) 741 RON
59 1 1 GUIDE SUPPORT (NA519056) 588 RON
60 1 1 BRACKET (NA282223) 944 RON
61 1 1 RATING LABEL (NA541296) 588 RON
61 1 1 RATING LABEL (NB419809) 588 RON
62 1 1 LABEL-LABEL CLAMP DCE154 NA (NA541308) 588 RON
63 1 1 LABEL (NA766508) 588 RON
64 1 1 LABEL (NA541305) 588 RON
65 1 1 LABEL (NA541301) 588 RON
66 1 1 LABEL-MODE SELECT LABEL DCE154 (NA541312) 588 RON
67 1 1 BELT HOOK (N086039) 1788 RON
68 1 1 BELT HOOK SCREW M3 (N042665) 558 RON
800 1 1 GREASE (NA360289) 10241 RON
