Top » Piese de schimb » PIESE DEWALT » DW861 Type 1

TAIETOR DE GRESIE/FAIANTA DEWALT DW861 Type 1
[DW861 Type 1]
TAIETOR DE GRESIE/FAIANTA DEWALT DW861 Type 1
Click pentru a mari
Imagini suplimentare
TAIETOR DE GRESIE/FAIANTA DEWALT DW861 Type 1
Click pentru a mari
TAIETOR DE GRESIE/FAIANTA DEWALT DW861 Type 1
Click pentru a mari

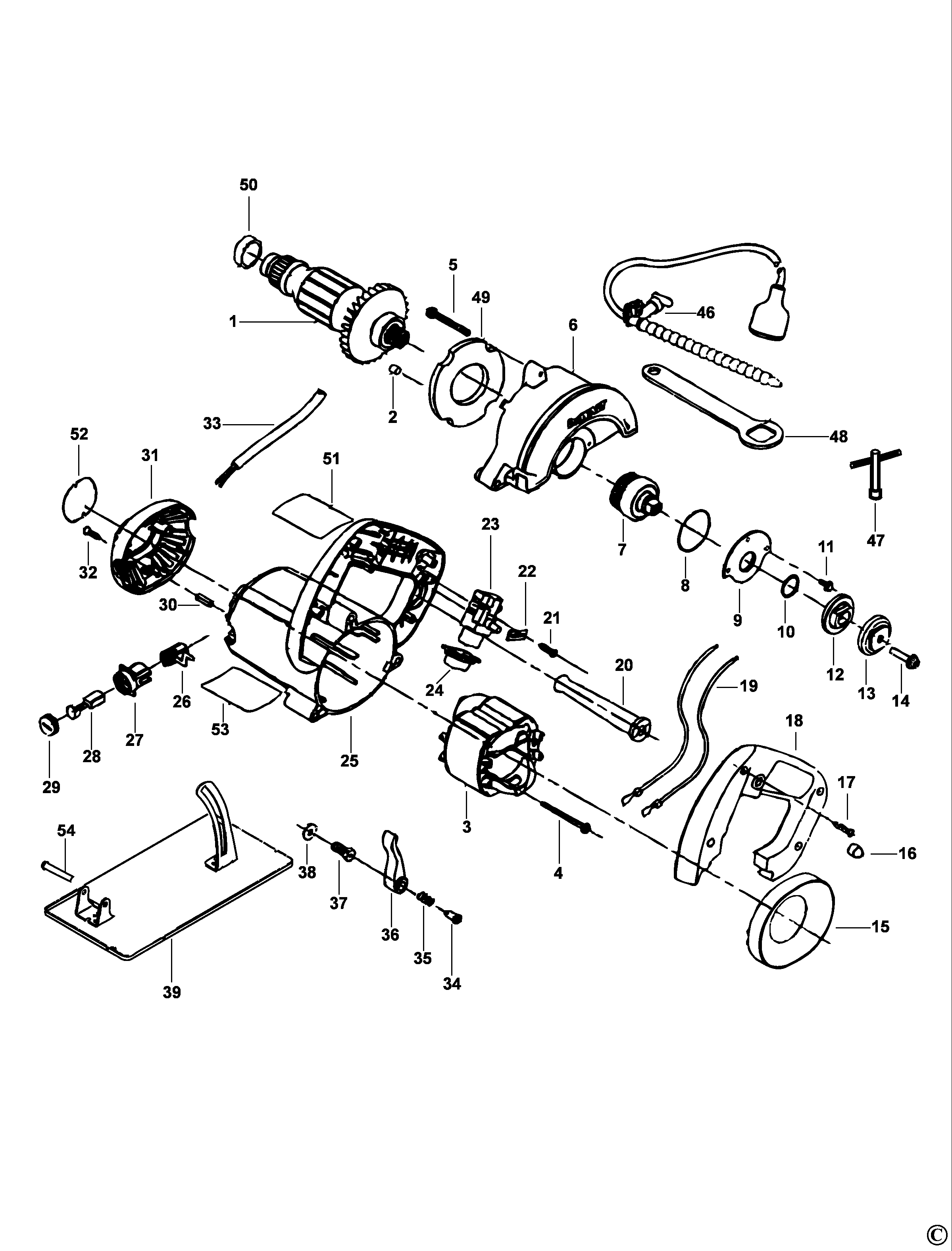

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
2 1 1 PIN (561928-01) 558 RON
4 1 2 561914-02 - Indisponibil
5 1 3 SCREW (561914-01) 558 RON
6 1 1 GEARCASE (562228-00) 12861 RON
7 1 1 SPINDLE & GEAR (562229-00) 9282 RON
8 1 1 O RING (561917-02) 558 RON
9 1 1 GEARCASE COVER (562252-00) 3466 RON
10 1 1 O RING (561917-01) 558 RON
11 1 3 SCREW (561914-00) 558 RON
12 1 1 INNER FLANGE (562231-00) 2795 RON
13 1 1 OUTER FLANGE (562232-00) 2795 RON
14 1 1 SCREW (562233-00) 781 RON
15 1 1 BAFFLE (562215-00) 105 RON
16 1 1 BUTTON (562225-00) 558 RON
17 1 4 SCREW (562097-03) 558 RON
18 1 1 HANDLE COVER (562221-00) 2124 RON
19 1 2 LEAD (561913-00) 105 RON
20 1 1 N542553 - Indisponibil
20 1 1 PROTECTOR CORD (330005-01) 105 RON
20 1 1 CORD PROTECTOR (N918736) 668 RON
21 1 2 Screw For Brush Holder Assy.(4.2 x 13) (562097-00) 558 RON
22 1 1 CORD CLAMP (930103-00) 190 RON
23 1 1 646568-00 - Indisponibil
23 1 1 562223-00 - Indisponibil
24 1 1 BOOT (562224-00) 893 RON
25 1 1 FIELDCASE (562245-00) 5591 RON
26 1 2 BRUSH HOLDER (562227-00) 893 RON
27 1 2 BRUSH FRAME (562218-00) 781 RON
29 1 2 BRUSH CAP (562219-00) 558 RON
30 1 2 PIN (561928-00) 558 RON
31 1 1 END CAP (562222-00) 1117 RON
32 1 2 Screw DW201 171 (562097-05) 558 RON
34 1 1 PIN (561920-00) 558 RON
35 1 1 SPRING (562210-00) 558 RON
36 1 1 LEVER (561918-00) 2347 RON
37 1 1 BOLT (562235-00) 105 RON
38 1 1 WASHER (561916-00) 558 RON
39 1 1 SHOE (562234-00) 3466 RON
46 1 1 ACCESSORY KIT (562239-00) 6821 RON
47 1 1 HEX KEY (562238-00) 2124 RON
48 1 1 SPANNER (562237-00) 1229 RON
49 1 1 569723-00 - Indisponibil
50 1 1 SLEEVE (949721-02) 558 RON
50 1 1 SLEEVE (949721-05) 558 RON
51 1 1 IDENTITY LABEL (562230-00) 781 RON
52 1 1 LABEL (561922-00) 558 RON
54 1 1 ROLL PIN (562254-00) 558 RON
