Top » Piese de schimb » PIESE DEWALT » DCF887NT Type 10

SURUBELNITA IMPACT DEWALT DCF887NT Type 10
[DCF887NT Type 10]
SURUBELNITA IMPACT DEWALT DCF887NT Type 10
Click pentru a mari
Imagini suplimentare
SURUBELNITA IMPACT DEWALT DCF887NT Type 10
Click pentru a mari
SURUBELNITA IMPACT DEWALT DCF887NT Type 10
Click pentru a mari
SURUBELNITA IMPACT DEWALT DCF887NT Type 10
Click pentru a mari

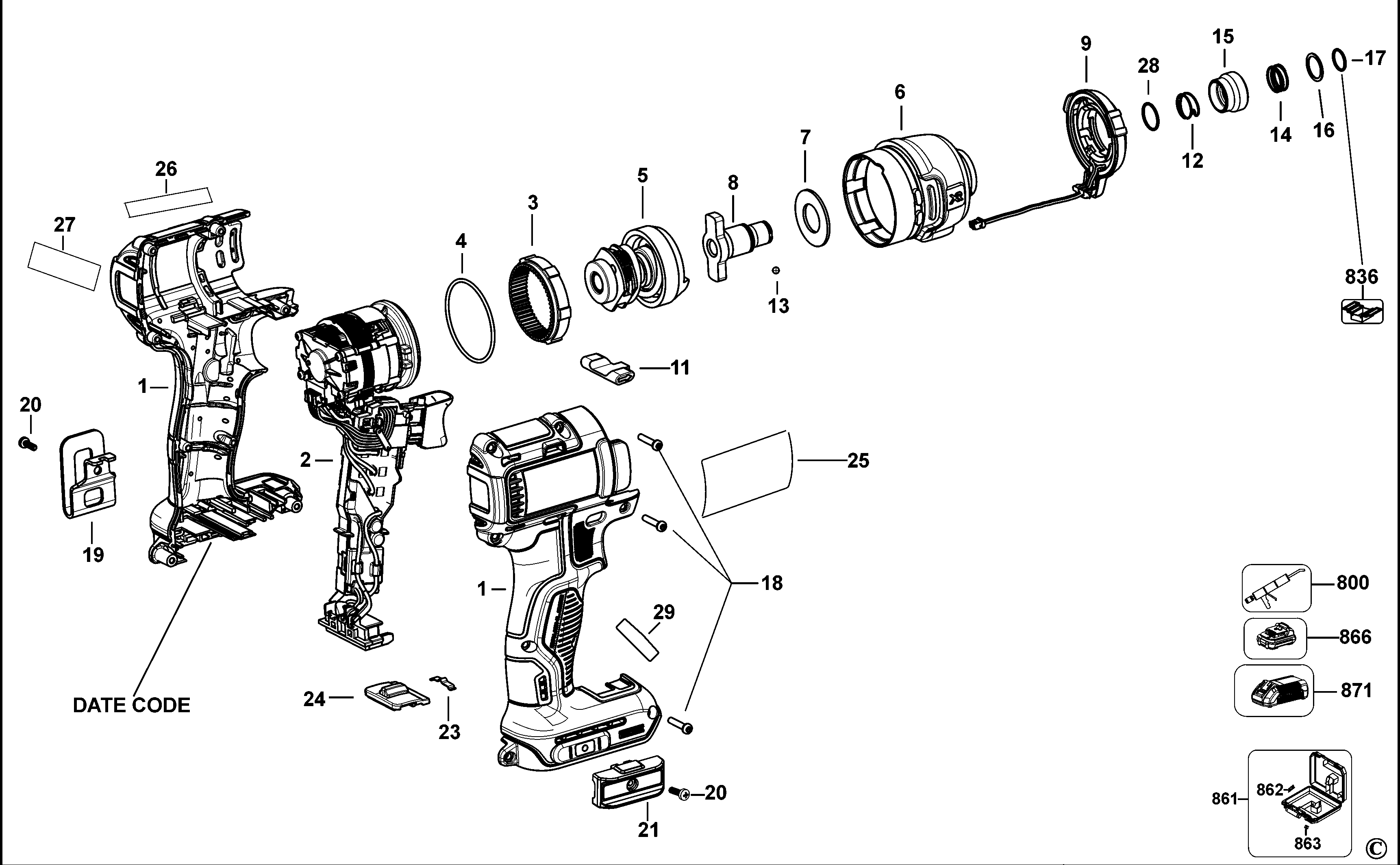

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SA HOUSING 18V (MOULD) (N425910) 6688 RON
2 1 1 MOTOR SWITCH SA (NA315421) 57833 RON
3 1 1 RING GEAR (N112877) 190 RON
4 1 1 O RING (N075339) 781 RON
5 1 1 IMPACTOR (N439270) 20216 RON
6 1 1 NOSE SA (N439271) 11337 RON
7 1 1 WASHER (642883-00) 893 RON
8 1 1 ANVIL ASSEMBLY (N439275) 5370 RON
9 1 1 G2 IMPACT LED (N424434) 5370 RON
11 1 1 ACTUATOR FWD/REV (N399342) 588 RON
12 1 1 SPRING (N437890) 588 RON
13 1 1 BALL NEW 3.5MM (N089668) 558 RON
14 1 1 SLEEVE SPRING (N019351) 558 RON
15 1 1 SLEEVE (N612522) 1318 RON
16 1 1 STEEL WASHER (N016823) 781 RON
17 1 1 RING (N421245) 588 RON
18 1 8 SCREW PLASTITE (682211-00) 781 RON
19 1 1 BELT HOOK (N086039) 1788 RON
20 1 2 BELT HOOK SCREW M3 (N042665) 558 RON
21 1 1 HOLDER BIT (N475326) 2796 RON
23 1 1 DETENT SPRING (N087259) 558 RON
24 1 1 SPEED BUTTON (N046201) 781 RON
25 1 1 SA LABEL SHEET FOR DCF887 (NA191134) 1630 RON
26 1 1 LABEL (N237999) 558 RON
27 1 1 LABEL (N298039) 558 RON
28 1 1 RING (N424032) 588 RON
29 1 1 SA LABEL SHEET FOR DCF887 (NA191134) 1630 RON

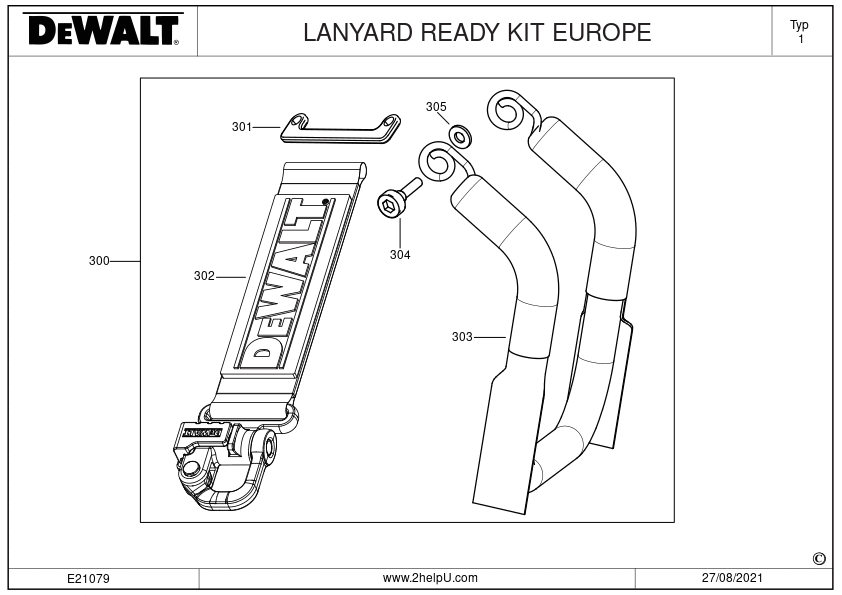

302 1 2 BRACKET (NA012391) 5370 RON
303 1 1 CLIP SA (NA012370) 5370 RON
304 1 2 SCREW (N542271) 1630 RON
305 1 2 WASHER (N462739) 588 RON
800 1 1 GREASE (286436-00) 70239 RON
800 1 1 GREASE (NA360289) 10241 RON
836 1 1 S.T.CIRCLIP INSERTER (1003940-99) 46327 RON
861 1 1 NA321220 - Indisponibil
862 1 1 LATCH (N409477) 114 RON
863 1 2 LATCH (P910190) 3466 RON
866 1 1 000000-04 - Indisponibil
871 1 1 000000-04 - Indisponibil
