SURUBELNITA IMPACT DEWALT DCF870N Type 1
[DCF870N Type 1]

Imagini suplimentare

Click pentru a mari

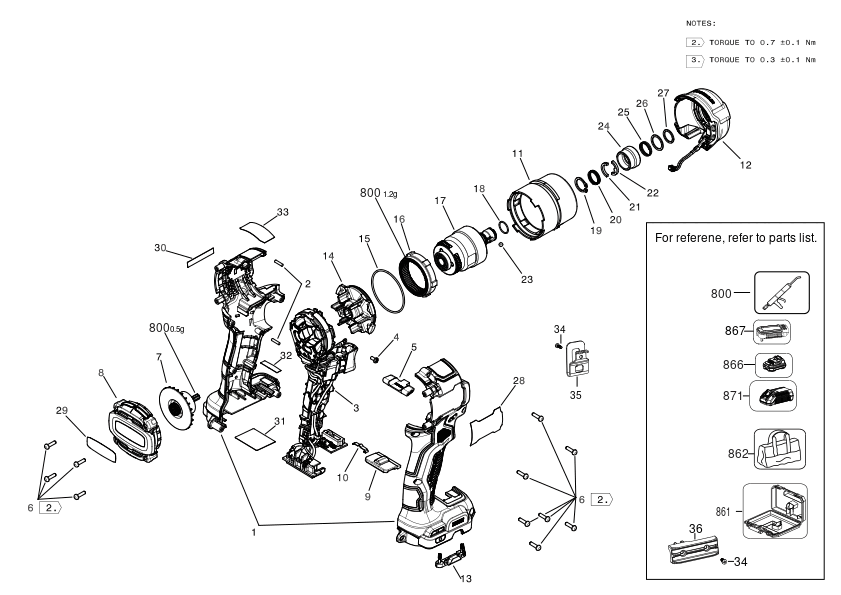

LISTA DE COMPONENTE:

Numar	Versiune	Buc. in schema	Denumire	Pret/buc (Tva inclus)	Cumpara
1	1	1	HOUSING (N846739)	48²⁷ RON
2	1	2	ROLL PIN 2.5 X 10.9 (N071836)	5⁵⁸ RON
3	1	1	MOTOR & SWITCH SA (NA620414)	554⁵⁵ RON
4	1	1	SCREW (N719210)	5⁸⁸ RON
5	1	1	ACTUATOR FWD/REV (N851639)	5⁸⁸ RON
6	1	11	SCREW (330019-28)	5⁸⁸ RON
7	1	1	ROTOR SA (NA620415)	272⁸⁷ RON
7	1	1	NB128701	-	Indisponibil
7	1	1	ROTOR SA (NB432380)	136⁹⁷ RON
8	1	1	END CAP (NA318436)	16³⁰ RON
9	1	1	SPEED BUTTON (N046201)	7⁸¹ RON
10	1	1	DETENT (N599474)	5⁸⁸ RON
11	1	1	000000-11	-	Indisponibil
11	1	1	NOSE SA (NA413501)	136⁹⁷ RON
12	1	1	LED KIT (NA620416)	123⁶¹ RON
13	1	1	COVER (N791558)	5⁸⁸ RON
14	1	1	COVERPLATE (N781228)	9⁴⁴ RON
15	1	1	O RING (N866184)	5⁸⁸ RON
16	1	1	RING GEAR-RING GEAR (NA018464)	25⁵⁶ RON
17	1	1	TRANSMISSION SA (NA620417)	1049⁶¹ RON
18	1	1	O RING (NA269666)	5⁸⁸ RON
19	1	1	LOCKING RING (NA388370)	5⁸⁸ RON
20	1	1	SPRING (N919683)	5⁸⁸ RON
21	1	1	CIRCLIP (NA162532)	6⁶⁸ RON
22	1	1	CIRCLIP (NA162542)	6⁶⁸ RON
23	1	1	STEEL BALL (604107-00)	5⁵⁸ RON
24	1	1	COLLAR (N864734)	17⁷² RON
25	1	1	SPRING (N811325)	5⁸⁸ RON
26	1	1	WASHER (N864740)	5⁸⁸ RON
27	1	1	RING (N864736)	5⁸⁸ RON
28	1	1	RATING LABEL (NA371853)	5⁸⁸ RON
29	1	1	LABEL (N911719)	5⁸⁸ RON
30	1	1	BRAND LABEL (N911722)	5⁸⁸ RON
31	1	1	LABEL (NA371863)	5⁸⁸ RON
32	1	1	LABEL (NA608187)	5⁸⁸ RON
33	1	1	LABEL (N926894)	5⁸⁸ RON
34	1	2	BELT HOOK SCREW M3 (N042665)	5⁵⁸ RON
35	1	1	BELT HOOK (N086039)	17⁸⁸ RON
36	1	1	HOLDER SA (N851797)	39⁵⁴ RON
40	1	1	NOSE SA-NOSECONE WITH LED (NA704621)	202¹⁶ RON
800	1	1	GREASE (N017298)	482⁵ RON
