Top » Piese de schimb » PIESE DEWALT » DCF860E2T Type 1

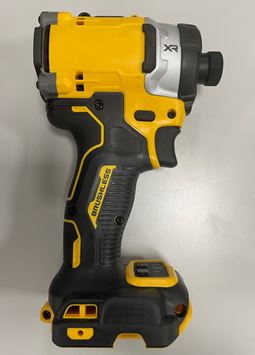

SURUBELNITA IMPACT DEWALT DCF860E2T Type 1
[DCF860E2T Type 1]
SURUBELNITA IMPACT DEWALT DCF860E2T Type 1
Click pentru a mari
Imagini suplimentare
SURUBELNITA IMPACT DEWALT DCF860E2T Type 1
Click pentru a mari
SURUBELNITA IMPACT DEWALT DCF860E2T Type 1
Click pentru a mari
SURUBELNITA IMPACT DEWALT DCF860E2T Type 1
Click pentru a mari
SURUBELNITA IMPACT DEWALT DCF860E2T Type 1
Click pentru a mari

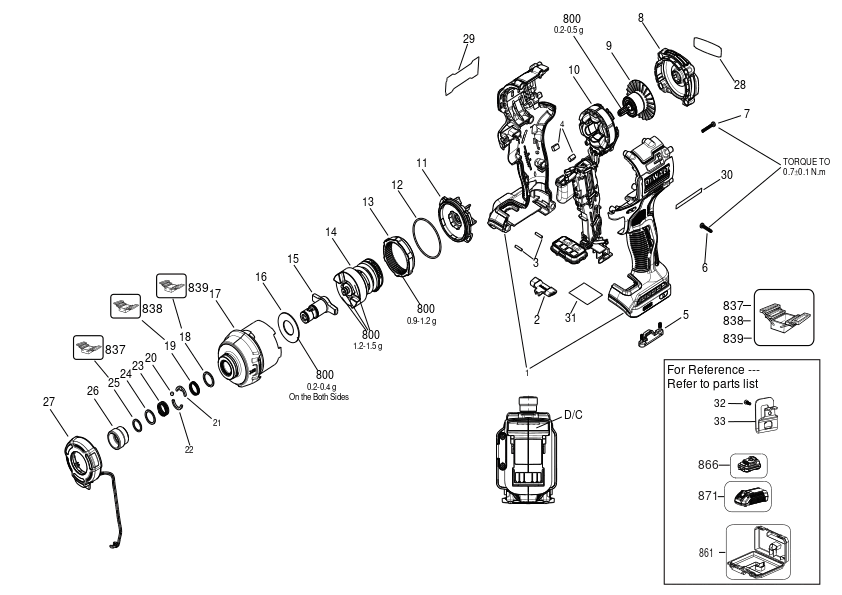

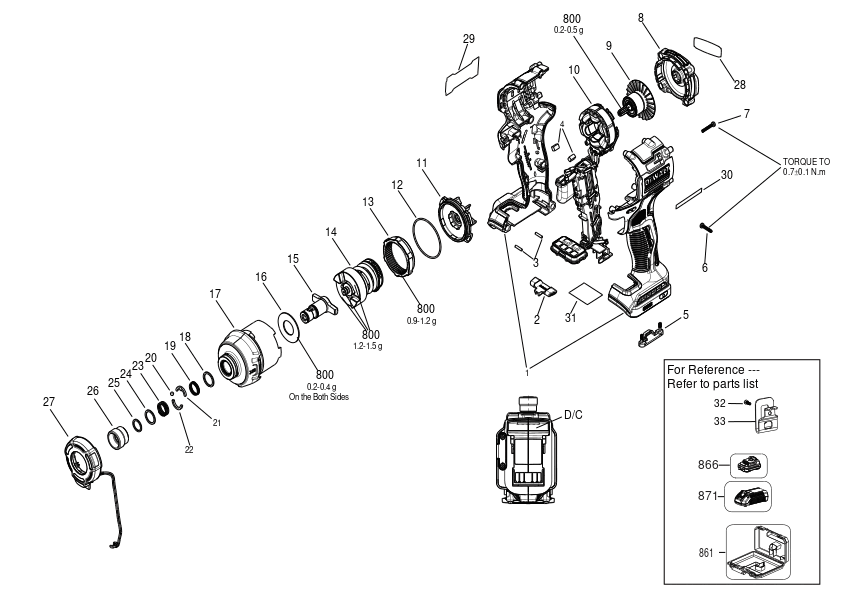

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 NA230773 - Indisponibil
1 1 1 HOUSING SA (NA596682) 5370 RON
2 1 1 ACTUATOR FWD/REV (N851639) 588 RON
3 1 2 ROLL PIN 2.5 X 10.9 (N071836) 558 RON
4 1 1 SPACER (NA112467) 588 RON
5 1 1 COVER (N791558) 588 RON
6 1 8 SCREW PLASTITE (682211-00) 781 RON
7 1 4 SCREW PLSTC THD FORM M3*19 T10 (330019-24) 558 RON
8 1 1 END CAP (NA318436) 1630 RON
9 1 1 ROTOR SA (NA472076) 32327 RON
9 1 1 ROTOR SA (NB407553) 16689 RON
10 1 1 MOTOR & SWITCH SA (NA473118) 85494 RON
11 1 1 MOUNT (NA155765) 944 RON
12 1 1 O RING (N866184) 588 RON
13 1 1 Gear (N816497) 1630 RON
14 1 1 IMPACTOR (NA472024) 36994 RON
15 1 1 ANVIL ASSEMBLY (NA472056) 13697 RON
16 1 1 WASHER (NA163453) 588 RON
17 1 1 NOSE SA (NA472064) 6688 RON
18 1 1 RING (NA562707) 5370 RON
19 1 1 SLEEVE SPRING (N019351) 558 RON
19 1 1 SPRING (N919683) 588 RON
20 1 1 STEEL BALL (604107-00) 558 RON
21 1 1 CLIP (NA549696) 668 RON
22 1 1 CIRCLIP (NA162532) 668 RON
23 1 1 SPRING (NA168988) 588 RON
24 1 1 WASHER (N864740) 588 RON
25 1 1 RING (N864736) 588 RON
26 1 1 SLEEVE (NA166862) 1933 RON
27 1 1 LED KIT (NA035478) 9012 RON
28 1 1 LABEL (N911719) 588 RON
29 1 1 RATING LABEL (NA180127) 588 RON
30 1 1 BRAND LABEL (NA180128) 588 RON
31 1 1 LABEL (NA180129) 588 RON
32 1 2 BELT HOOK SCREW M3 (N042665) 558 RON
33 1 1 BELT HOOK (N086039) 1788 RON
34 1 1 HOLDER SA (N851797) 3954 RON
800 1 1 GREASE (N017298) 4825 RON
837 1 1 SERVICE TOOLING KIT (NA697464) 356963 RON
838 1 1 SERVICE TOOLING KIT (NA697466) 356963 RON
839 1 1 SERVICE TOOLING KIT (NA697467) 89911 RON
861 1 1 KITBOX (N898230) 27287 RON
866 1 2 BATTERY 18V 1.6AH 28.8WH (NA132874) 91363 RON
871 1 1 CHARGER (NA373501) 38463 RON
