Top » Piese de schimb » PIESE DEWALT » DW274KN Type A1

SURUBELNITA DEWALT DW274KN Type A1
[DW274KN Type A1]
SURUBELNITA DEWALT DW274KN Type A1
Click pentru a mari
Imagini suplimentare
SURUBELNITA DEWALT DW274KN Type A1
Click pentru a mari

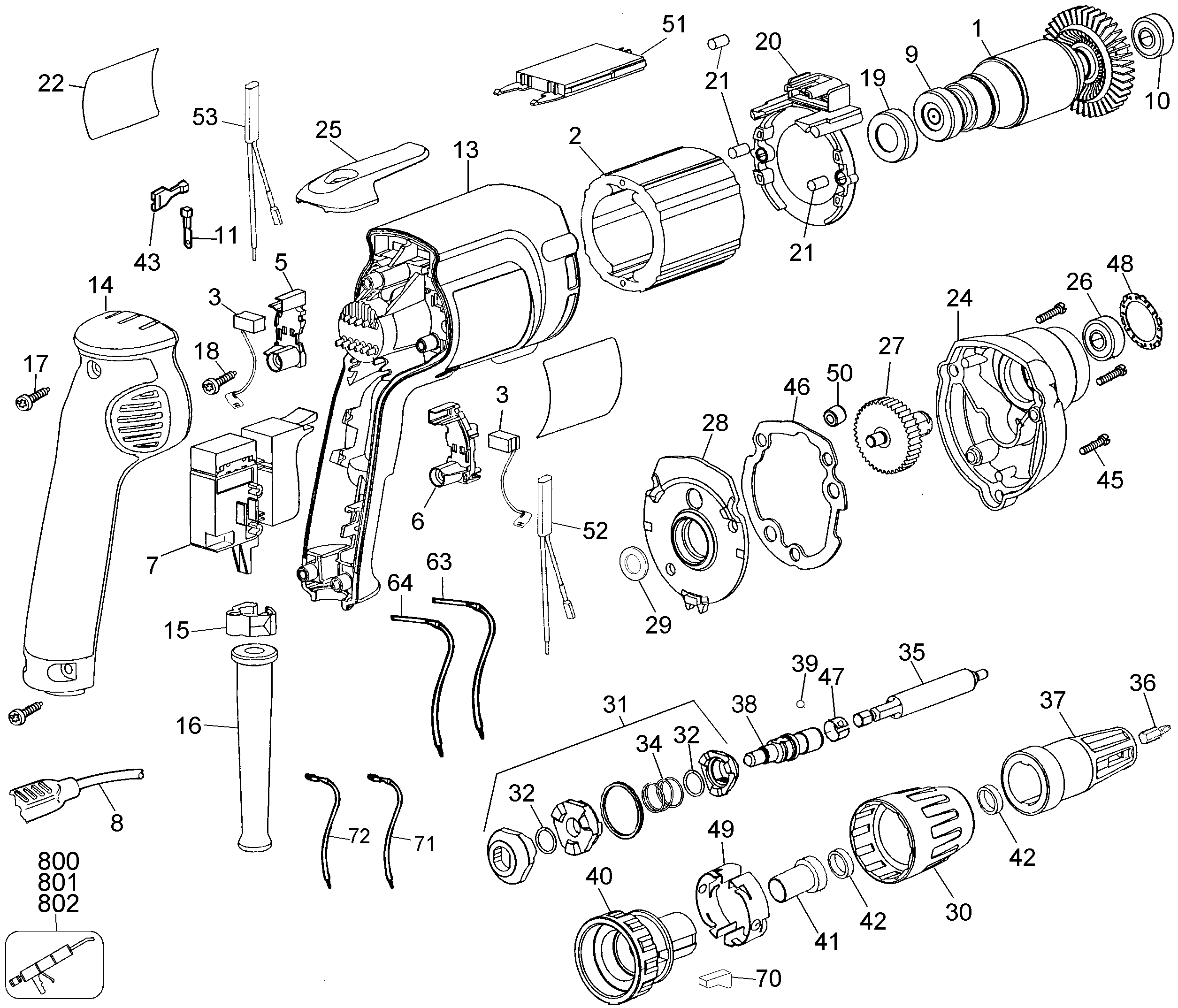

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 ARMATURE (176851-01) 26730 RON
2 1 1 FIELD 230V (176849-01SV) 15993 RON
2 1 1 FIELD (176849-01) 12861 RON
3 1 2 BRUSH 230V CUT OFF (176949-00) 2347 RON
5 1 1 SA BRUSH HOLDER LEFT (176801-03) 7940 RON
6 1 1 SA BRUSH HOLDER RIGHT (176800-03) 6821 RON
7 1 1 SWITCH (176830-15) 17335 RON
8 1 1 CORD PWR SPLY EURO (330080-39) 14315 RON
9 1 2 330003-04 - Indisponibil
9 1 1 BEARING BALL cod vechi 330003-04 BEARING BALL (605040-06) 1452 RON
11 1 2 TERMINAL (449192-00) 558 RON
13 1 1 429969-04 - Indisponibil
14 1 1 COVER HANDLE HOLE 35 (176816-03) 1891 RON
15 1 1 176832-00 - Indisponibil
16 1 1 N542553 - Indisponibil
16 1 1 PROTECTOR CORD (330005-01) 105 RON
16 1 1 CORD PROTECTOR (N918736) 668 RON
17 1 3 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
18 1 2 SCREW (176951-00) 558 RON
19 1 1 SLEEVE (949721-03) 781 RON
19 1 1 RUBBER BOOT (389824-00) 558 RON
20 1 1 FAN BAFFLE (176811-00) 781 RON
21 1 3 SMALL RUBBER (949638-02) 558 RON
22 1 1 LABEL IDENTITY DEWALT 34*48 (395047-00) 558 RON
24 1 1 GEARCASE (388562-00) 12861 RON
24 1 1 GEARCASE (388562-00SV) 12861 RON
25 1 1 CLIP BELT (176856-00) 1452 RON
25 1 1 CLIP BELT (657655-00) 1452 RON
25 1 1 BELT CLIP (N045425) 1452 RON
26 1 1 BEARING BALL (330003-09) 2795 RON
26 1 1 Ball Brg (605040-20) 2182 RON
27 1 1 638982-00SV - Indisponibil
27 1 1 SA SPINDLE & GEAR (176628-00) 14315 RON
27 1 1 GEAR & SPINDLE (638982-00) 12861 RON
28 1 1 GEARCASE COVER (386622-00) 4472 RON
29 1 1 23813-00 - Indisponibil
29 1 1 WASHER (023813-00) 781 RON
30 1 1 ADJUSTER BLOCK (176728-00) 3466 RON
30 1 1 COLLAR ADJUSTING (152492-01) 3466 RON
31 1 1 CLUTCH SA DW274KN (429634-00) 15993 RON
32 1 2 RETAINER (089210-00) 558 RON
32 1 2 89210-00 - Indisponibil
34 1 1 SPRING COMPRESSION (176842-00) 558 RON
35 1 1 HOLDER BIT (N449701) 3954 RON
35 1 1 HOLDER BIT TIP MAG. (619773-02) 2795 RON
36 1 1 607904-01 - Indisponibil
36 1 1 BIT SCDR DRYWALL PR2 (607904-22) 558 RON
37 1 1 SA LOCATOR (450770-02) 5591 RON
37 1 1 LOCATOR (450770-02SV) 16689 RON
38 1 1 SPINDLE OUTPUT (385861-00) 9282 RON
39 1 1 BALL STEEL (696631-00) 558 RON
40 1 1 CLUTCH SA (176632-00) 11519 RON
40 1 1 CLUTCH SA (N740053) 5370 RON
41 1 1 BEARING SLEEVE (450907-00) 1117 RON
42 1 2 SEAL SHAFT (696534-00) 105 RON
43 1 2 TERMINAL (136086-02) 558 RON
45 1 3 SCREW (330019-14) 558 RON
46 1 1 GASKET (176655-00) 558 RON
47 1 1 BALL RETAINER (094518-00) 558 RON
47 1 1 94518-00 - Indisponibil
48 1 1 RETAINER BEARING (176689-00) 558 RON
49 1 2 SPRING DETENT (391436-00) 558 RON
50 1 1 NEEDLE BEARING (093128-00) 1229 RON
50 1 1 93128-00 - Indisponibil
51 1 1 SA MODULE SUPPRESSION (176917-00) 12861 RON
52 1 1 LEAD WHITE (176890-00) 2124 RON
53 1 1 LEAD RED (176890-01) 3466 RON
63 1 1 SA LEAD WIRE (176893-00) 105 RON
64 1 1 SA LEAD WIRE (176834-00) 893 RON
70 1 2 PLUG (390437-01) 3466 RON
71 1 1 SA LEAD WIRE (176892-00) 781 RON
72 1 1 SA LEADWIRE (176894-00) 558 RON
800 1 1 GREASE (761995-01) 23598 RON
801 1 1 GREASE (283484-01) 62298 RON
802 1 1 GREASE (N017298) 4825 RON
802 1 1 GREASE (284778-00) 49771 RON
802 1 1 GREASE (69542-00) 91714 RON
