Top » Piese de schimb » PIESE DEWALT » DW269K Type A1

SURUBELNITA DEWALT DW269K Type A1
[DW269K Type A1]
SURUBELNITA DEWALT DW269K Type A1
Click pentru a mari
Imagini suplimentare
SURUBELNITA DEWALT DW269K Type A1
Click pentru a mari

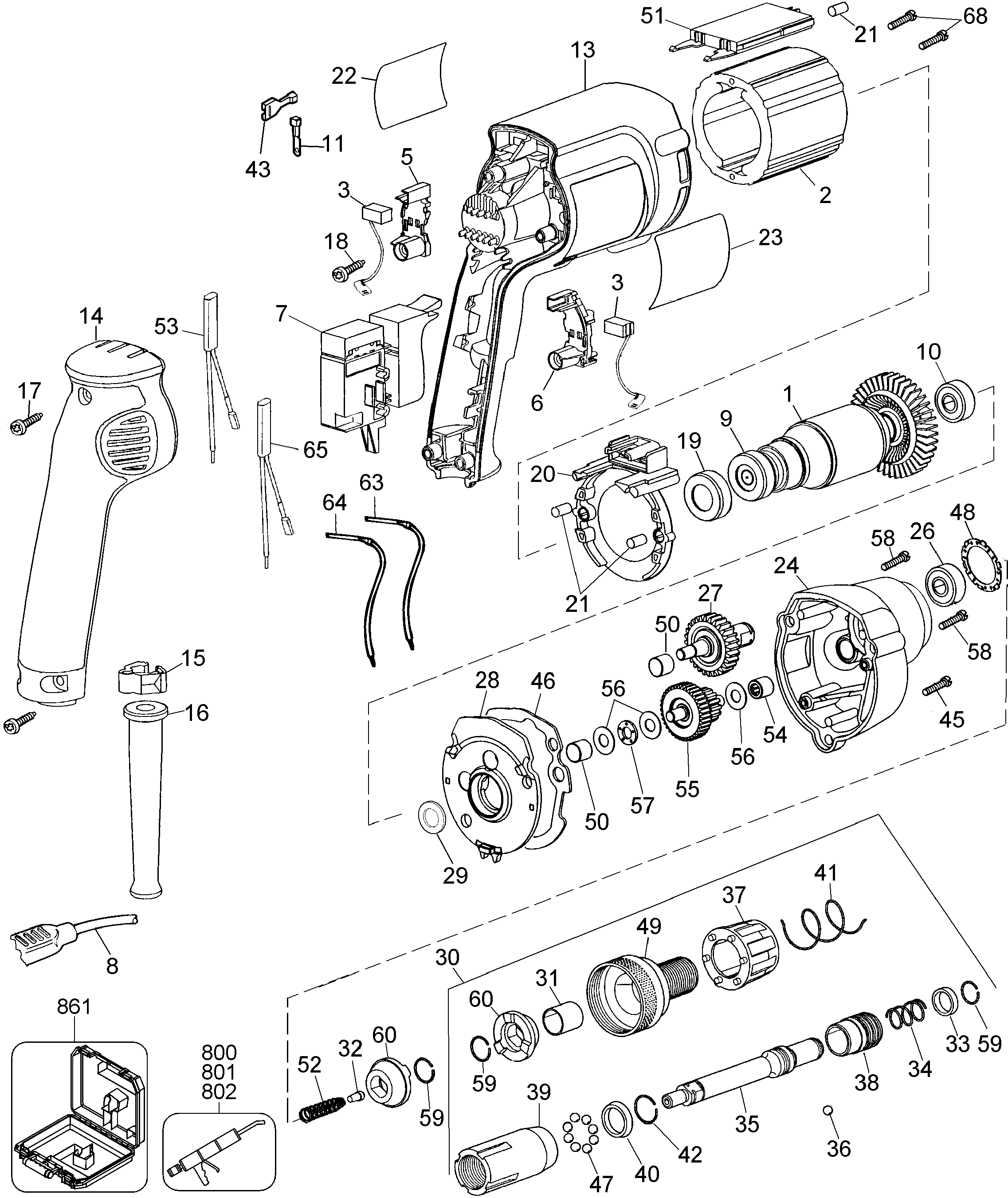

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 ARMATURE & FAN (176853-01SV) 22144 RON
1 1 1 ARMATURE (176853-01) 29862 RON
2 1 1 FIELD 230V (176849-01SV) 15993 RON
2 1 1 FIELD (176849-01) 12861 RON
3 1 2 BRUSH 230V CUT OFF (176949-00) 2347 RON
5 1 1 SA BRUSH HOLDER LEFT (176801-03) 7940 RON
6 1 1 SA BRUSH HOLDER RIGHT (176800-03) 6821 RON
7 1 1 SWITCH (176830-15) 17335 RON
8 1 1 330080-40 - Indisponibil
9 1 2 330003-04 - Indisponibil
9 1 1 BEARING BALL cod vechi 330003-04 BEARING BALL (605040-06) 1452 RON
11 1 2 TERMINAL (449192-00) 558 RON
13 1 1 429969-04 - Indisponibil
14 1 1 COVER HANDLE HOLE 35 (176816-03) 1891 RON
15 1 1 176832-00 - Indisponibil
16 1 1 N542553 - Indisponibil
16 1 1 PROTECTOR CORD (330005-01) 105 RON
16 1 1 CORD PROTECTOR (N918736) 668 RON
17 1 3 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
18 1 2 SCREW (176951-00) 558 RON
19 1 1 SLEEVE (949721-03) 781 RON
19 1 1 RUBBER BOOT (389824-00) 558 RON
20 1 1 FAN BAFFLE (176811-00) 781 RON
21 1 3 SMALL RUBBER (949638-02) 558 RON
22 1 1 LABEL IDENTITY DEWALT 34*48 (395047-00) 558 RON
23 1 1 387428-00 - Indisponibil
24 1 1 GEARCASE (176706-00) 10512 RON
24 1 1 GEARCASE (176706-00SV) 10512 RON
26 1 1 BEARING BALL (330003-09) 2795 RON
26 1 1 Ball Brg (605040-20) 2182 RON
27 1 1 SA SPINDLE & GEAR (176712-00) 17335 RON
27 1 1 SPINDLE AND GEAR (176712-00SV) 24962 RON
28 1 1 COVER GEARCASE (388761-00) 4137 RON
29 1 1 23813-00 - Indisponibil
29 1 1 WASHER (023813-00) 781 RON
30 1 1 SA NOSEPIECE (450556-00) 46863 RON
30 1 1 NOSE SA (NA128417) 60451 RON
31 1 1 090626-00 - Indisponibil
31 1 1 90626-00 - Indisponibil
32 1 1 21287-00 - Indisponibil
32 1 1 SPRING GUIDE (021287-00) 558 RON
33 1 1 WASHER (090866-00) 1788 RON
33 1 1 90866-00 - Indisponibil
34 1 1 SPRING (086134-00) 558 RON
34 1 1 86134-00 - Indisponibil
35 1 1 SPINDLE (450360-00) 9282 RON
36 1 1 99047-01 - Indisponibil
36 1 1 BALL (099047-01) 558 RON
37 1 1 90639-02 - Indisponibil
37 1 1 COLLAR (090639-02) 1452 RON
38 1 1 RETAINER (387451-00) 2795 RON
39 1 1 ADJUSTABLE STOP (450555-00) 6821 RON
40 1 1 90596-00 - Indisponibil
41 1 1 SPRING (087928-00) 781 RON
41 1 1 87928-00 - Indisponibil
42 1 1 RETAINER (21360-00) 558 RON
43 1 1 TERMINAL (136086-02) 558 RON
45 1 1 SCREW (330019-14) 558 RON
46 1 1 GASKET (176655-00) 558 RON
47 1 8 BALL (000903-00) 558 RON
47 1 8 903-00 - Indisponibil
48 1 1 RETAINER BEARING (176689-00) 558 RON
49 1 1 93105-01 - Indisponibil
49 1 1 CLUTCH HOUSING (093105-01) 15993 RON
49 1 1 NA128416 - Indisponibil
50 1 2 NEEDLE BEARING (093128-00) 1229 RON
50 1 2 93128-00 - Indisponibil
51 1 1 SA MODULE SUPPRESSION (176917-00) 12861 RON
52 1 1 86211-00 - Indisponibil
52 1 1 SPRING (086211-00) 558 RON
53 1 1 LEAD RED (176890-01) 3466 RON
54 1 1 BEARING DW226 (93129-00) 1117 RON
54 1 1 BEARING (330004-00) 1772 RON
55 1 1 SA PINION & GEAR (176647-00) 9282 RON
55 1 1 GEAR & PINION SA (176647-00SV) 17335 RON
56 1 3 WASHER THRUST (176732-00) 558 RON
57 1 1 BEARING THRUST (143079-00) 781 RON
58 1 2 SCREW PLASTIC THD FORM M4*38 T20 (330019-16) 558 RON
59 1 2 RETAINER (089210-00) 558 RON
59 1 2 89210-00 - Indisponibil
60 1 2 CLUTCH (96558-04) 4137 RON
63 1 1 SA LEAD WIRE (176834-00) 893 RON
64 1 1 SA LEAD WIRE (176893-00) 105 RON
65 1 1 LEAD WHITE (176890-00) 2124 RON
68 1 2 SCREW PLASTIC THREAD FORM M3.5 * 19 T1 (330019-04) 558 RON
800 1 1 GREASE (761995-01) 23598 RON
801 1 1 GREASE (283484-01) 62298 RON
802 1 1 GREASE (N017298) 4825 RON
802 1 1 GREASE (284778-00) 49771 RON
802 1 1 GREASE (69542-00) 91714 RON
861 1 1 395563-00 - Indisponibil
