Top » Piese de schimb » PIESE DEWALT » DW266 Type 3

SURUBELNITA DEWALT DW266 Type 3
[DW266 Type 3]
SURUBELNITA DEWALT DW266 Type 3
Click pentru a mari
Imagini suplimentare
SURUBELNITA DEWALT DW266 Type 3
Click pentru a mari
SURUBELNITA DEWALT DW266 Type 3
Click pentru a mari

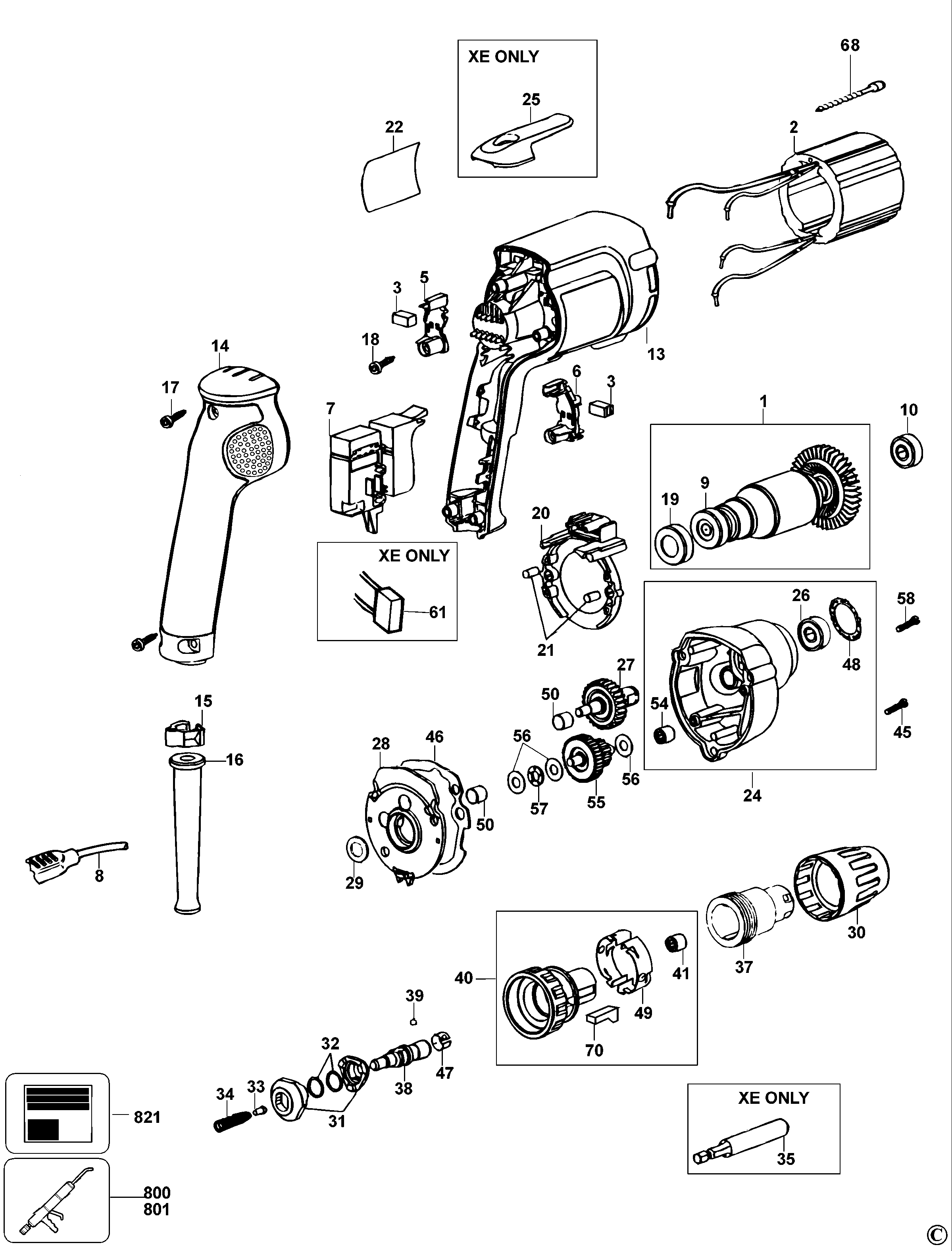

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
3 1 1 BRUSH PAIR 230V SA (SUBA) (578393-02) 5031 RON
7 1 1 SWITCH (176830-15) 17335 RON
9 1 1 330003-04 - Indisponibil
9 1 1 BEARING BALL cod vechi 330003-04 BEARING BALL (605040-06) 1452 RON
10 1 1 330003-04 - Indisponibil
10 1 1 BEARING BALL cod vechi 330003-04 BEARING BALL (605040-06) 1452 RON
13 1 1 FIELD CASE (MOULD) (N014399) 5591 RON
13 1 1 FIELD CASE (396969-12) 6821 RON
14 1 1 COVER HANDLE HOLE 35 (176816-03) 1891 RON
16 1 1 N542553 - Indisponibil
16 1 1 PROTECTOR CORD (330005-01) 105 RON
16 1 1 CORD PROTECTOR (N918736) 668 RON
17 1 3 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
18 1 2 SCREW PLSTC THD FROM M4X12 T20 (330065-06) 558 RON
19 1 1 RUBBER BOOT (389824-00) 558 RON
20 1 1 FAN BAFFLE (176811-00) 781 RON
21 1 3 SMALL RUBBER (949638-02) 558 RON
22 1 1 LABEL IDENTITY DEWALT 34*48 (395047-00) 558 RON
24 1 1 GEAR CASE (176709-00) 14315 RON
24 1 1 GEARCASE SA (176709-00SV) 1891 RON
26 1 1 BEARING BALL (330003-09) 2795 RON
26 1 1 Ball Brg (605040-20) 2182 RON
27 1 1 SPINDLE & GEAR (176708-00SV) 15993 RON
27 1 1 SA SPINDLE & GEAR (176708-00) 12861 RON
28 1 1 COVER GEARCASE (388761-00) 4137 RON
29 1 1 23813-00 - Indisponibil
29 1 1 WASHER (023813-00) 781 RON
30 1 1 COLLAR ADJUSTING (152492-01) 3466 RON
31 1 1 N737329 - Indisponibil
31 1 2 CLUTCH (603478-00) 3018 RON
32 1 2 RETAINER (089210-00) 558 RON
32 1 2 89210-00 - Indisponibil
33 1 1 21287-00 - Indisponibil
33 1 1 SPRING GUIDE (021287-00) 558 RON
34 1 1 86211-00 - Indisponibil
37 1 1 LOCATOR (448862-01) 1117 RON
38 1 1 SPINDLE OUTPUT (176697-00) 7940 RON
39 1 1 BALL STEEL (696631-00) 558 RON
40 1 1 SA CLUTCH HOUSING (SERVICE) (N543023) 10241 RON
40 1 1 176632-03 - Indisponibil
40 1 1 HOUSING (176632-01) 12861 RON
41 1 1 BEARING SLEEVE (448848-00) 3018 RON
45 1 1 SCREW (330019-14) 558 RON
46 1 1 GASKET (176655-00) 558 RON
47 1 1 BALL RETAINER (094518-00) 558 RON
47 1 1 94518-00 - Indisponibil
48 1 2 RETAINER (087692-00) 558 RON
48 1 2 87692-00 - Indisponibil
49 1 2 SPRING DETENT (391436-00) 558 RON
50 1 2 BEARING NEEDLE 6 * 10 * 9 (910560) 1229 RON
54 1 1 BEARING DW226 (93129-00) 1117 RON
55 1 1 SPINDLE & GEAR (176731-00SV) 15993 RON
55 1 1 SA PINION & GEAR (176731-00) 12861 RON
56 1 2 WASHER THRUST (176732-00) 558 RON
57 1 1 BEARING THRUST (143079-00) 781 RON
58 1 1 SCREW PLASTIC THD FORM M4*38 T20 (330019-16) 558 RON
68 1 2 SCREW (90611830) 588 RON
68 1 2 SCREW PLASTIC THREAD FORM M3.5 * 19 T1 (330019-04) 558 RON
70 1 2 plug dw274kn (390437-00) 2347 RON
70 1 2 PLUG (390437-01) 3466 RON
800 1 1 GREASE MOLYCOTE G68 100 GRAM TUBE (808386-00) 46863 RON
800 1 1 GREASE 100 GM TUBE (575762-02) 5031 RON
801 1 1 GREASE TUBE 100ML RENOLIT PARAGON EP (870889-02) 4472 RON
