SURUBELNITA DEWALT DW258 Type 2
[DW258 Type 2]
SURUBELNITA DEWALT DW258 Type 2
Click pentru a mari
Imagini suplimentare
SURUBELNITA DEWALT DW258 Type 2
Click pentru a mari

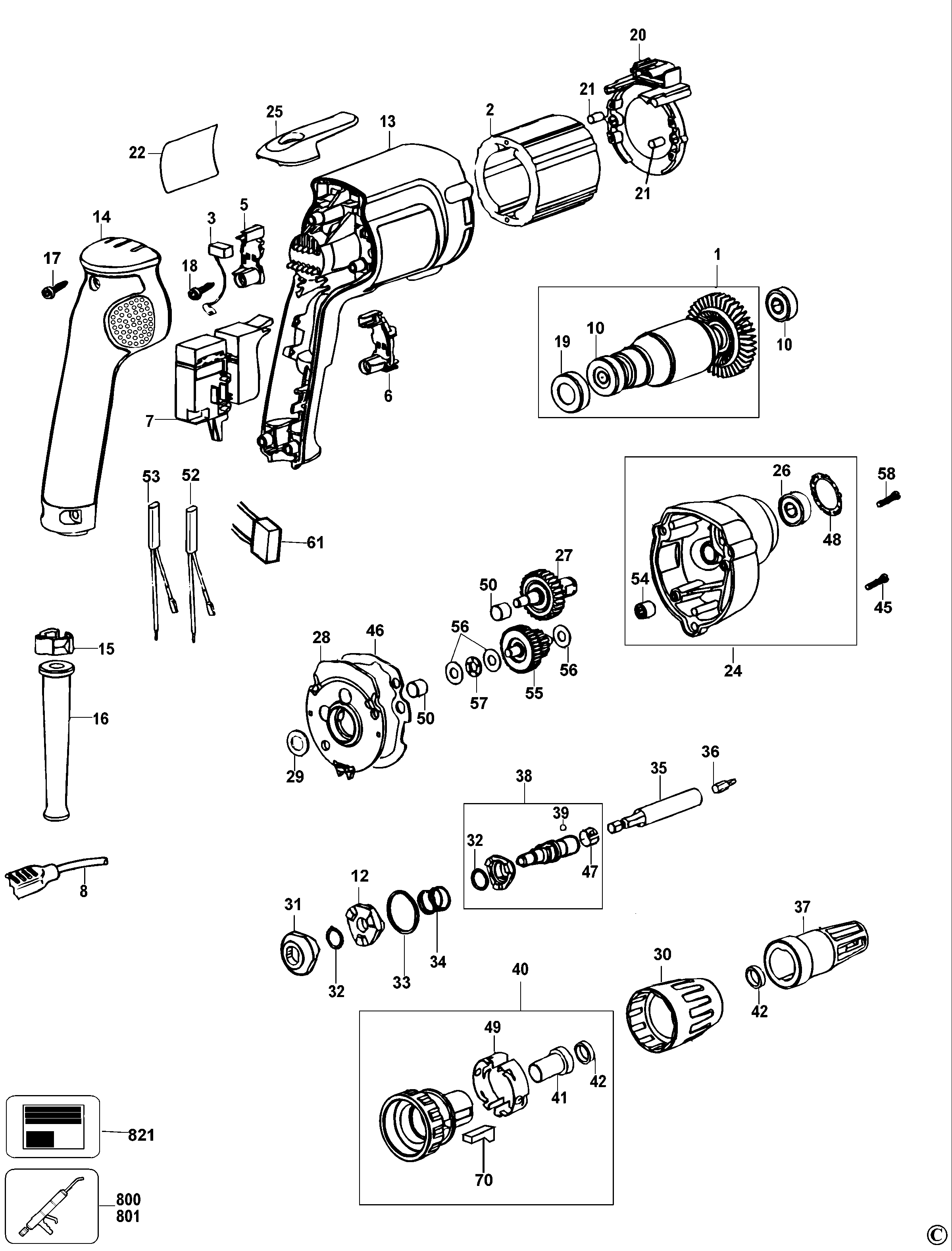

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SA ARMATURE & BEARING 240 SERVICE ) (579598-13) 28296 RON
2 1 1 SA FIELD DIPPED ( SERVICE ) (579758-02) 40599 RON
2 1 1 SA FIELD DIPPED (SERVICE) (1005527-05) 28296 RON
3 1 2 BRUSH 230V CUT OFF (176949-00) 2347 RON
5 1 1 390004-00 - Indisponibil
6 1 1 390003-00 - Indisponibil
7 1 1 SWITCH REWORKED (580964-00) 20467 RON
7 1 1 SA SWITCH 230V (494635-01) 17335 RON
10 1 2 330003-04 - Indisponibil
10 1 2 BEARING BALL cod vechi 330003-04 BEARING BALL (605040-06) 1452 RON
12 1 1 CLUTCH INTERMEDIATE (386303-00) 6821 RON
13 1 1 FIELD CASE (MOULD) (N014399) 5591 RON
13 1 1 FIELD CASE (396969-12) 6821 RON
14 1 1 COVER HANDLE HOLE 35 (176816-03) 1891 RON
15 1 1 CORD CLAMP (402649-00) 558 RON
16 1 1 N542553 - Indisponibil
16 1 1 PROTECTOR CORD (330005-01) 105 RON
16 1 1 CORD PROTECTOR (N918736) 668 RON
17 1 1 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
18 1 1 SCREW PLSTC THD FROM M4X12 T20 (330065-06) 558 RON
19 1 1 RUBBER BOOT (389824-00) 558 RON
20 1 1 FAN BAFFLE (176811-00) 781 RON
21 1 3 SMALL RUBBER (949638-02) 558 RON
22 1 1 LABEL IDENTITY DEWALT 34*48 (395047-00) 558 RON
24 1 1 GEARCASE (176706-00) 10512 RON
24 1 1 GEARCASE (176706-00SV) 10512 RON
25 1 1 CLIP BELT (176856-00) 1452 RON
25 1 1 CLIP BELT (657655-00) 1452 RON
25 1 1 BELT CLIP (N045425) 1452 RON
26 1 1 BEARING BALL (330003-09) 2795 RON
26 1 1 Ball Brg (605040-20) 2182 RON
27 1 1 SPINDLE & GEAR (176708-00SV) 15993 RON
27 1 1 SA SPINDLE & GEAR (176708-00) 12861 RON
28 1 1 COVER GEARCASE (388761-00) 4137 RON
29 1 1 23813-00 - Indisponibil
29 1 1 WASHER (023813-00) 781 RON
30 1 1 COLLAR ADJUSTING (152492-01) 3466 RON
31 1 1 CLUTCH DRIVE (392829-00) 2347 RON
32 1 2 RETAINER (089210-00) 558 RON
32 1 2 89210-00 - Indisponibil
33 1 1 WASHER THRUST PM (386304-00) 781 RON
34 1 1 SPRING COMPRESSION (176842-00) 558 RON
35 1 1 HOLDER BARREL (393090-00) 3466 RON
35 1 1 HOLDER BIT TIP MAG. (619773-02) 2795 RON
36 1 1 BIT TIP DRYWALL (390696-00) 781 RON
36 1 1 BIT SCDR DRYWALL PR2 (607904-22) 558 RON
37 1 1 SA LOCATOR (450770-02) 5591 RON
37 1 1 LOCATOR (450770-02SV) 16689 RON
38 1 1 SA SPINDLE & CLUTCH (381497-00) 14315 RON
38 1 1 SA SPINDLE & CLUTCH ( SERVICE ) (381497-03) 1891 RON
39 1 1 BALL STEEL (696631-00) 558 RON
40 1 1 CLUTCH SA (176632-00) 11519 RON
40 1 1 CLUTCH SA (N740053) 5370 RON
41 1 1 BEARING SLEEVE (450907-00) 1117 RON
42 1 1 SEAL SHAFT (696534-00) 105 RON
45 1 3 SCREW (330019-14) 558 RON
46 1 1 GASKET (176655-00) 558 RON
47 1 1 BALL RETAINER (094518-00) 558 RON
47 1 1 94518-00 - Indisponibil
48 1 1 RETAINER BEARING (176689-00) 558 RON
49 1 2 SPRING DETENT (391436-00) 558 RON
50 1 2 BEARING NEEDLE 6 * 10 * 9 (910560) 1229 RON
52 1 1 SA CHOKE ASSEMBLY (580555-00) 190 RON
53 1 1 SA CHOKE ASSEMBLY (580555-01) 190 RON
54 1 1 BEARING DW226 (93129-00) 1117 RON
55 1 1 SPINDLE & GEAR (176731-00SV) 15993 RON
55 1 1 SA PINION & GEAR (176731-00) 12861 RON
56 1 2 WASHER THRUST (176732-00) 558 RON
57 1 1 BEARING THRUST (143079-00) 781 RON
58 1 2 SCREW PLASTIC THD FORM M4*38 T20 (330019-16) 558 RON
61 1 1 "CAPACITOR 0 22""" (949877-01) 1117 RON
70 1 1 plug dw274kn (390437-00) 2347 RON
70 1 1 PLUG (390437-01) 3466 RON
800 1 1 GREASE MOLYCOTE G68 100 GRAM TUBE (808386-00) 46863 RON
800 1 1 GREASE 100 GM TUBE (575762-02) 5031 RON
801 1 1 GREASE TUBE 100ML RENOLIT PARAGON EP (870889-02) 4472 RON
821 1 1 RATING PLATE DeWALT BLANK (569037-00) 105 RON
