SURUBELNITA DEWALT DW253 Type 1
[DW253 Type 1]
SURUBELNITA DEWALT DW253 Type 1
Click pentru a mari
Imagini suplimentare
SURUBELNITA DEWALT DW253 Type 1
Click pentru a mari

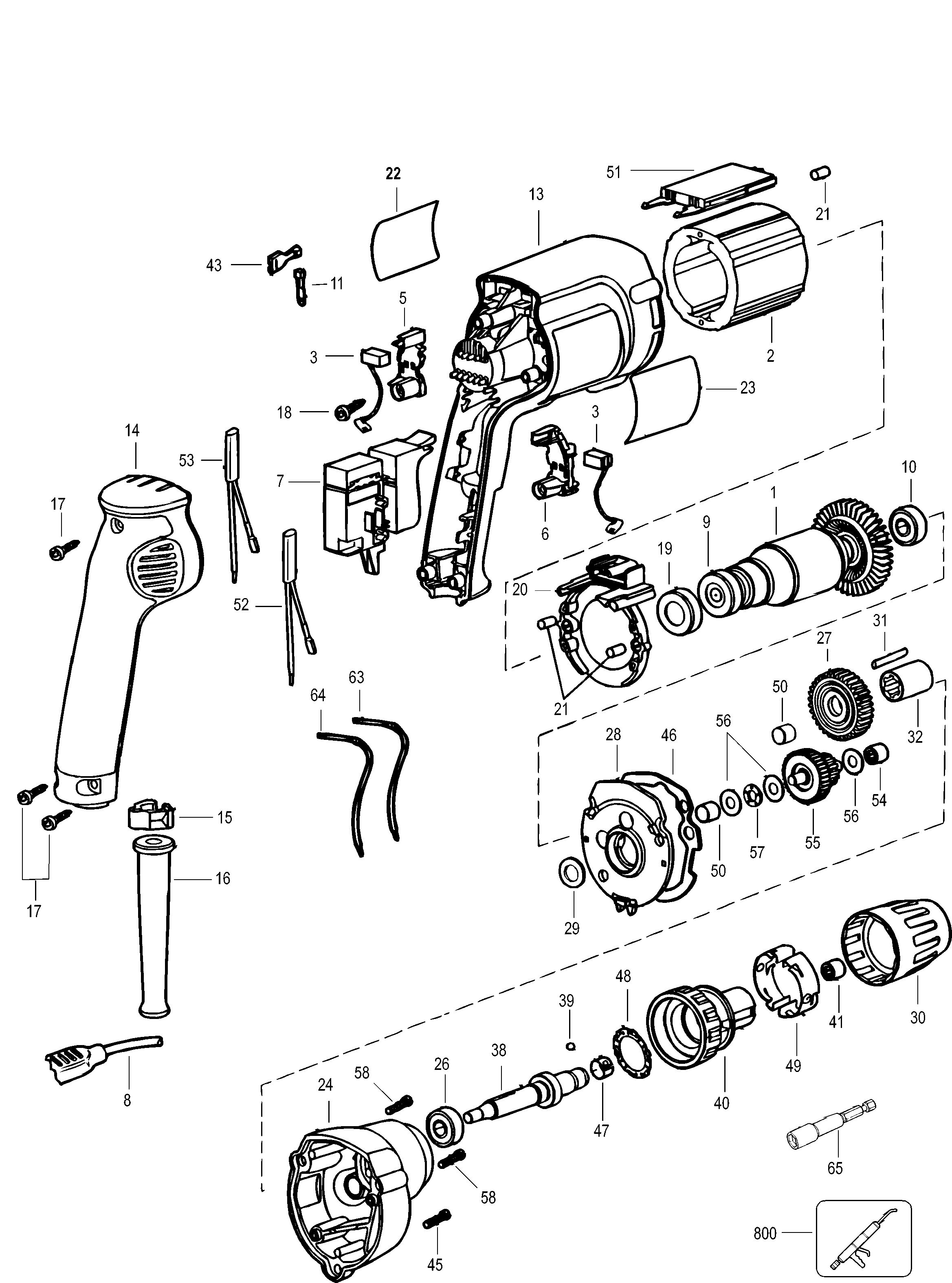

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 ARMATURE & FAN (176853-01SV) 22144 RON
1 1 1 176853-00 - Indisponibil
1 1 1 ARMATURE (176853-01) 29862 RON
2 1 1 FIELD 230V (176849-01SV) 15993 RON
2 1 1 FIELD (176849-00) 10512 RON
2 1 1 FIELD (176849-01) 12861 RON
3 1 2 BRUSH 230V CUT OFF (176949-00) 2347 RON
5 1 1 SA BRUSH HOLDER LEFT (176801-03) 7940 RON
6 1 1 SA BRUSH HOLDER RIGHT (176800-03) 6821 RON
8 1 1 CORD PWR SPLY EURO (330120-86) 7940 RON
8 1 1 CORD PWQR SUPPLY 115V (330061-14) 1891 RON
8 1 1 CORD PWR SPLY EURO (330080-39) 14315 RON
9 1 1 BEARING (176950-00) 2124 RON
9 1 1 330003-04 - Indisponibil
9 1 1 BEARING BALL cod vechi 330003-04 BEARING BALL (605040-06) 1452 RON
10 1 1 BEARING (176950-00) 2124 RON
10 1 1 330003-04 - Indisponibil
10 1 1 BEARING BALL cod vechi 330003-04 BEARING BALL (605040-06) 1452 RON
11 1 2 TERMINAL (449192-00) 558 RON
13 1 1 176815-04 - Indisponibil
13 1 1 429969-04 - Indisponibil
14 1 1 COVER HANDLE HOLE 35 (176816-03) 1891 RON
14 1 1 HANDLE COVER (176898-01) 7940 RON
15 1 1 CORD CLAMP (402647-00) 781 RON
15 1 1 CORD CLAMP (402649-00) 558 RON
15 1 1 176832-00 - Indisponibil
16 1 1 N542553 - Indisponibil
16 1 1 PROTECTOR CORD (330005-01) 105 RON
16 1 1 CORD PROTECTOR (N918736) 668 RON
17 1 3 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
18 1 2 SCREW (176951-00) 558 RON
19 1 1 SLEEVE (949721-03) 781 RON
20 1 1 FAN BAFFLE (176811-00) 781 RON
21 1 3 SMALL RUBBER (949638-02) 558 RON
22 1 1 BRAND LABEL (149474-00) 781 RON
22 1 1 LABEL IDENTITY DEWALT 34*48 (395047-00) 558 RON
24 1 1 GEARCASE (176706-00) 10512 RON
24 1 1 GEARCASE (176706-00SV) 10512 RON
26 1 1 BEARING BALL (330003-09) 2795 RON
26 1 1 Ball Brg (605040-20) 2182 RON
27 1 1 GEAR OUTPUT (176639-00) 6821 RON
28 1 1 COVER GEARCASE (388761-00) 4137 RON
29 1 1 23813-00 - Indisponibil
29 1 1 WASHER (023813-00) 781 RON
30 1 1 176728-01 - Indisponibil
31 1 1 PIN (099227-05) 558 RON
31 1 1 99227-05 - Indisponibil
32 1 1 SPACER (176691-01) 781 RON
39 1 1 BALL STEEL (696631-00) 558 RON
40 1 1 SA CLUTCH HOUSING (SERVICE) (N543023) 10241 RON
40 1 1 176632-03 - Indisponibil
40 1 1 HOUSING (176632-01) 12861 RON
41 1 1 BEARING SLEEVE (448848-00) 3018 RON
43 1 1 TERMINAL (136086-02) 558 RON
45 1 1 SCREW (330019-14) 558 RON
46 1 1 GASKET (176655-00) 558 RON
47 1 1 BALL RETAINER (094518-00) 558 RON
47 1 8 94518-00 - Indisponibil
48 1 1 RETAINER BEARING (176689-00) 558 RON
49 1 1 152494-00 - Indisponibil
49 1 1 SPRING DETENT (391436-00) 558 RON
50 1 2 NEEDLE BEARING (093128-00) 1229 RON
50 1 2 93128-00 - Indisponibil
51 1 1 SA MODULE SUPPRESSION (176917-00) 12861 RON
52 1 1 LEAD WHITE (176890-00) 2124 RON
53 1 1 LEAD RED (176890-01) 3466 RON
54 1 1 BEARING DW226 (93129-00) 1117 RON
55 1 1 SA PINION & GEAR (176647-00) 9282 RON
55 1 1 GEAR & PINION SA (176647-00SV) 17335 RON
56 1 3 WASHER THRUST (176732-00) 558 RON
57 1 1 BEARING THRUST (143079-00) 781 RON
58 1 2 SCREW PLASTIC THD FORM M4*38 T20 (330019-16) 558 RON
63 1 1 SA LEAD WIRE (176834-00) 893 RON
64 1 1 SA LEAD WIRE (176893-00) 105 RON
65 1 1 NUTSETTER MAGNETIC 1/4 (364262-04) 2124 RON
65 1 1 NUT SETTER MAGNETIC (364262-01) 3466 RON
65 1 1 HOLDER BIT (341420-01) 5591 RON
800 1 1 761995-00 - Indisponibil
800 1 1 GREASE TUBE 100ML RENOLIT PARAGON EP (870889-02) 4472 RON
800 1 1 GREASE (761995-01) 23598 RON
