Top » Piese de schimb » PIESE DEWALT » DE7023 Type 1

SUPORT DE PICIOARE DEWALT DE7023 Type 1
[DE7023 Type 1]
SUPORT DE PICIOARE DEWALT DE7023 Type 1
Click pentru a mari
Imagini suplimentare
SUPORT DE PICIOARE DEWALT DE7023 Type 1
Click pentru a mari
SUPORT DE PICIOARE DEWALT DE7023 Type 1
Click pentru a mari

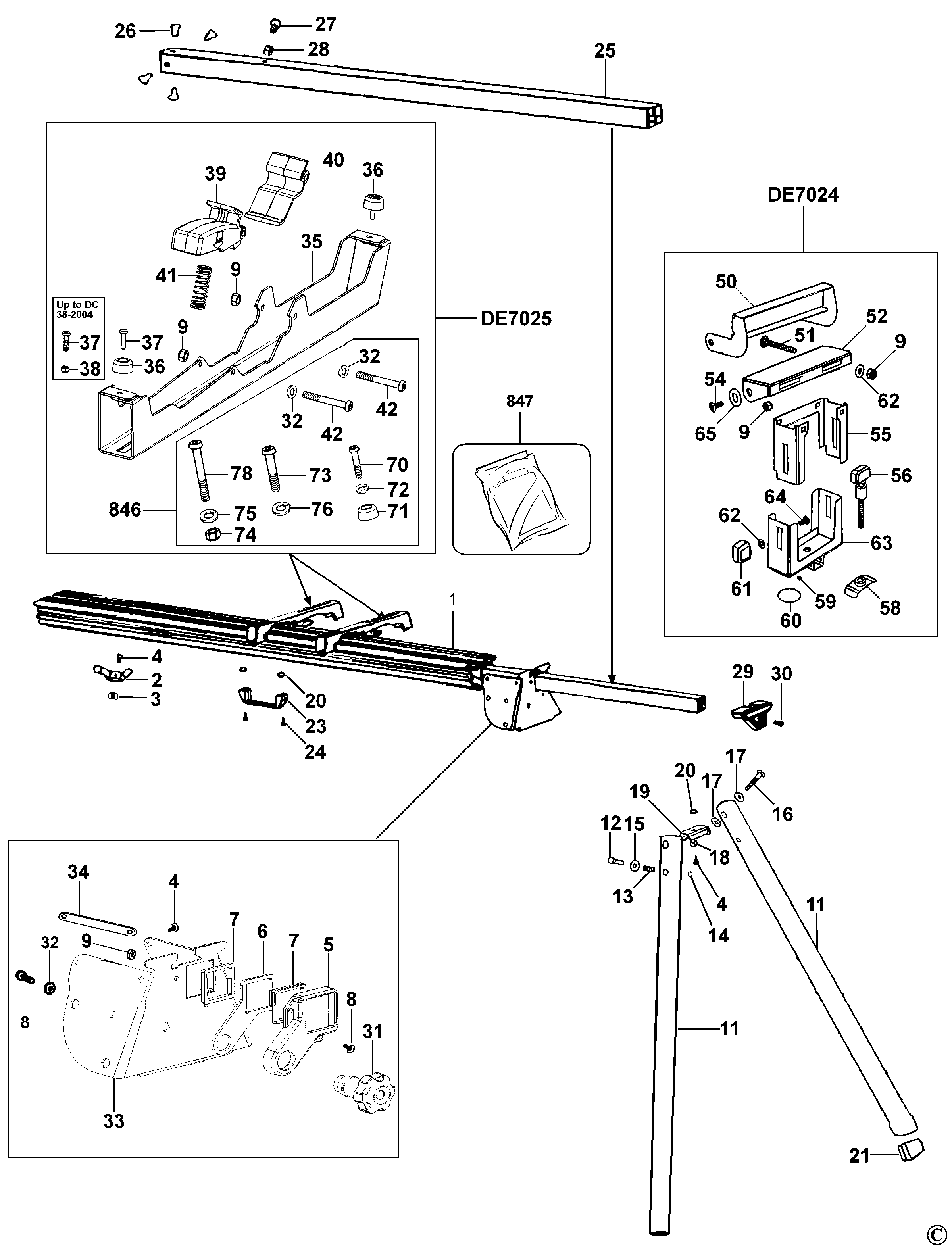

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 BEAM (590880-00) 9736 RON
2 1 1 CLIP (590881-00) 1452 RON
3 1 1 NUT (590882-00) 1117 RON
4 1 11 SCREW (330045-31) 781 RON
4 1 11 SCREW (590872-03) 558 RON
5 1 2 CASTING (590883-00) 3018 RON
5 1 2 CASTING SA (590883-10) 6821 RON
5 1 2 CASTING (590883-01) 5591 RON
5 1 2 CASTING (590883-03) 5031 RON
5 1 2 REPAIR KIT (1004566-00) 23598 RON
6 1 2 PLATE LOCK (N087196) 4137 RON
6 1 2 PLATE LOCK (590884-00) 3466 RON
7 1 4 GUIDE (N087198) 1452 RON
7 1 4 FRAME (590885-00) 781 RON
8 1 6 SCREW (590872-01) 558 RON
9 1 16 NUT (744628) 558 RON
9 1 16 "NUT 6KT M6 ISO7040""" (330021-01) 2347 RON
11 1 4 LEG (590886-00) 12861 RON
12 1 4 REPAIR KIT (1004587-00) 2347 RON
12 1 4 PIN (590887-00) 1117 RON
13 1 4 SPRING COMPRESSION (658120-00) 893 RON
13 1 4 SPRING (744149) 558 RON
14 1 4 REPAIR KIT (1004587-00) 2347 RON
14 1 4 RING (590874-00) 558 RON
15 1 4 WASHER (590876-00) 105 RON
16 1 4 SCREW (590867-02) 1452 RON
17 1 8 WASHER (590877-01) 558 RON
18 1 4 NUT (725886) 558 RON
19 1 2 BRACKET (590888-00) 2124 RON
20 1 4 NUT (590913-00) 781 RON
20 1 4 NUT (N087199) 781 RON
21 1 4 REPAIR KIT (1004685-77) 3466 RON
21 1 4 FOOT (590889-00) 2124 RON
23 1 1 HANDLE (590890-00) 5591 RON
24 1 2 SCREW (591040-00) 1452 RON
25 1 2 ARM (590891-00) 25164 RON
25 1 2 EXTENSION (N087325) 42277 RON
26 1 8 CAP (590893-00) 558 RON
27 1 2 SCREW (591092-00) 893 RON
28 1 4 WASHER (725115) 558 RON
29 1 2 END CAP (590894-00) 4472 RON
29 1 2 END CAP (590894-01) 6821 RON
29 1 2 END CAP (N087251) 25164 RON
29 1 2 END CAP (1004464-00) 25164 RON
29 1 2 END CAP (590894-02) 20467 RON
29 1 2 END CAP (N576964) 10241 RON
30 1 2 SCREW (590872-04) 558 RON
31 1 2 590895-00 - Indisponibil
31 1 2 REPAIR KIT (1004566-00) 23598 RON
32 1 3 WASHER (725342) 558 RON
33 1 2 BRACKET (590898-00) 12861 RON
33 1 1 BRACKET (590898-01) 11519 RON
33 1 2 BRACKET (590898-05) 15993 RON
33 1 2 BRACKET (590898-10) 22144 RON
34 1 4 PLATE (590899-00) 1788 RON
34 1 4 PLATE (N087205) 2347 RON
35 1 1 1004757-47 - Indisponibil
35 1 2 MOUNTING BRACKET (590900-00) 12861 RON
35 1 2 MOUNTING BRACKET (590900-05) 14315 RON
36 1 4 FOOT (N057926) 781 RON
36 1 4 FOOT (590901-00) 558 RON
37 1 4 RIVET (590532-00) 558 RON
37 1 4 SCREW (590872-00) 558 RON
38 1 4 NUT (590873-00) 558 RON
39 1 2 LEVER KIT (1004445-00) 4472 RON
39 1 2 HANDLE (590902-00) 3466 RON
39 1 2 LEVER KIT (6010262-00) 7940 RON
40 1 2 CLIP (590903-00) 1452 RON
40 1 2 CLEAT (N087369) 2347 RON
41 1 2 SPRING (590904-00) 893 RON
41 1 2 LEVER KIT (1004445-00) 4472 RON
41 1 2 SPRING (591198-00) 5031 RON
41 1 2 LEVER KIT (6010262-00) 7940 RON
42 1 4 SCREW (590872-02) 558 RON
50 1 2 STOP (N087387) 5591 RON
50 1 2 STOP (590909-00) 3466 RON
51 1 4 SCREW (590867-01) 1788 RON
52 1 2 SUPPORT (590908-00) 4137 RON
52 1 2 SUPPORT (590908-01) 4137 RON
54 1 4 SCREW (590872-05) 558 RON
54 1 4 SCREW (N087390) 781 RON
55 1 2 SUPPORT (590907-00) 9282 RON
56 1 2 SCREW (590911-00) 1452 RON
56 1 1 SCREW.SPECIAL (590911-01) 1117 RON
57 1 2 SPACER (590924-00) 558 RON
58 1 2 LOCKING DEVICE (590912-00) 1788 RON
58 1 2 SUPPORT (590912-01) 1117 RON
58 1 2 BAR LOCKING (N087375) 190 RON
59 1 8 CAP (590893-01) 558 RON
59 1 8 PLASTIC INSERT (N087373) 781 RON
60 1 4 CAP (590876-01) 781 RON
61 1 4 NUT (590910-00) 1452 RON
61 1 4 NUT (1004461-00) 1452 RON
61 1 4 KNOB (N087378) 2347 RON
62 1 8 WASHER (880391) 558 RON
63 1 2 BASE (590878-10) 7940 RON
64 1 4 SCREW (590867-03) 893 RON
64 1 4 SCREW (N087380) 893 RON
65 1 1 WASHER (590877-00) 558 RON
65 1 1 WASHER PLASTIC (N087392) 781 RON
70 1 4 SCREW (591128) 781 RON
71 1 4 SPACER (591129) 558 RON
72 1 4 WASHER (743415) 781 RON
73 1 2 BOLT (249406-11) 781 RON
74 1 4 NUT (725187) 781 RON
75 1 4 WASHER (725929) 558 RON
76 1 4 WASHER (590516-00) 558 RON
78 1 4 SCREW (590956-00) 1452 RON
846 1 1 PARTS PACK (590879-00) 4472 RON
846 1 1 PARTS PACK (590879-01) 5591 RON
846 1 1 PARTS PACK (590879-20) 3466 RON
846 1 1 PARTS PACK (N088855) 4472 RON
847 1 1 BOLT KIT FOR ACCESSORY DW707... (868985-00) 2347 RON
