SUPORT PENTRU FIERSTRAU DE MASA DEWALT DWX723 Type 4
[DWX723 Type 4]
SUPORT PENTRU FIERSTRAU DE MASA DEWALT DWX723 Type 4
Click pentru a mari
Imagini suplimentare
SUPORT PENTRU FIERSTRAU DE MASA DEWALT DWX723 Type 4
Click pentru a mari
SUPORT PENTRU FIERSTRAU DE MASA DEWALT DWX723 Type 4
Click pentru a mari

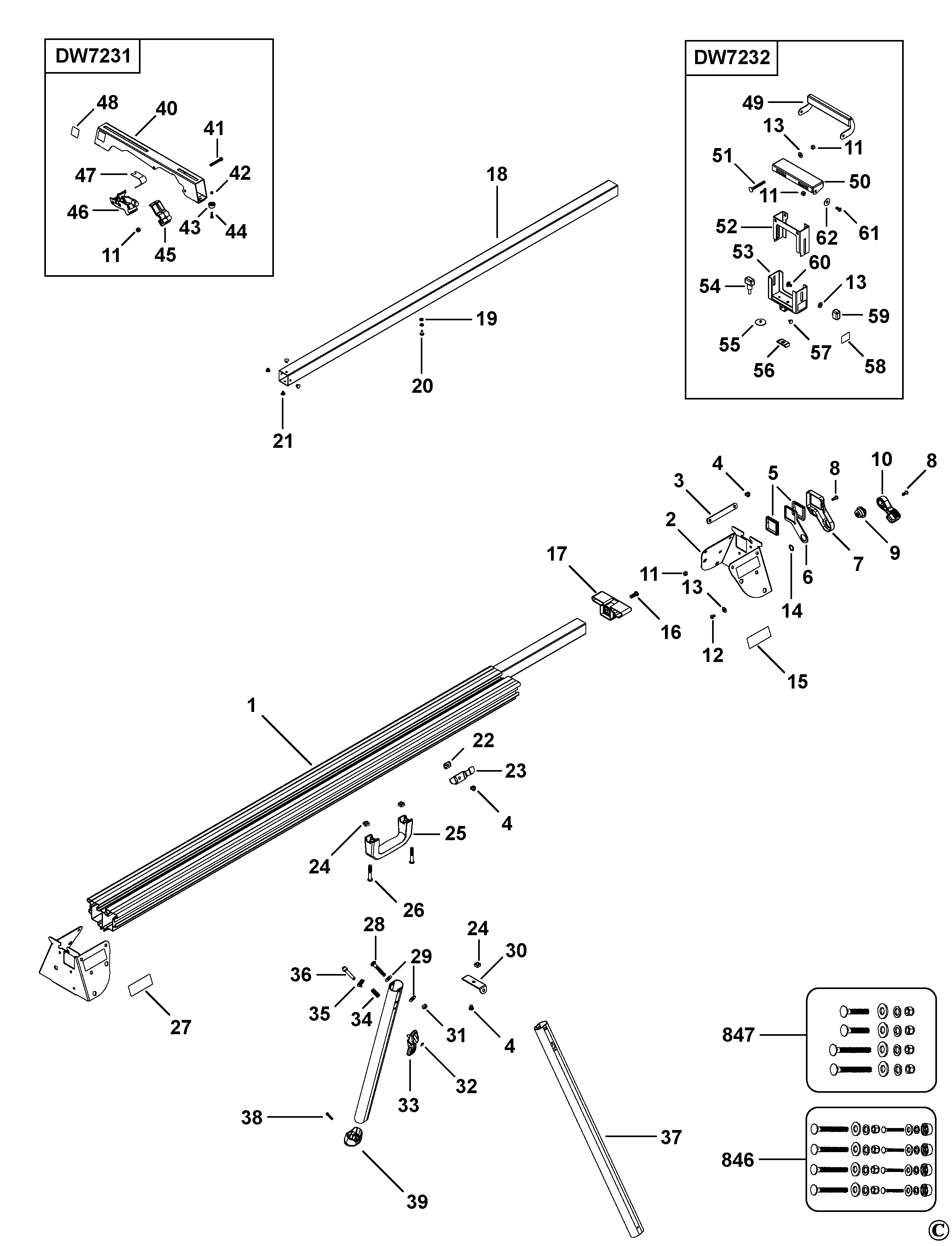

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 BEAM (N439887) 125542 RON
2 1 1 SUPPORT BRACKET (N439882) 12361 RON
3 1 4 PLATE (N087205) 2347 RON
4 1 11 SCREW (330045-31) 781 RON
5 1 4 GUIDE (N087198) 1452 RON
6 1 1 PLATE LOCK (N439896) 3268 RON
7 1 2 COVERPLATE (N576965) 741 RON
7 1 2 COVERPLATE (N087195) 9282 RON
8 1 6 SCREW (N087285) 893 RON
9 1 1 CAM (N439901) 6688 RON
10 1 2 LEVER LOCK (N069240) 4137 RON
11 1 16 "NUT 6KT M6 ISO7040""" (330021-01) 2347 RON
12 1 2 SCREW (N087318) 781 RON
13 1 10 WASHER (N087248) 781 RON
14 1 2 WASHER SPRING (N087200) 781 RON
16 1 2 SCREW (N086604) 105 RON
17 1 2 END CAP (N087251) 25164 RON
17 1 2 END CAP (N576964) 10241 RON
18 1 1 EXTENSION (N439899) 16689 RON
19 1 4 Washer Lock (N087321) 781 RON
20 1 2 SCREW (N087258) 781 RON
21 1 1 PAD (N439894) 82 RON
22 1 1 NUT (N087250) 105 RON
23 1 1 BRACKET (N087127) 3018 RON
24 1 4 NUT (N087199) 781 RON
25 1 1 HANDLE (N087125) 5370 RON
26 1 2 SCREW (N593762) 1772 RON
26 1 2 SCREW X56062-QZ (N087237) 1452 RON
27 1 1 BRAND LABEL (606774-00) 1452 RON
28 1 4 CARRIAGE BOLT (658122-00) 1788 RON
29 1 1 WASHER PLASTIC (657479-00) 781 RON
30 1 2 SUPPORT BRACKET (N087284) 3018 RON
31 1 4 Stop Nut M8 (330021-02) 558 RON
32 1 4 RING (658121-00) 781 RON
33 1 4 LEVER LOCK (N041876) 6821 RON
34 1 4 SPRING COMPRESSION (658120-00) 893 RON
35 1 4 WASHER PLASTIC (657478-00) 781 RON
36 1 1 LOCK PIN (N439891) 2796 RON
37 1 1 LEG (N439892) 9012 RON
38 1 4 SCREW PLASTITE (330019-32) 558 RON
39 1 4 FOOT (N074647) 2795 RON
40 1 2 MOUNTING BRACKET (N087331) 15993 RON
41 1 4 SCREW (N087342) 893 RON
42 1 4 NUT (330021-00) 558 RON
43 1 4 FOOT (N057926) 781 RON
44 1 4 SCREW METAL THD FRM M4X16 T20 (330045-06) 558 RON
45 1 2 CLEAT (N087369) 2347 RON
46 1 2 LEVER RELEASE (N087367) 9282 RON
47 1 2 LEAF SPRING (N087366) 3018 RON
49 1 2 STOP (N087387) 5591 RON
50 1 2 SUPPORT (N087381) 6821 RON
51 1 4 CARRIAGE BOLT (N087382) 105 RON
52 1 2 SUPPORT BRACKET (N087377) 9282 RON
53 1 2 BASE BRACKET (N087402) 14315 RON
54 1 2 KNOB (N087376) 2347 RON
55 1 4 PLASTIC INSERT (N087374) 781 RON
56 1 2 BAR LOCKING (N087375) 190 RON
57 1 8 PLASTIC INSERT (N087373) 781 RON
59 1 4 KNOB (N087378) 2347 RON
60 1 4 SCREW (N087380) 893 RON
61 1 4 SCREW (N087390) 781 RON
62 1 4 WASHER PLASTIC (N087392) 781 RON
846 1 1 PARTS PACK (N088854) 11519 RON
847 1 1 N087409 - Indisponibil
