Top » Piese de schimb » PIESE DEWALT » DCM572 Type 1

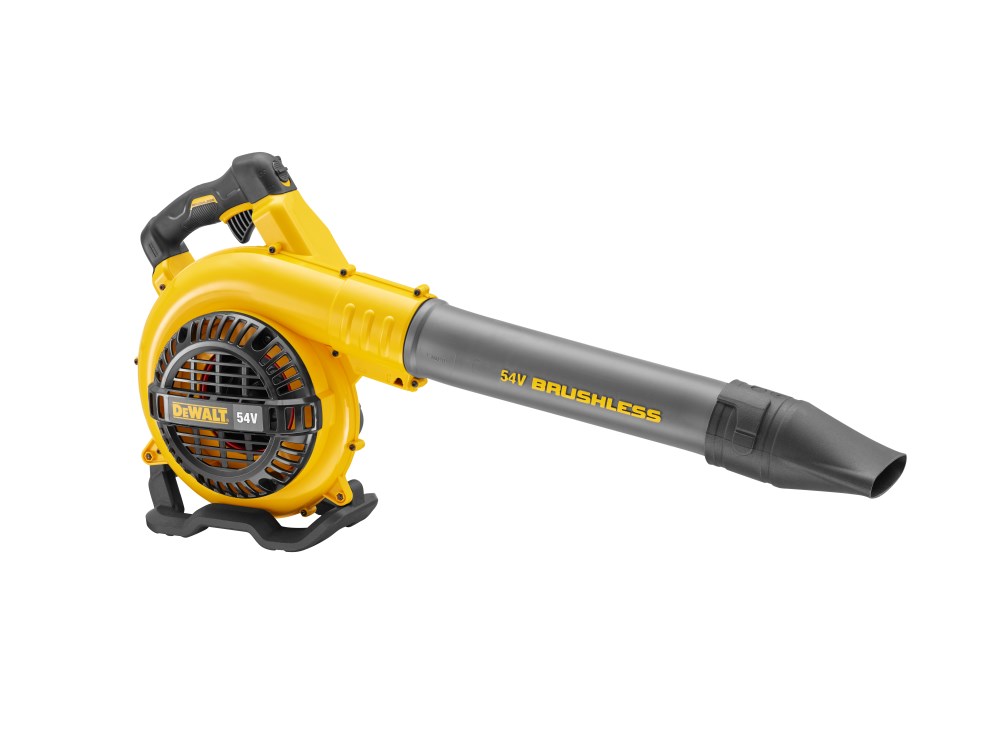

SUFLANTA VAC DEWALT DCM572 Type 1
[DCM572 Type 1]
SUFLANTA VAC DEWALT DCM572 Type 1
Click pentru a mari
Imagini suplimentare
SUFLANTA VAC DEWALT DCM572 Type 1
Click pentru a mari
SUFLANTA VAC DEWALT DCM572 Type 1
Click pentru a mari

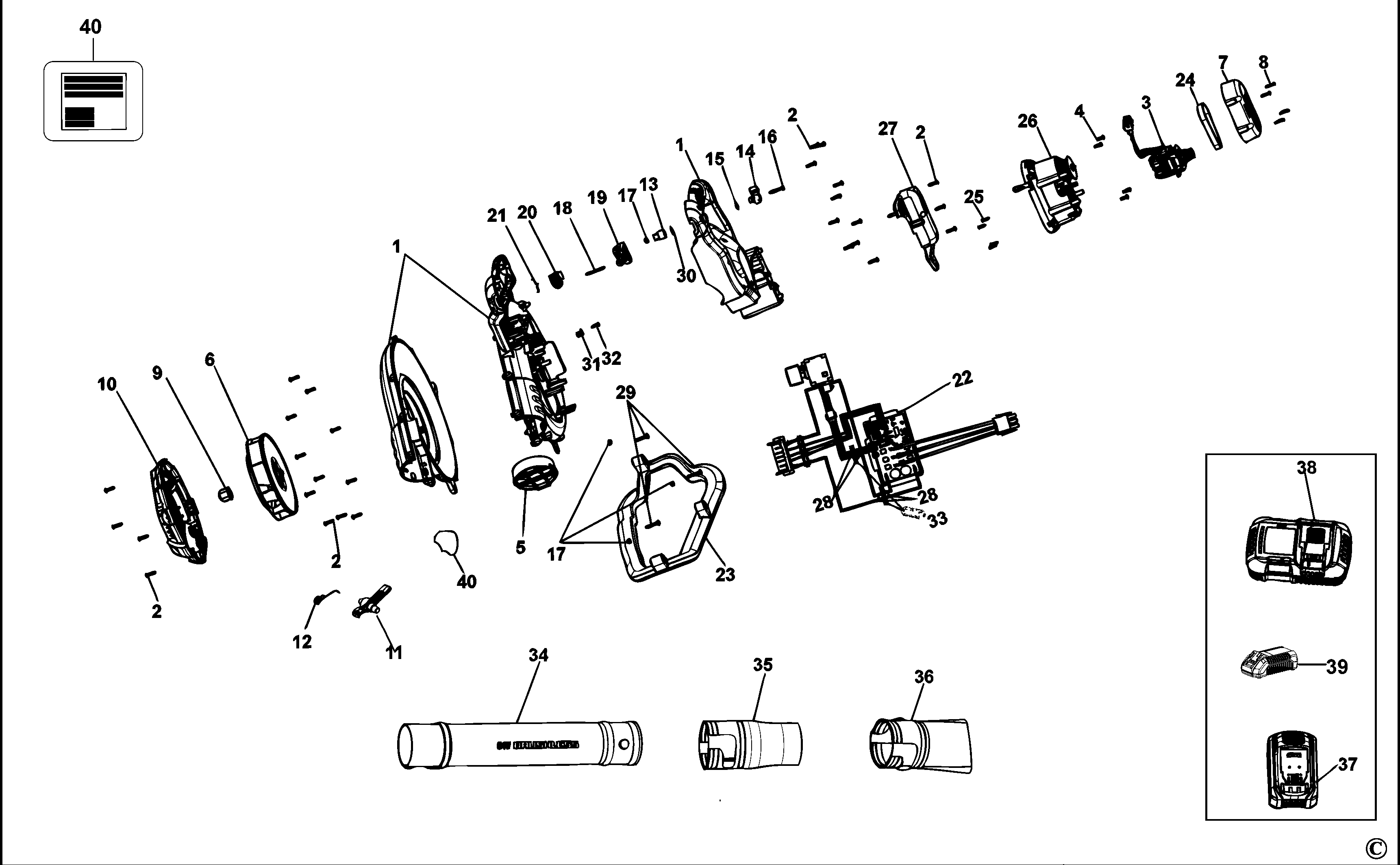

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HOUSING (90632092) 38463 RON
2 1 28 SCREW (90611830) 588 RON
3 1 1 MOTOR (90632027) 33797 RON
4 1 4 SCREW (90611829) 588 RON
5 1 1 GRILL (90638746) 944 RON
6 1 1 FAN SA (90614555) 741 RON
7 1 1 BELT COVER (90631881) 2556 RON
8 1 4 SCREW (90611828) 588 RON
9 1 1 LOCK-NUT (90556361) 82 RON
10 1 1 COVER (90639117) 3954 RON
11 1 1 CLIP (90605748) 588 RON
12 1 1 SPRING TORSION (90609997) 588 RON
13 1 1 CAM (90605734) 588 RON
14 1 1 ACTUATOR (90605686) 588 RON
15 1 1 WASHER THRUST (90608646) 588 RON
15 1 1 WASHER THRUST (NA314339) 588 RON
16 1 1 SCREW (90611827) 588 RON
17 1 4 ad225 (90610773) 588 RON
18 1 1 PIN (90614091) 588 RON
19 1 1 TRIGGER (90605685) 944 RON
20 1 1 SWITCH (90610298) 588 RON
21 1 1 SPEED SELECTOR DETENT SPRING (N014681) 558 RON
22 1 1 MODULE (N773508) 60451 RON
22 1 1 90632660 - Indisponibil
23 1 1 FOOT (90628769) 5370 RON
24 1 1 BELT (90611527) 2796 RON
25 1 4 SCREW (330019-28) 588 RON
26 1 1 GEAR CASE SA (N510859) 10241 RON
27 1 1 BATTERY COVER (90631883) 2556 RON
28 1 4 492141-00 - Indisponibil
29 1 3 SCREW (90638101) 588 RON
30 1 1 SPRING (90605688) 588 RON
31 1 1 CLIP (90611771) 588 RON
32 1 1 SCREW (330019-31) 588 RON
33 1 1 SENSOR (392023-01) 588 RON
34 1 1 TUBE (90637421) 12361 RON
35 1 1 TOOL (90632659) 3954 RON
36 1 1 TOOL (90634619) 3954 RON
37 1 1 XR FLEXVOLT 9.0Ah Battery (N491552) 176482 RON
38 1 1 CHARGER QW (N473860) 73079 RON
39 1 1 SAFETY CAP (N462141) 5370 RON
40 1 1 90635810 - Indisponibil
40 1 1 RATING LABEL (NA030081) 944 RON
