Top » Piese de schimb » PIESE DEWALT » DCMBBL800N Type 1

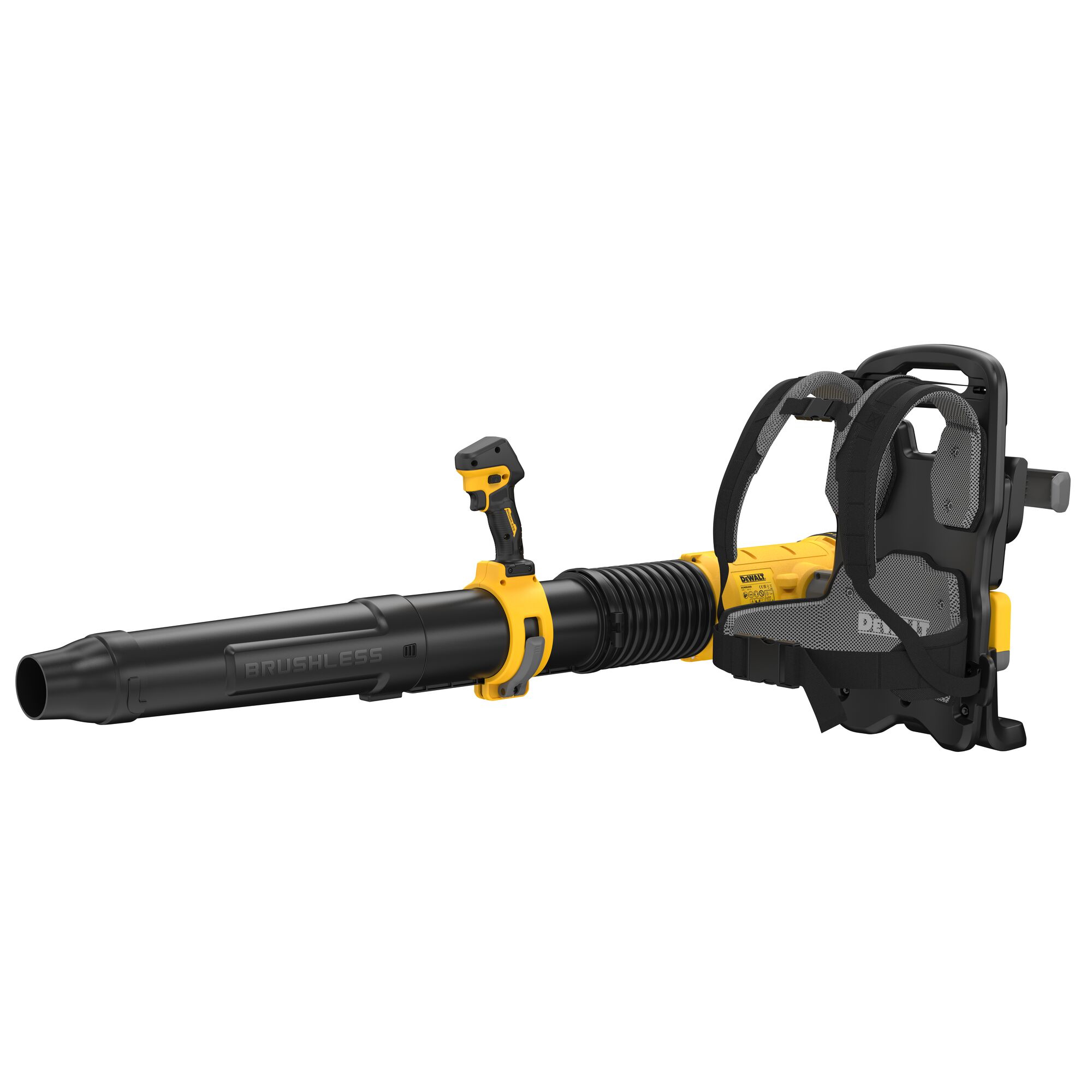

SUFLANTA RUCSAC DEWALT DCMBBL800N Type 1
[DCMBBL800N Type 1]
SUFLANTA RUCSAC DEWALT DCMBBL800N Type 1
Click pentru a mari
Imagini suplimentare
SUFLANTA RUCSAC DEWALT DCMBBL800N Type 1
Click pentru a mari
SUFLANTA RUCSAC DEWALT DCMBBL800N Type 1
Click pentru a mari
SUFLANTA RUCSAC DEWALT DCMBBL800N Type 1
Click pentru a mari

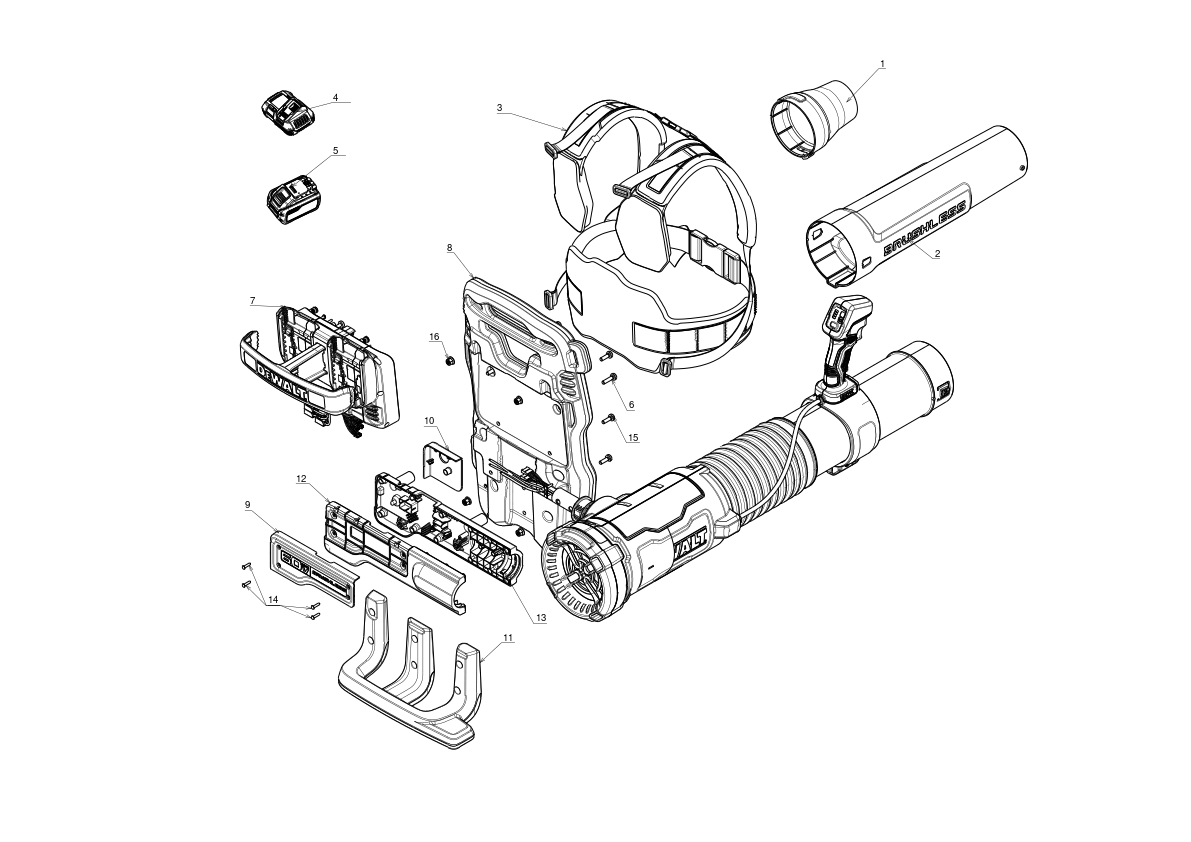

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 NOZZLE BLOWER (NA425369) 3268 RON
2 1 1 BLOW TUBE SA (NA498590) 10241 RON
3 1 1 HARNESS (NA571350) 32327 RON
4 1 2 DCB118-QW - Indisponibil
5 1 2 DCB548-XJ - Indisponibil
6 1 8 SCREW-M6 25 (NA817997) 588 RON
7 1 1 NB405554 - Indisponibil
8 1 1 BACKPLATE (NA421955) 15469 RON
8 1 1 NB437184 - Indisponibil
9 1 1 COVER-FASCIA FRONT (NA573323) 2556 RON
10 1 1 COVER-FASCIA REAR (NA472153) 1630 RON
11 1 1 STAND (NA512194) 12361 RON
12 1 1 COVER-ARM MOUNT FRONT (NA421762) 741 RON
13 1 1 NB405918 - Indisponibil
14 1 4 SCREW (90611830) 588 RON
15 1 12 SCREW (604410-00) 558 RON
16 1 10 NUT-M6X1 NYLON INSERT (NA564857) 588 RON
17 1 1 TUBE-GRIP TUBE (NA497457) 3268 RON
18 1 1 TUBE-FLEX TUBE (NA425374) 6688 RON
19 1 1 ROD-CANTILEVER ROD (NA422352) 2796 RON
20 1 1 SLEEVE-NYLON SLEEVE (NA422353) 1933 RON
21 1 1 GRILLE (NA298876) 6688 RON
22 1 1 INTAKE (NA291204) 4355 RON
23 1 1 HOUSING SA (NA419831) 3954 RON
24 1 1 NB405586 - Indisponibil
25 1 1 RETAINER (NA875701) 82 RON
27 1 1 COLLAR (NA427063) 2796 RON
28 1 1 NB405590 - Indisponibil
29 1 1 NB405619 - Indisponibil
30 1 1 CLAMP CORD CORNER (329301-00) 558 RON
31 1 1 CAP (N261987) 588 RON
32 1 1 LOCK BUTTON (NA512272) 114 RON
33 1 1 SPRING (NA213502) 588 RON
34 1 1 LEVER (NA532312) 1630 RON
35 1 1 PIN-PIVOT PIN (NA543904) 1772 RON
36 1 1 SCREW-M5X40 (NA567294) 588 RON
37 1 1 COVER (N791558) 588 RON
38 1 1 BUTTON (NA255730) 588 RON
39 1 28 SCREW (90611830) 588 RON
40 1 1 LINER-FOAM ASSY SIDE (NA523585) 1630 RON
41 1 1 LINER-FOAM COVER SIDE (NA523586) 1630 RON
42 1 1 CONNECTING WIRE-SA WH MOTOR HALL CONNECT (NA560258) 2182 RON
43 1 4 SCREW PLASTIC (330019-41) 588 RON
44 1 1 CLAMP-HOSE CLAMP (NA531286) 3954 RON
45 1 1 SCREW-M5X25 (NA564870) 588 RON
46 1 1 STRAP-VELCRO STRAP (NA553785) 1933 RON
