Top » Piese de schimb » PIESE DEWALT » DCPS151 Type 1

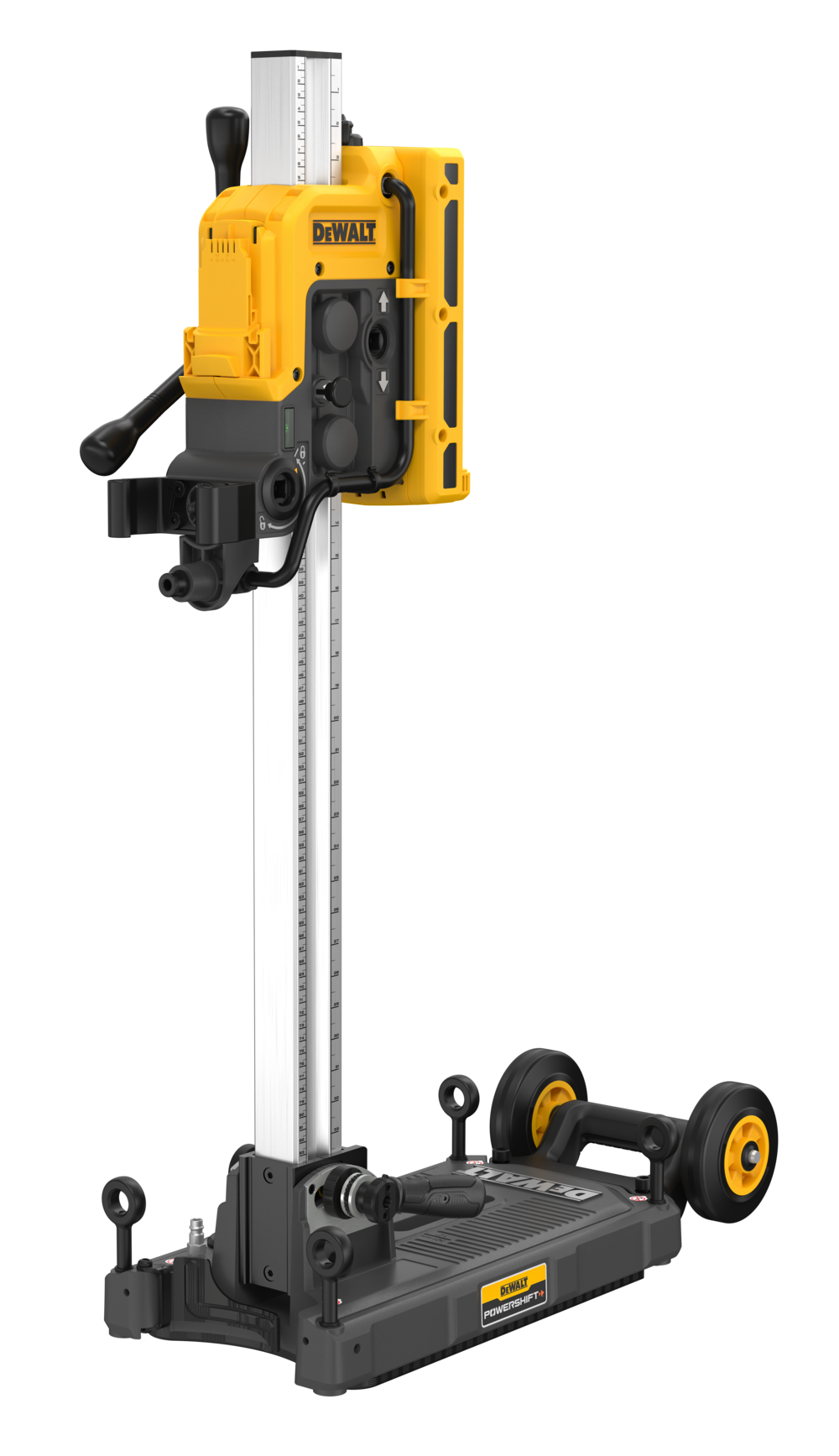

STAND PENTRU GAURIT DEWALT DCPS151 Type 1
[DCPS151 Type 1]
STAND PENTRU GAURIT DEWALT DCPS151 Type 1
Click pentru a mari
Imagini suplimentare
STAND PENTRU GAURIT DEWALT DCPS151 Type 1
Click pentru a mari
STAND PENTRU GAURIT DEWALT DCPS151 Type 1
Click pentru a mari
STAND PENTRU GAURIT DEWALT DCPS151 Type 1
Click pentru a mari
STAND PENTRU GAURIT DEWALT DCPS151 Type 1
Click pentru a mari
STAND PENTRU GAURIT DEWALT DCPS151 Type 1
Click pentru a mari

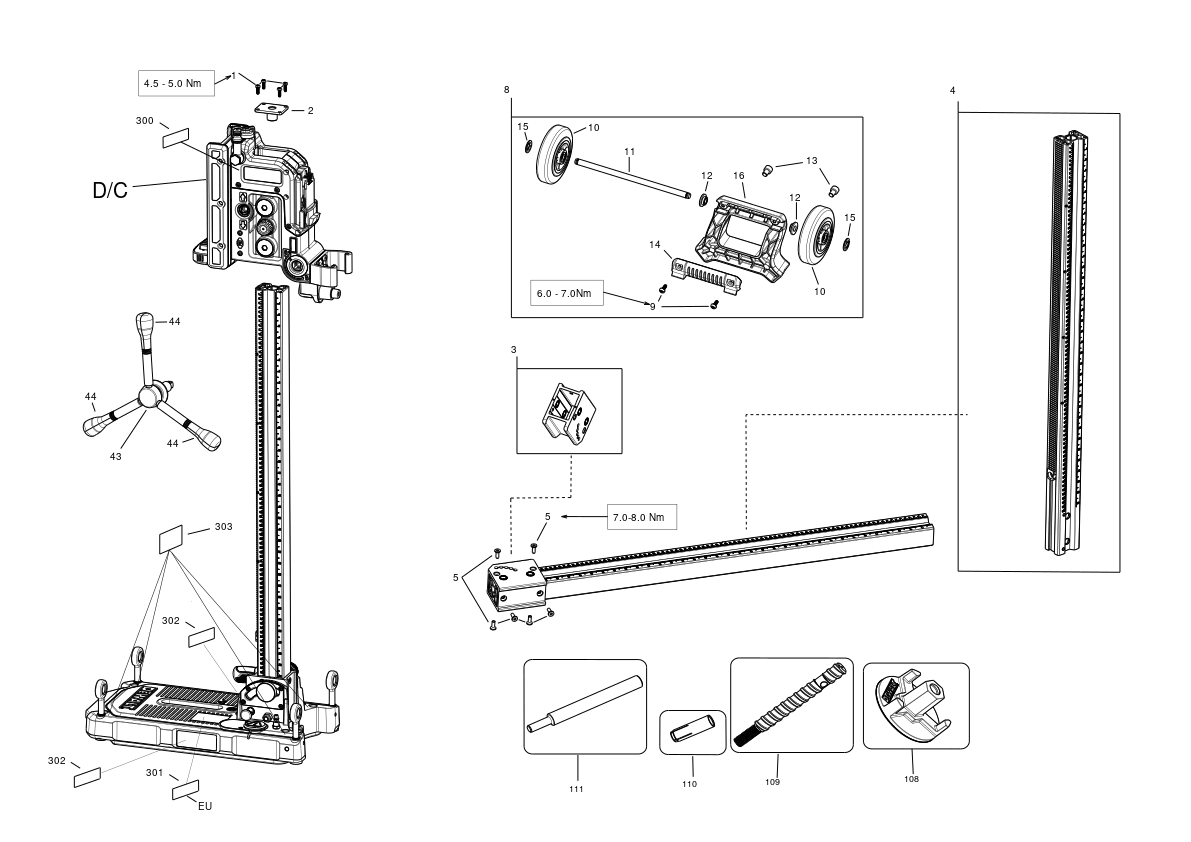

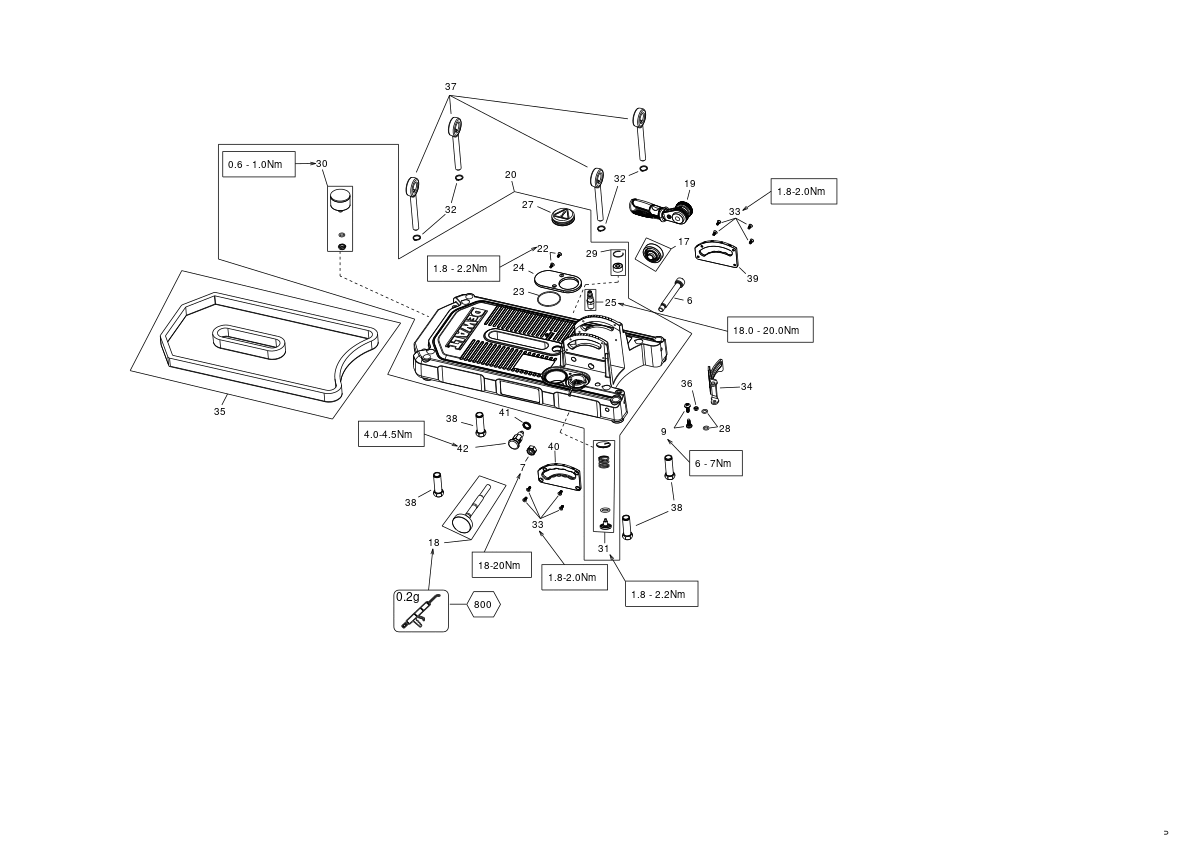

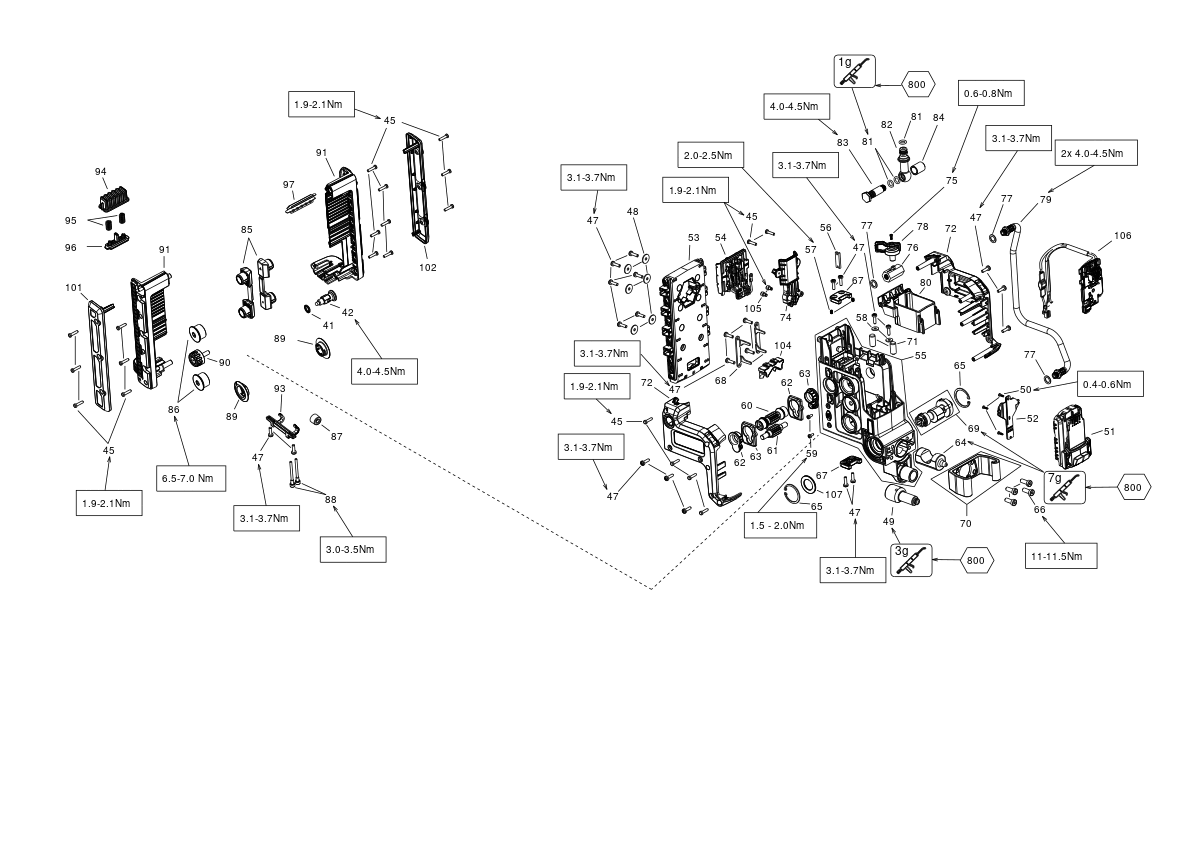

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 4 SCREW (330045-14) 558 RON
2 1 1 COVER (N896914) 18568 RON
3 1 1 SUPPORT SA (NA407815) 33797 RON
4 1 1 COLUMN SA (NA402246) 176482 RON
5 1 6 SCREW (NA200450) 588 RON
6 1 1 BOLT (N919785) 4827 RON
7 1 1 NUT M10 (N919786) 588 RON
8 1 1 WHEEL SA (NA402247) 78485 RON
9 1 4 SCREW (330045-23) 781 RON
10 1 2 WHEEL (N932803) 5370 RON
11 1 1 SHAFT (N932804) 5370 RON
12 1 2 SLEEVE (N932805) 3268 RON
13 1 2 SCREW (N932806) 944 RON
14 1 1 HANDLE COVER (N932807) 13697 RON
15 1 2 RING (NA030702) 668 RON
16 1 1 CASTING (NA043791) 32327 RON
17 1 1 CONNECTOR FEMALE (NA407821) 9012 RON
18 1 1 BOLT PACK (NA407817) 38463 RON
19 1 1 HANDLE SA (NA140350) 40734 RON
20 1 1 BASE SA (NA402248) 29222 RON
22 1 2 SCREW (N569458) 588 RON
23 1 1 O RING (N361499) 781 RON
24 1 1 COVER (N927748) 1933 RON
25 1 1 CONNECTOR (N919777) 741 RON
27 1 1 COVER (NA152554) 1933 RON
28 1 2 O RING (N515556) 944 RON
29 1 1 BASE SA (NA420996) 3954 RON
30 1 1 GAUGE (NA420997) 32327 RON
31 1 1 RELEASE (NA420991) 11337 RON
32 1 4 Ring Retaining (398605-00) 558 RON
33 1 8 SCREW (N569458) 588 RON
34 1 1 INDICATOR (N919776) 11337 RON
35 1 1 SEAL SA (NA421009) 12361 RON
36 1 1 SLEEVE (N927746) 1772 RON
37 1 4 SCREW (NA044360) 11337 RON
38 1 4 NUT (NA071291) 6688 RON
39 1 1 PLATE (NA091027) 20216 RON
40 1 1 PLATE (NA091028) 20216 RON
41 1 2 BUSHING (N378208) 588 RON
42 1 2 LOCKING PIN (NA153953) 12361 RON
43 1 1 SUPPORT SA (NA097790) 55455 RON
44 1 3 HANDLE (NA039417) 741 RON
45 1 21 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
47 1 24 SCREW PAN HEAD M5*18 (324007-11) 558 RON
48 1 6 WASHER FLAT SPEC.5.5X20X1.5 (860075-01) 558 RON
49 1 1 SLIDER (NA120992) 20216 RON
50 1 3 SCREW (N034545) 588 RON
51 1 1 RAIL (NA551653) 2556 RON
52 1 1 CLAMPING INSERT (NA555462) 4827 RON
53 1 1 TOOLBOX (NA526095) 6688 RON
54 1 1 TOOL (NA554425) 32327 RON
55 1 1 CARRIER SA (NA402243) 91363 RON
56 1 1 PAD (NA391490) 588 RON
57 1 2 SCREW (NA026353) 588 RON
58 1 2 WASHER PLAIN (640591-00) 558 RON
59 1 2 SCREW (90572186) 558 RON
60 1 1 SHAFT (NA043255) 12361 RON
61 1 1 SHAFT (NA045359) 741 RON
62 1 2 SUPPORT (NA042683) 2182 RON
63 1 2 GUIDE (NA045926) 2796 RON
64 1 1 SLIDER (NA120990) 20216 RON
65 1 2 CIRCLIP (NA122201) 944 RON
66 1 4 SCREW (NA127999) 2182 RON
67 1 2 GUIDE (NA162166) 2182 RON
68 1 2 PLATE (NA312862) 3268 RON
69 1 1 SHAFT SA (NA402215) 44688 RON
70 1 1 HOLDER SA (NA402213) 46247 RON
71 1 2 PIECE (NA335657) 741 RON
72 1 1 SUPPORT SA (NA158433) 6688 RON
74 1 1 HOLDER (NA553682) 1772 RON
75 1 1 SCREW (N684206) 588 RON
76 1 1 VALVE (N500019) 13697 RON
77 1 3 GASKET (N515876) 588 RON
78 1 1 WHEEL (NA123976) 3954 RON
79 1 1 HOSE SA (NA167341) 27287 RON
80 1 1 CARRIER (NA257829) 5370 RON
81 1 3 O RING (N521031) 588 RON
82 1 1 ADAPTOR (N934348) 15469 RON
83 1 1 VALVE (NA093043) 9012 RON
84 1 1 WASHER (NA155583) 3954 RON
85 1 2 GUIDE (NA044352) 6688 RON
86 1 2 CAP (NA049396) 6688 RON
87 1 1 SEAL (NA066126) 1318 RON
88 1 2 SCREW (NA130035) 668 RON
89 1 2 INDICATOR (NA145961) 1630 RON
90 1 1 LOCKING SCREW (NA154764) 3268 RON
91 1 1 HOUSING SA (NA392453) 28836 RON
93 1 1 CLIP (NA169852) 2556 RON
94 1 1 COVER (NA242554) 668 RON
95 1 2 SPRING (NA242556) 588 RON
96 1 1 PLATE (NA242557) 588 RON
97 1 1 PLATE (NA266283) 1933 RON
101 1 1 COVER (NA323217) 1933 RON
102 1 1 COVER (NA323218) 1933 RON
104 1 1 BEAM (NA497819) 741 RON
105 1 2 SCREW (N442869) 588 RON
106 1 1 MODULE (NA557451) 67932 RON
107 1 1 WASHER (NA497821) 114 RON
108 1 1 NUT (NA370614) 20216 RON
109 1 1 SCREW (NA389886) 10241 RON
110 1 1 BOLT (N344748) 944 RON
111 1 1 RIVET (N345622) 3954 RON
300 1 1 RATING LABEL (NA169464) 588 RON
301 1 1 LABEL (NA169462) 588 RON
302 1 2 LABEL (NA370639) 588 RON
303 1 1 LABEL (NA370640) 588 RON
800 1 1 GREASE TUBE 100ML RENOLIT PARAGON EP (870889-02) 4472 RON
