Top » Piese de schimb » PIESE DEWALT » DCD1623N Type 1

STAND MAGNETIC PENTRU GAURIT DEWALT DCD1623N Type 1
[DCD1623N Type 1]
STAND MAGNETIC PENTRU GAURIT DEWALT DCD1623N Type 1
Click pentru a mari
Imagini suplimentare
STAND MAGNETIC PENTRU GAURIT DEWALT DCD1623N Type 1
Click pentru a mari
STAND MAGNETIC PENTRU GAURIT DEWALT DCD1623N Type 1
Click pentru a mari

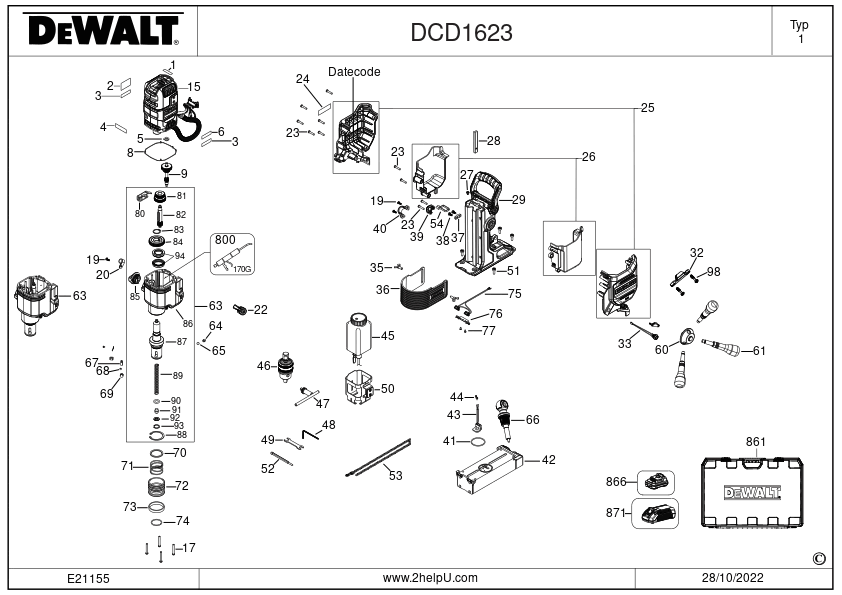

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 LABEL (N882937) 1630 RON
2 1 1 RATING PLATE (NA064119) 3954 RON
3 1 1 LABEL (NA234427) 1630 RON
4 1 1 LABEL (N882938) 1630 RON
5 1 1 WASHER (N695498) 588 RON
6 1 1 BRAND LABEL (NA234426) 3954 RON
8 1 1 GASKET (N870868) 2182 RON
9 1 1 SHAFT SA (NA283086) 38463 RON
15 1 1 MOTOR SWITCH SA (NA283106) 425786 RON
17 1 4 SCREW PLASTIC THD FORM M4*38 T20 (330019-16) 558 RON
19 1 3 SCREW (330019-45) 558 RON
20 1 1 CORD CLAMP (N695455) 82 RON
22 1 1 LEVER (NA283134) 44688 RON
23 1 10 SCREW PLASTITE (330019-32) 558 RON
24 1 1 WARNING LABEL (NA148476) 3268 RON
25 1 1 HOUSING (NA005973) 25728 RON
26 1 1 HOUSING (NA004244) 12361 RON
27 1 1 SCREW (N440478) 588 RON
28 1 1 BLOCK (N695441) 12361 RON
29 1 1 FRAME SA (NA283169) 214180 RON
32 1 1 BLANK COVER AUDIT CHIP (N787996) 588 RON
33 1 1 LED (N849579) 10241 RON
35 1 2 SCREW (N695529) 82 RON
36 1 1 GUARD (N695513) 2182 RON
37 1 1 CORD CLAMP (N506975) 588 RON
38 1 2 SCREW (330045-49) 558 RON
39 1 1 CLAMP (N695571) 944 RON
40 1 1 CORD CLAMP (N873697) 944 RON
41 1 1 O RING (651606-00) 558 RON
42 1 1 BASE SA (NA283551) 518270 RON
43 1 1 MICRO SWITCH (NA286896) 44688 RON
44 1 2 SCREW (330024-00) 558 RON
45 1 1 BOTTLE (N695525) 15469 RON
46 1 1 CHUCK SA (NA282753) 139195 RON
47 1 1 CHUCK KEY (N506331) 2556 RON
48 1 1 WRENCH (NA155984) 1630 RON
49 1 1 WRENCH (NA163561) 1630 RON
50 1 1 FRAME (NA275845) 188451 RON
51 1 4 SCREW (NA117538) 588 RON
52 1 1 PIN (NA136513) 9012 RON
53 1 1 CHAIN (N695515) 21676 RON
54 1 1 CABLE TIE (N408734) 588 RON
60 1 1 WHEELHUB SA (NA286565) 78485 RON
61 1 3 HANDLE (N695509) 5370 RON
63 1 1 GEARCASE SA (NA286572) 356963 RON
64 1 1 DETENT (N695405) 1318 RON
65 1 1 BALL STEEL (N048234) 588 RON
66 1 1 LEVER SA (NA283560) 99395 RON
67 1 2 SPRING (N695402) 588 RON
68 1 2 SCREW (330024-54) 558 RON
69 1 2 DETENT (N695398) 2556 RON
70 1 1 WASHER (N695408) 114 RON
71 1 1 SPRING (N695407) 944 RON
72 1 1 SLEEVE (N695406) 24962 RON
73 1 1 BAND (N695404) 3954 RON
74 1 1 RING (N883234) 588 RON
75 1 1 LED LIGHT (N774924) 5370 RON
76 1 1 CLAMPING BAR (N895103) 944 RON
77 1 2 SCREW (330024-00) 558 RON
80 1 1 SUPPORT PLATE (N917625) 1933 RON
81 1 1 Gear (N823489) 15469 RON
82 1 1 SHAFT SA (NA318265) 51127 RON
83 1 1 RING (N695432) 588 RON
84 1 1 Gear (N695413) 6688 RON
85 1 1 KNOB SA (N926446) 3954 RON
86 1 1 GEARCASE SA (NA318282) 356963 RON
87 1 1 OUTPUT SHAFT SA (NA318288) 125542 RON
88 1 1 CIRCLIP (N538725) 944 RON
89 1 1 SPRING (N695397) 668 RON
90 1 1 O-RING BEAT PIECE (1005809-00) 781 RON
91 1 1 SEAL (N695396) 114 RON
92 1 1 WASHER (N696760) 588 RON
93 1 1 RING (N695394) 588 RON
94 1 2 SEAL (N695392) 2182 RON
98 1 2 SCREW (N831593) 588 RON
800 1 1 GREASE (283484-01) 62298 RON
861 1 1 KITBOX (NA009959) 176482 RON
