Top » Piese de schimb » PIESE DEWALT » DCE800N Type 1

SLEFUITOR DE PERETI DEWALT DCE800N Type 1
[DCE800N Type 1]
SLEFUITOR DE PERETI DEWALT DCE800N Type 1
Click pentru a mari
Imagini suplimentare
SLEFUITOR DE PERETI DEWALT DCE800N Type 1
Click pentru a mari

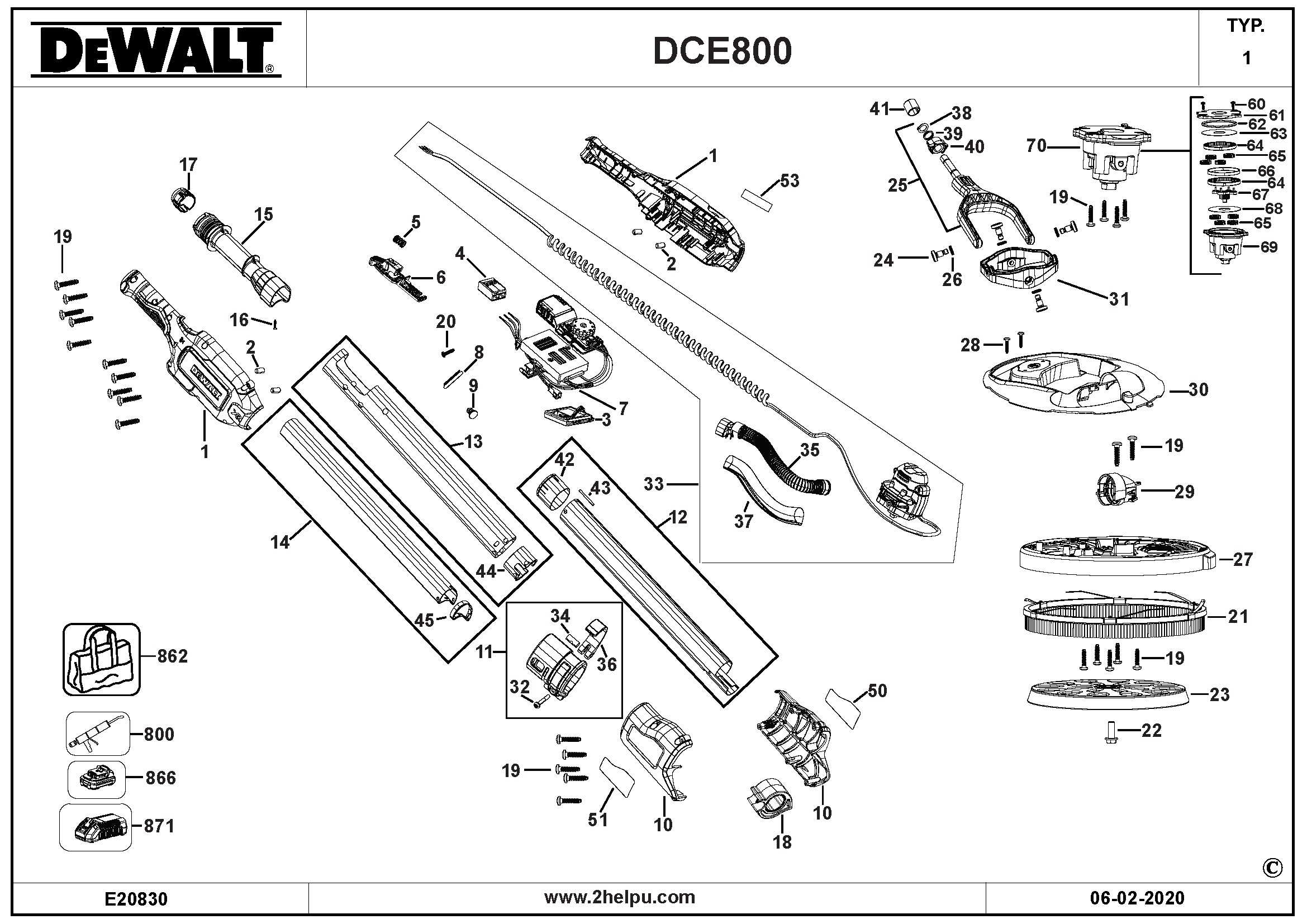

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 CLAMSHELL SET (N694562) 16689 RON
2 1 4 RUBBER PAD (N186764) 588 RON
3 1 1 MODULE (N592861) 16689 RON
4 1 3 CONNECTOR (N590957) 1318 RON
5 1 1 SPRING (N637101) 2182 RON
6 1 1 N639156 - Indisponibil
6 1 1 ACTUATOR (N868800) 1933 RON
7 1 1 CONTROL MODULE SA (N868474) 57833 RON
8 1 1 STEEL-LATCH DCH ZODIAC (N094649) 105 RON
9 1 1 SPRING (N453948) 3268 RON
10 1 1 CLAMSHELL SET (N694223) 3954 RON
11 1 1 N576522 - Indisponibil
11 1 1 CLAMP SA (N868476) 5370 RON
12 1 1 N646123 - Indisponibil
12 1 1 TUBE SA (N916602) 23244 RON
13 1 1 N646124 - Indisponibil
13 1 1 TUBE SA (N916601) 25728 RON
14 1 1 N646125 - Indisponibil
14 1 1 TUBE SA (N916594) 20216 RON
15 1 1 DUST PORT (N602601) 6688 RON
16 1 1 SCREW PLSTC THD FORM M3X9 T10 (330065-25) 558 RON
17 1 1 CONNECTOR (N736173) 1772 RON
18 1 1 N645373 - Indisponibil
18 1 1 BEARING BUSH (N868481) 1933 RON
19 1 27 SCREW (330065-08) 558 RON
20 1 1 SCREW (N403241) 588 RON
21 1 1 DUST GUARD (N868437) 20216 RON
22 1 1 BOLT-M6x16 (N424801) 588 RON
23 1 1 PAD SA (N855826) 25728 RON
24 1 4 SCREW (N607946) 114 RON
25 1 1 JOINT (N868793) 30769 RON
26 1 4 SPRING (N651418) 1630 RON
27 1 1 SHIELD (N569394) 741 RON
28 1 2 SCREW (330065-01) 558 RON
29 1 1 HOUSING SA (N868858) 2796 RON
30 1 1 HOUSING SA (N868815) 741 RON
31 1 1 N644913 - Indisponibil
31 1 1 JOINT (N868471) 4827 RON
32 1 1 SCREW (N651021) 588 RON
33 1 1 MOTOR SA (N868503) 73079 RON
34 1 1 PIN (N651020) 1933 RON
35 1 1 HOSE SA (N646914) 12361 RON
36 1 1 CLAMP (N576523) 944 RON
37 1 1 TUBE PLASTIC (N644294) 4355 RON
38 1 1 SEAL RING (144803-00) 781 RON
39 1 1 SPRING (N646628) 2556 RON
40 1 1 N644999 - Indisponibil
40 1 1 BEARING AXIAL (N868755) 2556 RON
41 1 1 SLEEVE (N620976) 1630 RON
42 1 1 SLEEVE (N593089) 1630 RON
43 1 1 CLIP (N794764) 588 RON
44 1 1 SLEEVE (N598796) 1630 RON
45 1 1 SLEEVE (N598795) 944 RON
50 1 1 RATING PLATE (N703603) 588 RON
51 1 1 WARNING LABEL (N703604) 944 RON
53 1 1 BRAND LABEL (N703617) 588 RON
60 1 2 SCREW (N403241) 588 RON
61 1 1 GEARCASE COVER (N581269) 4355 RON
62 1 1 O RING (N595318) 944 RON
63 1 1 DISC (N581272) 1318 RON
64 1 2 Gear (N690814) 1933 RON
65 1 8 Gear (N690815) 668 RON
66 1 1 SPACER (N581319) 2796 RON
67 1 1 CARRIER SA (N868407) 1933 RON
68 1 1 DISC (N581273) 114 RON
69 1 1 GEARCASE SA (N868483) 32327 RON
70 1 1 GEARCASE SA (N868445) 55455 RON
800 1 1 GREASE (N017298) 4825 RON
856 1 1 N572519 - Indisponibil
862 1 1 BAG (N821699) 40734 RON
