Top » Piese de schimb » PIESE DEWALT » DWE6423 Type 2

SLEFUITOR ORBITAL DEWALT DWE6423 Type 2
[DWE6423 Type 2]
SLEFUITOR ORBITAL DEWALT DWE6423 Type 2
Click pentru a mari
Imagini suplimentare
SLEFUITOR ORBITAL DEWALT DWE6423 Type 2
Click pentru a mari
SLEFUITOR ORBITAL DEWALT DWE6423 Type 2
Click pentru a mari

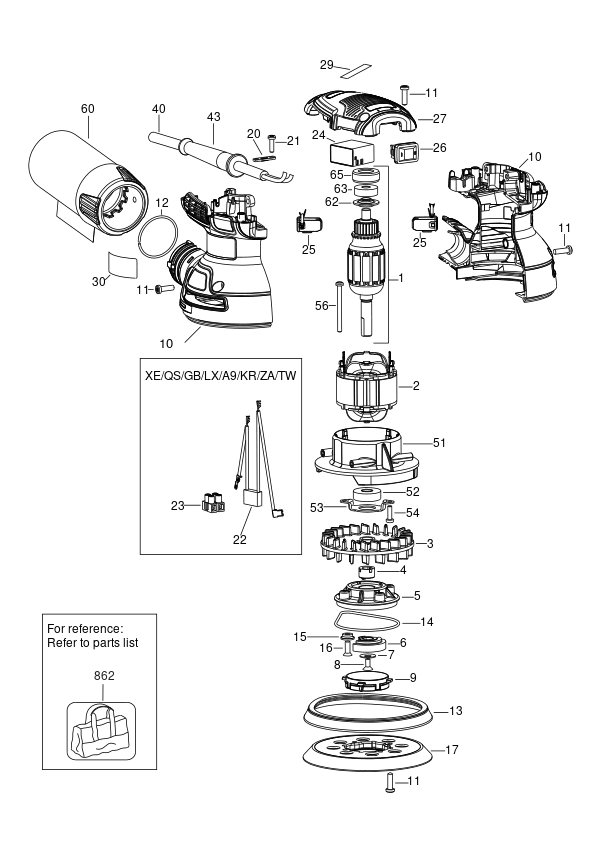

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 ARMATURE SA (NA808484) 20216 RON
2 1 1 FIELD SA (NA808487) 13697 RON
3 1 1 Fan RO AL Mach (N396699) 3954 RON
4 1 1 Eccentric RO (N395442) 588 RON
5 1 1 BEARING HOUSING (NA293294) 5370 RON
6 1 1 COUNTERWEIGHT RO (N399756) 944 RON
7 1 1 WASHER BELLEVILLE (N345099) 588 RON
8 1 1 SCREW MACHINE (098012-11) 558 RON
9 1 1 END CAP (N329083) 82 RON
10 1 1 HOUSING SA (N832383) 9012 RON
11 1 14 screw dw744 (330019-12) 558 RON
12 1 1 HOG RING (N377182) 588 RON
13 1 1 Skirt RO (N371139) 2182 RON
14 1 1 093 BELT (N430442) 1933 RON
15 1 1 Belt Pulley (N544253) 588 RON
16 1 1 Pulley Screw (Reverse Threades) (N403401) 588 RON
17 1 1 SA Pad H&L ROz (N329079) 6688 RON
20 1 1 CLAMP CORD CORNER (329301-00) 558 RON
21 1 2 SCREW PLSTC THD FORM M3.5X13 T15 (330019-02) 558 RON
22 1 1 CAPACITOR SA (N372304) 1933 RON
23 1 1 TERMINAL BLOCK TYCO 1776293-2 (N416499) 1933 RON
24 1 1 SA VS Control Module, 230V (N360900) 741 RON
25 1 2 BRUSH SA (NA809562) 5370 RON
26 1 1 SWITCH (656494-00) 1772 RON
27 1 1 Top Cap Housing RO VS DWE6423 (N345859) 4355 RON
29 1 1 Label Perform Protect (N397366) 588 RON
30 1 1 RATING LABEL (NA599529) 588 RON
40 1 1 SA Cord QS (N409399) 13697 RON
43 1 1 CORD PROTECTOR (N918736) 668 RON
51 1 1 MOTOR MOUNT RO (N396634) 2182 RON
52 1 1 BEARING (605040-16) 2182 RON
53 1 1 COMMON FAN END BEARING RETAINER (N388153) 668 RON
54 1 2 SCREW PLSTC THD FORM M3.5X13 T15 (330019-02) 558 RON
56 1 2 SCREW PLASTIC THREAD FORM M3.5 * 45 T15 (330019-08) 558 RON
60 1 1 SA DUST BAG WITH LABEL (N273733) 3954 RON
62 1 1 WASHER (N336059) 588 RON
63 1 1 BEARING BALL CW/MFG (605040-05) 1117 RON
65 1 1 BOOT (631563-00) 558 RON
