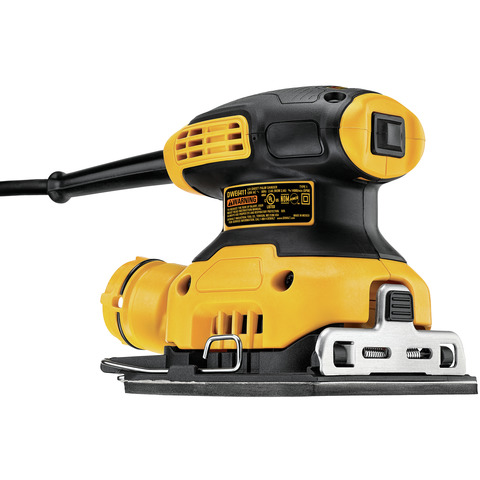

SLEFUITOR ORBITAL DEWALT DWE6411 Type 2
[DWE6411 Type 2]
SLEFUITOR ORBITAL DEWALT DWE6411 Type 2
Click pentru a mari
Imagini suplimentare
SLEFUITOR ORBITAL DEWALT DWE6411 Type 2
Click pentru a mari
SLEFUITOR ORBITAL DEWALT DWE6411 Type 2
Click pentru a mari

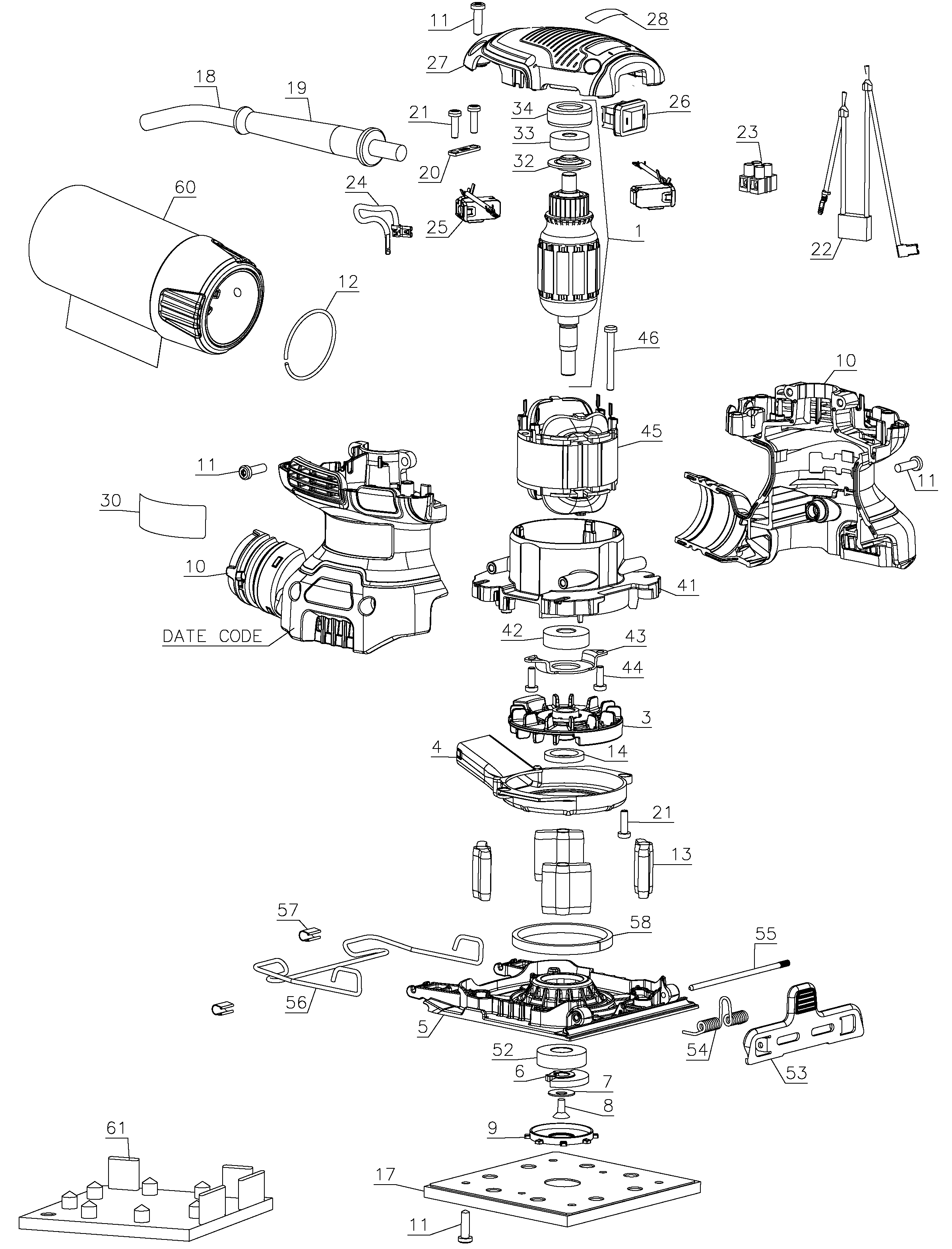

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 ARMATURE SA (NA809552) 20216 RON
3 1 1 FAN (N381997) 3268 RON
4 1 1 BAFFLE SA (N413312) 2182 RON
5 1 1 PLATEN (N882866) 3954 RON
6 1 1 Counterweight 1/4 sheet (N360702) 82 RON
7 1 1 WASHER BELLEVILLE (N345099) 588 RON
8 1 1 SCREW MACHINE (098012-11) 558 RON
9 1 1 END CAP (N402677) 944 RON
10 1 1 SA Housings 1/4 SHEET (N394565) 10241 RON
11 1 14 screw dw744 (330019-12) 558 RON
12 1 1 HOG RING (N377182) 588 RON
13 1 4 LEG (N472412) 2556 RON
14 1 1 DUST SEAL FAN (N416160) 588 RON
17 1 1 PAD SA (N492998) 13697 RON
18 1 1 SA Cord QS (N409399) 13697 RON
19 1 1 CORD PROTECTOR (N918736) 668 RON
20 1 1 CLAMP CORD CORNER (329301-00) 558 RON
21 1 4 SCREW PLSTC THD FORM M3.5X13 T15 (330019-02) 558 RON
22 1 1 CAPACITOR SA (N453747) 2796 RON
23 1 1 TERMINAL BLOCK TYCO 1776293-2 (N416499) 1933 RON
24 1 1 SA Lead Wire (N372307) 588 RON
25 1 2 BRUSH SA (NA809562) 5370 RON
26 1 1 SWITCH (656494-00) 1772 RON
27 1 1 Housing TopCap Short (N388154-01) 3268 RON
28 1 1 Label Perform Protect (N397366) 588 RON
30 1 1 RATING LABEL (NA599549) 588 RON
32 1 1 WASHER (N336059) 588 RON
33 1 1 BEARING BALL CW/MFG (605040-05) 1117 RON
34 1 1 BOOT (631563-00) 558 RON
41 1 1 MOUNT (N472410) 18568 RON
42 1 1 BEARING (605040-16) 2182 RON
43 1 1 COMMON FAN END BEARING RETAINER (N388153) 668 RON
44 1 2 SCREW PLSTC THD FORM M3.5X13 T15 (330019-02) 558 RON
45 1 1 FIELD SA (NA809559) 15469 RON
46 1 2 SCREW PLASTIC THREAD FORM M3.5 * 45 T15 (330019-08) 558 RON
52 1 1 BEARING BALL (330003-64) 4137 RON
53 1 1 CLAMP (N464703) 2556 RON
54 1 1 SPRING FRONT PAPEL CLAMP (N360481) 82 RON
55 1 1 PIN (N396569) 944 RON
56 1 1 Clamp Wire Form Paper (N366359) 1772 RON
57 1 2 CLIP (N369879) 588 RON
58 1 1 Dust Seal Platen (N372479) 1772 RON
60 1 1 SA DUST BAG WITH LABEL (N273733) 3954 RON
61 1 1 PUNCH PAPER (144954-00) 1452 RON
