SLEFUITOR ORBITAL DEWALT DCW200 Type 10
[DCW200 Type 10]
SLEFUITOR ORBITAL DEWALT DCW200 Type 10
Click pentru a mari
Imagini suplimentare
SLEFUITOR ORBITAL DEWALT DCW200 Type 10
Click pentru a mari
SLEFUITOR ORBITAL DEWALT DCW200 Type 10
Click pentru a mari

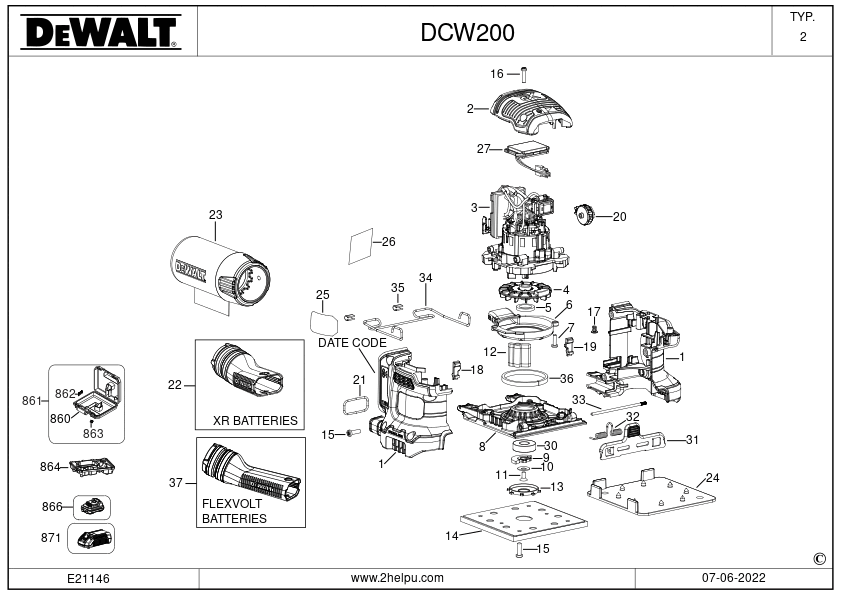

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 CLAMSHELL SET (N697716) 5370 RON
2 1 1 HOUSING TOP (N603948) 3268 RON
3 1 1 MOTOR & SWITCH SA (NA039901) 78485 RON
4 1 1 FAN (N689070) 3954 RON
5 1 1 DUST SEAL FAN (N416160) 588 RON
6 1 1 BAFFLE FAN (N596411) 1772 RON
7 1 2 SCREW PLSTC THD FORM M3.5X13 T15 (330019-02) 558 RON
8 1 1 PLATEN (NA146881) 6688 RON
8 1 1 PLATEN (N882866) 3954 RON
9 1 1 Counterweight 1/4 sheet (N360702) 82 RON
10 1 1 WASHER BELLEVILLE (N345099) 588 RON
11 1 1 SCREW MACHINE (098012-11) 558 RON
12 1 4 LEG (N472412) 2556 RON
13 1 1 END CAP (N402677) 944 RON
14 1 1 PAD SA (N492998) 13697 RON
15 1 11 screw dw744 (330019-12) 558 RON
16 1 4 Screw M3.5X16 T15 (330019-03) 558 RON
17 1 1 SPRING (N453948) 3268 RON
18 1 1 BUMPER (N728006) 588 RON
19 1 1 BUMPER (N728008) 588 RON
20 1 1 SPEED REGULATOR (N581601) 5370 RON
21 1 1 O RING (N129171) 558 RON
22 1 1 DUST PORT (N637726) 2182 RON
23 1 1 SA DUST BAG WITH LABEL (N273733) 3954 RON
24 1 1 PUNCH PAPER (144954-00) 1452 RON
25 1 1 RATING PLATE (NA394651) 944 RON
25 1 1 LABEL SHEET (NB403153) 82 RON
26 1 1 LABEL (NA394653) 944 RON
27 1 1 MODULE (N747818) 16689 RON
30 1 1 BEARING BALL (330003-64) 4137 RON
31 1 1 CLAMP (N464703) 2556 RON
32 1 1 SPRING FRONT PAPEL CLAMP (N360481) 82 RON
33 1 1 PIN (N396569) 944 RON
34 1 1 Clamp Wire Form Paper (N366359) 1772 RON
35 1 2 CLIP (N369879) 588 RON
36 1 1 Dust Seal Platen (N372479) 1772 RON
37 1 1 DUST PORT (N684701) 1772 RON
860 1 2 HANDLE (H1400198008) 2347 RON
861 1 1 KITBOX DWST1-17807 (N279261) 30769 RON
862 1 2 LATCH (N409477) 114 RON
863 1 2 LATCH (P910190) 3466 RON
864 1 1 FOAM (N751439) 741 RON
866 1 2 BATTERY 18V -5.0AH -90WH (N394624) 104961 RON
871 1 1 CHARGER-DCB1104-QW - (4A) (NA132878) 44688 RON
871 1 1 CHARGER 10.8V - 18V (NA010209) 51127 RON
