Top » Piese de schimb » PIESE DEWALT » DW430 Type 6

SLEFUITOR CU BANDA DEWALT DW430 Type 6
[DW430 Type 6]
SLEFUITOR CU BANDA DEWALT DW430 Type 6
Click pentru a mari
Imagini suplimentare
SLEFUITOR CU BANDA DEWALT DW430 Type 6
Click pentru a mari

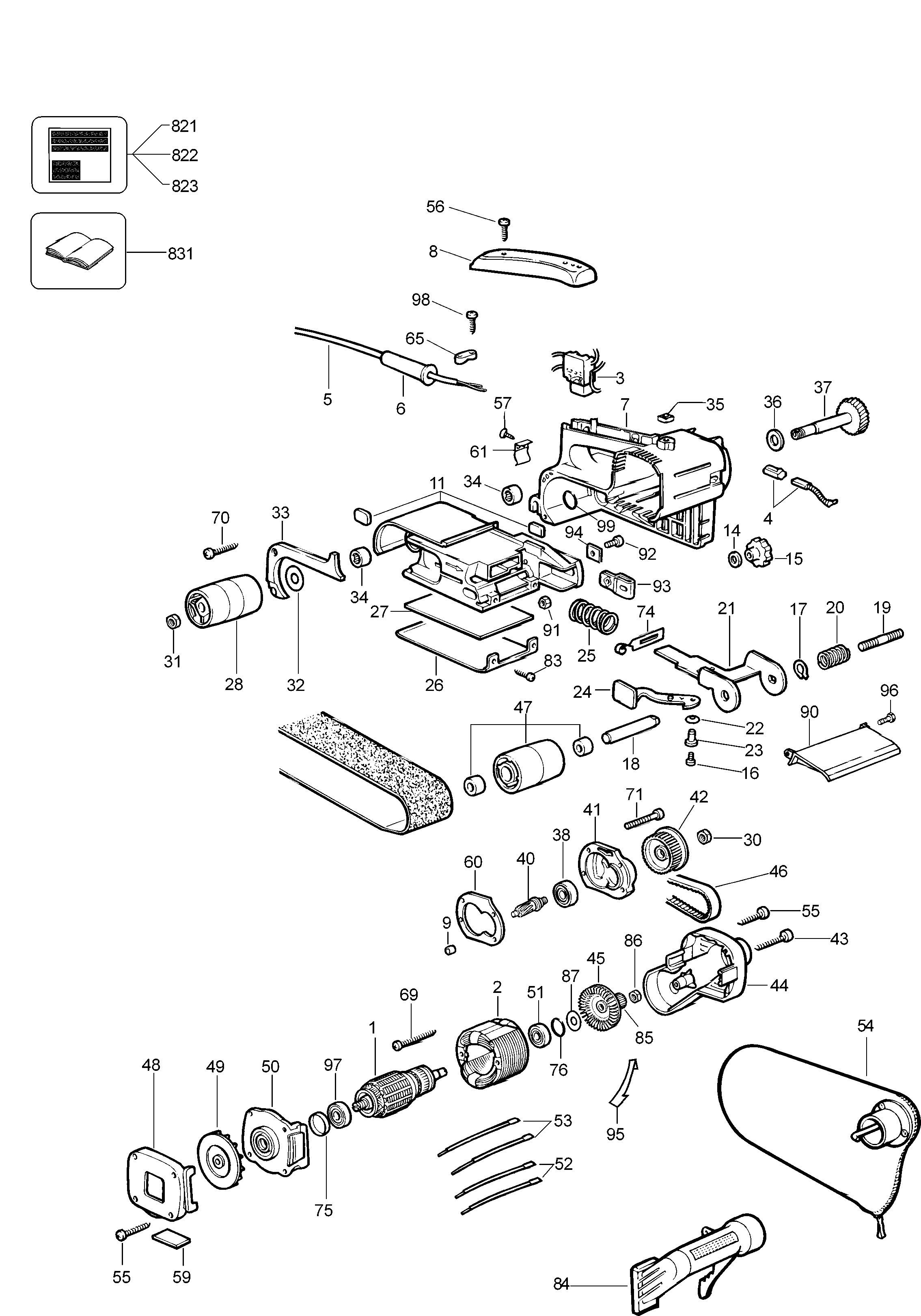

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 ARMATURE (248420-00) 4825 RON
2 1 1 STATOR (157102100) 20467 RON
3 1 1 SWITCH (155160303) 26730 RON
4 1 2 BRUSH 230V SA (247533-01) 4137 RON
4 1 2 BRUSH 230V SA (247533-11) 4137 RON
5 1 1 CORDSET GB (379092) 17335 RON
6 1 1 PROTECTOR CORD 8.9 (320785) 893 RON
6 1 1 SLEEVE (320785-00) 105 RON
7 1 1 FIELDCASE (324595-02) 29862 RON
8 1 1 COVER (324593-02) 2795 RON
8 1 1 COVER (324593-06) 190 RON
9 1 1 939642 - Indisponibil
9 1 1 BEARING NEEDLE (330004-19) 1229 RON
11 1 1 HOUSING REPAIR KIT (248479-01) 80865 RON
14 1 1 WASHER M8 (249223-00) 558 RON
15 1 1 KNOB (248428-00) 3466 RON
16 1 1 SCREW (157813400) 781 RON
17 1 1 008821100 - Indisponibil
17 1 1 RING SPRING SHAFT D12 UNI7435 (860079-03) 558 RON
18 1 1 SPINDLE (157152601) 4472 RON
19 1 1 249122-00 - Indisponibil
20 1 1 SPRING (157934045) 781 RON
21 1 1 FORK (157113202) 7940 RON
22 1 1 WASHER (760261-00) 558 RON
23 1 1 SPACER (157152300) 781 RON
24 1 1 LEVER (157110800) 6821 RON
25 1 1 SPRING (157934046) 893 RON
26 1 1 PLATE (325024-00) 3466 RON
27 1 1 CORK PLAQUE (157111700) 2347 RON
28 1 1 249380-00 - Indisponibil
30 1 1 NUT (248426-00) 558 RON
31 1 1 NUT (249232-40) 105 RON
32 1 1 180980044 - Indisponibil
33 1 1 COVER (248423-00) 2347 RON
34 1 2 BEARING (050980118) 4137 RON
35 1 1 061822500 - Indisponibil
36 1 1 SLEEVE (157980057) 1788 RON
37 1 1 249381-00 - Indisponibil
38 1 1 BEARING (248352-00) 4137 RON
38 1 1 BEARING BALL (CE) (330003-17) 2795 RON
38 1 1 BEARING BALL (605040-15) 2347 RON
40 1 1 PINION (325021-00) 15993 RON
41 1 1 COVER (157120203) 7940 RON
42 1 1 325017-00 - Indisponibil
43 1 1 SCREW (249416-04) 558 RON
44 1 1 248424-00 - Indisponibil
45 1 1 FAN (325016-00) 5031 RON
46 1 1 BELT (325018-00) 6821 RON
47 1 1 ROLLER (157121405) 15993 RON
48 1 1 COVER (248421-05) 4472 RON
49 1 1 FAN (325026-00) 3018 RON
50 1 1 248422-05 - Indisponibil
51 1 1 BEARING (157830001) 5591 RON
52 1 2 LEAD (157164500) 781 RON
52 1 2 LEAD RED 230mm USA (157164508) 781 RON
53 1 2 LEAD YELLOW 65 MM USA (157164507) 781 RON
53 1 2 LEAD (157164501) 781 RON
54 1 1 575719-00 - Indisponibil
54 1 1 248305-01 - Indisponibil
55 1 6 SCREW (249416-05) 558 RON
55 1 6 SCREW (949896-11) 558 RON
56 1 3 SCREW (249437-00) 558 RON
57 1 2 247613-05 - Indisponibil
59 1 1 CERAMIC BLOCK (157118902) 3466 RON
60 1 1 GASKET (157970316) 893 RON
61 1 1 157930705 - Indisponibil
65 1 1 CABLE CLAMP (151162701) 781 RON
65 1 1 CABLE CLAMP (379684) 558 RON
69 1 2 SCREW (911442) 558 RON
70 1 2 SCREW (760978-01) 558 RON
71 1 4 SCREW (249416-03) 558 RON
74 1 1 325023-00 - Indisponibil
75 1 1 GASKET (247600-00) 558 RON
76 1 1 GASKET (247601-00) 558 RON
83 1 2 SCREW (249415-00) 558 RON
84 1 1 SUPPORT (575668-00) 10512 RON
85 1 1 PULLEY (325019-00) 12861 RON
86 1 1 NUT (248354-00) 558 RON
87 1 1 WASHER (247650-00) 558 RON
90 1 1 COVER (575669-00) 10512 RON
91 1 1 NUT M6 (249411-00) 558 RON
92 1 1 SCREW (249408-10) 558 RON
93 1 1 EXTENSION (157116220) 4137 RON
94 1 1 PLATE (157930431) 2124 RON
95 1 1 248396-00 - Indisponibil
96 1 1 SCREW (323924-09) 558 RON
96 1 1 SCREW (249416-00) 558 RON
96 1 1 SCREW THREAD CUTTING o3.99.5 PAN HEAD (249416-06) 558 RON
97 1 1 BEARING (248352-00) 4137 RON
97 1 1 BEARING BALL (CE) (330003-17) 2795 RON
97 1 1 BEARING BALL (605040-15) 2347 RON
98 1 1 SCREW (249437-01) 558 RON
99 1 1 249378-00 - Indisponibil
