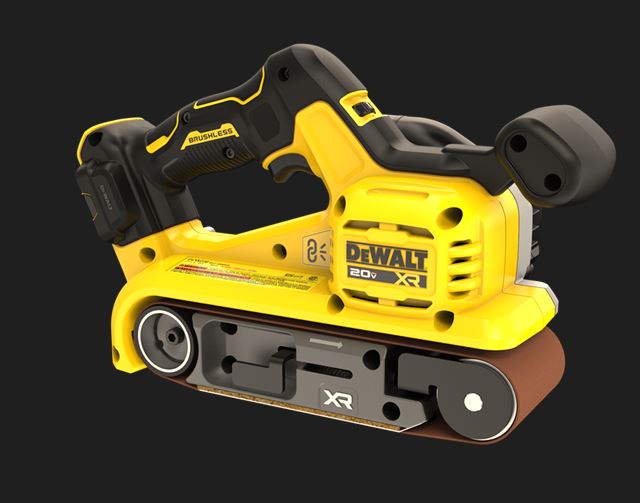

SLEFUITOR CU BANDA DEWALT DCW220P2 Type 1
[DCW220P2 Type 1]
SLEFUITOR CU BANDA DEWALT DCW220P2 Type 1
Click pentru a mari
Imagini suplimentare
SLEFUITOR CU BANDA DEWALT DCW220P2 Type 1
Click pentru a mari
SLEFUITOR CU BANDA DEWALT DCW220P2 Type 1
Click pentru a mari

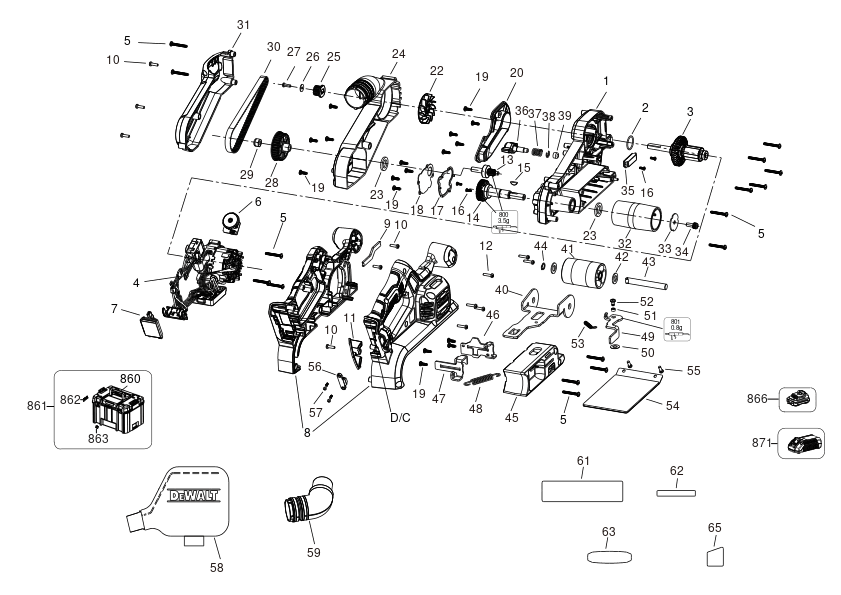

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 GEARCASE SA (NA255980) 33797 RON
2 1 1 O RING (N119639) 558 RON
3 1 1 ROTOR SA (NA255981) 28836 RON
4 1 1 STATOR SA (NA258250) 96047 RON
5 1 16 SCREW METAL THREAD FORM M4 * 30 T20 (330045-09) 558 RON
6 1 1 DIAL PLATE (NA048819) 5370 RON
7 1 1 PCB SA (NA162518) 15469 RON
8 1 1 HOUSING SA (NA187796) 15469 RON
9 1 1 BRACKET (NA150762) 82 RON
10 1 6 SCREW PLSTC THD FORM M3.5X13 T15 (330019-02) 558 RON
11 1 1 BAFFLE (NA118353) 588 RON
12 1 6 Screw M3.5X16 T15 (330019-03) 558 RON
13 1 1 GEAR & SHAFT (NA255983) 9012 RON
14 1 1 GEAR & SHAFT (NA255984) 18568 RON
15 1 1 WOODRUFF KEY (NA005986) 1772 RON
16 1 4 Screw Taptite (330045-43) 558 RON
17 1 1 GASKET (NA147483) 82 RON
18 1 1 COVER (NA005994) 82 RON
19 1 17 SCREW TAPTITE M4x12 SLT/T20 (330045-45) 558 RON
20 1 1 BAFFLE (N920074) 1630 RON
22 1 1 FAN (NA273130) 114 RON
23 1 2 FELT SEAL (NA091406) 668 RON
24 1 1 COVER LH (N911167) 3954 RON
25 1 1 PULLEY SA (N913014) 82 RON
26 1 1 WASHER (NA262558) 588 RON
27 1 1 SCREW (NA048473) 588 RON
28 1 1 PULLEY (NA005991) 4355 RON
29 1 1 NUT (N549053) 588 RON
30 1 1 BELT (N880479) 6688 RON
31 1 1 BELT COVER (N911170) 2556 RON
32 1 1 DRIVE ROLLER (N911726) 10241 RON
33 1 1 PLATE (NA005989) 588 RON
34 1 1 SCREW (641208-00) 558 RON
35 1 1 PLATE (NA006025) 2556 RON
36 1 1 KNOB (NA006007) 2182 RON
37 1 1 SPRING (NA006005) 588 RON
38 1 1 LOCKING RING (NA089076) 588 RON
39 1 1 CAP (NA071738) 588 RON
40 1 1 BRACKET (NA006014) 5370 RON
41 1 1 ROLLER SA (NA255985) 13697 RON
42 1 2 WASHER (N506930) 588 RON
43 1 1 SHAFT (NA006016) 2556 RON
44 1 1 RETAINING RING (444793-00) 558 RON
45 1 1 COVER (NA006003) 12361 RON
46 1 1 FRONT BRACKET (NA048300) 2182 RON
47 1 1 SUPPORT PLATE (NA064063) 1933 RON
48 1 1 SPRING (NA006361) 668 RON
49 1 1 LEVER (NA006020) 1772 RON
50 1 1 WASHER (NA079157) 588 RON
51 1 1 SLEEVE (NA006022) 82 RON
52 1 1 SCREW (N506853) 588 RON
53 1 1 SPRING (NA006363) 588 RON
54 1 1 COVER (NA255986) 5370 RON
55 1 2 SCREW (N510972) 588 RON
56 1 1 BLANK COVER AUDIT CHIP (N787996) 588 RON
57 1 2 SCREW (N831593) 588 RON
58 1 1 NA066359 - Indisponibil
58 1 1 DUST BAG SA (NA334918) 4827 RON
59 1 1 CONNECTOR (NA278256) 1772 RON
61 1 1 RATING LABEL (NA168673) 668 RON
62 1 1 IDENTITY LABEL (NA168675) 588 RON
63 1 1 LABEL (NA164445) 588 RON
65 1 1 LABEL (NA180184) 588 RON
800 1 1 GREASE MOLYCOTE G68 100 GRAM TUBE (808386-00) 46863 RON
800 1 1 GREASE (NA360289) 10241 RON
801 1 1 GREASE TUBE 100ML RENOLIT PARAGON EP (870889-02) 4472 RON
860 1 1 HANDLE (H1400198008) 2347 RON
860 1 1 H1400196008 - Indisponibil
861 1 1 KITBOX (N429655) 30769 RON
862 1 1 LATCH (N409477) 114 RON
863 1 1 LATCH (P910190) 3466 RON
866 1 2 BATTERY 18V -5.0AH -90WH (N394624) 104961 RON
871 1 1 CHARGER-DCB1104-QW - (4A) (NA132878) 44688 RON
