Top » Piese de schimb » PIESE DEWALT » DCH263P2 Type 1

1-1/8" (28 mm) SDS PLUS R DEWALT DCH263P2 Type 1
[DCH263P2 Type 1]
1-1/8" (28 mm) SDS PLUS R DEWALT DCH263P2 Type 1
Click pentru a mari
Imagini suplimentare
1-1/8" (28 mm) SDS PLUS R DEWALT DCH263P2 Type 1
Click pentru a mari
1-1/8" (28 mm) SDS PLUS R DEWALT DCH263P2 Type 1
Click pentru a mari
1-1/8" (28 mm) SDS PLUS R DEWALT DCH263P2 Type 1
Click pentru a mari

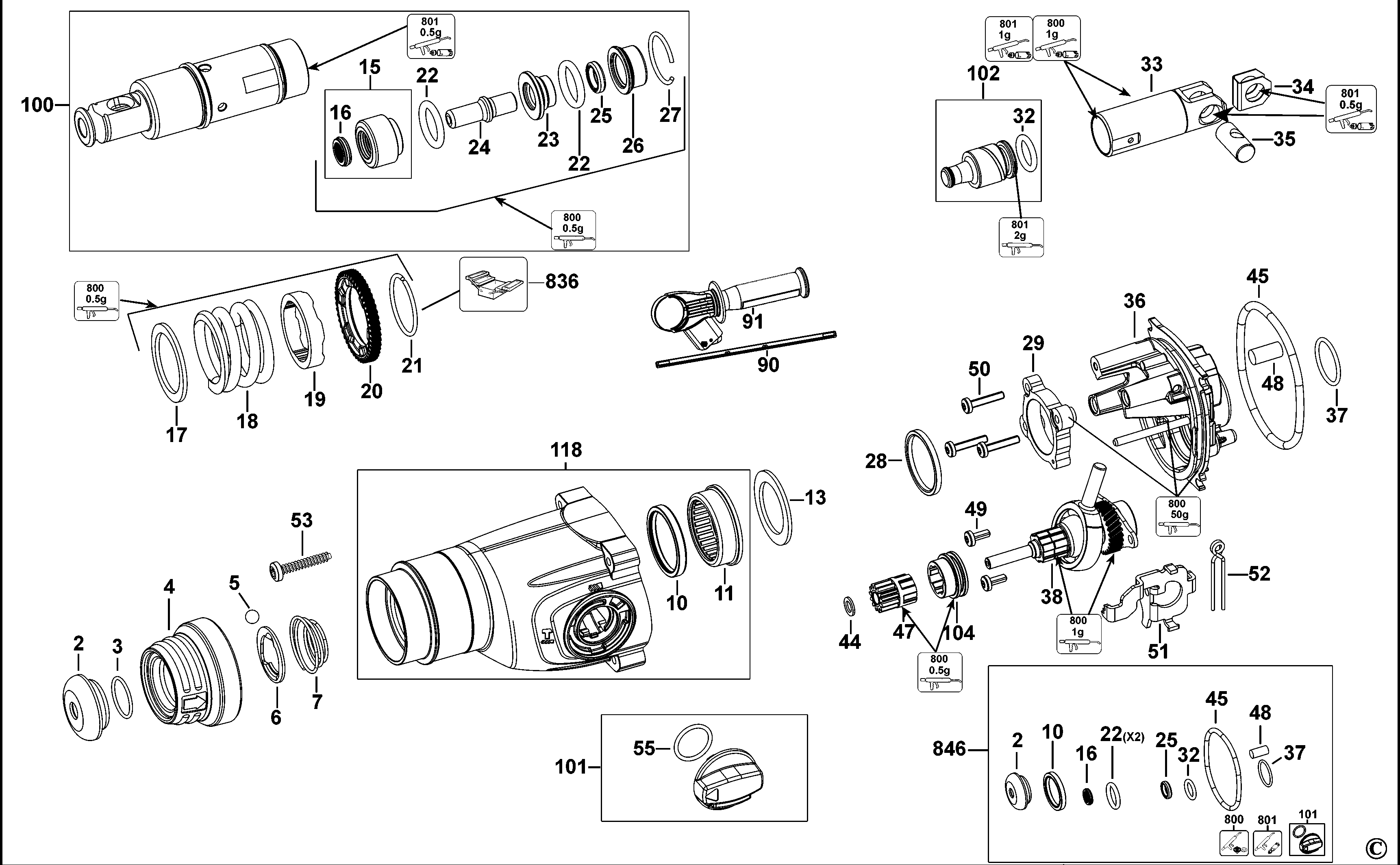

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
2 1 1 SEAL LIP (323489-00) 893 RON
3 1 1 RING SNAP 21 (579212-00) 781 RON
4 1 1 N850185 - Indisponibil
4 1 1 TUBE (NA076561) 3268 RON
5 1 1 BALL (N629539) 588 RON
5 1 1 BALL 7.0 (583890-00) 781 RON
6 1 1 SDS BALL PLATE (WASHER SDS 1.4MM) (578387-00) 893 RON
7 1 1 SPRING BEVEL (871690) 558 RON
10 1 1 RING SEAL (577812-00) 1229 RON
11 1 1 BEARING NEEDLE-1 (577813-00) 3018 RON
13 1 1 WASHER SPINDLE (577814-00) 1788 RON
15 1 1 SA BEARING BEATPIECE NQCC PACKED (584423-00) 10512 RON
16 1 1 SEAL (577139-00) 1117 RON
17 1 1 WASHER SPINDLE (577814-00) 1788 RON
18 1 1 SPRING CLUTCH HPP (N322087) 2796 RON
19 1 1 LOCKING RING (N417736) 4355 RON
20 1 1 Gear (N417740) 741 RON
21 1 1 RING SNAP 29.5 (581836-00) 558 RON
22 1 2 O-RING 19.5X3.5 (577135-00) 1117 RON
23 1 1 BUSH DAMPER (577130-00) 2796 RON
24 1 1 BEAT PIECE (N082142) 2347 RON
25 1 1 RING RAMCATCHER (580990-00) 1117 RON
26 1 1 CATCHER RAM DTV (N401306) 2796 RON
27 1 1 RING, SNAP (N361759) 588 RON
28 1 1 RING WASHER (N059509) 781 RON
29 1 1 BEARING (N417747) 6688 RON
32 1 1 O-RING 16X3 (579699-00) 105 RON
33 1 1 PISTON (N417751) 6688 RON
34 1 1 U-WASHER HPP (N325040) 588 RON
35 1 1 CROSS BOLT (N325041) 1630 RON
36 1 1 HOUSING BEARING (N495867) 10241 RON
37 1 1 O RING 22X2 (N264673) 588 RON
38 1 1 INTERSHAFT SA (N418018) 15469 RON
38 1 1 NB464072 - Indisponibil
44 1 1 WASHER INTERSHAFT FRONT (1005844-00) 558 RON
45 1 1 O RING 68X4 (N264672) 668 RON
47 1 1 Gear (N417860) 4827 RON
48 1 2 FELT (1005812-00) 558 RON
48 1 2 FELT (NB422492) 588 RON
49 1 2 SCREW TAPTITE M4X10 ANU LOCK (N445171) 588 RON
50 1 3 SCREW TAPTITE M4X20 ANU LOCK (324006-15) 558 RON
51 1 1 PLATE SWITCH HPP (N323101) 1772 RON
51 1 1 PLATE (NA264679) 1630 RON
52 1 1 SPRING MODE SWITCH (1005795-00) 558 RON
53 1 4 SCREW PLASTIC 4 X 30FORM 4* 30 (330065-13) 558 RON
55 1 1 SERING (N091381-00) 588 RON
60 1 1 BAFFLE FAN (N556386) 1630 RON
61 1 1 WASHER (N554533) 588 RON
62 1 1 BEARING BALL (330003-60) 190 RON
63 1 1 CE BEARING (1005895-00) 1788 RON
64 1 1 NUT HEX M6 LH (N467767) 588 RON
65 1 1 HE BEARING CAP (N467131) 588 RON
66 1 1 CAP (N261987) 588 RON
67 1 2 SCREW PLSTC THD FROM M4X12 T20 (330065-06) 558 RON
68 1 1 ARMATURE SA (N485568) 18568 RON
69 1 1 MOTOR SA (N684207) 10889 RON
70 1 1 CLAMSHELL SET (N572774) 3268 RON
71 1 1 CLAMSHELL SET (N572780) 741 RON
72 1 2 SCREW PLSTC THD FORM M4X25 T20 (330065-09) 558 RON
73 1 8 SCREW (330065-07) 558 RON
74 1 1 BELLOWS (N538721) 1630 RON
75 1 1 LIMIT STOP (N152623) 3018 RON
76 1 1 SPRING AV 4KG HANDLE (N106188) 893 RON
77 1 1 ACTUATOR FWD/REV (N399342) 588 RON
78 1 1 RUBBER PIN (N487311) 588 RON
79 1 1 STRIKE PLATE (N467560) 588 RON
80 1 1 INSERT (N728013) 588 RON
81 1 1 COIL TERMINAL BLOCK SPRING (N102647) 558 RON
82 1 1 MOUNT TERM BLOCK SPRING (MOULD) (N122099) 558 RON
83 1 1 INSERT (N728012) 588 RON
89 1 1 LED LIGHT (N655033) 3268 RON
90 1 1 SA SIDE HANDLE AVC (N413662) 13697 RON
91 1 1 STOP DEPTH (798846-02) 893 RON
100 1 1 SPINDLE SA (N418052) 25728 RON
101 1 1 SELECTOR SA (N417861) 3954 RON
102 1 1 RAM SA (N418036) 5370 RON
104 1 1 COLLAR (N417853) 1772 RON
118 1 1 HOUSING SA (N417734) 10241 RON
800 1 1 GREASE TUBE 100ML RENOLIT PARAGON EP (870889-02) 4472 RON
801 1 1 GREASE GLK FLUID 10G SACHET - SERVICE (487130-04) 3466 RON
821 1 1 RATING LABEL (NA049719) 588 RON
822 1 1 LABEL (N483918) 588 RON
826 1 1 LABEL PERFORM PROTECT CHIPPER MSH (N253819) 588 RON
836 1 1 T.CIRCLIP INSERTER (1003925-99) 53345 RON
836 1 1 S.T.CIRCLIP REMOVER (1003924-99) 3516 RON
836 1 1 SERVICE TOOLING KIT (596005-99) 84238 RON
846 1 1 SERVICE KIT (N684220) 10241 RON
861 1 1 KITBOX (N614733) 20216 RON
866 1 1 BATTERY 18V -5.0AH -90WH (N394624) 104961 RON
871 1 1 N450536 - Indisponibil
871 1 1 CHARGER-DCB1104-QW - (4A) (NA132878) 44688 RON
871 1 1 CHARGER 10.8V - 18V (NA010209) 51127 RON
