Top » Piese de schimb » PIESE DEWALT » DW735 Type 1

RINDEA PENTRU DEGROSAT DEWALT DW735 Type 1
[DW735 Type 1]
RINDEA PENTRU DEGROSAT DEWALT DW735 Type 1
Click pentru a mari
Imagini suplimentare
RINDEA PENTRU DEGROSAT DEWALT DW735 Type 1
Click pentru a mari
RINDEA PENTRU DEGROSAT DEWALT DW735 Type 1
Click pentru a mari

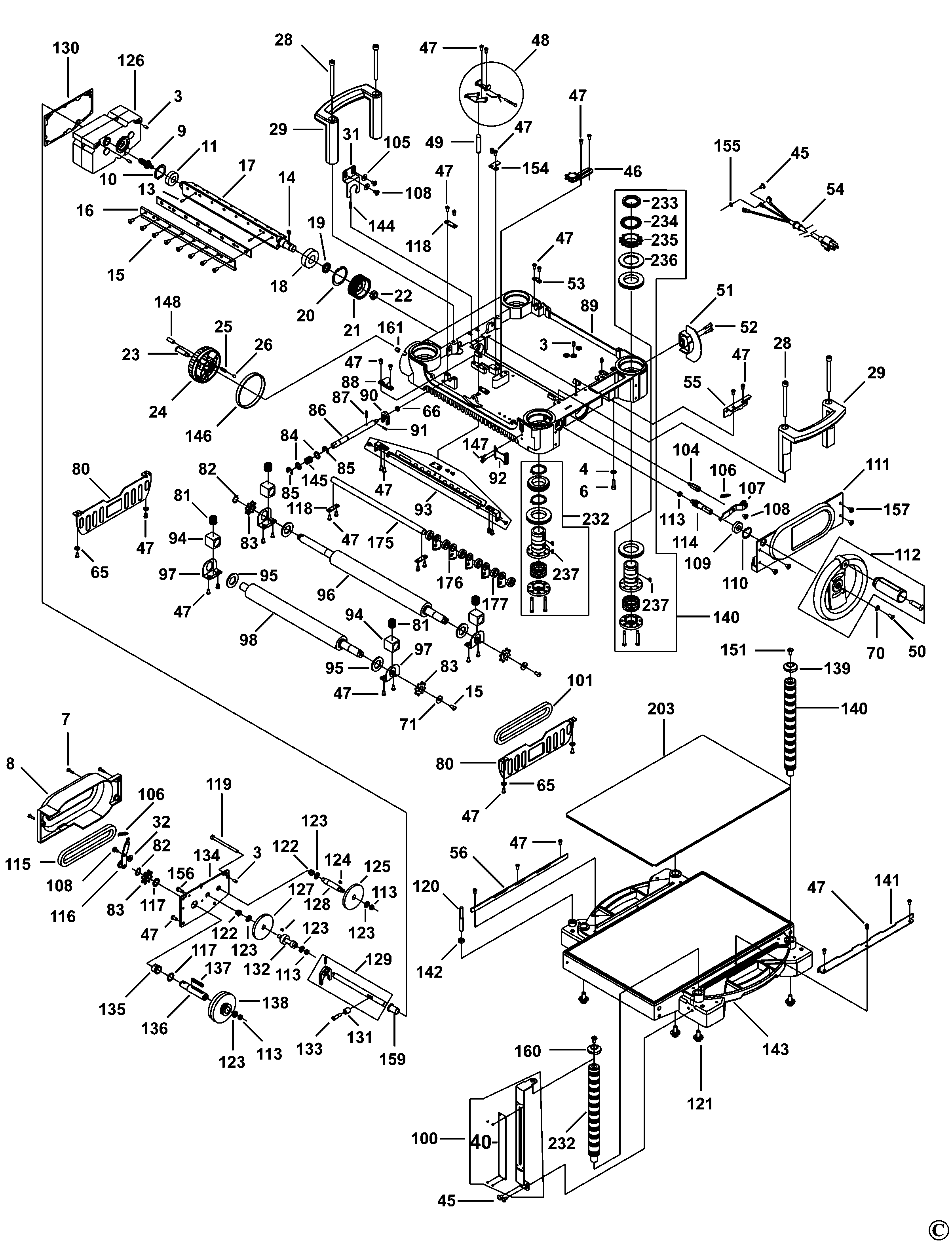

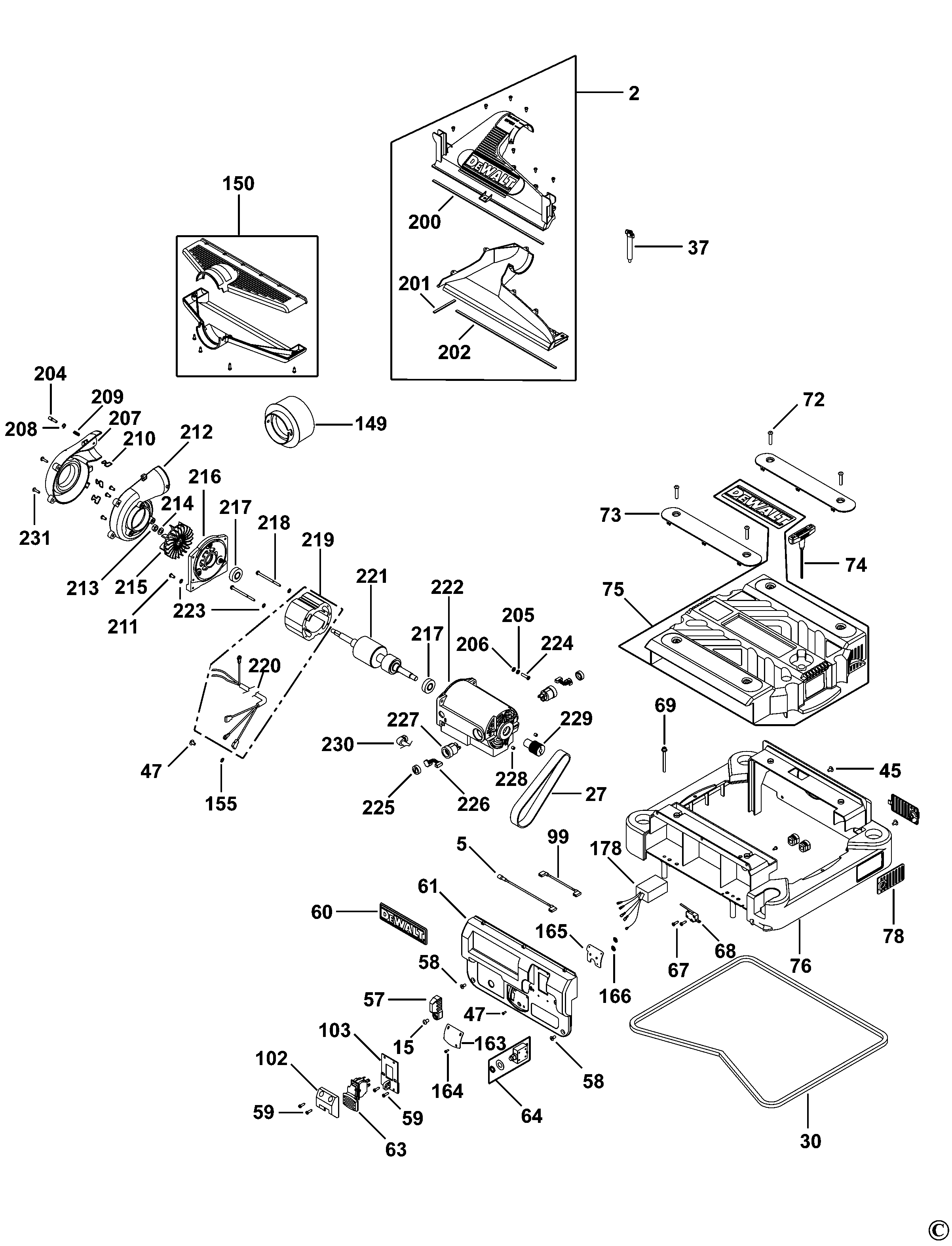

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
2 1 1 DUST SHROUD includes pads 200 201 202 (5140010-00) 15469 RON
3 1 6 PIN (5140010-04) 1630 RON
4 1 4 LOCK WASHER 6.1X12.3 (5140010-05) 588 RON
5 1 1 LEAD (5140010-06) 2182 RON
6 1 4 SCREW SELF TAPPING (5140010-07) 944 RON
7 1 3 5140010-08 - Indisponibil
7 1 3 5140011-90 - Indisponibil
7 1 3 SCREW (5140071-78) 588 RON
8 1 1 COVER LEFT SIDE (5140010-09) 5370 RON
9 1 1 SHAFT AND GEAR (5140010-10) 18568 RON
10 1 1 RETAINER (5140010-11) 781 RON
11 1 1 BEARING (285934-00) 5591 RON
13 1 6 PIN (5140010-14) 944 RON
14 1 1 KEY (5140010-15) 893 RON
15 1 1 PARTS PACK(KIT) (5140067-11) 15469 RON
15 1 31 5140010-16 - Indisponibil
16 1 3 BLADE HOLDER (5140010-17) 11337 RON
17 1 1 CUTTER HEAD (5140010-18) 113822 RON
18 1 1 BALL BEARING (5140010-19) 12361 RON
19 1 1 BUSHING (5140010-20) 944 RON
20 1 1 RETAINING RING (5140010-21) 1772 RON
21 1 1 PULLEY (5140010-22) 5031 RON
22 1 1 NUT (5140010-23) 1933 RON
23 1 1 SHAFT (5140010-24) 1933 RON
24 1 1 TURRET (5140010-25) 16689 RON
25 1 1 SPRING (5140011-69) 82 RON
25 1 1 5140010-26 - Indisponibil
26 1 1 BALL (5140010-27) 588 RON
27 1 1 V BELT (5140010-28) 32327 RON
28 1 4 SCREW CAP, M8X1.25X80 (5140010-29) 2182 RON
29 1 2 HANDLE (5140010-30) 12361 RON
30 1 1 CHAIN (5140010-31) 15469 RON
31 1 1 BRACKET (5140010-32) 2556 RON
32 1 1 WASHER (5140007-75) 5370 RON
37 1 3 BOLT (5140010-38) 4355 RON
40 1 1 5140007-81 - Indisponibil
45 1 8 SCREW (5140010-46) 588 RON
46 1 1 WHEEL ASSEMBLY TENSION (5140010-47) 4355 RON
47 1 38 SCREW M5X0.8X10 (5140010-48) 588 RON
48 1 1 INDICATOR ASSY (5140010-49) 3268 RON
49 1 1 PIN (5140010-50) 2182 RON
50 1 1 SCREW M6X1 (5140010-51) 668 RON
51 1 2 5140010-52 - Indisponibil
52 1 4 SCREW M5X0.8X20 (5140010-53) 5370 RON
53 1 1 CORD CLAMP (5140010-54) 82 RON
55 1 1 BRACKET (5140010-55) 2182 RON
56 1 1 PLATE GUIDE , LEFT (5140010-56) 2796 RON
57 1 1 LEVER SPEED SHIFT (5140010-57) 1630 RON
58 1 2 SCREW M5X0.8X10 (5140010-58) 588 RON
59 1 4 SCREW M4X1.59X10 (5140010-59) 588 RON
61 1 1 FRONT COVER (5140010-61) 10241 RON
63 1 1 5140007-77 - Indisponibil
64 1 1 CIRCUIT BREAKER (5140007-78) 741 RON
65 1 4 SCREW&LOCKWASH (5140007-79) 5370 RON
66 1 1 NUT M6 (429989-07) 588 RON
67 1 1 SCREW (5140007-80) 5370 RON
68 1 1 MICRO SWITCH (5140010-67) 4827 RON
69 1 2 CAP SCREW (5140010-68) 1630 RON
70 1 1 WASHER 6.3X13X1.0 (5140010-69) 588 RON
71 1 2 WASHER 6.7X19X2.0 (5140010-70) 588 RON
72 1 4 SCREW (5140078-32) 668 RON
72 1 4 5140010-71 - Indisponibil
73 1 2 PLATE SKID (5140010-72) 11337 RON
74 1 1 5140010-73 - Indisponibil
75 1 1 TOP COVER (5140010-74) 28836 RON
76 1 1 COVER ASSY (5140010-75) 18568 RON
78 1 2 COVER PLATE ASSY (5140010-76) 3268 RON
80 1 2 COVER SIDE (5140010-78) 4827 RON
81 1 4 SPRING (5140010-79) 1772 RON
82 1 2 RETAINING RING (5140010-80) 588 RON
83 1 4 SPROCKET (5140010-81) 2796 RON
84 1 2 WASHER (5140010-82) 588 RON
85 1 2 RETAINING RING (5140010-83) 588 RON
86 1 1 ROD SPEED SHIFT (5140010-84) 9012 RON
87 1 1 PIN 3X20 (5140010-85) 5370 RON
88 1 1 HOLDER (5140010-86) 2556 RON
89 1 1 CARRIAGE (5140010-87) 263063 RON
90 1 1 PAWL SPEED SHIFT (5140010-88) 1772 RON
91 1 1 PIN 3X12 (5140010-89) 588 RON
92 1 1 INDICATOR (5140010-90) 2556 RON
93 1 1 PLATE CONTACT (5140010-91) 6688 RON
94 1 4 BUSHING (5140010-92) 4355 RON
95 1 4 FELT (5140010-93) 2556 RON
96 1 1 REAR ROLLER (5140010-94) 51127 RON
97 1 4 BRACKET (5140019-90) 1772 RON
98 1 1 ROLLER FRONT (5140010-96) 42426 RON
99 1 1 LEAD (5140010-97) 2182 RON
101 1 1 CHAIN (5140010-99) 3954 RON
102 1 1 SWITCH COVER (5140011-00) 2796 RON
103 1 1 SWITCH PLATE (5140011-01) 2182 RON
104 1 1 SHAFT (5140011-02) 2796 RON
105 1 2 WASHER 6.5X16X0.8 (5140011-03) 588 RON
106 1 2 SPRING (5140011-04) 82 RON
107 1 1 IDLER SHAFT RIGHT (5140011-05) 3268 RON
108 1 4 SCREW SHOULDER (5140011-06) 668 RON
109 1 1 BALL BEARING (5140011-07) 5370 RON
110 1 1 RETAINING RING (5140011-08) 668 RON
111 1 1 COVER RIGHT SIDE (5140011-09) 5370 RON
112 1 1 CRANK HANDLE (5140011-10) 20216 RON
113 1 4 BUSHING (5140011-11) 944 RON
114 1 1 Gear (5140011-12) 15469 RON
115 1 1 CHAIN (5140011-13) 3268 RON
116 1 1 IDLER SHAFT LEFT (5140011-14) 2796 RON
117 1 2 WASHER (5140011-15) 668 RON
118 1 3 PLATE (5140011-16) 944 RON
119 1 3 CAP SCREW M6X1.0X85 (5140011-17) 944 RON
120 1 1 SHAFT (5140011-18) 1933 RON
121 1 4 CAP SCREW (5140011-19) 1772 RON
122 1 2 BUSHING (5140011-20) 82 RON
123 1 1 WASHER (5140007-82) 588 RON
124 1 2 KEY 4X4X7 (5140011-22) 944 RON
125 1 1 Gear (5140011-23) 18568 RON
126 1 1 GEAR CASE (5140011-24) 40734 RON
127 1 1 Gear (5140011-25) 23244 RON
128 1 1 Gear (5140011-26) 13697 RON
129 1 1 PAWL ASSY, SPEED SHIFT (5140011-27) 12361 RON
130 1 1 SHIM (5140011-28) 3954 RON
131 1 1 SPACER (5140011-29) 82 RON
132 1 1 Gear (5140011-30) 20216 RON
133 1 1 SCREW SHOULDER (5140011-31) 82 RON
134 1 1 GEAR CASE COVER (5140011-32) 4827 RON
135 1 1 BUSHING (5140011-33) 1933 RON
136 1 1 ROD (5140011-34) 15469 RON
137 1 1 KEY 5X5X40 (5140011-35) 1318 RON
138 1 1 Gear (5140011-36) 40734 RON
139 1 3 CAP POST (5140011-37) 944 RON
140 1 3 POST AASY, DRIVEN SCREW (5140011-93) 104961 RON
141 1 1 PLATE GUIDE LEFT (5140011-39) 2556 RON
142 1 1 NUT (429989-57) 558 RON
143 1 1 BASE (5140014-58) 228616 RON
144 1 1 SPRING (5140011-43) 82 RON
145 1 1 SPRING (5140011-44) 944 RON
146 1 1 SCALE (5140007-83) 2796 RON
147 1 2 SCREW M4X0.7X6 (5140011-46) 588 RON
148 1 1 SET SCREW M8X1.25X25 (5140011-47) 944 RON
149 1 1 ADAPTER (5140011-48) 5370 RON
150 1 1 DUST CHUTE (5140011-49) 11337 RON
151 1 4 SCREW & WASHER (5140007-84) 944 RON
154 1 1 PLATE (5140011-51) 944 RON
155 1 2 LOCK WASHER EXTERNAL TOO TH (5140011-52) 588 RON
156 1 1 SCREW SHOULDER (5140011-53) 668 RON
157 1 4 SCREW (5140011-54) 944 RON
159 1 1 BUSHING (5140011-55) 5370 RON
160 1 1 CAP POST (5140011-56) 944 RON
161 1 1 INDICATOR (5140011-57) 944 RON
163 1 1 SCALE PLATE (5140007-85) 5370 RON
164 1 4 SCREW M3X0.5X10 (5140011-60) 588 RON
165 1 1 PLATE (5140011-61) 1772 RON
166 1 2 RETAINING RING (5140011-62) 588 RON
175 1 1 SHAFT (5140007-86) 15469 RON
176 1 33 ANTI-KICKBACK (5140007-87) 4355 RON
177 1 34 COLLAR (5140007-88) 668 RON
178 1 1 CAPACITOR (5140006-47) 21676 RON
200 1 1 PAD (5140010-01) 588 RON
201 1 1 PAD (5140010-02) 588 RON
202 1 1 PAD (5140010-03) 588 RON
203 1 1 BASE (5140014-58) 228616 RON
204 1 1 PIN (5140011-64) 944 RON
205 1 4 Washer Lock (5140011-65) 558 RON
206 1 4 WASHER (5140011-66) 588 RON
207 1 1 FAN HOUSING LEFT (5140011-67) 5370 RON
208 1 1 RETAINING RING (5140011-68) 588 RON
209 1 1 SPRING (5140011-69) 82 RON
210 1 3 SPRING CLIP (5140011-70) 944 RON
211 1 4 SCREW M5X0.8X10 (5140010-48) 588 RON
212 1 1 5140011-71 - Indisponibil
212 1 1 HOUSING (5140103-77) 15469 RON
213 1 1 NUT NYLON (5140011-72) 588 RON
214 1 1 WASHER (5140007-89) 588 RON
215 1 1 FAN ASSEMBLY (5140011-74) 741 RON
216 1 1 CAP MOTOR (5140011-75) 18568 RON
217 1 2 BALL BEARING (5140011-76) 6688 RON
218 1 2 SCREW (5140011-77) 588 RON
219 1 1 FIELD (1004481-01) 28836 RON
221 1 1 ARMATURE (5140007-99) 73079 RON
222 1 1 MOTOR HOUSING (5140011-81) 21676 RON
223 1 3 LOCK WASHER EXTERNAL TOO TH (5140011-52) 588 RON
224 1 4 SCREW M5X0.8X20 (5140011-83) 588 RON
225 1 2 BRUSH CAP (5140011-84) 944 RON
226 1 1 BRUSH PAIR (5170041-70) 741 RON
226 1 2 5140008-17 - Indisponibil
227 1 2 BRUSH HOLDER (5140011-86) 4355 RON
228 1 2 SCREW (5140011-87) 781 RON
229 1 1 PULLEY (5140011-88) 10241 RON
230 1 1 STRAIN RELIEF (5140011-89) 944 RON
231 1 1 5140011-90 - Indisponibil
231 1 1 SCREW (5140071-78) 588 RON
232 1 1 POST (5140011-92) 113822 RON
233 1 4 NUT (5140010-34) 3954 RON
234 1 4 WASHER LOCK (5140010-35) 944 RON
235 1 4 SPROCKET (5140010-36) 4355 RON
236 1 4 PLATE (5140011-58) 944 RON
237 1 3 KEY (5140010-39) 944 RON
