RINDEA PENTRU DEGROSAT DEWALT DW734 Type 1
[DW734 Type 1]
RINDEA PENTRU DEGROSAT DEWALT DW734 Type 1
Click pentru a mari
Imagini suplimentare
RINDEA PENTRU DEGROSAT DEWALT DW734 Type 1
Click pentru a mari
RINDEA PENTRU DEGROSAT DEWALT DW734 Type 1
Click pentru a mari
RINDEA PENTRU DEGROSAT DEWALT DW734 Type 1
Click pentru a mari

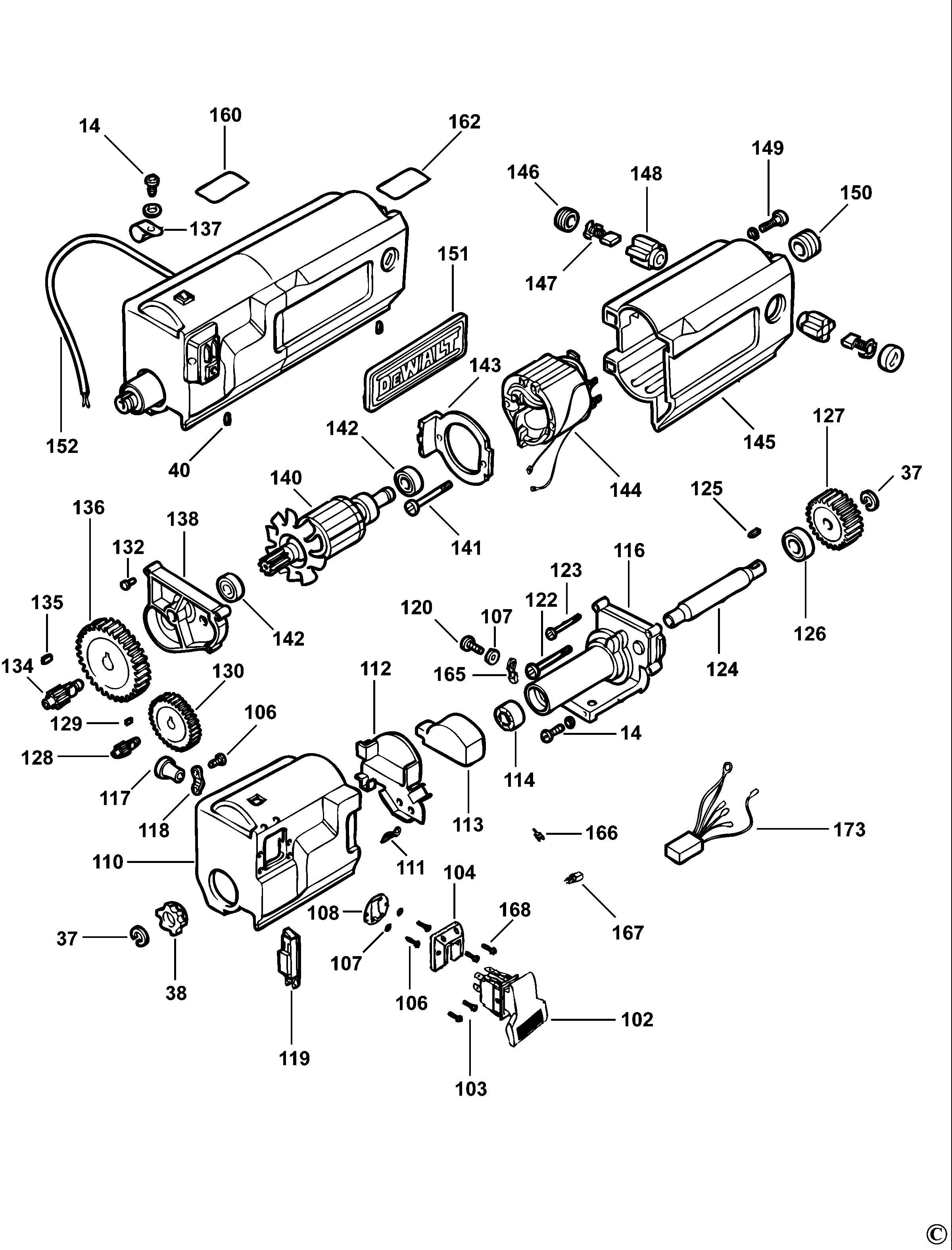

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 4 SCREW (286052-00) 558 RON
2 1 1 PLATE (285895-00) 4472 RON
3 1 1 SIDE LH (285896-00) 6821 RON
4 1 4 SCREW SPECIAL dw733 (429699-00) 781 RON
6 1 1 CHAIN (429962-05) 5031 RON
7 1 1 SCREW (285899-00) 5031 RON
11 1 2 TABLE (285903-00) 28296 RON
12 1 6 NUT M6 (286256-00) 558 RON
14 1 15 SCREW (429669-00) 558 RON
15 1 2 PLATE (285907-00) 1117 RON
16 1 2 SPROCKET (285908-00) 3018 RON
17 1 4 SCREW (285909-00) 558 RON
18 1 1 5140006-90 - Indisponibil
19 1 1 SIDE RH (285911-00) 5591 RON
20 1 1 SCALE (285912-00) 2347 RON
21 1 2 PLATE (285913-00) 1117 RON
22 1 4 SCREW (285914-00) 781 RON
23 1 1 SCREW (285915-00) 5591 RON
24 1 4 STRUT (285916-00) 9282 RON
25 1 1 NUT M5 (285917-00) 558 RON
26 1 1 SCREW (098022-25) 558 RON
26 1 1 98022-25 - Indisponibil
27 1 1 5140007-95 - Indisponibil
28 1 1 5140007-94 - Indisponibil
29 1 1 5140007-93 - Indisponibil
30 1 1 5140007-92 - Indisponibil
31 1 4 5140007-96 - Indisponibil
32 1 1 COVERPLATE (285923-00) 17335 RON
33 1 2 GUIDE (285924-00) 2124 RON
34 1 4 SCREW (285925-00) 558 RON
35 1 10 429991-05 - Indisponibil
36 1 1 COVER (285926-00) 2124 RON
37 1 4 RETAINER (285927-00) 781 RON
38 1 3 SPROCKET (285928-00) 190 RON
39 1 1 COLLAR (5140006-89) 3268 RON
40 1 2 PIN (285930-00) 558 RON
41 1 2 SCREW.SPECIAL (429670-00) 558 RON
43 1 1 CIRCLIP (285933-00) 781 RON
44 1 1 BEARING (285934-00) 5591 RON
45 1 2 SCREW (285935-00) 781 RON
46 1 2 SCREW (285936-00) 781 RON
47 1 1 INDICATOR (285937-00) 190 RON
48 1 1 SCREW (285938-00) 893 RON
49 1 1 CONTACT PLATE (285939-00) 2347 RON
50 1 2 5140006-85 - Indisponibil
51 1 1 5140007-91 - Indisponibil
52 1 3 SCREW (330024-00) 558 RON
53 1 1 5140006-88 - Indisponibil
54 1 2 SCREW (429962-02) 558 RON
55 1 1 POINTER (429962-06) 105 RON
56 1 2 5140006-84 - Indisponibil
56 1 1 NA172788 - Indisponibil
57 1 4 5140006-82 - Indisponibil
58 1 2 SPRING (285946-00) 105 RON
59 1 2 5140006-83 - Indisponibil
59 1 1 NA172788 - Indisponibil
60 1 1 SPRING (285948-00) 781 RON
61 1 1 COVER (285949-00) 190 RON
64 1 1 STUD (285952-00) 1117 RON
65 1 1 NUT (285953-00) 558 RON
66 1 2 BRACKET (285954-00) 3466 RON
67 1 2 CIRCLIP (285955-00) 781 RON
68 1 1 CON ROD SA (285956-00) 20467 RON
69 1 2 SPRING (285957-00) 893 RON
70 1 4 SCREW.SPECIAL (429673-00) 558 RON
71 1 2 BRACKET (285959-00) 3466 RON
72 1 2 CHAIN (285960-00) 2795 RON
73 1 3 SPRING (285961-00) 1117 RON
74 1 1 5140006-87 - Indisponibil
75 1 1 5140006-81 - Indisponibil
76 1 1 BEARING (285964-00) 7940 RON
77 1 1 CIRCLIP (285965-00) 105 RON
78 1 1 PULLEY (429962-07) 10512 RON
78 1 1 PULLEY (5140010-22) 5031 RON
79 1 1 NUT (285967-00) 105 RON
80 1 1 BELT (429962-08) 20467 RON
81 1 1 KEY (285969-00) 781 RON
82 1 3 5140006-79 - Indisponibil
83 1 3 SCREW (285971-00) 781 RON
86 1 24 5140010-16 - Indisponibil
87 1 3 SEAL (285975-00) 781 RON
88 1 1 DEFLECTOR (285976-00) 12861 RON
89 1 1 SEAL (285977-00) 781 RON
90 1 1 5140006-77 - Indisponibil
91 1 2 SCREW (429674-00) 558 RON
93 1 2 HANDLE (285981-00) 6821 RON
94 1 4 CLIP (285982-00) 558 RON
95 1 1 5140006-76 - Indisponibil
96 1 4 SCREW (285984-00) 781 RON
97 1 1 5140007-90 - Indisponibil
101 1 1 SCREW (429962-03) 893 RON
102 1 1 5140017-62 - Indisponibil
103 1 2 285991-00 - Indisponibil
104 1 1 285992-00 - Indisponibil
105 1 2 SCREW (429674-00) 558 RON
106 1 4 SCREW (285994-00) 558 RON
107 1 3 WASHER (285995-00) 558 RON
108 1 1 COVERPLATE (285996-00) 1452 RON
110 1 1 HOUSING SWITCH (285998-00) 9282 RON
111 1 3 PIN (285999-00) 558 RON
112 1 1 PLATE (286000-00) 105 RON
113 1 1 SEAL (286001-00) 781 RON
114 1 1 BEARING (286002-00) 5591 RON
116 1 1 GEARCASE SA (286003-00) 22144 RON
117 1 1 CORD PROTECTOR (286004-00) 781 RON
118 1 1 CORD CLAMP (286005-00) 781 RON
119 1 1 5140017-63 - Indisponibil
120 1 3 SCREW SPECIAL (429672-00) 558 RON
121 1 6 BOLT (489128-00) 558 RON
121 1 6 BOLT (98023-20) 558 RON
122 1 1 SCREW (286009-00) 781 RON
123 1 3 SCREW (286010-00) 781 RON
124 1 1 SPINDLE (286011-00) 5591 RON
125 1 1 WOODRUFF KEY (286012-00) 893 RON
126 1 1 BEARING (286013-00) 5591 RON
127 1 1 GEAR (286014-00) 7940 RON
128 1 1 5140006-92 - Indisponibil
129 1 1 WOODRUFF KEY (286016-00) 893 RON
130 1 1 5140006-93 - Indisponibil
132 1 2 BUSHING (286018-00) 781 RON
134 1 1 SPINDLE (286019-00) 5591 RON
135 1 1 WOODRUFF KEY (286020-00) 893 RON
136 1 1 5140006-91 - Indisponibil
137 1 1 CLAMP (286022-00) 558 RON
138 1 1 GEARCASE COVER (286023-00) 7940 RON
140 1 1 5140017-64 - Indisponibil
141 1 2 SCREW (286026-00) 781 RON
142 1 1 BEARING (286027-00) 5031 RON
143 1 1 BAFFLE (286028-00) 5591 RON
144 1 1 5140017-65 - Indisponibil
145 1 1 FIELDCASE (286030-00) 17335 RON
146 1 2 BRUSH CAP (286031-00) 558 RON
147 1 2 5140017-66 - Indisponibil
148 1 2 BRUSH HOLDER (286033-00) 4137 RON
149 1 2 SCREW (286034-00) 558 RON
150 1 1 DRIVE PULLEY (429962-00) 6821 RON
151 1 1 IDENTITY LABEL (286036-00) 2347 RON
154 1 1 286040-00 - Indisponibil
156 1 1 WRENCH (286039-00) 2124 RON
160 1 1 622882-00 - Indisponibil
161 1 1 382589-00 - Indisponibil
162 1 1 618560-00 - Indisponibil
163 1 1 382588-00 - Indisponibil
164 1 1 382586-00 - Indisponibil
165 1 1 TERMINAL (94593-03) 781 RON
166 1 5 TERMINAL (450213-00) 781 RON
167 1 1 TERMINAL (450212-00) 781 RON
168 1 1 286424-00 - Indisponibil
169 1 1 SPRING (286425-00) 558 RON
170 1 1 5140007-97 - Indisponibil
173 1 1 CAPACITOR (5140006-47) 21676 RON
174 1 2 BUMPER (429676-00) 781 RON
175 1 6 SCREW (330045-13) 558 RON
177 1 2 5140006-83 - Indisponibil
177 1 1 NA172788 - Indisponibil
178 1 1 SPROCKET (5140010-81) 2796 RON
179 1 1 VACUUM ADAPTOR (429615-00) 3466 RON
180 1 1 5140006-97 - Indisponibil
181 1 1 5140010-73 - Indisponibil
182 1 6 PIN (5140010-14) 944 RON
183 1 4 WASHER NOT STOCKED (5140006-96) 3268 RON
184 1 1 386411-00 - Indisponibil
800 1 1 GREASE (286445-00) 14265 RON
