Top » Piese de schimb » PIESE DEWALT » DW733 Type 11

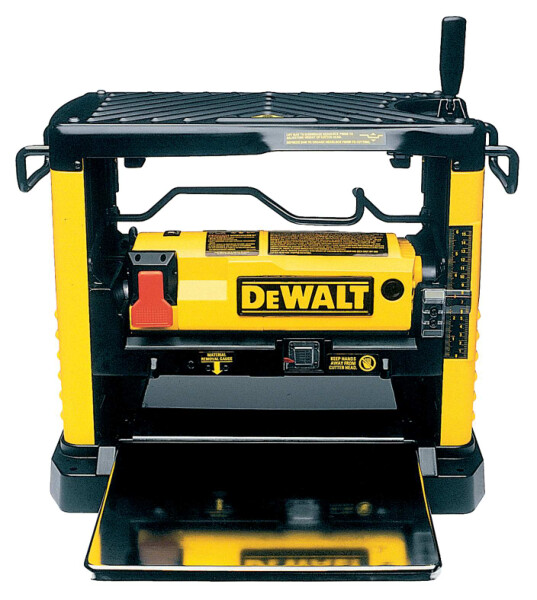

RINDEA PENTRU DEGROSAT DEWALT DW733 Type 11
[DW733 Type 11]
RINDEA PENTRU DEGROSAT DEWALT DW733 Type 11
Click pentru a mari
Imagini suplimentare
RINDEA PENTRU DEGROSAT DEWALT DW733 Type 11
Click pentru a mari
RINDEA PENTRU DEGROSAT DEWALT DW733 Type 11
Click pentru a mari
RINDEA PENTRU DEGROSAT DEWALT DW733 Type 11
Click pentru a mari
RINDEA PENTRU DEGROSAT DEWALT DW733 Type 11
Click pentru a mari
RINDEA PENTRU DEGROSAT DEWALT DW733 Type 11
Click pentru a mari
RINDEA PENTRU DEGROSAT DEWALT DW733 Type 11
Click pentru a mari

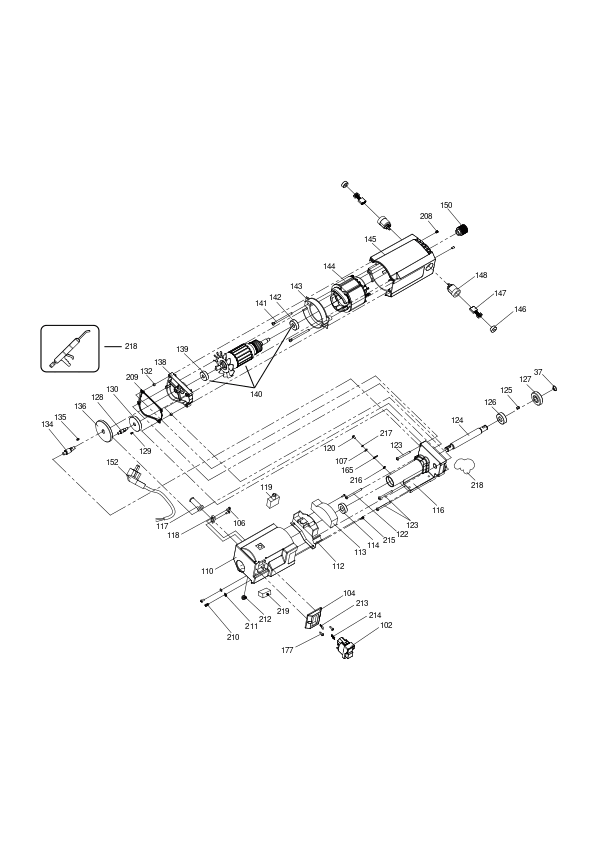

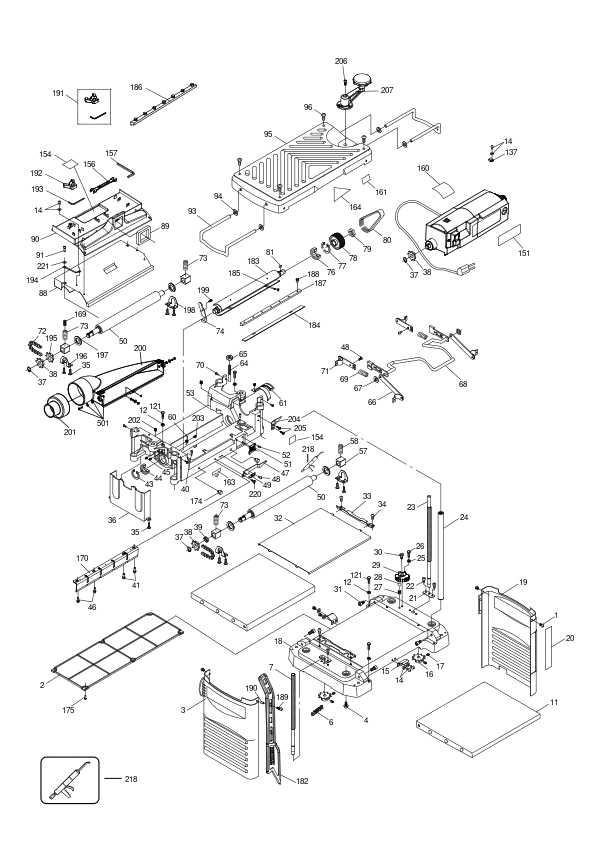

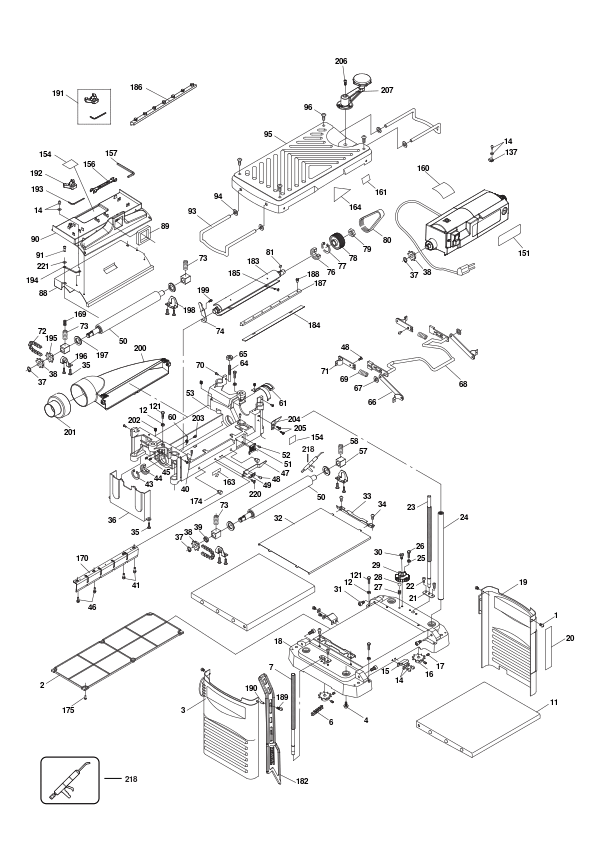

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 3 SCREW (N467888) 588 RON
2 1 1 BOTTOM PLATE (N887869) 13697 RON
3 1 1 COVER (N467889) 16689 RON
4 1 4 SCREW SPECIAL (N467890) 1772 RON
6 1 1 CHAIN (N467912) 18568 RON
11 1 2 TABLE ASSEMBLY (N470337) 24962 RON
12 1 6 NUT (N467874) 588 RON
15 1 2 PLATE (N467910) 1318 RON
16 1 2 SPROCKET (N467911) 2556 RON
17 1 4 SCREW (N467907) 944 RON
18 1 1 BASE (N907186) 249223 RON
19 1 1 COVER (N467891) 16689 RON
20 1 1 LABEL - SCALE (382590-00) 668 RON
21 1 1 PLATE (N467913) 82 RON
22 1 4 SCREW (N467906) 668 RON
23 1 1 DRIVING ROD (N467908) 6688 RON
24 1 4 STRUT (N467883) 12361 RON
25 1 1 NUT (N467887) 588 RON
27 1 1 SPRING (N467878) 588 RON
28 1 1 BALL STEEL (N467881) 588 RON
29 1 1 TURRET (N887827) 3268 RON
30 1 1 TURRET SCREW (N467885) 668 RON
31 1 1 SCREW (N467905) 1772 RON
32 1 1 PLATE (N467882) 13697 RON
33 1 2 PLATE GUIDE (N467880) 1318 RON
34 1 4 SCREW (N467879) 588 RON
35 1 10 SCREW (N467857) 588 RON
36 1 1 CHAIN COVER (N467875) 2556 RON
37 1 4 RETAINING RING (N467846) 588 RON
38 1 3 SPROCKET (N467844) 114 RON
39 1 1 COLLAR (N467848) 668 RON
40 1 2 PIN (N470447) 588 RON
41 1 2 SCREW (N470449) 588 RON
43 1 1 RETAINING RING (N467839) 588 RON
44 1 1 BEARING (N467841) 2796 RON
45 1 2 SCREW (N467868) 588 RON
46 1 2 SCREW (N467872) 588 RON
47 1 1 INDICATOR (N467864) 944 RON
48 1 2 SCREW (N467713) 588 RON
49 1 1 SPRING PLATE (N471077) 114 RON
50 1 2 ROLLER (N467842) 24962 RON
51 1 1 COVER (N887866) 2182 RON
52 1 3 SCREW (N467865) 588 RON
53 1 1 HEAD (N907194) 10889 RON
57 1 4 BUSHING (N467840) 1933 RON
58 1 1 SPRING (N467849) 588 RON
60 1 1 SPRING (N467853) 588 RON
61 1 1 COVER (N887865) 1933 RON
64 1 1 STUD (N467859) 1630 RON
65 1 1 NUT (N467860) 588 RON
66 1 2 BRACKET (N468242) 668 RON
67 1 2 RETAINING RING (N468243) 588 RON
68 1 1 ROD ASSEMBLY (N468241) 18568 RON
69 1 2 SPRING (N467706) 588 RON
70 1 4 SCREW (N467710) 82 RON
71 1 2 BRACKET (N468240) 668 RON
72 1 2 CHAIN (N467852) 4827 RON
73 1 3 CHAIN WHEEL SPRING (N467850) 588 RON
74 1 1 LOCK LEVER (N467854) 668 RON
76 1 1 BALL (N467723) 3954 RON
77 1 1 RETAINING RING (N467724) 588 RON
78 1 1 PULLEY (N893621) 12361 RON
79 1 1 NUT (N467725) 588 RON
80 1 1 BELT (N467726) 33797 RON
81 1 1 KEY (N467728) 588 RON
88 1 1 DEFLECTOR ASSY. (N468248) 12361 RON
89 1 1 SEAL (N467956) 82 RON
90 1 1 TRAY (N887830) 4355 RON
91 1 2 SCREW (N887829) 668 RON
93 1 2 HANDLE (N467693) 4827 RON
94 1 4 CIRCLIP (N467694) 1318 RON
95 1 1 COVER HOUSING (N907191) 42426 RON
96 1 4 SCREW (N467696) 588 RON
102 1 1 SWITCH (N885757) 16689 RON
104 1 1 SWITCH COVER (N888418) 668 RON
107 1 1 SCREW (N467957) 588 RON
110 1 1 HOUSING-SWITCH (N467914) 16689 RON
112 1 1 COVER (N888422) 2182 RON
113 1 1 DUST SEAL (N470369) 588 RON
114 1 1 BALL BEARING (N467930) 2182 RON
116 1 1 GEAR CASE ASSY. (N470357) 13697 RON
117 1 1 STRAIN RELIEF (N467959) 588 RON
118 1 1 CORD CLAMP (N467962) 588 RON
119 1 1 CIRCUIT BREAKER (NA072173) 4355 RON
120 1 1 SCREW (N467931) 588 RON
121 1 6 SCREW (N467871) 588 RON
122 1 1 SCREW (N467934) 588 RON
123 1 3 SCREW (N467931) 588 RON
124 1 1 SPINDLE (N467932) 3954 RON
125 1 1 KEY (N467728) 588 RON
126 1 1 BEARING (N467841) 2796 RON
127 1 1 Gear (N467939) 12361 RON
128 1 1 GEAR SHAFT (N467938) 5370 RON
129 1 1 KEY (N467937) 588 RON
130 1 1 Gear (N467940) 741 RON
132 1 2 PIN (N467941) 588 RON
134 1 1 GEAR SHAFT (N467943) 5370 RON
135 1 1 KEY (N467944) 588 RON
136 1 1 Gear (N467942) 741 RON
137 1 1 CLAMP (N467963) 588 RON
138 1 1 GEAR CASE COVER (N470363) 4827 RON
139 1 1 BALL BEARING (N467917) 2796 RON
140 1 1 ARMATURE (N888136) 60451 RON
141 1 2 SCREW (N467915) 588 RON
142 1 1 BALL BEARING (N467922) 2556 RON
143 1 1 BAFFLE (N467921) 588 RON
144 1 1 FIELD SA (N888137) 55455 RON
145 1 1 FIELD CASE (N467916) 20216 RON
146 1 2 BRUSH CAP (N467923) 588 RON
147 1 2 BRUSH (N885811) 5370 RON
148 1 2 BRUSH HOLDER (N467925) 1772 RON
150 1 1 PINION (N893620) 3268 RON
151 1 1 IDENTITY LABEL (N099201) 1318 RON
154 1 2 WARNING LABEL (390085-00) 668 RON
156 1 1 WRENCH (N467698) 3954 RON
157 1 1 KEY (N887868) 1772 RON
161 1 1 LABEL (390084-00) 588 RON
163 1 1 LABEL (390083-00) 588 RON
165 1 1 BALL BEARING (N467930) 2182 RON
169 1 1 SPRING (N467851) 588 RON
170 1 1 ANTI KICK BACK (N887860) 13697 RON
174 1 2 BUMPER (N467870) 668 RON
175 1 1 SCREW (N887870) 588 RON
182 1 1 PUSHROD (N887825) 741 RON
183 1 1 CUTTER BLOCK (N887852) 96047 RON
184 1 1 BLADE PAIR (N887854) 85494 RON
185 1 4 SCREW-M4 X 0.7P X 20 (N887857) 588 RON
186 1 2 CLAMP SA (N922921) 16689 RON
187 1 2 BLADE CLAMP (N887853) 13697 RON
188 1 1 SCREW-1/4 -28NF X 7MM (N887856) 114 RON
190 1 1 BUSHING (N887826) 588 RON
191 1 1 PARTS PACK (N922947) 3954 RON
192 1 1 GUIDE (N887859) 3954 RON
193 1 1 HEX KEY (N887867) 668 RON
194 1 2 CONNECTOR (N887834) 588 RON
195 1 1 SHORT SPROCKET (N467845) 944 RON
196 1 2 BRACKET RH (N467843) 114 RON
197 1 4 WASHER (N467838) 1772 RON
198 1 2 BRACKET LH (N467847) 114 RON
199 1 1 SCREW (N467855) 588 RON
200 1 1 DUST PORT (NA073155) 16689 RON
201 1 1 VACUUM ADAPTOR (N467717) 1933 RON
202 1 2 COIL (N535059) 944 RON
203 1 1 SCREW (N536396) 588 RON
204 1 1 POINTER (N467863) 82 RON
205 1 2 SCREW (N470208) 588 RON
206 1 2 SCREW (N887843) 588 RON
207 1 1 HANDLE SA (N893619) 6688 RON
208 1 2 SCREW (N467926) 588 RON
209 1 1 SEAL (N470365) 668 RON
210 1 2 SCREW (N467955) 588 RON
211 1 2 WASHER (N470433) 588 RON
212 1 1 PROTECTOR (N894413) 588 RON
213 1 6 PLUG (N470434) 588 RON
214 1 6 SLEEVE (N470435) 588 RON
215 1 2 SCREW (N467957) 588 RON
216 1 1 WASHER (N894412) 588 RON
217 1 1 WASHER SPRING (N894409) 588 RON
218 1 1 GREASE (N470364) 588 RON
219 1 1 CAPACITOR (N885790) 48037 RON
220 1 1 INDICATOR SCREW (N467866) 588 RON
221 1 1 WASHER (NA114663) 1772 RON
501 1 1 SCREW KIT (5170078-91) 2796 RON
